YH61V-QBB (1985)
Toyota Hiace Van,Wagon

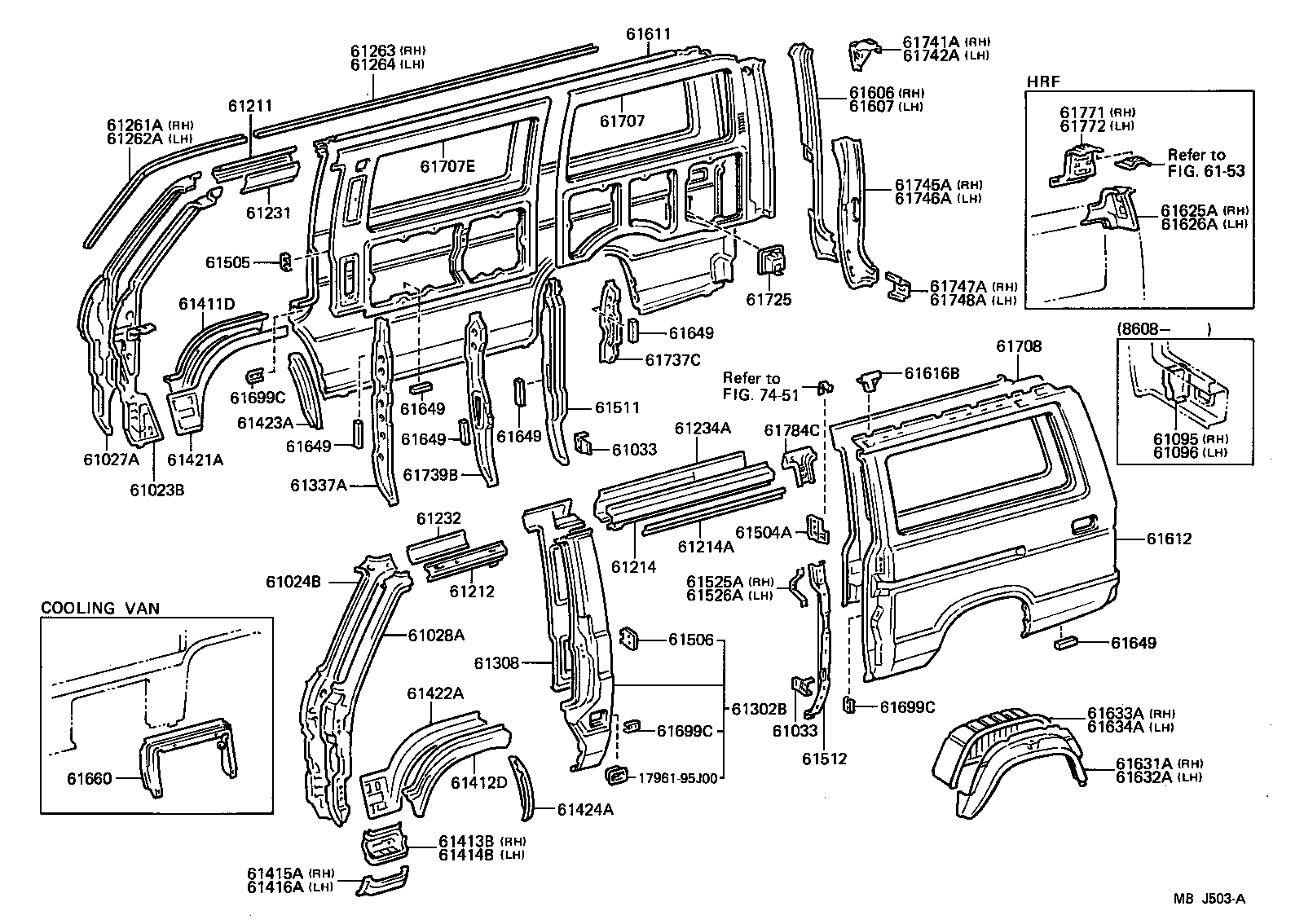

ILLUST NO. 1 OF 2(8508- )LH51,61,YH61..COM,WG ; (8508- )LH5#,6#,YH50,61..V4D ; (8508- )YH51
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-95J00 |
LH5#,6#,7#,YH5#,6#,71..CTD,DLX,GL,STD |
1 | ||
| 61023-95J06 |
LH5#,6#,71,YH5#,6#,71..CTD,DLX,GL |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-95J00 |
LH5#,6#,7#,YH5#,6#,71..CTD,DLX,GL,STD |
1 | ||
| 61024-95J04 |
LH5#,6#,71,YH5#,6#,71..CTD,DLX,GL |
1 | ||
| 61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH | ||||
| 61028-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61033 - EXTENSION SUB-ASSY, QUARTER LOCK PILLAR | ||||
| 61033-95J00 |
LH6#,YH6#..ST RH |
1 | ||
| 61033-95J00 |
LH6#,7#,YH6#,71..ST LH |
1 | ||
| 61033 - EXTENSION SUB-ASSY, QUARTER LOCK PILLAR | ||||
| 61033-95J00 |
LH6#,YH6#..ST RH |
1 | ||
| 61033-95J00 |
LH6#,7#,YH6#,71..ST LH |
1 | ||
| 61095 - PLATE SUB-ASSY, BACK DOOR OPENING, LOWER RH | ||||
| 61095-95J00 |
LH5#,6#,71,YH5#,6#,71 |
1 | ||
| 61096 - PLATE SUB-ASSY, BACK DOOR OPENING, LOWER LH | ||||
| 61096-95J00 |
LH5#,6#,71,YH5#,6#,71 |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61214 - RAIL, ROOF SIDE, OUTER REAR LH | ||||
| 61204-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61214A - RETAINER, SLIDE DOOR WEATHERSTRIP, LH | ||||
| 67161-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-95J00 |
LH5#,6#,7#,YH5#,6#,71..V |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-95J00 |
LH5#,6#,7#,YH5#,6#,71..V |
1 | ||
| 61234A - RAIL, ROOF SIDE, INNER NO.2 LH | ||||
| 61234-95J00 |
LH5#,6#,7#,YH50,52,6#,71..03S,05S,06S |
1 | ||
| 61261A - CHANNEL, ROOF DRIP SIDE, FRONT RH | ||||
| 61263-95J01 |
LH5#,6#,71,YH5#,6#,71 |
1 | ||
| 61263-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61262A - CHANNEL, ROOF DRIP SIDE, FRONT LH | ||||
| 61264-95J00 |
LH5#,6#,71,YH5#,6#,71 |
1 | ||
| 61264-95J01 |
LH5#,6#,71,YH5#,6#,71 |
1 | ||
| 61263 - CHANNEL, ROOF DRIP, REAR RH | ||||
| 61267-95J05 |
LH5#,6#,71,YH5#,6#,71 |
1 | ||
| 61267-95J02 |
LH51,61,71,YH5#,6#,71 |
1 | ||
| 61267-95J01 |
LH6#,YH6# |
1 | ||
| 61264 - CHANNEL, ROOF DRIP, REAR LH | ||||
| 61268-95J05 |
LH5#,6#,71,YH5#,6#,71 |
1 | ||
| 61268-95J01 |
LH6#,YH6# |
1 | ||
| 61268-95J02 |
LH51,61,71,YH5#,6#,71 |
1 | ||
| 61302B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61302-95J02 |
LH50,60,70,YH5#,61,71..(V,WG)..ST W/*EL |
1 | ||
| 61302-95J00 |
LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,STD |
1 | ||
| 61302-95J09 |
LH5#,6#,71,YH5#,6#,71..CTD,CTM,DLX,GL |
1 | ||
| 61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH | ||||
| 61308-95J00 |
LH50,60,70,YH50,61,71..(03S,06S)..ST |
1 | ||
| 61308-95J26 |
LH51,61,YH5#,6#..SRF..(03S,05S,06S)..ST W/SEPARATOR CURTAIN |
1 | ||
| 61308-95J23 |
LH51,61,YH5#,6#..SRF..(03S,05S,06S)..ST |
1 | ||
| 61308-95J12 |
LH51,61,YH61..VSP..ST COOLING VAN |
1 | ||
| 61308-95J24 |
LH51,61,YH5#,6#..SRF..(03S,05S,06S)..ST |
1 | ||
| 61337A - REINFORCEMENT, CENTER BODY PILLAR, INNER RH | ||||
| 61337-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61411D - PANEL, FENDER, OUTER RH | ||||
| 61411-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61412D - PANEL, FENDER, OUTER LH | ||||
| 61412-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61413B - PANEL, FRONT STEP, RH | ||||
| 61413-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61414B - PANEL, FRONT STEP, LH | ||||
| 61414-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61415A - PANEL, FRONT STEP, UNDER, RH | ||||
| 61415-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61416A - PANEL, FRONT STEP UNDER, LH | ||||
| 61416-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61421A - PANEL, FENDER, INNER RH | ||||
| 61421-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61422A - PANEL, FENDER, INNER LH | ||||
| 61422-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61423A - PANEL, FENDER, INNER LOWER RH | ||||
| 61423-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61424A - PANEL, FENDER, INNER LOWER LH | ||||
| 61424-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61504A - REINFORCE SUB-ASSY, SLIDE DOOR LOCK STRIKER, LH | ||||
| 61504-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61505 - REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, RH | ||||
| 61505-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61506 - REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, LH | ||||
| 61506-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61511 - PILLAR, QUARTER LOCK, RH | ||||
| 61511-95J01 |
LH5#,6#,YH50,61..V4D;LH50,51,60,61,YH61..COM,WG;YH51,52,62..03S,07S,08S,09S |
1 | ||
| 61512 - PILLAR, QUARTER LOCK, LH | ||||
| 61502-95J04 |
LH60,61,YH61..VSP..ST |
1 | ||
| 61606 - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH | ||||
| 61705-95J02 |
LH5#,6#,YH5#,6#..MRF,SRF |
1 | ||
| 61705-95J00 |
LH5#,6#,YH5#,6#..MRF,SRF |
1 | ||
| 61607 - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH | ||||
| 61706-95J02 |
LH5#,6#,YH5#,6#..MRF,SRF |
1 | ||
| 61706-95J00 |
LH5#,6#,YH5#,6#..MRF,SRF |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-95J08 |
LH60,61,YH61..VSP..ST |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-95J07 |
LH60,61,YH61..VSP..ST |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-95J00 |
LH5#,6#,7#,YH5#,6#,71..(COM,V)..ST |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-95J00 |
LH5#,6#,7#,YH5#,6#,71..(COM,V)..ST |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61633-95J00 |
LH5#,6#,7#,YH5#,6#,71..V..ST |
1 | ||
| 61633-95J01 |
LH5#,6#,71,YH5#,6#,71..V..ST |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61634-95J00 |
LH5#,6#,7#,YH5#,6#,71..V..ST |
1 | ||
| 61634-95J01 |
LH5#,6#,71,YH5#,6#,71..V..ST |
1 | ||
| 61649 - PAD, QUARTER PANEL, OUTER | ||||
| 61647-95J00 |
LH50,60,70,YH5#,61,71 L=120 |
1 | ||
| 61647-95J01 |
LH50,60,70,YH5#,61,71 L=180 |
1 | ||
| 61647-95J02 |
LH50,60,70,YH5#,61,71 L=80 |
1 | ||
| 61649 - PAD, QUARTER PANEL, OUTER | ||||
| 61647-95J00 |
LH50,60,70,YH5#,61,71 L=120 |
1 | ||
| 61647-95J01 |
LH50,60,70,YH5#,61,71 L=180 |
1 | ||
| 61647-95J02 |
LH50,60,70,YH5#,61,71 L=80 |
1 | ||
| 61649 - PAD, QUARTER PANEL, OUTER | ||||
| 61647-95J00 |
LH50,60,70,YH5#,61,71 L=120 |
1 | ||
| 61647-95J01 |
LH50,60,70,YH5#,61,71 L=180 |
1 | ||
| 61647-95J02 |
LH50,60,70,YH5#,61,71 L=80 |
1 | ||
| 61649 - PAD, QUARTER PANEL, OUTER | ||||
| 61647-95J00 |
LH50,60,70,YH5#,61,71 L=120 |
1 | ||
| 61647-95J01 |
LH50,60,70,YH5#,61,71 L=180 |
1 | ||
| 61647-95J02 |
LH50,60,70,YH5#,61,71 L=80 |
1 | ||
| 61649 - PAD, QUARTER PANEL, OUTER | ||||
| 61647-95J00 |
LH50,60,70,YH5#,61,71 L=120 |
1 | ||
| 61647-95J01 |
LH50,60,70,YH5#,61,71 L=180 |
1 | ||
| 61647-95J02 |
LH50,60,70,YH5#,61,71 L=80 |
1 | ||
| 61649 - PAD, QUARTER PANEL, OUTER | ||||
| 61647-95J00 |
LH50,60,70,YH5#,61,71 L=120 |
1 | ||
| 61647-95J01 |
LH50,60,70,YH5#,61,71 L=180 |
1 | ||
| 61647-95J02 |
LH50,60,70,YH5#,61,71 L=80 |
1 | ||
| 61699C - RETAINER, COURTESY SWITCH | ||||
| 61699-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61699C - RETAINER, COURTESY SWITCH | ||||
| 61699-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61699C - RETAINER, COURTESY SWITCH | ||||
| 61699-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61707 - PANEL SUB-ASSY, QUARTER, INNER RH | ||||
| 61613-95J14 |
LH60,61,YH61..VSP..ST |
1 | ||
| 61613-95J11 |
LH61,YH61..V ｱﾘ(ﾘﾔ ｻｲﾄﾞ ｳｲﾝﾄﾞ ｶﾞ-ﾄﾞ) |
1 | ||
| 61613-95J42 |
LH61,YH61..V ｱﾘ(ﾘﾔ ｻｲﾄﾞ ｳｲﾝﾄﾞ ｶﾞ-ﾄﾞ & ｼﾞﾔｽﾄﾛ- ﾊﾞﾝ) |
1 | ||
| 61613-95J47 |
LH61,YH61..V4D..ST W/RR HEATER,COLD SPEC |
1 | ||
| 61707E - EXTENSION, QUARTER INNER PANEL, RH | ||||
| 61735-95J11 |
LH50,6#,YH61..VSP COLD SPEC |
1 | ||
| 61735-95J13 |
LH50,6#,YH61..VSP |
1 | ||
| 61031-95J13 |
LH51,61,YH61..VSP |
1 | ||
| 61031-95J10 |
LH51,61,YH61..VSP COLD SPEC |
1 | ||
| 61031-95J14 |
LH51,61,YH61..VSP..ST COOLING VAN |
1 | ||
| 61708 - PANEL SUB-ASSY, QUARTER, INNER LH | ||||
| 61614-95J15 |
LH60,61,YH61..VSP..ST |
1 | ||
| 61725 - BOX, FUEL INLET | ||||
| 77304-95J00 |
LH50,60,70,YH5#,61,71 |
1 | ||
| 61737C - REINFORCEMENT, QUARTER, INNER | ||||
| 61737-95J00 |
LH5#,6#,7#,YH5#,6#,71..ST |
2 | ||
| 61739B - REINFORCEMENT, EXTENSION QUARTER INNER PANEL | ||||
| 61739-95J00 |
LH5#,6#,YH50,61..V4D;LH50,51,60,61,YH61..COM,WG;YH51,52,62..03S,07S,08S,09S |
1 | ||
| 61741A - REINFORCEMENT, BACK DOOR OPENING, UPPER RH | ||||
| 61741-95J00 |
LH5#,6#,YH5#,6#..MRF,SRF |
1 | ||
| 61742A - REINFORCEMENT, BACK DOOR OPENING, UPPER LH | ||||
| 61742-95J00 |
LH5#,6#,YH5#,6#..MRF,SRF |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61077-95J01 |
LH50,51,60,61,YH61..VSP |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61078-95J01 |
LH50,51,60,61,YH61..VSP |
1 | ||
| 61747A - EXTENSION, BACK DOOR OPENING LOWER REINFORCEMENT, RH | ||||
| 61747-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61748A - EXTENSION, BACK DOOR OPENING LOWER REINFORCEMENT, LH | ||||
| 61748-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 61784C - BRACE, QUARTER PANEL, INNER LH | ||||
| 61784-95J00 |
LH5#,6#,71,YH5#,6#,71 |
1 | ||
| 61784-95J00 |
LH5#,6#,YH5#,6#..MRF,SRF |
1 | ||
| Common parts | ||||
| 17961-95J00 | ||||
| Linked diagrams | ||||
| 6153 | ||||
| 7451 | ||||
