YH61V-MNFE (1987)

Toyota Hiace Van,Wagon

Production Aug 1987 - Aug 1989
Engine 3Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

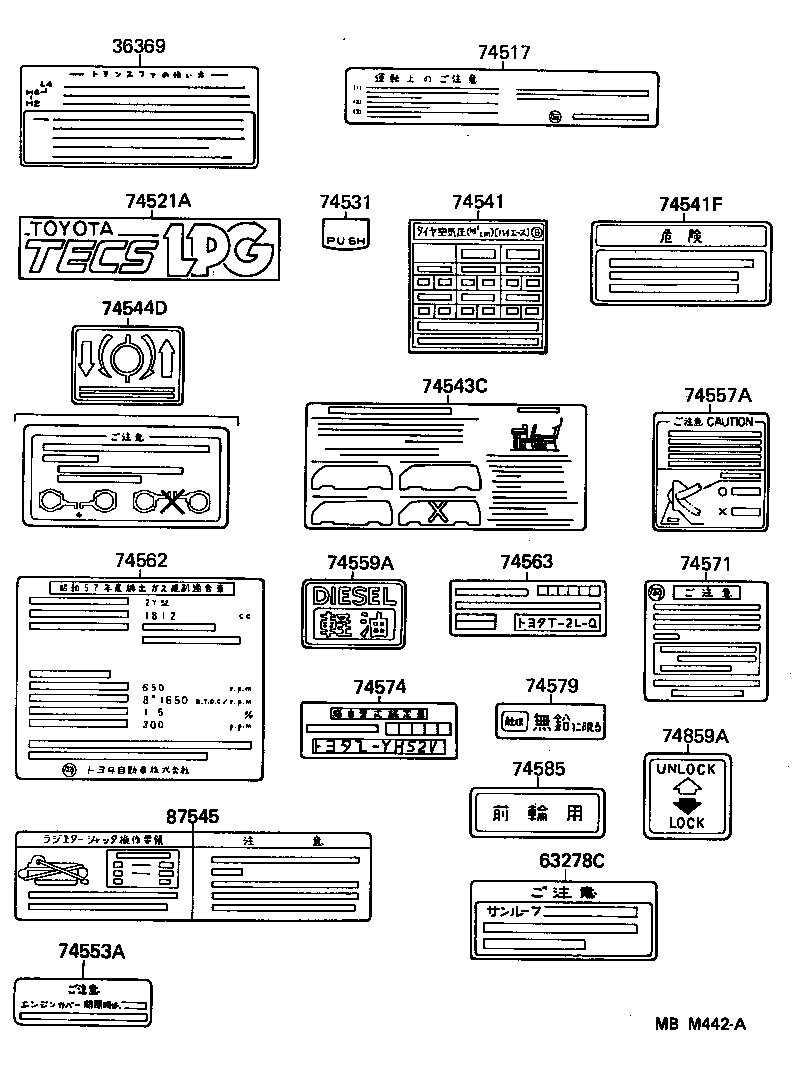

Click highlighted areas on diagram

diagram 36369 63278C 74517 74521A 74531 74541 74541F 74543C 74544D 74553A 74557A 74559A 74562 74563 74571 74574 74579 74585 74859A 87545
Part # Description Qty Price
74517 - PLATE, EXHAUST TEMPERATURE CAUTION
74517-32050

LH66..SGL..08S;LH66..(GL,SGL)..05S;LH5#,61,71,YH50,51,57,61..CTM,GL,SCM,SGL

 1
74541 - PLATE, TIRE PRESSURE CAUTION
74552-26790

YH50,51,61..VSG..ST

 1
74552-26800

LH51,61..V..ST

 1
74557A - PLATE, ENGINE SERVICE HOLE COVER BALANCE CAUTION
74557-95J00

LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(CD,DX,GL)..(03S,05S,06S,09S,15S)

 1
74559A - PLATE, FUEL CAUTION
74559-14030

LH66..05S;LH5#,61,71;LH66..(DX,SGL)..08S

 1
74559-14010

YH5#,6#,71

 1
74562 - PLATE, EMISSION CONTROL SYSTEM INFORMATION
74562-26230

YH51,61,71..VSG

 1
74562-26180

LH66..(DX,SGL)..08S;LH51..ATM..(08S,09S);LH51..03S,05S,06S,07S;LH56,6#,71..03S,05S,06S,09S,15S

 1
74562-26180

LH66..(DX,SGL)..08S;LH5#,6#,71..(COM,V)..(03S,05S,06S,09S,15S)

 1
74562-26131

YH51,61,71..VSG

 1
74571 - PLATE, BRAKE FLUID CAUTION
47288-32010

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
74579 - PLATE, UNLEADED FUEL CAUTION
74579-30011

YH5#,6#,71

 1
87545 - PLATE, RADIATOR SHUTTER CAUTION
87545-95J00

LH66..05S;LH5#,61,71;LH66..(DX,SGL)..08S

 1
