YH61V-MNFE (1987)
Toyota Hiace Van,Wagon

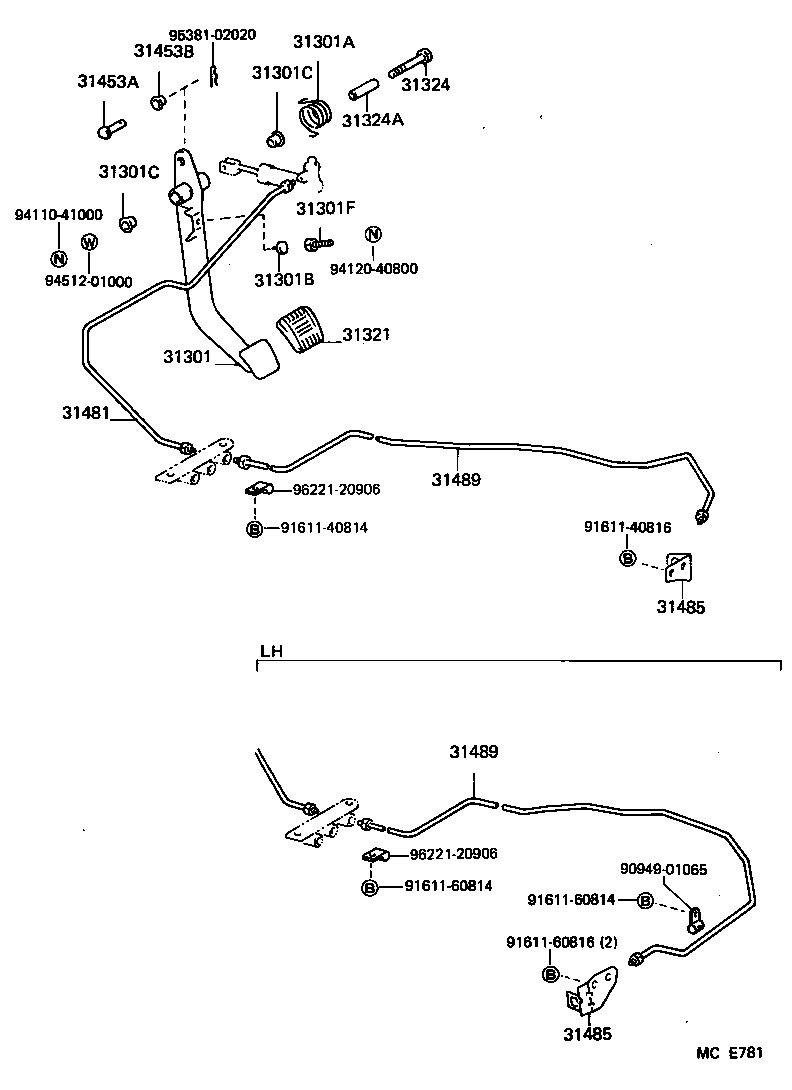

ILLUST NO. 1 OF 2(8708- )MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-26060 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..MTM |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90508-32002 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..MTM |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06008 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..MTM |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..MTM |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..MTM |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-08052 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..MTM |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14020 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..MTM |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 91121-51070 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..MTM |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10004 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..MTM |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..MTM 長さ=23.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..MTM |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-26131 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..MTM |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31485-26070 |
YH5#,6#,71..MTM |
1 | ||
| 31485-26050 |
LH51,61,71..MTM |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31485-26070 |
YH5#,6#,71..MTM |
1 | ||
| 31485-26050 |
LH51,61,71..MTM |
1 | ||
| 31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE | ||||
| 31489-26112 |
YH50,51,52,6#,71..MTM |
1 | ||
| 31489-26121 |
LH51,61,71..MTM |
1 | ||
| 31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE | ||||
| 31489-26112 |
YH50,51,52,6#,71..MTM |
1 | ||
| 31489-26121 |
LH51,61,71..MTM |
1 | ||
| Common parts | ||||
| 90949-01065 | ||||
| 91611-40814 | ||||
| 91611-40816 | ||||
| 91611-60814 | ||||
| 91611-60816 | ||||
| 94110-41000 | ||||
| 94120-40800 | ||||
| 94512-01000 | ||||
| 95381-02020 | ||||
| 96221-20906 | ||||

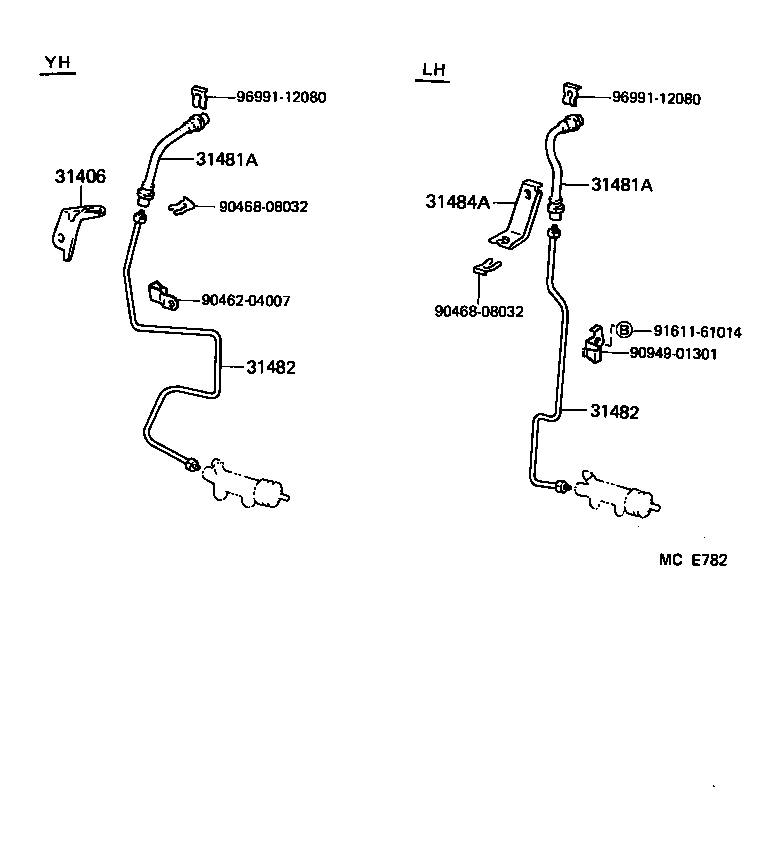

ILLUST NO. 2 OF 2(8708- )MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31406 - BRACKET SUB-ASSY, FLEXIBLE HOSE | ||||
| 31406-26021 |
YH51,52,6#,71..MTM |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 90931-01031 |
LH51,61,71..MTM |
1 | ||
| 90931-01001 |
YH50,51,52,6#,71..MTM |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 90931-01031 |
LH51,61,71..MTM |
1 | ||
| 90931-01001 |
YH50,51,52,6#,71..MTM |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-26100 |
YH50,51,52,6#,71..MTM |
1 | ||
| 31482-26112 |
LH51,61,71..MTM |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-26100 |
YH50,51,52,6#,71..MTM |
1 | ||
| 31482-26112 |
LH51,61,71..MTM |
1 | ||
| 31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH) | ||||
| 31484-26091 |
LH51,61,71..MTM |
1 | ||
| Common parts | ||||
| 90462-04007 | ||||
| 90468-08032 | ||||
| 90949-01301 | ||||
| 91611-61014 | ||||
| 96991-12080 | ||||
