YH61V-JNG (1982)

Toyota Hiace Van,Wagon

Production Dec 1982 - Aug 1985
Engine 3Y
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212- )L,2L

Click highlighted areas on diagram

diagram 17111 17141 17152 17159 17159 17167 17168 17173 17177 9011910237 9017010199 9017908040 9020110283 9161160822 9162140812
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-54030

L,2L..LH5#,6#,7#

 1
17111-71010

2Y,3Y#..YH5#,6#,71

 1
17141 - MANIFOLD, EXHAUST
17141-71020

2Y,3Y,3YJ..YH50,52,6#,71

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

2Y,3Y#..YH5#,6#,71

L=46.5,S=14&20

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10063

2Y,3Y#..YH5#,6#,71

 8
90116-08053

L,2L..LH5#,6#,7#

INTAKE MANIFOLD SIDE

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10063

2Y,3Y#..YH5#,6#,71

 8
90116-08053

L,2L..LH5#,6#,7#

INTAKE MANIFOLD SIDE

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-54040

L,2L..LH5#,61,71

 1
17167-71020

2Y,3Y#..YH5#,6#,71

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
12521-72010

2Y,3Y,3YJ..YH50,52,6#,71

W/O HOT AIR INTAKE

 1
17168-54011

L,2L..LH5#,6#,7#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-54011

L,2L..LH5#,6#,7#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-54011

L,2L..LH5#,6#,7#

 1
Common parts
90119-10237
90170-10199
90179-08040
90201-10283
91611-60822
91621-40812

(8212- )2Y,3Y#

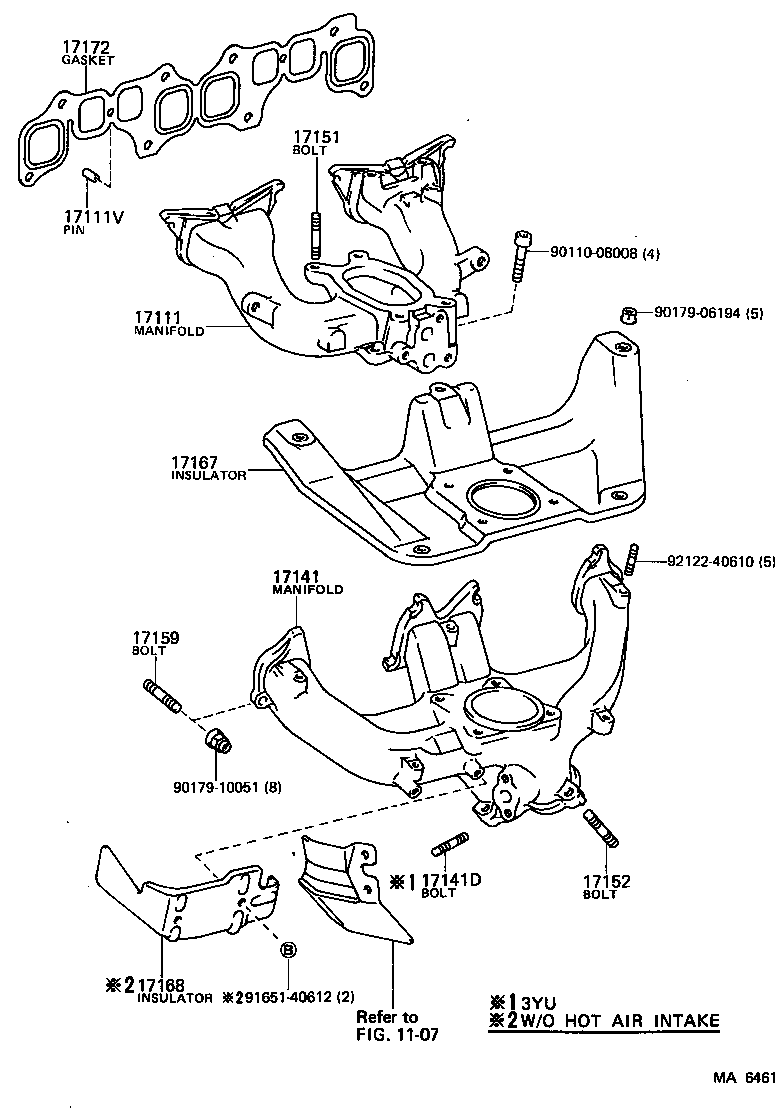

Click highlighted areas on diagram

diagram 1107 17111 17111V 17141 17141D 17151 17152 17159 17167 17168 17172 9011008008 9017906194 9017910051 9165140612 9212240610
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-54030

L,2L..LH5#,6#,7#

 1
17111-71010

2Y,3Y#..YH5#,6#,71

 1
17111V - PIN, STRAIGHT(FOR INTAKE MANIFOLD SETTING)
90250-08120

2Y,3Y#..YH5#,6#,71

 2
17141 - MANIFOLD, EXHAUST
17141-71020

2Y,3Y,3YJ..YH50,52,6#,71

 1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
92122-40835

2Y,3Y#..YH5#,6#,71

 4
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

2Y,3Y#..YH5#,6#,71

L=46.5,S=14&20

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10063

2Y,3Y#..YH5#,6#,71

 8
90116-08053

L,2L..LH5#,6#,7#

INTAKE MANIFOLD SIDE

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-54040

L,2L..LH5#,61,71

 1
17167-71020

2Y,3Y#..YH5#,6#,71

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
12521-72010

2Y,3Y,3YJ..YH50,52,6#,71

W/O HOT AIR INTAKE

 1
17168-54011

L,2L..LH5#,6#,7#

 1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-71010

2Y,3Y#..YH5#,6#,71

 1
17172-71011

2Y,3Y#..YH5#,6#,71

 1
Common parts
90110-08008
90179-06194
90179-10051
91651-40612
92122-40610
Linked diagrams
1107
