YH61V-JNFE (1982)

Toyota Hiace Van,Wagon

Production Dec 1982 - Aug 1985
Engine 3Y
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212- )

Click highlighted areas on diagram

diagram 1149371010 1717572010 8712428030 8712428030 8712428030 8712428030 8712428030 8712428030 8712490B00 8712490B00 8712490B00 87205 87240 87240 87245A 87245A 87245B 87245B 87245E 87245E 87246A 87246A 87246E 87246E 87248A 87248A 87248A 87248B 87248B 87248X 87248X 87249A 87249A 87249A 87249A 87249F 87251 87263 8743695J04 8743695J04 8743695J05 8743695J05 8871895J38 8871895J38 89427D 89427D 89427D 89427D 9011908063 9011908063 9017908123 9017908123 9017908146 9046108157 9046108573 9046108573 9161160835 9165140610 9165140616 9165140814 9165140816 9165140816 9165140816 9165140816 9165140816 9331515010 9331515010 9331515010 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-95J02

LH5#,6#,7#,YH5#,6#,71

 1
87240 - VALVE ASSY, HEATER WATER
87240-95J02

LH5#,6#,7#,YH5#,6#,71

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95J11

LH50,51,60,61,7#

 1
87245-95J10

YH5#,6#,71

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95J11

LH50,51,60,61,7#

 1
87245-95J10

YH5#,6#,71

 1
87245B - HOSE, HEATER WATER, INLET B
87245-95J08

LH5#,6#,7#,YH5#,6#,71

 1
87245B - HOSE, HEATER WATER, INLET B
87245-95J08

LH5#,6#,7#,YH5#,6#,71

 1
87245E - HOSE, HEATER WATER, INLET E
87245-95J04

LH5#,6#,7#,YH5#,6#,71

 1
87245E - HOSE, HEATER WATER, INLET E
87245-95J04

LH5#,6#,7#,YH5#,6#,71

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-95J06

LH5#,6#,7#,YH5#,6#,71

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-95J06

LH5#,6#,7#,YH5#,6#,71

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-95J12

YH5#,6#,71

 1
87245-95J13

LH50,51,60,61,7#

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-95J12

YH5#,6#,71

 1
87245-95J13

LH50,51,60,61,7#

 1
87248A - PIPE, HEATER WATER INLET, A
87248-95J14

LH7#..DLX;LH5#,6#..CTD,DLX,GL

 1
87208-28010

YH5#,6#,71

 1
87248A - PIPE, HEATER WATER INLET, A
87248-95J14

LH7#..DLX;LH5#,6#..CTD,DLX,GL

 1
87208-28010

YH5#,6#,71

 1
87248A - PIPE, HEATER WATER INLET, A
87248-95J14

LH7#..DLX;LH5#,6#..CTD,DLX,GL

 1
87208-28010

YH5#,6#,71

 1
87248B - PIPE, HEATER WATER INLET, B
87248-95J12

YH5#,6#,71..CTD,DLX,GL,STD

 1
87248-95J13

YH61..V5D..06S

W/RR HEATER

 1
87248B - PIPE, HEATER WATER INLET, B
87248-95J12

YH5#,6#,71..CTD,DLX,GL,STD

 1
87248-95J13

YH61..V5D..06S

W/RR HEATER

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-95J09

YH61..V5D..06S

W/RR HEATER

 1
87248-95J08

YH5#,6#,71..CTD,DLX,GL,STD

 1
87248-95J10

LH7#..DLX;LH5#,6#..CTD,DLX,GL

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-95J09

YH61..V5D..06S

W/RR HEATER

 1
87248-95J08

YH5#,6#,71..CTD,DLX,GL,STD

 1
87248-95J10

LH7#..DLX;LH5#,6#..CTD,DLX,GL

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-95J09

YH61..V5D..06S

W/RR HEATER

 1
87248-95J08

YH5#,6#,71..CTD,DLX,GL,STD

 1
87248-95J10

LH7#..DLX;LH5#,6#..CTD,DLX,GL

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-95J09

YH61..V5D..06S

W/RR HEATER

 1
87248-95J08

YH5#,6#,71..CTD,DLX,GL,STD

 1
87248-95J10

LH7#..DLX;LH5#,6#..CTD,DLX,GL

 1
87249F - PIPE, HEATER WATER OUTLET, F
87208-28020

YH5#,6#,71

 1
87263 - BRACKET, HEATER WATER PIPE, NO.1
87263-28010

YH5#,6#,71

 1
Common parts
11493-71010
17175-72010
87124-28030
87124-90B00
87436-95J04
87436-95J05
88718-95J38
90119-08063
90179-08123
90179-08146
90461-08157
90461-08573
91611-60835
91651-40610
91651-40616
91651-40814
91651-40816
93315-15010
96112-10250

(8212-8708)YH51..MRF..4FC..08S ; (8212- )YH51..MRF..07S,08S ; (8212- )YH51,61

Click highlighted areas on diagram

diagram 8712428040 8712428040 8712428040 8712428040 8712495J12 8712495J12 87240A 87248C 87248D 87249B 87249B 87249D 87255A 87255B 87255C 87255E 87255E 87256A 87256A 87256C 87256E 8739895A00 8739895J01 8743695J07 8743695J07 8743695J22 89427D 9046022073 9046108258 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9611210220 9611210220 9611210220 9611210220 9611210220 9611210220 9611210220
Part # Description Qty Price

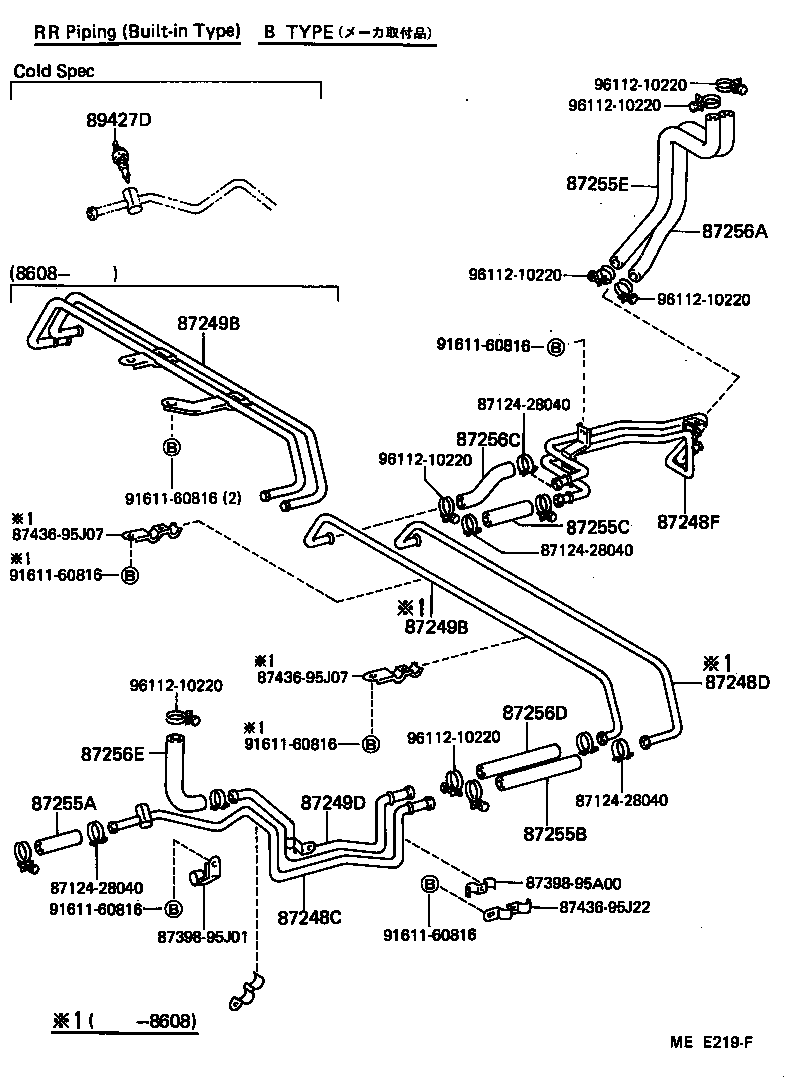

87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99552-20200

LH61,YH61..V5D..06S

*H,L=130

 1
99556-20130

LH61,YH61..V5D..06S

*H,L=130

 1
87255B - HOSE, REAR HEATER WATER INLET, B
99552-20300

LH61,YH61..V5D..06S..ST

*H,L=250

 1
99556-20250

LH61,YH61..V5D..06S..ST

*H,L=250

 1
87255C - HOSE, REAR HEATER WATER INLET, C
99552-20200

LH61,YH61..V5D..06S..ST

*H,L=190

 1
99556-20190

LH61,YH61..V5D..06S..ST

*H,L=190

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
99552-20500

LH61,YH61..V5D..06S..ST

*H,L=400

 1
99556-20400

LH61,YH61..V5D..06S..ST

*H,L=400

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
99552-20500

LH61,YH61..V5D..06S..ST

*H,L=400

 1
99556-20400

LH61,YH61..V5D..06S..ST

*H,L=400

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99556-20600

YH52,62;LH51,61,YH50,61..06S,09S

L=600,B TYPE

 1
99552-20500

LH61,YH61..V5D..06S..ST

*H,L=460

 1
99556-20460

LH61,YH61..V5D..06S..ST

*H,L=460

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99556-20600

YH52,62;LH51,61,YH50,61..06S,09S

L=600,B TYPE

 1
99552-20500

LH61,YH61..V5D..06S..ST

*H,L=460

 1
99556-20460

LH61,YH61..V5D..06S..ST

*H,L=460

 1
87256C - HOSE, REAR HEATER WATER OUTLET, C
99552-20300

LH61,YH61..V5D..06S..ST

*H,L=210

 1
99552-20200

LH61,YH61..V5D..06S..ST

*H,L=130

 1
99556-20140

LH61,YH61..V5D..06S..ST

*H,L=140

 1
99552-20200

LH61,YH61..V5D..06S..ST

*H,L=140

 1
Common parts
87124-28040
87124-95J12
87398-95A00
87398-95J01
87436-95J07
87436-95J22
90460-22073
90461-08258
91611-60816
96112-10220

(8401- )YH61..V5D..ST

Click highlighted areas on diagram

diagram 8712428040 8712428040 8712428040 8712428040 87248C 87248D 87248F 87249B 87249B 87249D 87255A 87255B 87255C 87255E 87256A 87256C 87256D 87256E 8739895A00 8739895J01 8743695J07 8743695J07 8743695J22 89427D 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9611210220 9611210220 9611210220 9611210220 9611210220 9611210220 9611210220
Part # Description Qty Price
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99552-20200

LH61,YH61..V5D..06S

*H,L=130

 1
99556-20130

LH61,YH61..V5D..06S

*H,L=130

 1
87255B - HOSE, REAR HEATER WATER INLET, B
99552-20300

LH61,YH61..V5D..06S..ST

*H,L=250

 1
99556-20250

LH61,YH61..V5D..06S..ST

*H,L=250

 1
87255C - HOSE, REAR HEATER WATER INLET, C
99552-20200

LH61,YH61..V5D..06S..ST

*H,L=190

 1
99556-20190

LH61,YH61..V5D..06S..ST

*H,L=190

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
99552-20500

LH61,YH61..V5D..06S..ST

*H,L=400

 1
99556-20400

LH61,YH61..V5D..06S..ST

*H,L=400

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99556-20600

YH52,62;LH51,61,YH50,61..06S,09S

L=600,B TYPE

 1
99552-20500

LH61,YH61..V5D..06S..ST

*H,L=460

 1
99556-20460

LH61,YH61..V5D..06S..ST

*H,L=460

 1
87256C - HOSE, REAR HEATER WATER OUTLET, C
99552-20300

LH61,YH61..V5D..06S..ST

*H,L=210

 1
99552-20200

LH61,YH61..V5D..06S..ST

*H,L=130

 1
99556-20140

LH61,YH61..V5D..06S..ST

*H,L=140

 1
99552-20200

LH61,YH61..V5D..06S..ST

*H,L=140

 1
87256D - HOSE, REAR HEATER WATER OUTLET, D
99556-20250

LH61,YH61..V5D..06S..ST

*H,L=250

 1
99552-20300

LH61,YH61..V5D..06S..ST

*H,L=250

 1
Common parts
87124-28040
87398-95A00
87398-95J01
87436-95J07
87436-95J22
91611-60816
96112-10220

(8401-8508)YH61..V5D..ST

Click highlighted areas on diagram

diagram 87208 87208A 87208B 87208C 87208C 87208D 87255E 87256A 8743695J19 9161160816 9161160816 9161160816 9161160816 9161160816 9611210220 9611210220 9611210220 9611210220 9611210220 9611210220 9611210250 9611210250
Part # Description Qty Price

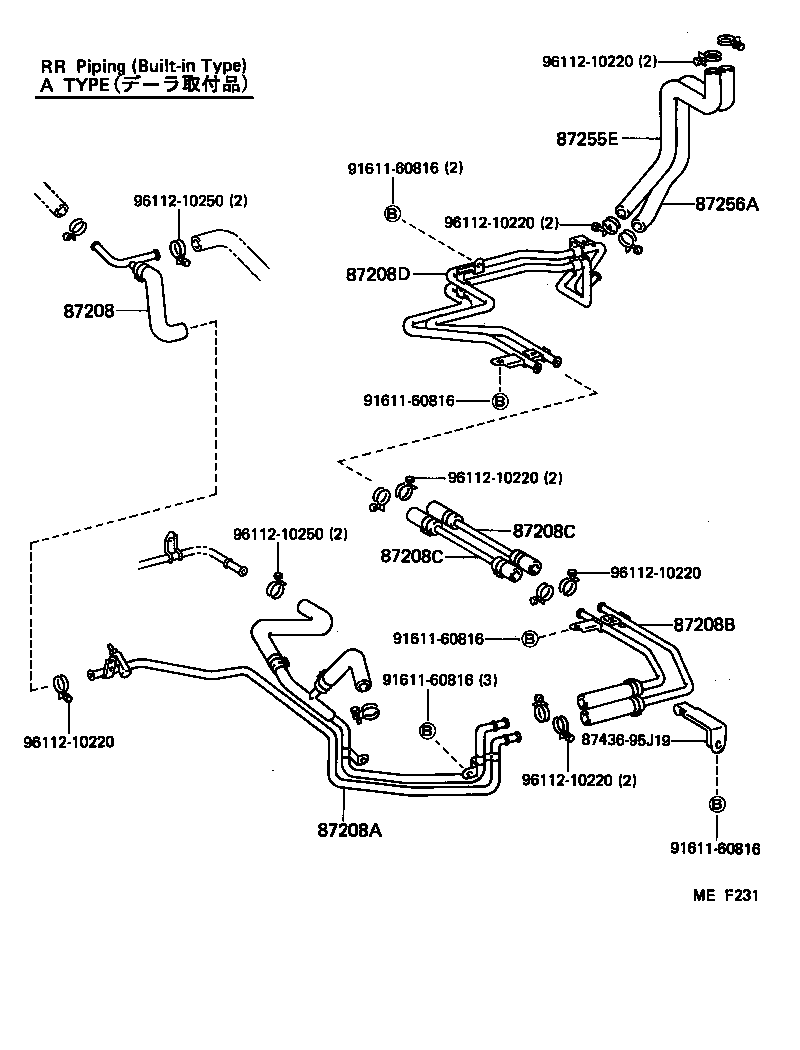

87208 - PIPE SUB-ASSY, HEATER WATER
87207-95J28

YH61..V5D..06S

 1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87207-95J29

YH61..V5D..06S..ST

 1
87207-95J30

YH61..V5D..06S..ST

COLD SPEC,W/TEMP SW

 1
87208B - PIPE SUB-ASSY, HEATER WATER, B
87207-95J23

LH61,YH61..V5D..06S..ST

 1
87208C - PIPE SUB-ASSY, HEATER WATER, C
87207-95J24

LH61,YH61..V5D..06S..ST

 2
87208C - PIPE SUB-ASSY, HEATER WATER, C
87207-95J24

LH61,YH61..V5D..06S..ST

 2
87208D - PIPE SUB-ASSY, HEATER WATER, D
87208-95J19

LH61,YH61..V5D..06S..ST

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
99552-20500

LH61,YH61..V5D..06S..ST

*H,L=400

 1
99556-20400

LH61,YH61..V5D..06S..ST

*H,L=400

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99556-20600

YH52,62;LH51,61,YH50,61..06S,09S

L=600,B TYPE

 1
99552-20500

LH61,YH61..V5D..06S..ST

*H,L=460

 1
99556-20460

LH61,YH61..V5D..06S..ST

*H,L=460

 1
Common parts
87436-95J19
91611-60816
96112-10220
96112-10250
