YH61V-JNFE (1982)

Toyota Hiace Van,Wagon

Production Dec 1982 - Aug 1985
Engine 3Y
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 7(8212- )

Click highlighted areas on diagram

diagram 87107 87107 87150 87150 87174A 87174A 87211E 9015950203 9015950203 9017908123 9017908123 9048026003 9048026003
Part # Description Qty Price
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-95J01

LH50,60,70,YH5#,61,71

COLD SPEC

 1
87107-95J00

LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCM,STD

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-95J01

LH50,60,70,YH5#,61,71

COLD SPEC

 1
87107-95J00

LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCM,STD

 1
87150 - RADIATOR ASSY, HEATER
87150-95J01

LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCM,STD

COLD SPEC

 1
87150-95J00

LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCM,STD

 1
87150 - RADIATOR ASSY, HEATER
87150-95J01

LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCM,STD

COLD SPEC

 1
87150-95J00

LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCM,STD

 1
87174A - GUIDE, AIR HEATER
87174-95J00

LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCM,STD

 1
87174-95J01

LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCM,STD

COLD SPEC

 1
87174A - GUIDE, AIR HEATER
87174-95J00

LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCM,STD

 1
87174-95J01

LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCM,STD

COLD SPEC

 1
87211E - DUCT, AIR
87211-95J02

LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCM,STD

COLD SPEC

 1
Common parts
90159-50203
90179-08123
90480-26003

ILLUST NO. 3 OF 7(8212- )LH50,51,60,61,YH61..WG ; (8212- )LH5#,6#,YH50,61..V4D..ST ; (8212-

Click highlighted areas on diagram

diagram 8271114560 8271122270 87104R 87105R 87107R 87120 87138R 87187A 87187A 87248E 87249E 9015960038 9018905019 9046310031 9046400108 9046400165 9046400232 9048001011
Part # Description Qty Price
Common parts
82711-14560
82711-22270
90159-60038
90189-05019
90463-10031
90464-00108
90464-00165
90464-00232
90480-01011

ILLUST NO. 3 OF 7(8401- )V5D ; (8401- )V4D..WT

Click highlighted areas on diagram

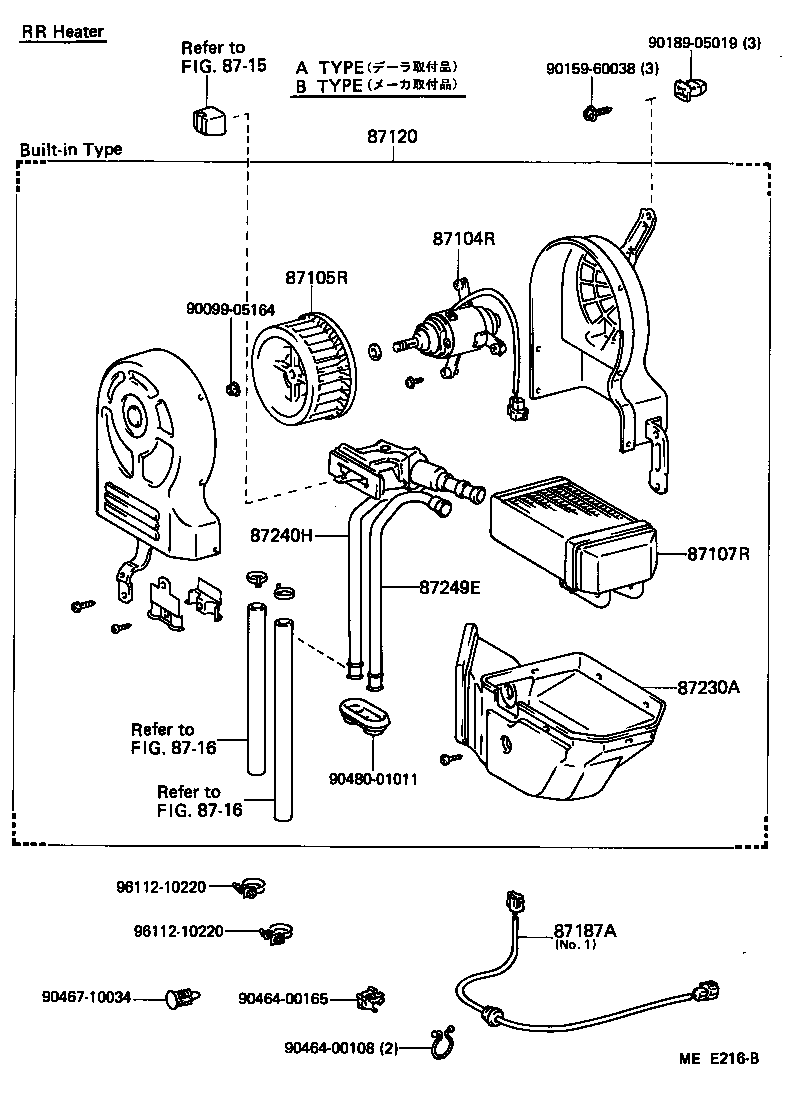

diagram 87104R 87105R 87107R 87120 8715 8716 8716 87187A 87230A 87240H 87249E 9009905164 9015960038 9018905019 9046400108 9046400165 9046710034 9048001011 9611210220 9611210220
Part # Description Qty Price
Common parts
90099-05164
90159-60038
90189-05019
90464-00108
90464-00165
90467-10034
90480-01011
96112-10220
Linked diagrams
8715
8716

ILLUST NO. 2 OF 7(8212- )

Click highlighted areas on diagram

diagram 8401 8401 8401 87104 87105 87130 87133 87138 87239 87484 8871822420 8871822420 8871822420 8871822420 8871822420 9004464009 9004464009 9004464009 9004464009 9004464009 9011906090 9011906090 9161160612
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-12120

LH5#,6#,7#,YH5#,6#,71

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-16020

LH5#,6#,7#,YH5#,6#,71

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-95J00

LH5#,6#,7#,YH5#,6#,71

 1
87133 - BRACKET, BLOWER
87133-95J00

LH5#,6#,7#,YH5#,6#,71

 1
87138 - RESISTOR, HEATER BLOWER
87138-95J00

LH5#,6#,7#,YH5#,6#,71

 1
87484 - WIRE, HEATER
87485-95J01

LH61,YH61..V5D..06S

A TYPE

 1
87485-95J03

YH61..V5D..06S

COLD SPEC,A TYPE

 1
Common parts
88718-22420
90044-64009
90119-06090
91611-60612
Linked diagrams
8401
