YH61V-JNE (1982)
Toyota Hiace Van,Wagon
(8212-8508)L,2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-71020 |
2Y,3Y..YH50,61,71 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90105-12056 |
2Y,3Y#..YH5#,6#,71 |
10 | ||
| 90910-02060 |
L,2L#..LH5#,6#,7# *12-1.25PX112-24 |
18 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-71010 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-42500 |
L,2L#..LH5#,6#,7# OD=25 |
7 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-42500 |
L,2L#..LH5#,6#,7# OD=25 |
7 | ||
| 11116B - PLUG, TIGHT, NO.2 | ||||
| 96411-41200 |
L,2L#..LH5#,6#,7# OD=12 |
4 | ||
| 11116C - PLUG, TIGHT, NO.3 | ||||
| 96411-45000 |
L,2L#..LH5#,6#,7# OD=50 |
1 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-54011 |
L,2L#..LH5#,6#,7# STD,STD |
4 | ||
| 11123-54011 |
L,2L#..LH5#,6#,7# O/S 0.05,O/S 0.05 |
4 | ||
| 11122-71020 |
2Y,3Y#..YH5#,6#,71 STD,STD |
4 | ||
| 11123-71020 |
2Y,3Y#..YH5#,6#,71 O/S 0.05,O/S 0.05 |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11123-54011 |
L,2L#..LH5#,6#,7# O/S 0.05,O/S 0.05 |
4 | ||
| 11127-71020 |
2Y,3Y#..YH5#,6#,71 O/S 0.05,O/S 0.05 |
4 | ||
| 11122-54011 |
L,2L#..LH5#,6#,7# STD,STD |
4 | ||
| 11126-71020 |
2Y,3Y#..YH5#,6#,71 STD,STD |
4 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-11001 |
L,2L#..LH5#,6#,7# 長さ=11,外径=11,L=11,OD=11 |
6 | ||
| 11159 - BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90116-08137 |
L,2L#..LH5#,6#,7# L=76.6,S=13&15 |
3 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-08191 |
L,2L#..LH5#,6#,7# *8-1.25PX55-30 |
3 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-54011 |
L,2L#..LH5#,6#,7# |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-59045 |
L,2L..LH5#,6#,7# |
1 | ||
| 11201-79035 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 11201A - NUT, CAP(FOR CYLINDER HEAD COVER) | ||||
| 90176-08014 |
L,2L#..LH5#,6#,7# |
3 | ||
| 90176-08007 |
2Y,3Y#..YH5#,6#,71 |
3 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-09001 |
2Y,3Y#..YH5#,6#,71 |
3 | ||
| 90210-13001 |
L,2L#..LH5#,6#,7# |
3 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-71020 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-71010 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 12195-71010 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 90430-37140 |
L,2L#..LH5#,6#,7# |
1 | ||
| Common parts | ||||
| 90175-06003 | ||||
| Linked diagrams | ||||
| 2201 | ||||

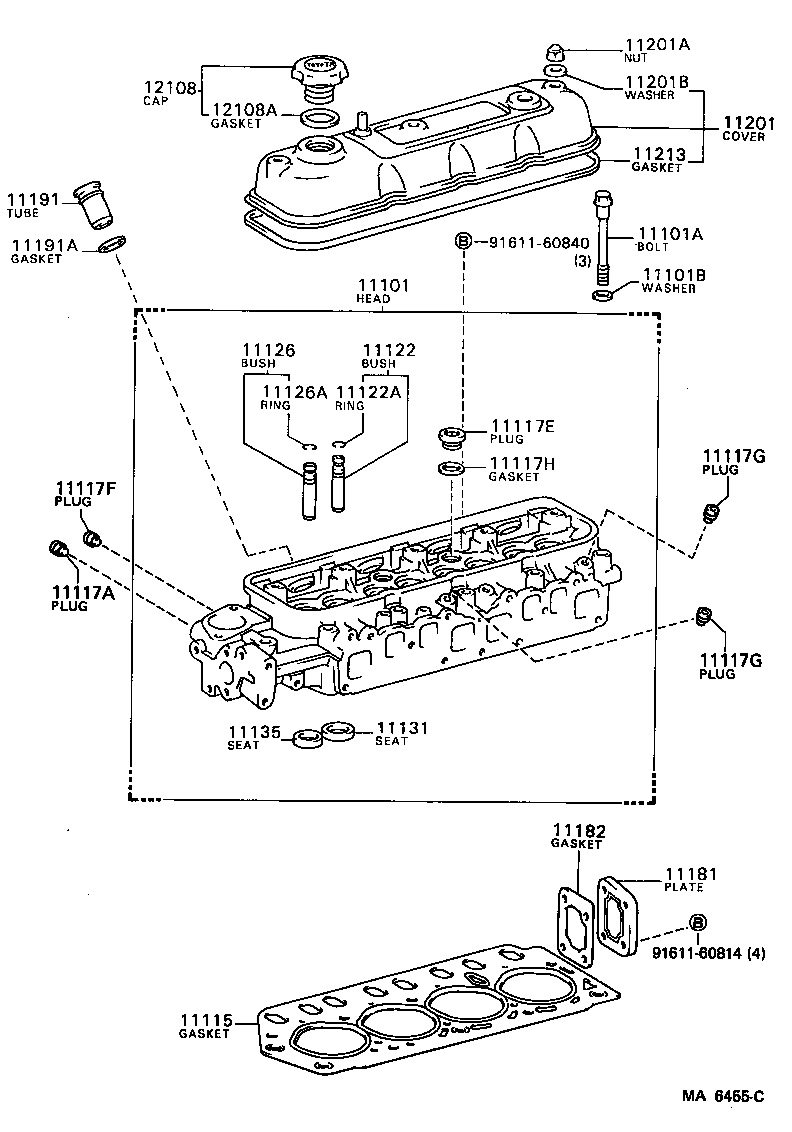

(8212- )2Y,3Y#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-71020 |
2Y,3Y..YH50,61,71 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90105-12056 |
2Y,3Y#..YH5#,6#,71 |
10 | ||
| 90910-02060 |
L,2L#..LH5#,6#,7# *12-1.25PX112-24 |
18 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-13021 |
2Y,3Y#..YH5#,6#,71 |
10 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-71010 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90344-53002 |
2Y,3Y..YH50,61,71 |
1 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-20002 |
2Y,3Y#..YH5#,6#,71 |
2 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-20004 |
2Y,3Y#..YH5#,6#,71 |
2 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-54011 |
L,2L#..LH5#,6#,7# STD,STD |
4 | ||
| 11123-54011 |
L,2L#..LH5#,6#,7# O/S 0.05,O/S 0.05 |
4 | ||
| 11122-71020 |
2Y,3Y#..YH5#,6#,71 STD,STD |
4 | ||
| 11123-71020 |
2Y,3Y#..YH5#,6#,71 O/S 0.05,O/S 0.05 |
4 | ||
| 11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH) | ||||
| 90520-12049 |
2Y,3Y#..YH5#,6#,71 |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11123-54011 |
L,2L#..LH5#,6#,7# O/S 0.05,O/S 0.05 |
4 | ||
| 11127-71020 |
2Y,3Y#..YH5#,6#,71 O/S 0.05,O/S 0.05 |
4 | ||
| 11122-54011 |
L,2L#..LH5#,6#,7# STD,STD |
4 | ||
| 11126-71020 |
2Y,3Y#..YH5#,6#,71 STD,STD |
4 | ||
| 11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH) | ||||
| 90520-12049 |
2Y,3Y#..YH5#,6#,71 |
4 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11131-63010 |
2Y,3Y#..YH5#,6#,71 STD,STD |
4 | ||
| 11132-63010 |
2Y,3Y#..YH5#,6#,71 O/S 0.03,O/S 0.03 |
4 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-71010 |
2Y,3Y#..YH5#,6#,71 STD,STD |
4 | ||
| 11136-71010 |
2Y,3Y#..YH5#,6#,71 O/S 0.03,O/S 0.03 |
4 | ||
| 11181 - PLATE, CYLINDER HEAD, REAR | ||||
| 11181-71010 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 11182 - GASKET, CYLINDER HEAD REAR PLATE | ||||
| 11182-71010 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 11191 - TUBE, SPARK PLUG | ||||
| 11191-22010 |
2Y,3Y#..YH5#,6#,71 |
4 | ||
| 11191A - GASKET(FOR SPARK PLUG TUBE) | ||||
| 90430-31141 |
2Y,3Y#..YH5#,6#,71 |
4 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-59045 |
L,2L..LH5#,6#,7# |
1 | ||
| 11201-79035 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 11201A - NUT, CAP(FOR CYLINDER HEAD COVER) | ||||
| 90176-08014 |
L,2L#..LH5#,6#,7# |
3 | ||
| 90176-08007 |
2Y,3Y#..YH5#,6#,71 |
3 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-09001 |
2Y,3Y#..YH5#,6#,71 |
3 | ||
| 90210-13001 |
L,2L#..LH5#,6#,7# |
3 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-71020 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-71010 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 12195-71010 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 90430-37140 |
L,2L#..LH5#,6#,7# |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
| 91611-60840 | ||||
