YH61V-JDTFE (1982)

Toyota Hiace Van,Wagon

Production Dec 1982 - Aug 1985
Engine 3Y
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212-8508)CTM,DLX,GL,STD ; (8508- )CTD,DLX,GL

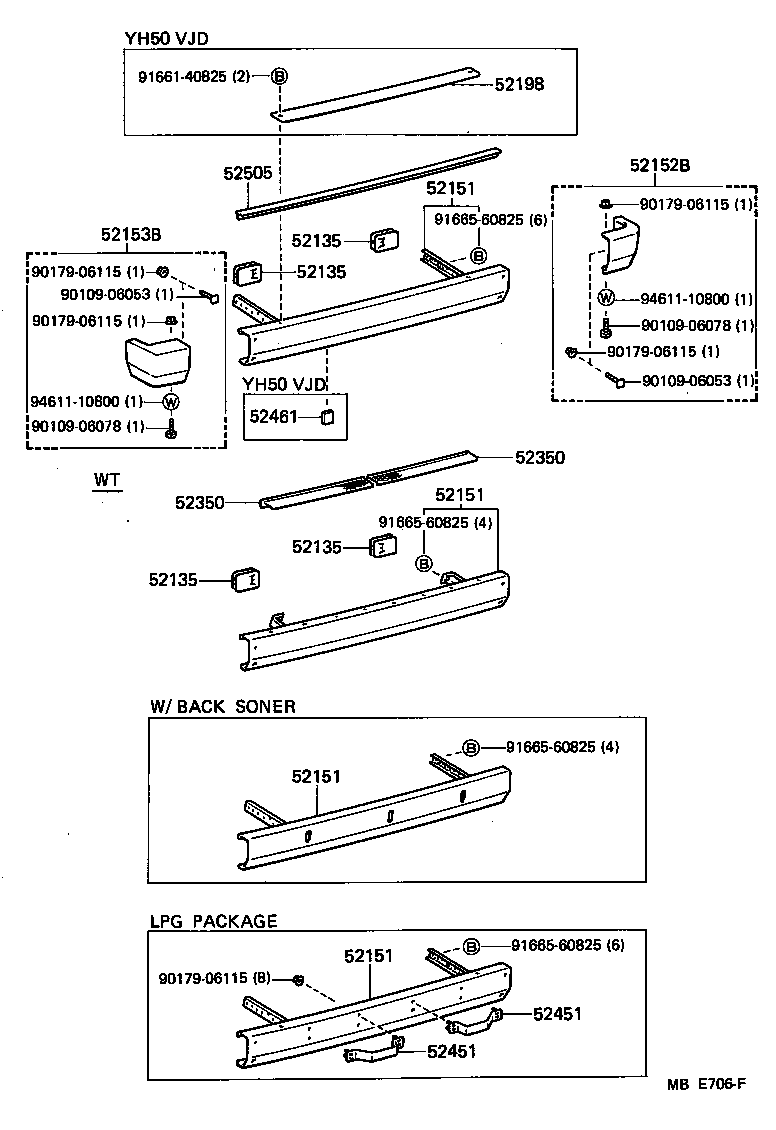

Click highlighted areas on diagram

diagram 52135 52135 52135 52135 52151 52151 52151 52151 52152B 52153B 52198 52350 52350 52451 52451 52461 52505 9010906053 9010906053 9010906078 9010906078 9017906115 9017906115 9017906115 9017906115 9017906115 9166140825 9166560825 9166560825 9166560825 9166560825 9461110800 9461110800
Part # Description Qty Price
52135 - GROMMET, REAR BUMPER STAY
52191-95A00

LH5#,6#,7#,YH5#,6#,71

 2
52135 - GROMMET, REAR BUMPER STAY
52191-95A00

LH5#,6#,7#,YH5#,6#,71

 2
52135 - GROMMET, REAR BUMPER STAY
52191-95A00

LH5#,6#,7#,YH5#,6#,71

 2
52135 - GROMMET, REAR BUMPER STAY
52191-95A00

LH5#,6#,7#,YH5#,6#,71

 2
52151 - BUMPER ASSY, REAR
52019-29055

LH60,61,YH61..WT

 1
52151 - BUMPER ASSY, REAR
52019-29055

LH60,61,YH61..WT

 1
52151 - BUMPER ASSY, REAR
52019-29055

LH60,61,YH61..WT

 1
52151 - BUMPER ASSY, REAR
52019-29055

LH60,61,YH61..WT

 1
52152B - EXTENSION, REAR BUMPER, RH
52165-29015

LH5#,6#,7#,YH5#,6#,71..CTM,DLX,GL,STD

 1
52153B - EXTENSION, REAR BUMPER, LH
52166-29015

LH5#,6#,7#,YH5#,6#,71..CTM,DLX,GL,STD

 1
52350 - STEP ASSY, REAR BUMPER
52352-95J00

LH60,61,YH61..WT

LH

 1
52351-95J00

LH60,61,YH61..WT

RH

 1
52350 - STEP ASSY, REAR BUMPER
52352-95J00

LH60,61,YH61..WT

LH

 1
52351-95J00

LH60,61,YH61..WT

RH

 1
Common parts
90109-06053
90109-06078
90179-06115
91661-40825
91665-60825
94611-10800
