YH61V-JDFE (1982)

Toyota Hiace Van,Wagon

Production Dec 1982 - Aug 1985
Engine 3Y
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212- )CTD,CTM,DLX,GL,SCM,STD

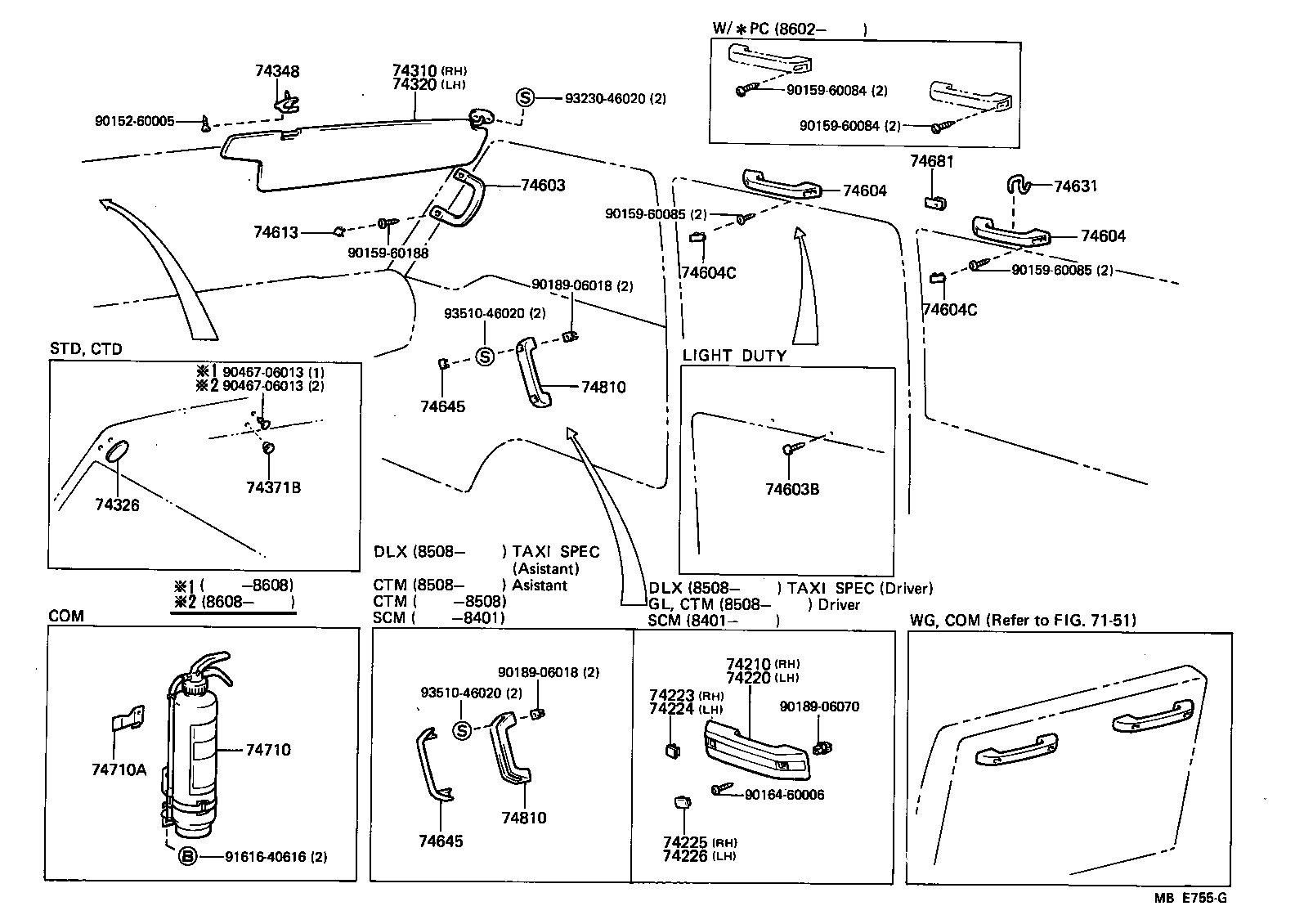

Click highlighted areas on diagram

diagram 7151 74210 74220 74223 74224 74225 74226 74310 74320 74326 74348 74371B 74603 74603B 74604 74604 74604C 74604C 74613 74631 74645 74645 74681 74710 74710A 74810 74810 9015260005 9015960084 9015960084 9015960085 9015960085 9015960188 9016460006 9018906018 9018906018 9018906070 9046706013 9046706013 9161640616 9323046020 9351046020 9351046020
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-95J0708

LH5#,6#,7#,YH5#,6#,71..DLX,GL

IVORY,IVORY

 1
74320 - VISOR ASSY, LH
74320-95J0808

LH5#,6#,7#,YH5#,6#,71..DLX,GL

IVORY,IVORY

 1
74348 - HOLDER, VISOR
74348-1201008

LH5#,6#,7#,YH5#,6#,71

IVORY,IVORY

 2
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74610-95J0005

LH5#,61,71,YH5#,6#,71

BEIGE,BEIGE

 2
74610-95J0008

LH50,60,70,YH5#,61,71

IVORY,IVORY

 2
74613 - PLUG, ASSIST GRIP
74617-95J0008

LH50,60,70,YH5#,61,71

IVORY,IVORY

 4
74617-95J0005

LH5#,61,71,YH5#,6#,71

BEIGE,BEIGE

 4
74645 - ESCUTCHEON, DOOR ASSIST GRIP
74615-95J0015

LH5#,61,71,YH5#,6#,71..DLX,GL,STD

BEIGE,BEIGE

 4
74615-95J0005

LH50,60,70,YH5#,61,71..DLX,GL,STD

BEIGE,BEIGE

 4
74645 - ESCUTCHEON, DOOR ASSIST GRIP
74615-95J0015

LH5#,61,71,YH5#,6#,71..DLX,GL,STD

BEIGE,BEIGE

 4
74615-95J0005

LH50,60,70,YH5#,61,71..DLX,GL,STD

BEIGE,BEIGE

 4
74810 - PULL ASSY, DOOR, INSIDE
69285-95J0005

LH50,60,70,YH5#,61,71..DLX,GL,STD

BEIGE,BEIGE

 2
69285-95J0015

LH5#,61,71,YH5#,6#,71..DLX,GL,STD

BEIGE,BEIGE

 2
74810 - PULL ASSY, DOOR, INSIDE
69285-95J0005

LH50,60,70,YH5#,61,71..DLX,GL,STD

BEIGE,BEIGE

 2
69285-95J0015

LH5#,61,71,YH5#,6#,71..DLX,GL,STD

BEIGE,BEIGE

 2
Common parts
90152-60005
90159-60084
90159-60085
90159-60188
90164-60006
90189-06018
90189-06070
90467-06013
91616-40616
93230-46020
93510-46020
Linked diagrams
7151
