YH61V-JDF (1982)

Toyota Hiace Van,Wagon

Production Dec 1982 - Aug 1985
Engine 3Y
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212- )COM,V

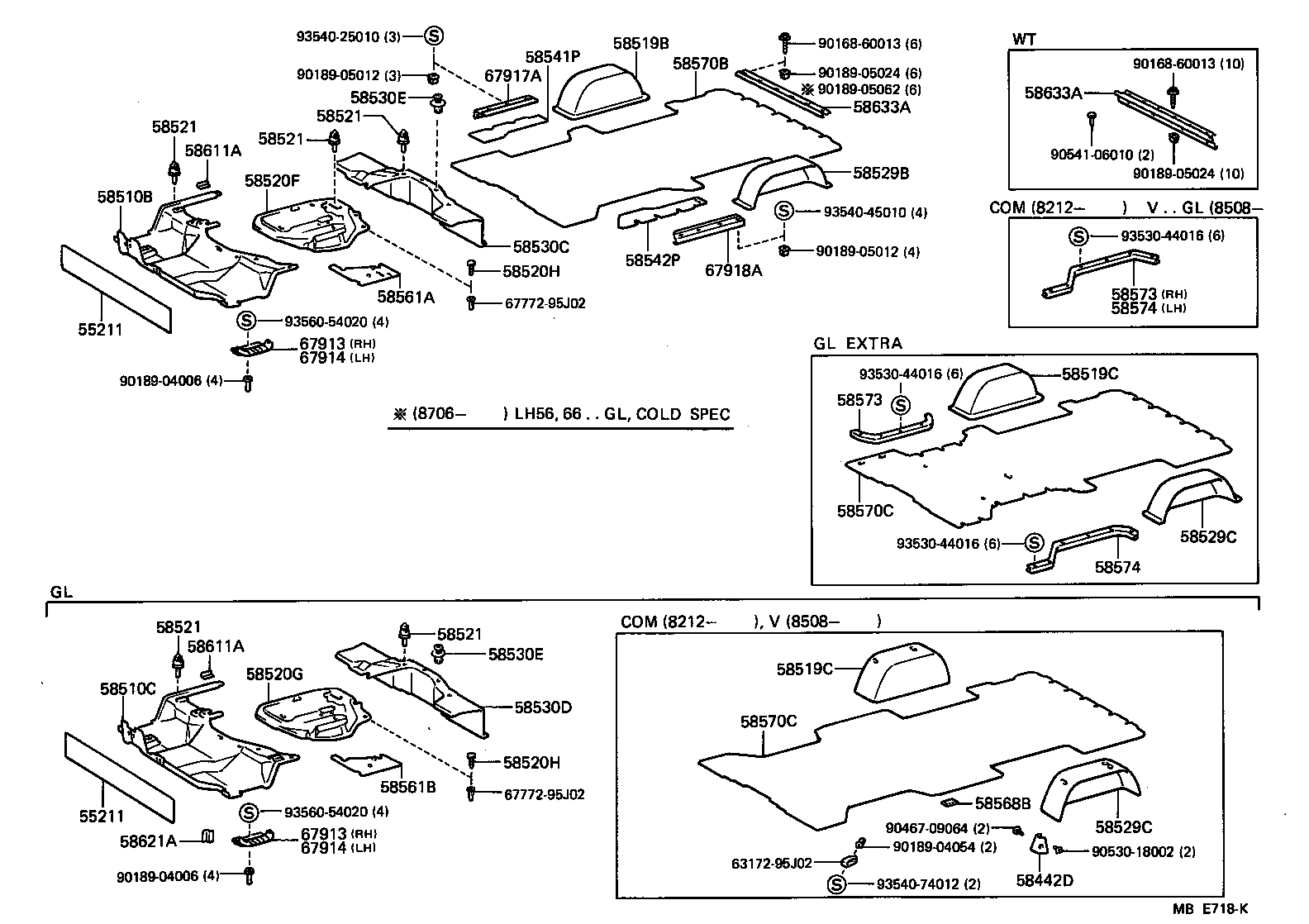

Click highlighted areas on diagram

diagram 55211 55211 58442D 58510B 58510C 58519B 58519C 58519C 58520F 58520G 58520H 58520H 58521 58521 58521 58521 58521 58529B 58529C 58529C 58530C 58530D 58530E 58530E 58541P 58542P 58561A 58561B 58568B 58570B 58570C 58570C 58573 58573 58574 58574 58611A 58611A 58621A 58633A 58633A 6317295J02 6777295J02 6777295J02 67913 67913 67914 67914 67917A 67918A 9016860013 9016860013 9018904006 9018904006 9018904054 9018905012 9018905012 9018905024 9018905024 9018905062 9046709064 9053018002 9054106010 9353044016 9353044016 9353044016 9354025010 9354045010 9354074012 9356054020 9356054020
Part # Description Qty Price
55211 - SILENCER, FRONT PANEL
55211-95J00

LH5#,6#,7#,YH5#,6#,71

 1
55211 - SILENCER, FRONT PANEL
55211-95J00

LH5#,6#,7#,YH5#,6#,71

 1
58510B - MAT, FRONT FLOOR, FRONT
58510-95J0005

YH5#,6#,71..DLX,STD

BEIGE,BEIGE

 1
58510-95J0105

LH5#,6#,7#..DLX

BEIGE,BEIGE

 1
58510-95J0305

LH5#,6#,7#,YH5#,6#,71..DLX,STD

W/COLD SPEC,BEIGE,BEIGE

 1
58510-95J0005

YH52,61,71..VSG..DLX

BEIGE,BEIGE

 1
58520F - MAT ASSY, ENGINE COVER
58520-95J0005

LH50,60,70,YH5#,61,71..DLX,STD

BEIGE,BEIGE

 1
58520-95J0015

LH5#,61,71,YH5#,6#,71..DLX,STD

BEIGE,BEIGE

 1
58521 - HOOK, MALE, NO.1
90530-06001

LH5#,6#,7#,YH5#,6#,71

TYPE A

 1
58521 - HOOK, MALE, NO.1
90530-06001

LH5#,6#,7#,YH5#,6#,71

TYPE A

 1
58521 - HOOK, MALE, NO.1
90530-06001

LH5#,6#,7#,YH5#,6#,71

TYPE A

 1
58521 - HOOK, MALE, NO.1
90530-06001

LH5#,6#,7#,YH5#,6#,71

TYPE A

 1
58521 - HOOK, MALE, NO.1
90530-06001

LH5#,6#,7#,YH5#,6#,71

TYPE A

 1
58530C - MAT, FRONT FLOOR, REAR
58530-95J0305

YH50,61,71..VSG..(DLX,STD)..ST

BEIGE,BEIGE

 1
58530-95J0305

YH50,61..VSG..(DLX,STD)..ST

BEIGE,BEIGE

 1
58530-95J0015

LH5#,61..VSG..DLX..ST

BEIGE,BEIGE

 1
58530-95J0315

YH50,52,6#..VSG..(DLX,STD)..ST

BEIGE,BEIGE

 1
58541P - MAT, STEP, RH
58543-95J0005

LH50,60,YH50,61..V5D..(DLX,STD)

COLD SPEC,BEIGE,BEIGE

 1
58543-95J0015

LH50,61,YH50,61..V5D..(DLX,STD)

COLD SPEC,BEIGE,BEIGE

 1
58542P - MAT, STEP, LH
58544-95J0205

LH50,60,70,YH50,61,71..V..(DLX,STD)

COLD SPEC,BEIGE,BEIGE

 1
58544-95J0215

LH5#,61,71,YH50,52,6#,71..V..(DLX,STD)

COLD SPEC,BEIGE,BEIGE

 1
58561A - MAT, FRONT FLOOR SIDE, LH
58561-95J0015

LH5#,61,71..DLX

BEIGE,BEIGE

 1
58570B - MAT ASSY, REAR FLOOR
58570-95J2205

LH60,YH61..VSG..03S

BEIGE,BEIGE

 1
58570-95J2215

LH61,YH61..VSG..03S

BEIGE,BEIGE

 1
58633A - PLATE, BACK DOOR SCUFF
58633-95J00

LH5#,6#,7#,YH5#,6#,71..(COM,V)..ST

 1
58633A - PLATE, BACK DOOR SCUFF
58633-95J00

LH5#,6#,7#,YH5#,6#,71..(COM,V)..ST

 1
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-95J0005

LH5#,6#,7#,YH5#,6#,71..DLX,GL,STD

BEIGE,BEIGE

 1
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-95J0005

LH5#,6#,7#,YH5#,6#,71..DLX,GL,STD

BEIGE,BEIGE

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-95J0005

LH5#,6#,7#,YH5#,6#,71..DLX,GL,STD

BEIGE,BEIGE

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-95J0005

LH5#,6#,7#,YH5#,6#,71..DLX,GL,STD

BEIGE,BEIGE

 1
Common parts
63172-95J02
67772-95J02
90168-60013
90189-04006
90189-04054
90189-05012
90189-05024
90189-05062
90467-09064
90530-18002
90541-06010
93530-44016
93540-25010
93540-45010
93540-74012
93560-54020
