YH61V-JDE (1982)
Toyota Hiace Van,Wagon

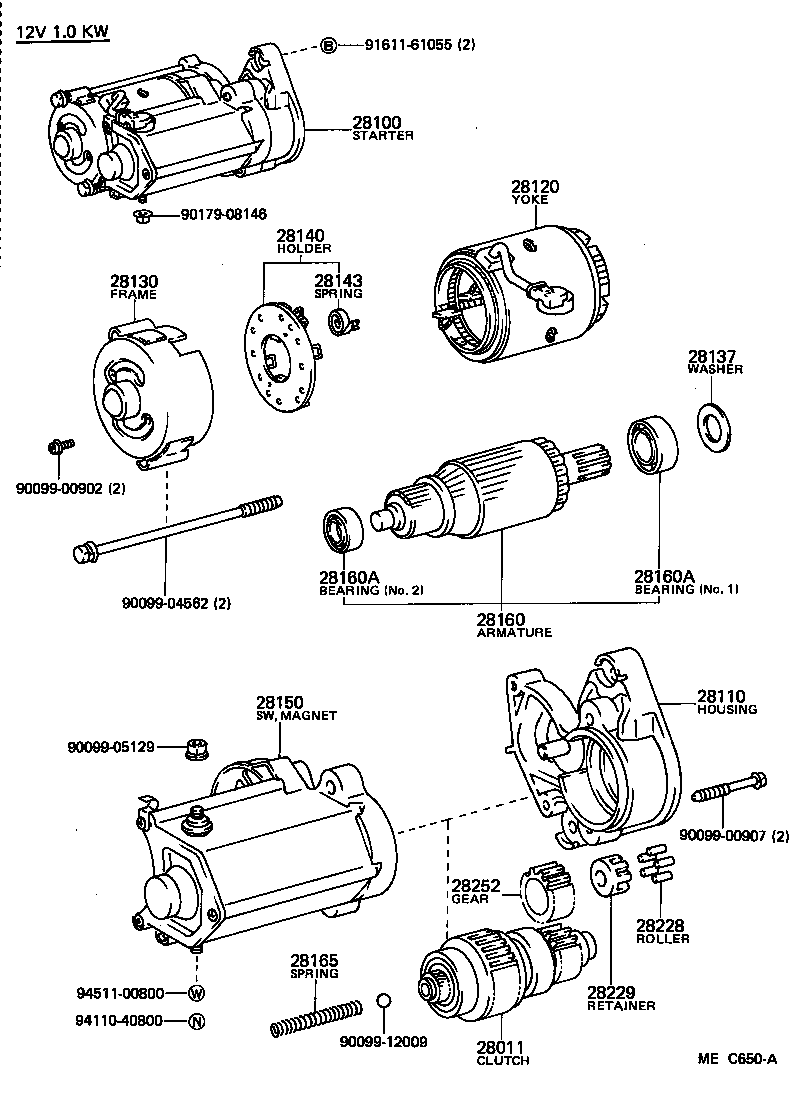

(8212- )2Y,3Y#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-54010 |
L,2L#..LH5#,6#,7# 12V 2.5KW |
1 | ||
| 28011-54070 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW |
1 | ||
| 28011-26042 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,1.4KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-54052 |
L,2L#..LH5#,6#,7# 12V 2.5KW,12V 2.5KW,MAGNET SW=STD |
1 | ||
| 28100-54070 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW,12V 2.0KW,MAGNET SW=STD |
1 | ||
| 28100-72010 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,12V 1.0KW,MAGNET SW=STD |
1 | ||
| 28100-54130 |
L,2L..LH5#,61,71..V 12V 2.5KW,12V 2.5KW,MAGNET SW=LONG LIFE |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28115-54011 |
L,2L#..LH5#,6#,7# 12V 2.5KW |
1 | ||
| 28110-72010 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW |
1 | ||
| 28115-54070 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-26071 |
2Y,3Y,3YJ..YH50,52,6#,71..V 12V 1.0KW,MAGNET SW=LONG LIFE |
1 | ||
| 28120-26070 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,MAGNET SW=STD |
1 | ||
| 28120-47040 |
L,2L#..LH5#,6#,7# 12V 2.5KW |
1 | ||
| 28120-54070 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-54060 |
L,2L#..LH5#,6#,7# 12V 2.5KW |
1 | ||
| 28130-72010 |
2Y,3Y#..YH5#,61,71 12V 1.0KW |
1 | ||
| 28137 - WASHER, FELT, STARTER | ||||
| 90099-02205 |
L,2L#..LH5#,6#,7# 12V 2.5KW,MAGNET SW=STD |
1 | ||
| 90099-02323 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-77090 |
L,2L#..LH5#,6#,7# 12V 2.5KW |
1 | ||
| 28140-26070 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW |
1 | ||
| 28140-54070 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,1.4KW |
4 | ||
| 90099-17115 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-34080 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,MAGNET SW=STD |
1 | ||
| 28150-54130 |
L,2L..LH5#,61,71..V 12V 2.5KW,MAGNET SW=LONG LIFE |
1 | ||
| 28150-54070 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW,MAGNET SW=STD |
1 | ||
| 28150-54051 |
L,2L#..LH5#,6#,7# 12V 2.5KW,MAGNET SW=STD |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-54070 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW |
1 | ||
| 28160-26070 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,MAGNET SW=STD |
1 | ||
| 28160-47040 |
L,2L#..LH5#,6#,7# 12V 2.5KW,MAGNET SW=STD |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10107 |
L,2L#..LH5#,6#,7# 2.5KW,MAGNET SW=LONG LIFE,NO.2 |
1 | ||
| 28253-45020 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,MAGNET SW=STD,NO.2 |
1 | ||
| 28253-54070 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW,NO.2 |
1 | ||
| 90099-10131 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW,NO.1 |
1 | ||
| 90099-10113 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,MAGNET SW=STD,NO.1 |
1 | ||
| 90099-10119 |
L,2L#..LH5#,6#,7# 2.5KW,MAGNET SW=LONG LIFE,NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10107 |
L,2L#..LH5#,6#,7# 2.5KW,MAGNET SW=LONG LIFE,NO.2 |
1 | ||
| 28253-45020 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,MAGNET SW=STD,NO.2 |
1 | ||
| 28253-54070 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW,NO.2 |
1 | ||
| 90099-10131 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW,NO.1 |
1 | ||
| 90099-10113 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,MAGNET SW=STD,NO.1 |
1 | ||
| 90099-10119 |
L,2L#..LH5#,6#,7# 2.5KW,MAGNET SW=LONG LIFE,NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-77090 |
L,2L#..LH5#,6#,7# 12V 2.5KW |
1 | ||
| 28165-26040 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW |
1 | ||
| 28165-26040 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,1.4KW |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW |
1 | ||
| 28228-56080 |
L,2L#..LH5#,6#,7# 12V 2.5KW |
6 | ||
| 28228-26040 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,1.4KW |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,1.4KW |
1 | ||
| 28229-56080 |
L,2L#..LH5#,6#,7# 12V 2.5KW |
1 | ||
| 28229-26040 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-45020 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,1.4KW |
1 | ||
| 28254-54070 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW |
1 | ||
| 28254-77090 |
L,2L#..LH5#,6#,7# 12V 2.5KW |
1 | ||
| Common parts | ||||
| 90099-00902 | ||||
| 90099-00907 | ||||
| 90099-04562 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90179-08146 | ||||
| 91611-61055 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
(8212- )L,2L#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-54010 |
L,2L#..LH5#,6#,7# 12V 2.5KW |
1 | ||
| 28011-54070 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW |
1 | ||
| 28011-26042 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,1.4KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-54052 |
L,2L#..LH5#,6#,7# 12V 2.5KW,12V 2.5KW,MAGNET SW=STD |
1 | ||
| 28100-54070 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW,12V 2.0KW,MAGNET SW=STD |
1 | ||
| 28100-72010 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,12V 1.0KW,MAGNET SW=STD |
1 | ||
| 28100-54130 |
L,2L..LH5#,61,71..V 12V 2.5KW,12V 2.5KW,MAGNET SW=LONG LIFE |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28115-54011 |
L,2L#..LH5#,6#,7# 12V 2.5KW |
1 | ||
| 28110-72010 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW |
1 | ||
| 28115-54070 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW |
1 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28119-77090 |
L,2L#..LH5#,6#,7# 12V 2.5KW |
1 | ||
| 28119-54070 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-26071 |
2Y,3Y,3YJ..YH50,52,6#,71..V 12V 1.0KW,MAGNET SW=LONG LIFE |
1 | ||
| 28120-26070 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,MAGNET SW=STD |
1 | ||
| 28120-47040 |
L,2L#..LH5#,6#,7# 12V 2.5KW |
1 | ||
| 28120-54070 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW |
1 | ||
| 28139 - WIRE, LEAD, NO.1(FOR STARTER) | ||||
| 28139-77110 |
L,2L..LH5#,6#,7# 12V 2.5KW,MAGNET SW=STD |
1 | ||
| 28139-54023 |
L,2L..LH5#,61,71..V 12V 2.5KW,MAGNET SW=LONG LIFE |
1 | ||
| 28139-54070 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-77090 |
L,2L#..LH5#,6#,7# 12V 2.5KW |
1 | ||
| 28140-26070 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW |
1 | ||
| 28140-54070 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,1.4KW |
4 | ||
| 90099-17115 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-34080 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,MAGNET SW=STD |
1 | ||
| 28150-54130 |
L,2L..LH5#,61,71..V 12V 2.5KW,MAGNET SW=LONG LIFE |
1 | ||
| 28150-54070 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW,MAGNET SW=STD |
1 | ||
| 28150-54051 |
L,2L#..LH5#,6#,7# 12V 2.5KW,MAGNET SW=STD |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-54070 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW |
1 | ||
| 28160-26070 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,MAGNET SW=STD |
1 | ||
| 28160-47040 |
L,2L#..LH5#,6#,7# 12V 2.5KW,MAGNET SW=STD |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10107 |
L,2L#..LH5#,6#,7# 2.5KW,MAGNET SW=LONG LIFE,NO.2 |
1 | ||
| 28253-45020 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,MAGNET SW=STD,NO.2 |
1 | ||
| 28253-54070 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW,NO.2 |
1 | ||
| 90099-10131 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW,NO.1 |
1 | ||
| 90099-10113 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,MAGNET SW=STD,NO.1 |
1 | ||
| 90099-10119 |
L,2L#..LH5#,6#,7# 2.5KW,MAGNET SW=LONG LIFE,NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10107 |
L,2L#..LH5#,6#,7# 2.5KW,MAGNET SW=LONG LIFE,NO.2 |
1 | ||
| 28253-45020 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,MAGNET SW=STD,NO.2 |
1 | ||
| 28253-54070 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW,NO.2 |
1 | ||
| 90099-10131 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW,NO.1 |
1 | ||
| 90099-10113 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,MAGNET SW=STD,NO.1 |
1 | ||
| 90099-10119 |
L,2L#..LH5#,6#,7# 2.5KW,MAGNET SW=LONG LIFE,NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-77090 |
L,2L#..LH5#,6#,7# 12V 2.5KW |
1 | ||
| 28165-26040 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW |
1 | ||
| 28165-26040 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,1.4KW |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW |
1 | ||
| 28228-56080 |
L,2L#..LH5#,6#,7# 12V 2.5KW |
6 | ||
| 28228-26040 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,1.4KW |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,1.4KW |
1 | ||
| 28229-56080 |
L,2L#..LH5#,6#,7# 12V 2.5KW |
1 | ||
| 28229-26040 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW |
1 | ||
| 28251 - PINION, STARTER DRIVE | ||||
| 28251-54070 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-45020 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,1.4KW |
1 | ||
| 28254-54070 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW |
1 | ||
| 28254-77090 |
L,2L#..LH5#,6#,7# 12V 2.5KW |
1 | ||
| Common parts | ||||
| 90093-00606 | ||||
| 90099-00901 | ||||
| 90099-02211 | ||||
| 90099-04949 | ||||
| 90099-04955 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90099-14058 | ||||
| 90119-12019 | ||||
| 90179-08146 | ||||
| 94110-40800 | ||||
| 94115-51200 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
| 96711-19006 | ||||
(8212- )L,2L#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-54010 |
L,2L#..LH5#,6#,7# 12V 2.5KW |
1 | ||
| 28011-54070 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW |
1 | ||
| 28011-26042 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,1.4KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-54052 |
L,2L#..LH5#,6#,7# 12V 2.5KW,12V 2.5KW,MAGNET SW=STD |
1 | ||
| 28100-54070 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW,12V 2.0KW,MAGNET SW=STD |
1 | ||
| 28100-72010 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,12V 1.0KW,MAGNET SW=STD |
1 | ||
| 28100-54130 |
L,2L..LH5#,61,71..V 12V 2.5KW,12V 2.5KW,MAGNET SW=LONG LIFE |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28115-54011 |
L,2L#..LH5#,6#,7# 12V 2.5KW |
1 | ||
| 28110-72010 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW |
1 | ||
| 28115-54070 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW |
1 | ||
| 28118 - PLATE(FOR STARTER YOKE) | ||||
| 28118-77090 |
L,2L#..LH5#,6#,7# 12V 2.5KW |
1 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28119-77090 |
L,2L#..LH5#,6#,7# 12V 2.5KW |
1 | ||
| 28119-54070 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-26071 |
2Y,3Y,3YJ..YH50,52,6#,71..V 12V 1.0KW,MAGNET SW=LONG LIFE |
1 | ||
| 28120-26070 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,MAGNET SW=STD |
1 | ||
| 28120-47040 |
L,2L#..LH5#,6#,7# 12V 2.5KW |
1 | ||
| 28120-54070 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-54060 |
L,2L#..LH5#,6#,7# 12V 2.5KW |
1 | ||
| 28130-72010 |
2Y,3Y#..YH5#,61,71 12V 1.0KW |
1 | ||
| 28137 - WASHER, FELT, STARTER | ||||
| 90099-02205 |
L,2L#..LH5#,6#,7# 12V 2.5KW,MAGNET SW=STD |
1 | ||
| 90099-02323 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW |
1 | ||
| 28139 - WIRE, LEAD, NO.1(FOR STARTER) | ||||
| 28139-77110 |
L,2L..LH5#,6#,7# 12V 2.5KW,MAGNET SW=STD |
1 | ||
| 28139-54023 |
L,2L..LH5#,61,71..V 12V 2.5KW,MAGNET SW=LONG LIFE |
1 | ||
| 28139-54070 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-77090 |
L,2L#..LH5#,6#,7# 12V 2.5KW |
1 | ||
| 28140-26070 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW |
1 | ||
| 28140-54070 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-34080 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,MAGNET SW=STD |
1 | ||
| 28150-54130 |
L,2L..LH5#,61,71..V 12V 2.5KW,MAGNET SW=LONG LIFE |
1 | ||
| 28150-54070 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW,MAGNET SW=STD |
1 | ||
| 28150-54051 |
L,2L#..LH5#,6#,7# 12V 2.5KW,MAGNET SW=STD |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-54070 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW |
1 | ||
| 28160-26070 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,MAGNET SW=STD |
1 | ||
| 28160-47040 |
L,2L#..LH5#,6#,7# 12V 2.5KW,MAGNET SW=STD |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10107 |
L,2L#..LH5#,6#,7# 2.5KW,MAGNET SW=LONG LIFE,NO.2 |
1 | ||
| 28253-45020 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,MAGNET SW=STD,NO.2 |
1 | ||
| 28253-54070 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW,NO.2 |
1 | ||
| 90099-10131 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW,NO.1 |
1 | ||
| 90099-10113 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,MAGNET SW=STD,NO.1 |
1 | ||
| 90099-10119 |
L,2L#..LH5#,6#,7# 2.5KW,MAGNET SW=LONG LIFE,NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10107 |
L,2L#..LH5#,6#,7# 2.5KW,MAGNET SW=LONG LIFE,NO.2 |
1 | ||
| 28253-45020 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,MAGNET SW=STD,NO.2 |
1 | ||
| 28253-54070 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW,NO.2 |
1 | ||
| 90099-10131 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW,NO.1 |
1 | ||
| 90099-10113 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,MAGNET SW=STD,NO.1 |
1 | ||
| 90099-10119 |
L,2L#..LH5#,6#,7# 2.5KW,MAGNET SW=LONG LIFE,NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-77090 |
L,2L#..LH5#,6#,7# 12V 2.5KW |
1 | ||
| 28165-26040 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW |
1 | ||
| 28165-26040 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,1.4KW |
1 | ||
| 28191 - STAY, STARTER | ||||
| 28191-54010 |
L,2L#..LH5#,6#,7# 12V 2.5KW |
1 | ||
| 28222 - WASHER, STARTER IDLE GEAR CLUTCH | ||||
| 28222-77090 |
L,2L#..LH5#,6#,7# 12V 2.5KW |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW |
1 | ||
| 28228-56080 |
L,2L#..LH5#,6#,7# 12V 2.5KW |
6 | ||
| 28228-26040 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,1.4KW |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,1.4KW |
1 | ||
| 28229-56080 |
L,2L#..LH5#,6#,7# 12V 2.5KW |
1 | ||
| 28229-26040 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-45020 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,1.4KW |
1 | ||
| 28254-54070 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW |
1 | ||
| 28254-77090 |
L,2L#..LH5#,6#,7# 12V 2.5KW |
1 | ||
| Common parts | ||||
| 90092-21001 | ||||
| 90099-00138 | ||||
| 90099-01436 | ||||
| 90099-02325 | ||||
| 90099-04297 | ||||
| 90099-12009 | ||||
| 90119-12019 | ||||
| 90179-08026 | ||||
| 93219-15008 | ||||
| 93319-15008 | ||||
| 94115-51200 | ||||
| 94511-00600 | ||||
| 94511-01000 | ||||
| 94612-10800 | ||||
(8311- )2Y,3Y..YH50,61..LPG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-54010 |
L,2L#..LH5#,6#,7# 12V 2.5KW |
1 | ||
| 28011-54070 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW |
1 | ||
| 28011-26042 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,1.4KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-54052 |
L,2L#..LH5#,6#,7# 12V 2.5KW,12V 2.5KW,MAGNET SW=STD |
1 | ||
| 28100-54070 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW,12V 2.0KW,MAGNET SW=STD |
1 | ||
| 28100-72010 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,12V 1.0KW,MAGNET SW=STD |
1 | ||
| 28100-54130 |
L,2L..LH5#,61,71..V 12V 2.5KW,12V 2.5KW,MAGNET SW=LONG LIFE |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28115-54011 |
L,2L#..LH5#,6#,7# 12V 2.5KW |
1 | ||
| 28110-72010 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW |
1 | ||
| 28115-54070 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW |
1 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28119-77090 |
L,2L#..LH5#,6#,7# 12V 2.5KW |
1 | ||
| 28119-54070 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-26071 |
2Y,3Y,3YJ..YH50,52,6#,71..V 12V 1.0KW,MAGNET SW=LONG LIFE |
1 | ||
| 28120-26070 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,MAGNET SW=STD |
1 | ||
| 28120-47040 |
L,2L#..LH5#,6#,7# 12V 2.5KW |
1 | ||
| 28120-54070 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-54060 |
L,2L#..LH5#,6#,7# 12V 2.5KW |
1 | ||
| 28130-72010 |
2Y,3Y#..YH5#,61,71 12V 1.0KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-77090 |
L,2L#..LH5#,6#,7# 12V 2.5KW |
1 | ||
| 28140-26070 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW |
1 | ||
| 28140-54070 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,1.4KW |
4 | ||
| 90099-17115 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-34080 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,MAGNET SW=STD |
1 | ||
| 28150-54130 |
L,2L..LH5#,61,71..V 12V 2.5KW,MAGNET SW=LONG LIFE |
1 | ||
| 28150-54070 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW,MAGNET SW=STD |
1 | ||
| 28150-54051 |
L,2L#..LH5#,6#,7# 12V 2.5KW,MAGNET SW=STD |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-54070 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW |
1 | ||
| 28160-26070 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,MAGNET SW=STD |
1 | ||
| 28160-47040 |
L,2L#..LH5#,6#,7# 12V 2.5KW,MAGNET SW=STD |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10107 |
L,2L#..LH5#,6#,7# 2.5KW,MAGNET SW=LONG LIFE,NO.2 |
1 | ||
| 28253-45020 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,MAGNET SW=STD,NO.2 |
1 | ||
| 28253-54070 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW,NO.2 |
1 | ||
| 90099-10131 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW,NO.1 |
1 | ||
| 90099-10113 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,MAGNET SW=STD,NO.1 |
1 | ||
| 90099-10119 |
L,2L#..LH5#,6#,7# 2.5KW,MAGNET SW=LONG LIFE,NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10107 |
L,2L#..LH5#,6#,7# 2.5KW,MAGNET SW=LONG LIFE,NO.2 |
1 | ||
| 28253-45020 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,MAGNET SW=STD,NO.2 |
1 | ||
| 28253-54070 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW,NO.2 |
1 | ||
| 90099-10131 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW,NO.1 |
1 | ||
| 90099-10113 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,MAGNET SW=STD,NO.1 |
1 | ||
| 90099-10119 |
L,2L#..LH5#,6#,7# 2.5KW,MAGNET SW=LONG LIFE,NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-77090 |
L,2L#..LH5#,6#,7# 12V 2.5KW |
1 | ||
| 28165-26040 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW |
1 | ||
| 28165-26040 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,1.4KW |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW |
1 | ||
| 28228-56080 |
L,2L#..LH5#,6#,7# 12V 2.5KW |
6 | ||
| 28228-26040 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,1.4KW |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,1.4KW |
1 | ||
| 28229-56080 |
L,2L#..LH5#,6#,7# 12V 2.5KW |
1 | ||
| 28229-26040 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW |
1 | ||
| 28251 - PINION, STARTER DRIVE | ||||
| 28251-54070 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-45020 |
2Y,3Y#..YH5#,6#,71 12V 1.0KW,1.4KW |
1 | ||
| 28254-54070 |
L,2L#..LH5#,6#,7#..MTM 12V 2.0KW |
1 | ||
| 28254-77090 |
L,2L#..LH5#,6#,7# 12V 2.5KW |
1 | ||
| Common parts | ||||
| 28176-15090 | ||||
| 90099-00907 | ||||
| 90099-04974 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90099-14064 | ||||
| 90179-08146 | ||||
| 91611-61055 | ||||
| 94110-40800 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||

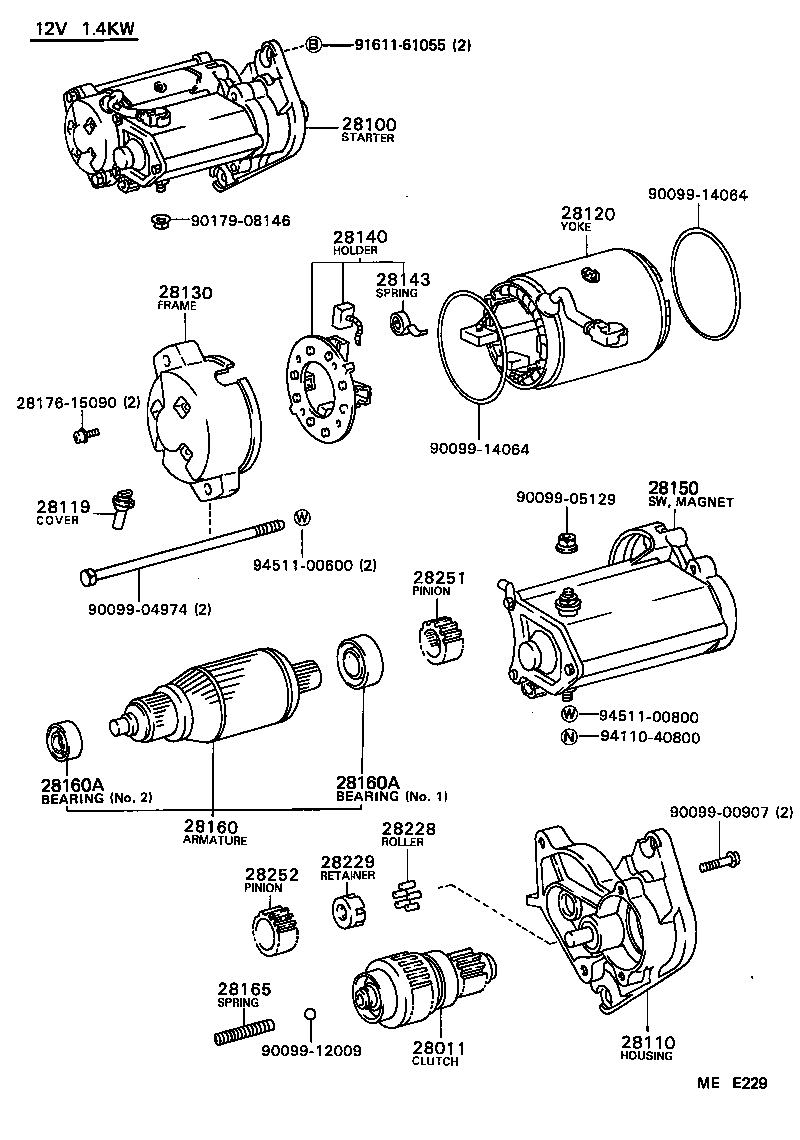

(8708-8808)2Y,3Y
12V 1.4KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 28176-15090 | ||||
| 90099-00907 | ||||
| 90099-04974 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90099-14064 | ||||
| 90179-08146 | ||||
| 91611-61055 | ||||
| 94110-40800 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
