YH61V-JDB (1982)

Toyota Hiace Van,Wagon

Production Dec 1982 - Aug 1985
Engine 3Y
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

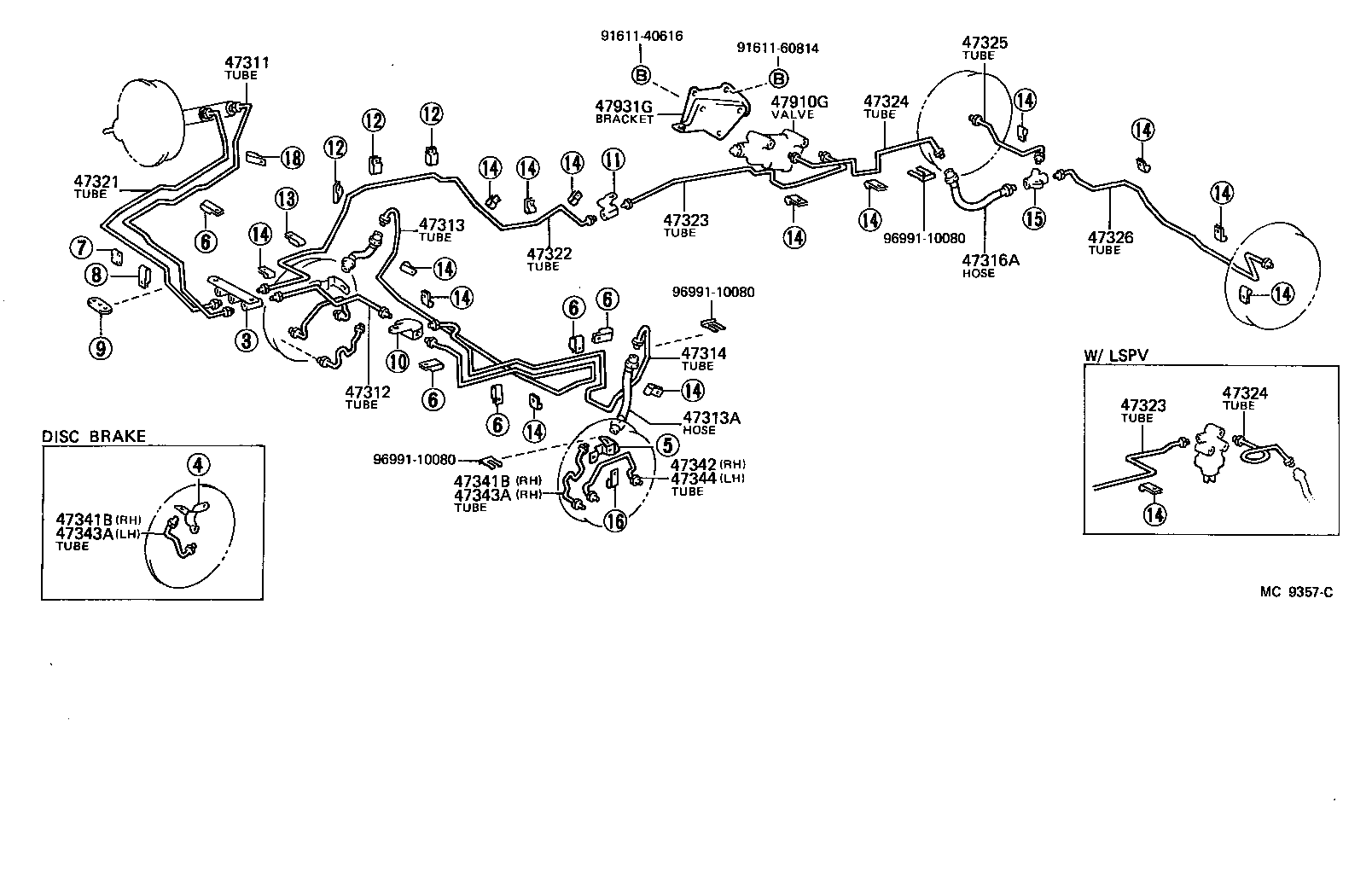

ILLUST NO. 1 OF 3(8212- )LH50,51,60,61,7#,YH5#,6#,71..COM,V..ST

Click highlighted areas on diagram

diagram 47311 47312 47313 47313A 47314 47316A 47321 47322 47323 47323 47324 47324 47325 47326 47341B 47341B 47342 47343A 47343A 47344 47910G 47931G 9161140616 9161160814 9699110080 9699110080 9699110080
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-26190

LH5#,6#,7#,YH50,52,6#,71..COM,V

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-26170

LH5#,6#,7#,YH50,52,6#,71..COM,V

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-26090

LH5#,6#,7#,YH5#,6#,71

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02436

LH5#,6#,7#,YH5#,6#,71

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-26080

LH5#,6#,7#,YH5#,6#,71

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-33205

LH50,51,60,61,7#,YH5#,6#,71..ST

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-26100

LH5#,6#,7#,YH50,52,6#,71..COM,V

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-26090

LH5#,6#,7#,YH50,52,6#,71..(COM,V)..ST

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-26210

LH6#,YH6#..(COM,V)..ST

W/LSPV

 1
47323-26200

LH6#,70,YH6#..(COM,V)..DLX..ST

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-26210

LH6#,YH6#..(COM,V)..ST

W/LSPV

 1
47323-26200

LH6#,70,YH6#..(COM,V)..DLX..ST

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-26090

LH5#,6#,YH50,52,6#..(COM,V)..(DLX,STD)..ST

 1
47324-26100

LH5#,6#,7#,YH50,52,6#,71..(COM,V)..ST

W/LSPV

 1
47324-26090

LH50,61,71,YH50,52,6#,71..(COM,V)..(DLX,STD)..ST

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-26090

LH5#,6#,YH50,52,6#..(COM,V)..(DLX,STD)..ST

 1
47324-26100

LH5#,6#,7#,YH50,52,6#,71..(COM,V)..ST

W/LSPV

 1
47324-26090

LH50,61,71,YH50,52,6#,71..(COM,V)..(DLX,STD)..ST

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-26140

LH5#,6#,7#,YH50,52,6#,71..(COM,V)..ST

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-26120

LH5#,6#,7#,YH50,52,6#,71..(COM,V)..ST

 1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47341-26030

LH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD)

FR DRUM BRAKE

 1
47341-26040

LH5#,6#,7#,YH5#,6#,71

FR DISC BRAKE

 1
47341-26030

LH50,61,71,YH50,52,6#,71..(COM,V)..MTM..(DLX,STD)

FR DRUM BRAKE

 1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47341-26030

LH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD)

FR DRUM BRAKE

 1
47341-26040

LH5#,6#,7#,YH5#,6#,71

FR DISC BRAKE

 1
47341-26030

LH50,61,71,YH50,52,6#,71..(COM,V)..MTM..(DLX,STD)

FR DRUM BRAKE

 1
47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2
47342-26020

LH50,61,71,YH50,52,6#,71..(COM,V)..MTM..(DLX,STD)

FR DRUM BRAKE

 1
47342-26020

LH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD)

FR DRUM BRAKE

 1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47343-26020

LH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD)

FR DRUM BRAKE

 1
47343-26030

LH5#,6#,7#,YH5#,6#,71

FR DISC BRAKE

 1
47343-26020

LH50,61,71,YH50,52,6#,71..(COM,V)..MTM..(DLX,STD)

FR DRUM BRAKE

 1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47343-26020

LH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD)

FR DRUM BRAKE

 1
47343-26030

LH5#,6#,7#,YH5#,6#,71

FR DISC BRAKE

 1
47343-26020

LH50,61,71,YH50,52,6#,71..(COM,V)..MTM..(DLX,STD)

FR DRUM BRAKE

 1
47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2
47344-26010

LH50,61,71,YH50,52,6#,71..(COM,V)..MTM..(DLX,STD)

FR DRUM BRAKE

 1
47344-26010

LH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD)

FR DRUM BRAKE

 1
47910G - VALVE ASSY, DECELERATION SENSING PROPORTIONING
47910-26060

LH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD)

FR DRUM BRAKE

 1
47910-26060

LH50,61,71,YH50,52,6#,71..(COM,V)..MTM..(DLX,STD)

FR DRUM BRAKE

 1
47931G - BRACKET, DECELERATION SENSING VALVE
47931-26080

LH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD)

FR DRUM BRAKE

 1
47931-26080

LH50,61,71,YH50,52,6#,71..(COM,V)..MTM..(DLX,STD)

FR DRUM BRAKE

 1
Common parts
91611-40616
91611-60814
96991-10080

ILLUST NO. 3 OF 3(8212- )COM,V

Click highlighted areas on diagram

diagram 04477 47910 47920 47920A 47920A 47920B 47920C 47920C 47931 47933 47935 47935A 47935B 47935B 47935C 47936 47937 9020123360 9020123360 9020123360 9020123360 9113150840 9113150840 9161160814 9161160814 9411040800 9411040800 9411040800 9411040800 9414140800 9451200800 9451200800 9451200800 9451200800 9451200800 9538102020
Part # Description Qty Price
04477 - BUSH & BOOT KIT, LOAD SENSING SPRING
04477-60010

LH50,51,60,61,7#,YH5#,6#,71..COM,V

 1
47910 - VALVE ASSY, LOAD SENSING PROPORTIONING
47910-26030

LH5#,6#,7#,YH50,52,6#,71..COM,V

FR DISC BRAKE

 1
47920 - SPRING ASSY, LOAD SENSING
47920-26040

LH50,51,60,61,7#,YH5#,6#,71..(COM,V)..ST

 1
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

LH5#,6#,7#,YH5#,6#,71..COM,V

 2
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

LH5#,6#,7#,YH5#,6#,71..COM,V

 2
47920B - CLIP(FOR LOAD SENSING VALVE BOOT)
90467-31110

LH5#,6#,7#,YH5#,6#,71..COM,V

 1
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

LH5#,6#,7#,YH5#,6#,71..COM,V

 2
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

LH5#,6#,7#,YH5#,6#,71..COM,V

 2
47931 - BRACKET, LOAD SENSING VALVE
47931-26060

LH5#,6#,7#,YH5#,6#,71..(COM,V)..ST

 1
47933 - BRACKET, LOAD SENSING SHACKLE, NO.1
47933-26040

LH5#,6#,7#,YH5#,6#,71..(COM,V)..ST

 1
47935 - SHACKLE, LOAD SENSING SPRING, NO.1
47935-26010

LH5#,6#,7#,YH50,52,6#,71..COM,V

 1
47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE)
90387-08099

LH5#,6#,7#,YH5#,6#,71..COM,V

 1
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

LH5#,6#,7#,YH5#,6#,71..COM,V

 2
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

LH5#,6#,7#,YH5#,6#,71..COM,V

 2
47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE)
90948-02033

LH5#,6#,7#,YH5#,6#,71..COM,V

 1
47936 - SHACKLE, LOAD SENSING SPRING, NO.2
47936-26010

LH5#,6#,7#,YH50,52,6#,71..COM,V

 1
47937 - PLATE, LOAD SENSING VALVE SET
47937-60010

LH5#,6#,7#,YH5#,6#,71..COM,V

 1
Common parts
90201-23360
91131-50840
91611-60814
94110-40800
94141-40800
94512-00800
95381-02020

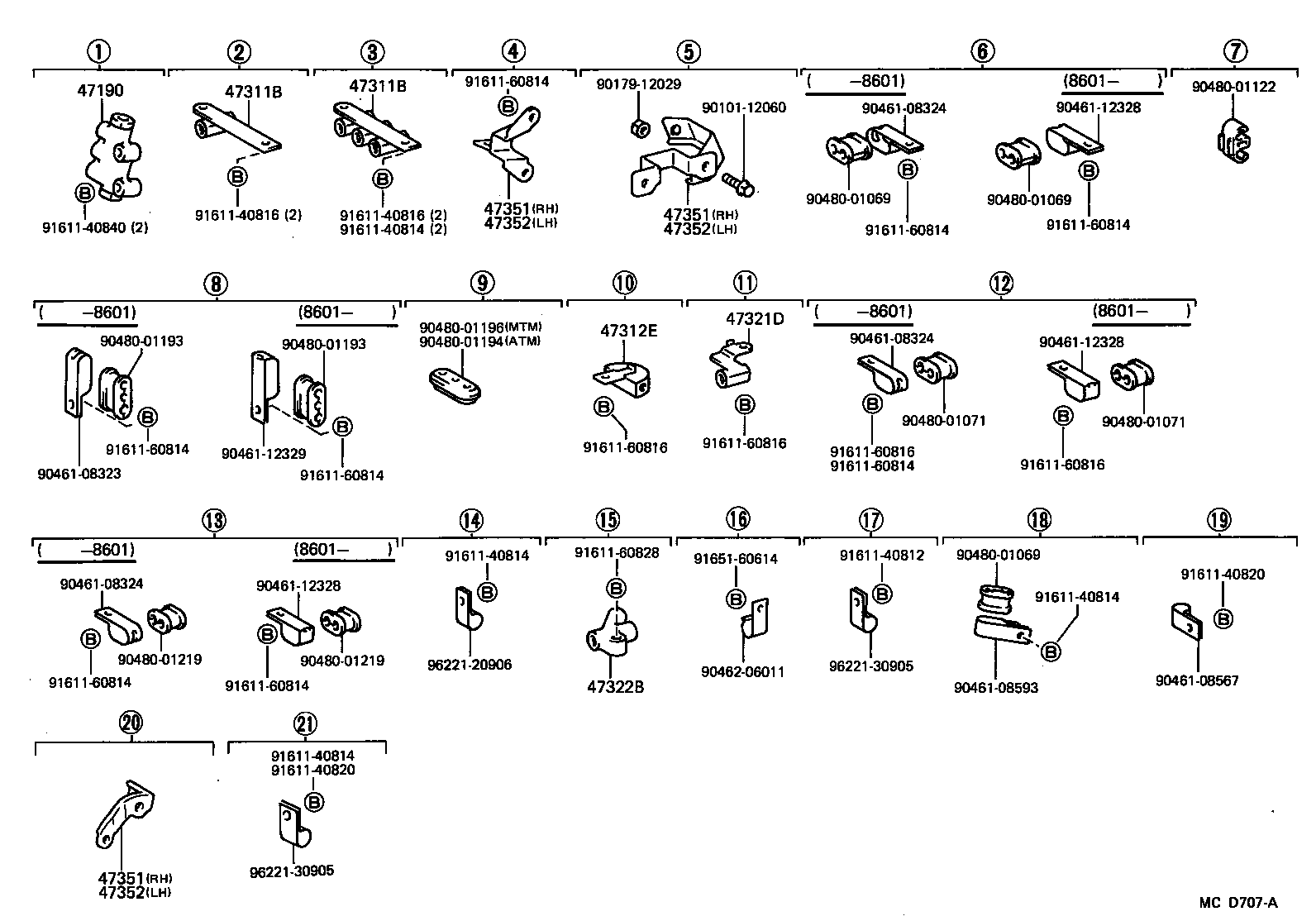

ILLUST NO. 2 OF 3(8212- )

Click highlighted areas on diagram

diagram 47190 47311B 47311B 47312E 47321D 47322B 47351 47351 47351 47352 47352 47352 9010112060 9017912029 9046108323 9046108324 9046108324 9046108324 9046108567 9046108593 9046112328 9046112328 9046112328 9046112329 9046206011 9048001069 9048001069 9048001069 9048001071 9048001071 9048001122 9048001193 9048001193 9048001194 9048001196 9048001219 9048001219 9161140812 9161140814 9161140814 9161140814 9161140814 9161140816 9161140816 9161140820 9161140820 9161140840 9161160814 9161160814 9161160814 9161160814 9161160814 9161160814 9161160814 9161160814 9161160816 9161160816 9161160816 9161160816 9161160828 9165160614 9622120906 9622130905 9622130905
Part # Description Qty Price
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10105

LH5#,6#,7#,YH50,52,6#,71..(COM,V)..MTM

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10105

LH5#,6#,7#,YH50,52,6#,71..(COM,V)..MTM

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90413-10137

LH50,51,60,61,7#,YH5#,6#,71

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10103

LH5#,6#,7#,YH5#,6#,71..ST

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10147

LH5#,6#,7#,YH5#,6#,71

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-26060

LH5#,6#,7#,YH5#,6#,71

FR DISC BRAKE

 1
47351-26050

LH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD)

FR DRUM BRAKE

 1
47351-26050

LH50,61,71,YH50,52,6#,71..(COM,V)..MTM..(DLX,STD)

FR DRUM BRAKE

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-26060

LH5#,6#,7#,YH5#,6#,71

FR DISC BRAKE

 1
47351-26050

LH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD)

FR DRUM BRAKE

 1
47351-26050

LH50,61,71,YH50,52,6#,71..(COM,V)..MTM..(DLX,STD)

FR DRUM BRAKE

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-26060

LH5#,6#,7#,YH5#,6#,71

FR DISC BRAKE

 1
47351-26050

LH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD)

FR DRUM BRAKE

 1
47351-26050

LH50,61,71,YH50,52,6#,71..(COM,V)..MTM..(DLX,STD)

FR DRUM BRAKE

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-26050

LH50,61,71,YH50,52,6#,71..(COM,V)..MTM..(DLX,STD)

FR DRUM BRAKE

 1
47352-26050

LH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD)

FR DRUM BRAKE

 1
47352-26060

LH5#,6#,7#,YH5#,6#,71

FR DISC BRAKE

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-26050

LH50,61,71,YH50,52,6#,71..(COM,V)..MTM..(DLX,STD)

FR DRUM BRAKE

 1
47352-26050

LH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD)

FR DRUM BRAKE

 1
47352-26060

LH5#,6#,7#,YH5#,6#,71

FR DISC BRAKE

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-26050

LH50,61,71,YH50,52,6#,71..(COM,V)..MTM..(DLX,STD)

FR DRUM BRAKE

 1
47352-26050

LH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD)

FR DRUM BRAKE

 1
47352-26060

LH5#,6#,7#,YH5#,6#,71

FR DISC BRAKE

 1
Common parts
90101-12060
90179-12029
90461-08323
90461-08324
90461-08567
90461-08593
90461-12328
90461-12329
90462-06011
90480-01069
90480-01071
90480-01122
90480-01193
90480-01194
90480-01196
90480-01219
91611-40812
91611-40814
91611-40816
91611-40820
91611-40840
91611-60814
91611-60816
91611-60828
91651-60614
96221-20906
96221-30905
