YH61G-QR (1982)

Toyota Hiace Van,Wagon

Production Dec 1982 - Aug 1985
Engine 3YU
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212- )WG

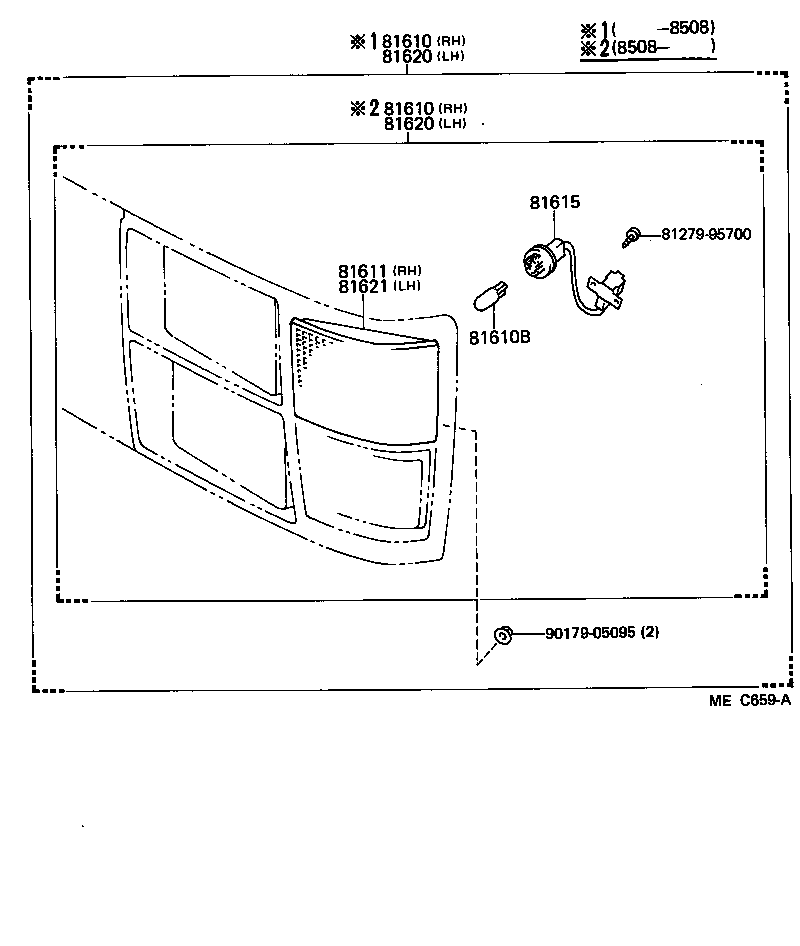

Click highlighted areas on diagram

diagram 8127995700 81610 81610 81610B 81611 81615 81620 81620 81621 9017905095
Part # Description Qty Price
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-29345

LH5#,6#,YH51,61..WG

 1
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-29345

LH5#,6#,YH51,61..WG

 1
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050

LH50,51,60,61,YH51,61..WG

12V 5W,12V 5W

 2
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-95J00

LH5#,6#,YH51,61..WG

LENS & BODY

 1
81615 - SOCKET AND WIRE, CLEARANCE LAMP
81615-95J00

LH5#,6#,YH51,61..WG

 2
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-29335

LH5#,6#,YH51,61..WG

 1
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-29335

LH5#,6#,YH51,61..WG

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-95J00

LH5#,6#,YH51,61..WG

LENS & BODY

 1
Common parts
81279-95700
90179-05095
