YH57G-ME (1987)
Toyota Hiace Van,Wagon
(8708- )LH56,66,YH57

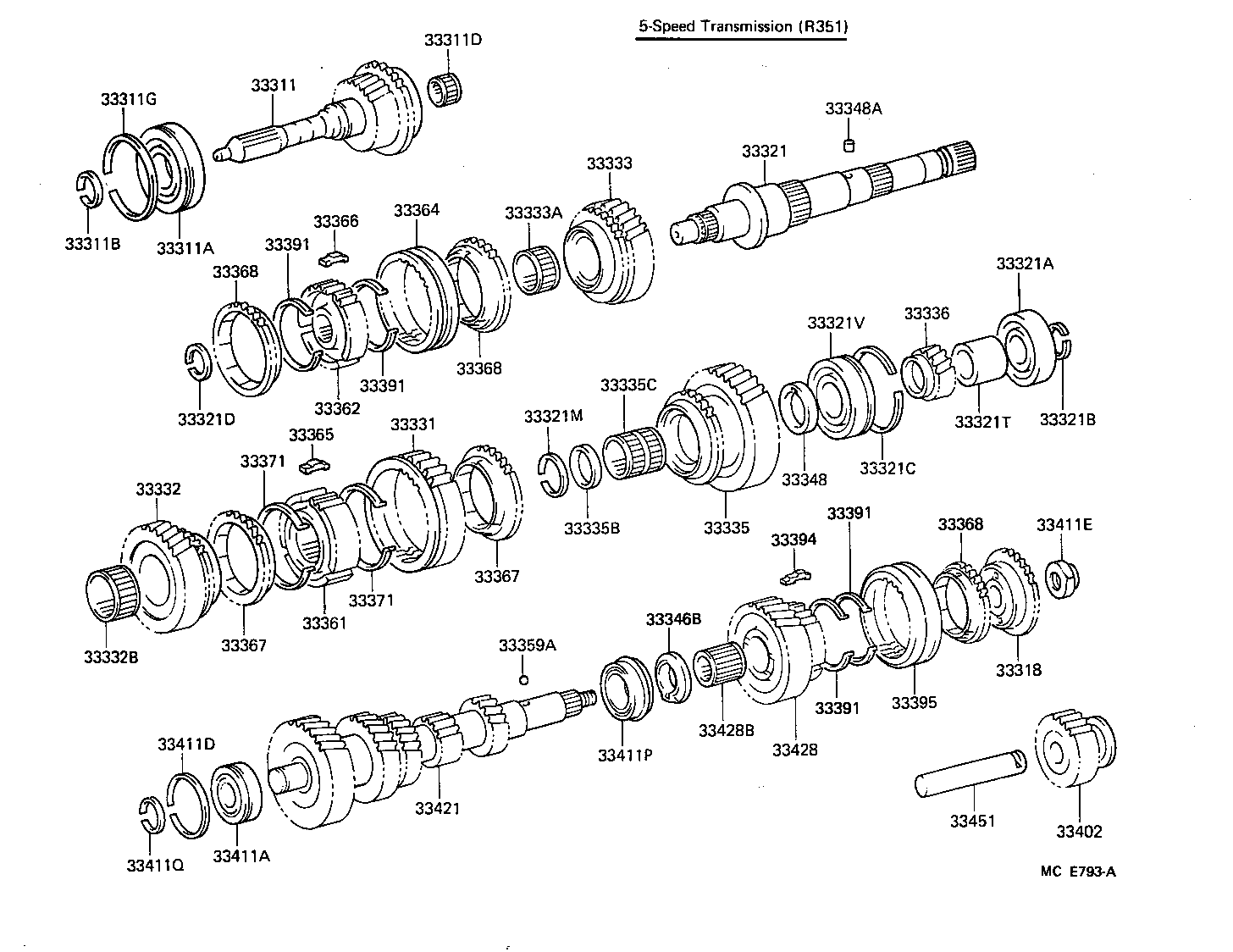

R351F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33311 - SHAFT, INPUT | ||||
| 33301-35050 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-40034 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-38011 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 厚さ=2.25,ﾏｰｸ D |
1 | ||
| 90520-38008 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 厚さ=2.10,ﾏｰｸ A |
1 | ||
| 90520-38010 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 厚さ=2.20,ﾏｰｸ C |
1 | ||
| 90520-38013 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 厚さ=2.35,ﾏｰｸ F |
1 | ||
| 90520-38009 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 厚さ=2.15,ﾏｰｸ B |
1 | ||
| 90520-38014 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 厚さ=2.40,ﾏｰｸ G |
1 | ||
| 90520-38012 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 厚さ=2.30,ﾏｰｸ E |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90364-25013 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 33311G - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-88001 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 33318 - PIECE, GEAR SPLINE, NO.5 | ||||
| 33318-35020 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-35140 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90363-30047 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 33321B - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-28034 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 厚さ=2.80,ﾏｰｸ D |
1 | ||
| 90520-28033 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 厚さ=2.75,ﾏｰｸ C |
1 | ||
| 90520-28035 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 厚さ=2.85,ﾏｰｸ E |
1 | ||
| 90520-28039 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 厚さ=2.95,ﾏｰｸ G |
1 | ||
| 90520-28042 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 厚さ=3.00,ﾏｰｸ H |
1 | ||
| 90520-28032 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 厚さ=2.70,ﾏｰｸ B |
1 | ||
| 90520-28037 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 厚さ=2.90,ﾏｰｸ F |
1 | ||
| 90520-28051 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 厚さ=3.40,ﾏｰｸ R |
1 | ||
| 90520-28049 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 厚さ=3.30,ﾏｰｸ P |
1 | ||
| 90520-28048 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 厚さ=3.25,ﾏｰｸ N |
1 | ||
| 90520-28046 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 厚さ=3.15,ﾏｰｸ L |
1 | ||
| 90520-28047 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 厚さ=3.20,ﾏｰｸ M |
1 | ||
| 90520-28043 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 厚さ=3.05,ﾏｰｸ J |
1 | ||
| 90520-28050 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 厚さ=3.35,ﾏｰｸ Q |
1 | ||
| 90520-28045 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 厚さ=3.10,ﾏｰｸ K |
1 | ||
| 90520-28052 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 厚さ=3.45,ﾏｰｸ S |
1 | ||
| 33321C - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-81001 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 厚さ=1.65,内径=81.4 |
1 | ||
| 33321D - RING, SHAFT SNAP (FOR CLUTCH HUB SET) | ||||
| 90520-30014 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 厚さ=1.80,ﾏｰｸ A |
1 | ||
| 90520-30018 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 厚さ=2.00,ﾏｰｸ E |
1 | ||
| 90520-30015 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 厚さ=1.85,ﾏｰｸ B |
1 | ||
| 90520-30020 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 厚さ=2.10,ﾏｰｸ G |
1 | ||
| 90520-30019 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 厚さ=2.05,ﾏｰｸ F |
1 | ||
| 90520-30017 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 厚さ=1.95,ﾏｰｸ D |
1 | ||
| 90520-30016 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 厚さ=1.90,ﾏｰｸ C |
1 | ||
| 33321M - RING, SHAFT SNAP (FOR BEARING) | ||||
| 90520-36010 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 厚さ=2.45,ﾏｰｸ D,T=2.45 |
1 | ||
| 90520-36009 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 厚さ=2.40,ﾏｰｸ C,T=2.40 |
1 | ||
| 90520-36013 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 厚さ=2.60,ﾏｰｸ G,T=2.60 |
1 | ||
| 90520-36007 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 厚さ=2.30,ﾏｰｸ A,T=2.30 |
1 | ||
| 90520-36012 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 厚さ=2.55,ﾏｰｸ F,T=2.55 |
1 | ||
| 90520-36011 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 厚さ=2.50,ﾏｰｸ E,T=2.50 |
1 | ||
| 90520-36008 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 厚さ=2.35,ﾏｰｸ B,厚さ=2.35 |
1 | ||
| 33321T - SPACER (FOR OUTPUT SHAFT) | ||||
| 90560-30005 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 33321V - BEARING (FOR OUTPUT SHAFT CENTER) | ||||
| 90363-35023 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-35050 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-35050 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-47003 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-35040 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) | ||||
| 90364-38011 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33032-35040 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 33335B - SPACER(FOR 1ST GEAR BEARING) | ||||
| 90560-39002 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-39005 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33336-35070 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 33346B - WASHER, 5TH GEAR THRUST | ||||
| 33346-35010 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 33348 - WASHER, 1ST GEAR THRUST | ||||
| 33348-35010 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 33348A - PIN OR BALL (FOR 1ST GEAR THRUST WASHER) | ||||
| 90250-05026 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 33359A - BALL, 5TH GEAR BEARING INNER RACE LOCK | ||||
| 90360-06004 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-35030 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-35030 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-35020 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-35030 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-35030 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-35010 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
2 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-35010 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-35020 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
3 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-35020 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
3 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-35020 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
3 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-35020 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-35020 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-25030 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
4 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-25030 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
4 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-25030 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
4 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-25030 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
4 | ||
| 33394 - KEY, SYNCHROMESH SHIFTING, NO.3 | ||||
| 33394-35020 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
3 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-35010 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-35040 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90365-25019 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1 | ||||
| 90520-56002 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 厚さ=1.07,外径=62 |
1 | ||
| 33411E - NUT(FOR COUNTER GEAR SHAFT) | ||||
| 90179-22005 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 33411P - BEARING, COUNTER SHAFT CENTER | ||||
| 90365-34005 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 33411Q - RING, COUNTER GEAR FRONT BEARING SNAP, NO.2 | ||||
| 90520-23037 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 厚さ=2.00,ﾏｰｸ A |
1 | ||
| 90520-23038 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 厚さ=2.05,ﾏｰｸ B |
1 | ||
| 90520-28031 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 厚さ=2.65,ﾏｰｸ A |
1 | ||
| 90520-23039 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 厚さ=2.10,ﾏｰｸ C |
1 | ||
| 90520-23040 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 厚さ=2.15,ﾏｰｸ D |
1 | ||
| 90520-23041 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 厚さ=2.20,ﾏｰｸ E |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-35130 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 33428 - GEAR, COUNTERSHAFT 5TH | ||||
| 33046-35050 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 33428B - BEARING (FOR COUNTER 5TH GEAR) | ||||
| 90364-28009 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-35030 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
