YH51V-PNFE (1985)

Toyota Hiace Van,Wagon

Production Aug 1985 - Aug 1987
Engine 3Y
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )LH51,61,YH5#,61..GL

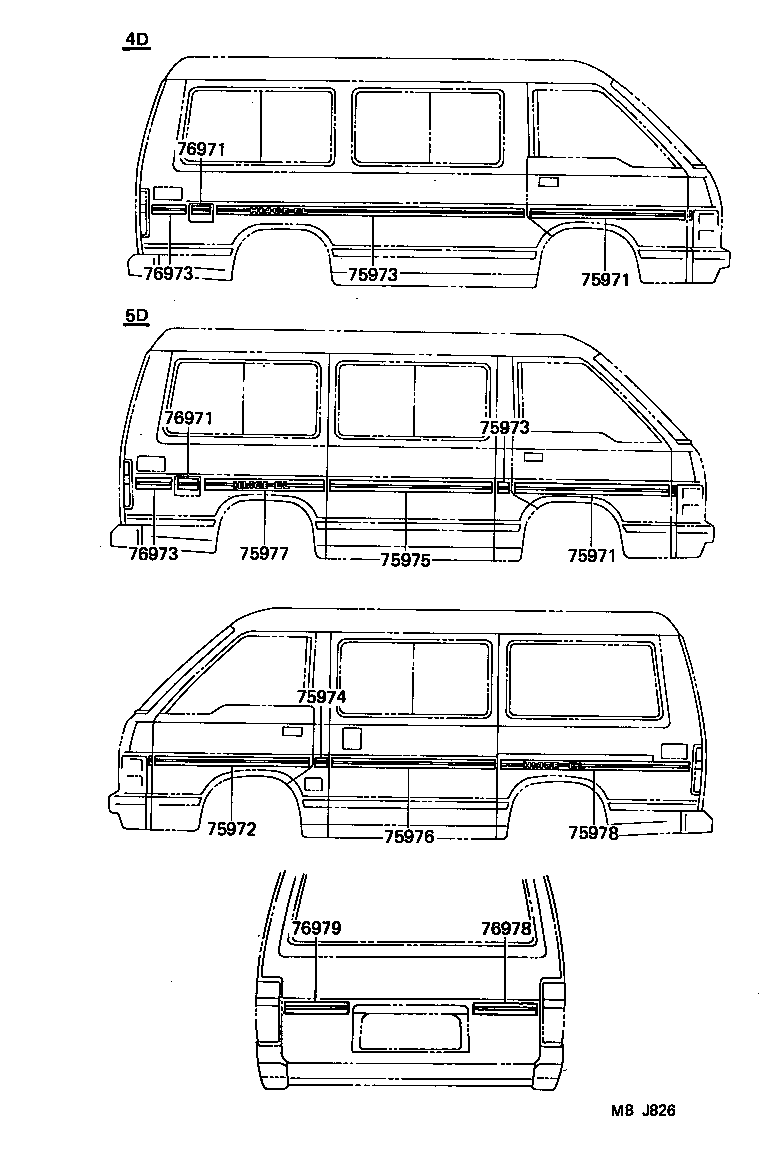

Click highlighted areas on diagram

diagram 75971 75971 75972 75973 75973 75974 75975 75976 75977 75978 76971 76971 76973 76973 76978 76979
Part # Description Qty Price
75971 - STRIPE, SIDE, RH NO.1
75985-95J0803

LH51,61,YH5#,61..GL

GRAY,SILVER/RED

 1
75971 - STRIPE, SIDE, RH NO.1
75985-95J0803

LH51,61,YH5#,61..GL

GRAY,SILVER/RED

 1
75972 - STRIPE, SIDE, LH NO.1
75986-95J0803

LH51,61,YH5#,61..GL

GRAY,SILVER/RED

 1
75973 - STRIPE, SIDE, RH NO.2
75941-95J0703

LH51,61,YH51,61..V5D..05S

GRAY,SILVER/RED

 1
75973 - STRIPE, SIDE, RH NO.2
75941-95J0703

LH51,61,YH51,61..V5D..05S

GRAY,SILVER/RED

 1
75974 - STRIPE, CENTER PILLAR, LH NO.2
75941-95J0703

LH51,61,YH5#,61..GL

GRAY,SILVER/RED

 1
75975 - STRIPE, SIDE, RH UPR NO.3
75983-95J0803

LH51,61,YH5#,61..V5D..05S

GRAY,SILVER/RED

 1
75976 - STRIPE, SIDE, LH UPR
75983-95J0803

LH51,61,YH5#,61..GL

GRAY,SILVER/RED

 1
75977 - STRIPE, SIDE, RH NO.4
75991-95J0503

LH51,YH5#..V5D..05S

GRAY,SILVER/RED

 1
75978 - STRIPE, SIDE, LH NO.4
75992-95J2003

LH51,YH5#..05S

GRAY,SILVER/RED

 1
75992-95J5203

LH51,YH5#..05S

GRAY,SILVER/RED

 1
76971 - STRIPE, SIDE, RH NO.5
76993-95J0503

LH51,61,YH5#,61..GL

GRAY,SILVER/RED

 1
76971 - STRIPE, SIDE, RH NO.5
76993-95J0503

LH51,61,YH5#,61..GL

GRAY,SILVER/RED

 1
76973 - STRIPE, SIDE, RH NO.6
75993-95J1603

LH51,YH5#..05S

GRAY,SILVER/RED

 1
76973 - STRIPE, SIDE, RH NO.6
75993-95J1603

LH51,YH5#..05S

GRAY,SILVER/RED

 1
76978 - STRIPE, REAR BODY BACK, RH
75946-95J0703

LH51,61,YH5#,61..GL

GRAY,SILVER/RED

 1
75946-95J2503

LH51,YH5#..05S

SILVER & RED,SILVER/RED

 1
76979 - STRIPE, REAR BODY BACK, LH
75947-95J0703

LH51,61,YH5#,61..GL

GRAY,SILVER/RED

 1

(8601-8701)

Click highlighted areas on diagram

LIVING SALOON EX

diagram 75971 75971A 75971C 75972 75972A 75972C 75973 75973A 75973C 75974 75974 75975 75975 75976 75976A 75976C 75978 75978A 75978C 76971 76971 76972C 76973 76977 76977 76978 76978 76979 76979 76993 76994
Part # Description Qty Price
75971 - STRIPE, SIDE, RH NO.1
75985-95J0803

LH51,61,YH5#,61..GL

GRAY,SILVER/RED

 1
75972 - STRIPE, SIDE, LH NO.1
75986-95J0803

LH51,61,YH5#,61..GL

GRAY,SILVER/RED

 1
75973 - STRIPE, SIDE, RH NO.2
75941-95J0703

LH51,61,YH51,61..V5D..05S

GRAY,SILVER/RED

 1
75974 - STRIPE, CENTER PILLAR, LH NO.2
75941-95J0703

LH51,61,YH5#,61..GL

GRAY,SILVER/RED

 1
75974 - STRIPE, CENTER PILLAR, LH NO.2
75941-95J0703

LH51,61,YH5#,61..GL

GRAY,SILVER/RED

 1
75975 - STRIPE, SIDE, RH UPR NO.3
75983-95J0803

LH51,61,YH5#,61..V5D..05S

GRAY,SILVER/RED

 1
75975 - STRIPE, SIDE, RH UPR NO.3
75983-95J0803

LH51,61,YH5#,61..V5D..05S

GRAY,SILVER/RED

 1
75976 - STRIPE, SIDE, LH UPR
75983-95J0803

LH51,61,YH5#,61..GL

GRAY,SILVER/RED

 1
75978 - STRIPE, SIDE, LH NO.4
75992-95J2003

LH51,YH5#..05S

GRAY,SILVER/RED

 1
75992-95J5203

LH51,YH5#..05S

GRAY,SILVER/RED

 1
76971 - STRIPE, SIDE, RH NO.5
76993-95J0503

LH51,61,YH5#,61..GL

GRAY,SILVER/RED

 1
76971 - STRIPE, SIDE, RH NO.5
76993-95J0503

LH51,61,YH5#,61..GL

GRAY,SILVER/RED

 1
76973 - STRIPE, SIDE, RH NO.6
75993-95J1603

LH51,YH5#..05S

GRAY,SILVER/RED

 1
76978 - STRIPE, REAR BODY BACK, RH
75946-95J0703

LH51,61,YH5#,61..GL

GRAY,SILVER/RED

 1
75946-95J2503

LH51,YH5#..05S

SILVER & RED,SILVER/RED

 1
76978 - STRIPE, REAR BODY BACK, RH
75946-95J0703

LH51,61,YH5#,61..GL

GRAY,SILVER/RED

 1
75946-95J2503

LH51,YH5#..05S

SILVER & RED,SILVER/RED

 1
76979 - STRIPE, REAR BODY BACK, LH
75947-95J0703

LH51,61,YH5#,61..GL

GRAY,SILVER/RED

 1
76979 - STRIPE, REAR BODY BACK, LH
75947-95J0703

LH51,61,YH5#,61..GL

GRAY,SILVER/RED

 1

(8609- )

Click highlighted areas on diagram

WHITE SPECIAL

diagram 75971 75972 75973 75974 75976 75978 76971 76973 76978 76979
Part # Description Qty Price
75971 - STRIPE, SIDE, RH NO.1
75985-95J0803

LH51,61,YH5#,61..GL

GRAY,SILVER/RED

 1
75972 - STRIPE, SIDE, LH NO.1
75986-95J0803

LH51,61,YH5#,61..GL

GRAY,SILVER/RED

 1
75973 - STRIPE, SIDE, RH NO.2
75941-95J0703

LH51,61,YH51,61..V5D..05S

GRAY,SILVER/RED

 1
75974 - STRIPE, CENTER PILLAR, LH NO.2
75941-95J0703

LH51,61,YH5#,61..GL

GRAY,SILVER/RED

 1
75976 - STRIPE, SIDE, LH UPR
75983-95J0803

LH51,61,YH5#,61..GL

GRAY,SILVER/RED

 1
75978 - STRIPE, SIDE, LH NO.4
75992-95J2003

LH51,YH5#..05S

GRAY,SILVER/RED

 1
75992-95J5203

LH51,YH5#..05S

GRAY,SILVER/RED

 1
76971 - STRIPE, SIDE, RH NO.5
76993-95J0503

LH51,61,YH5#,61..GL

GRAY,SILVER/RED

 1
76973 - STRIPE, SIDE, RH NO.6
75993-95J1603

LH51,YH5#..05S

GRAY,SILVER/RED

 1
76978 - STRIPE, REAR BODY BACK, RH
75946-95J0703

LH51,61,YH5#,61..GL

GRAY,SILVER/RED

 1
75946-95J2503

LH51,YH5#..05S

SILVER & RED,SILVER/RED

 1
76979 - STRIPE, REAR BODY BACK, LH
75947-95J0703

LH51,61,YH5#,61..GL

GRAY,SILVER/RED

 1

(8701- )

Click highlighted areas on diagram

LIVING SALOON EX

diagram 75971 75972 75973 75974 75975 75976 75978 76971 76977 76978 76979 76993 76994
Part # Description Qty Price
75971 - STRIPE, SIDE, RH NO.1
75985-95J0803

LH51,61,YH5#,61..GL

GRAY,SILVER/RED

 1
75972 - STRIPE, SIDE, LH NO.1
75986-95J0803

LH51,61,YH5#,61..GL

GRAY,SILVER/RED

 1
75973 - STRIPE, SIDE, RH NO.2
75941-95J0703

LH51,61,YH51,61..V5D..05S

GRAY,SILVER/RED

 1
75974 - STRIPE, CENTER PILLAR, LH NO.2
75941-95J0703

LH51,61,YH5#,61..GL

GRAY,SILVER/RED

 1
75975 - STRIPE, SIDE, RH UPR NO.3
75983-95J0803

LH51,61,YH5#,61..V5D..05S

GRAY,SILVER/RED

 1
75976 - STRIPE, SIDE, LH UPR
75983-95J0803

LH51,61,YH5#,61..GL

GRAY,SILVER/RED

 1
75978 - STRIPE, SIDE, LH NO.4
75992-95J2003

LH51,YH5#..05S

GRAY,SILVER/RED

 1
75992-95J5203

LH51,YH5#..05S

GRAY,SILVER/RED

 1
76971 - STRIPE, SIDE, RH NO.5
76993-95J0503

LH51,61,YH5#,61..GL

GRAY,SILVER/RED

 1
76978 - STRIPE, REAR BODY BACK, RH
75946-95J0703

LH51,61,YH5#,61..GL

GRAY,SILVER/RED

 1
75946-95J2503

LH51,YH5#..05S

SILVER & RED,SILVER/RED

 1
76979 - STRIPE, REAR BODY BACK, LH
75947-95J0703

LH51,61,YH5#,61..GL

GRAY,SILVER/RED

 1
