YH51G-SGS (1982)

Toyota Hiace Van,Wagon

Production Dec 1982 - Jan 1984
Engine 3YU
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8212- )ATM

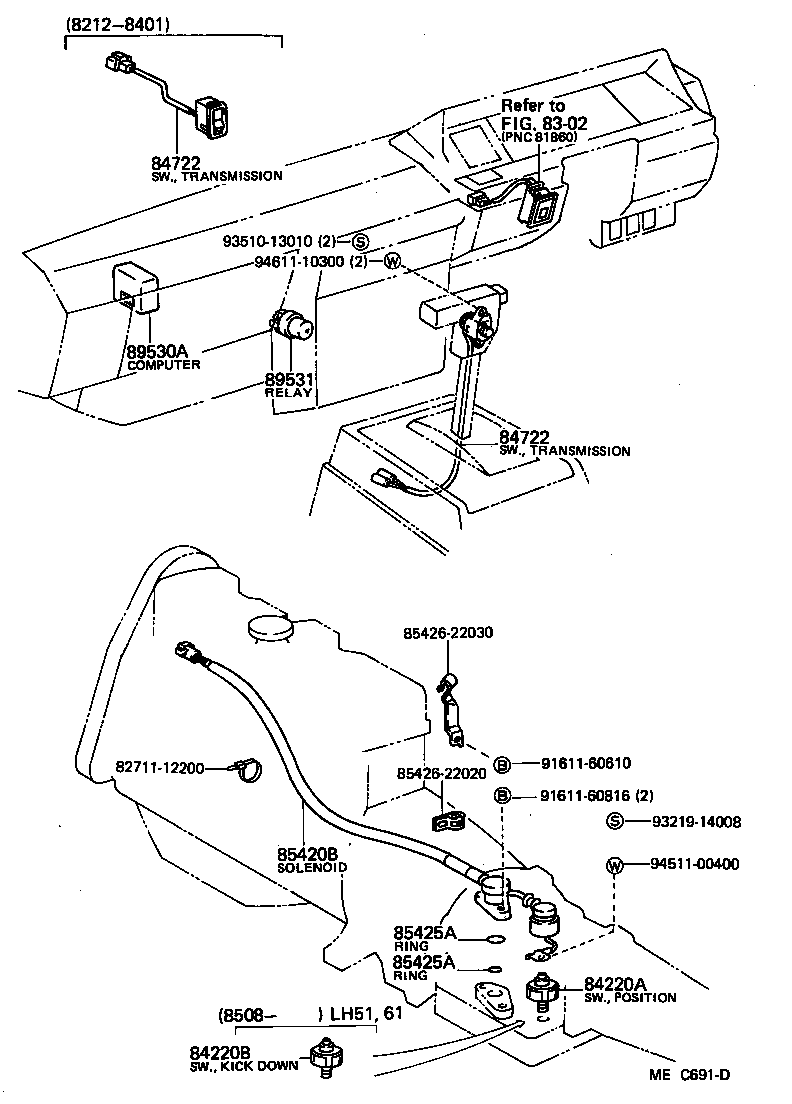

Click highlighted areas on diagram

diagram 8271112200 8302 84220A 84220B 84722 84722 85420B 85425A 85425A 8542622020 8542622030 89530A 89531 9161160610 9161160816 9321914008 9351013010 9451100400 9461110300
Part # Description Qty Price
84220A - SWITCH ASSY, TRANSMISSION POSITION INDICATOR
84220-30050

LH50,YH51,61..ATM

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-24010

LH50,YH51,61..ATM

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-24010

LH50,YH51,61..ATM

 1
85420B - SOLENOID ASSY, TRANSMISSION
85420-22040

LH50,YH51,61..ATM

 1
85425A - RING, O (FOR OVERDRIVE SOLENOID)
90301-11001

LH50,51,61,YH51,61..ATM

ID=11

 1
90301-23001

LH50,51,61,YH51,61..ATM

ID=23

 1
85425A - RING, O (FOR OVERDRIVE SOLENOID)
90301-11001

LH50,51,61,YH51,61..ATM

ID=11

 1
90301-23001

LH50,51,61,YH51,61..ATM

ID=23

 1
Common parts
82711-12200
85426-22020
85426-22030
91611-60610
91611-60816
93219-14008
93510-13010
94511-00400
94611-10300
Linked diagrams
8302
