YH51G-SGS (1982)

Toyota Hiace Van,Wagon

Production Dec 1982 - Jan 1984
Engine 3YU
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8212- )

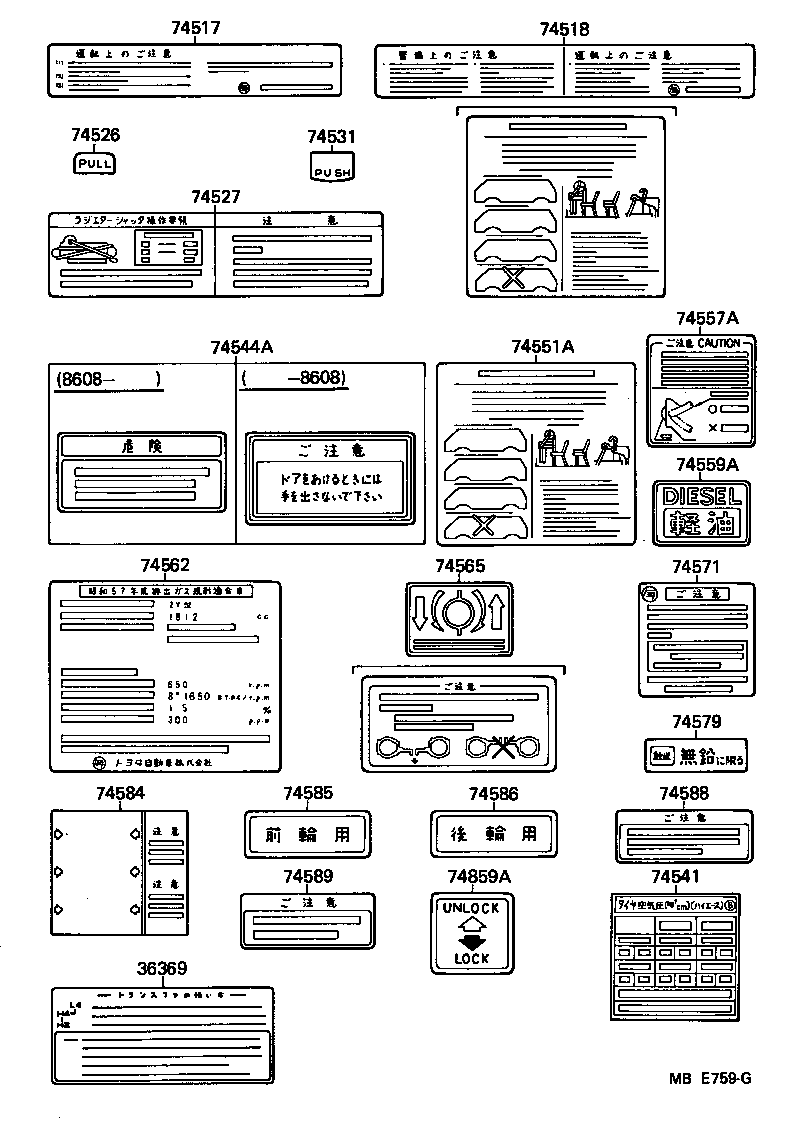

Click highlighted areas on diagram

diagram 36369 74517 74518 74526 74527 74531 74541 74544A 74551A 74557A 74559A 74562 74565 74571 74579 74584 74585 74586 74588 74589 74859A
Part # Description Qty Price
74526 - PLATE, RECLINING ADJUSTER CAUTION
71386-95A00

LH50,51,YH51..WG

 1
74541 - PLATE, TIRE PRESSURE CAUTION
74582-26010

LH50,51,YH51..WG

 1
74544A - PLATE, SLIDE DOOR WINDOW GLASS CAUTION
74543-95660

LH5#,6#,7#,YH51,61,71..07S,08S,09S,10S,15S

 1
74559A - PLATE, FUEL CAUTION
74559-14010

YH5#,6#,71

 1
74562 - PLATE, EMISSION CONTROL SYSTEM INFORMATION
74562-26150

YH51,61..WG

 1
74571 - PLATE, BRAKE FLUID CAUTION
74571-27011

LH50,60,70,YH5#,61,71

 1
74579 - PLATE, UNLEADED FUEL CAUTION
74579-30011

YH61,71..10S,15S;YH51,52,62..03S,07S,08S,09S

 1
74588 - PLATE, SUN ROOF CAUTION, NO.1
63278-95A01

LH50,51,YH51..MRF

CONSOLE

 1
74589 - PLATE, SUN ROOF CAUTION, NO.2
63278-95J01

LH50,51,YH51..MRF

MOTER COVER

 1
