YH51G-SG (1987)
Toyota Hiace Van,Wagon
(8708- )LH51,YH51..WG

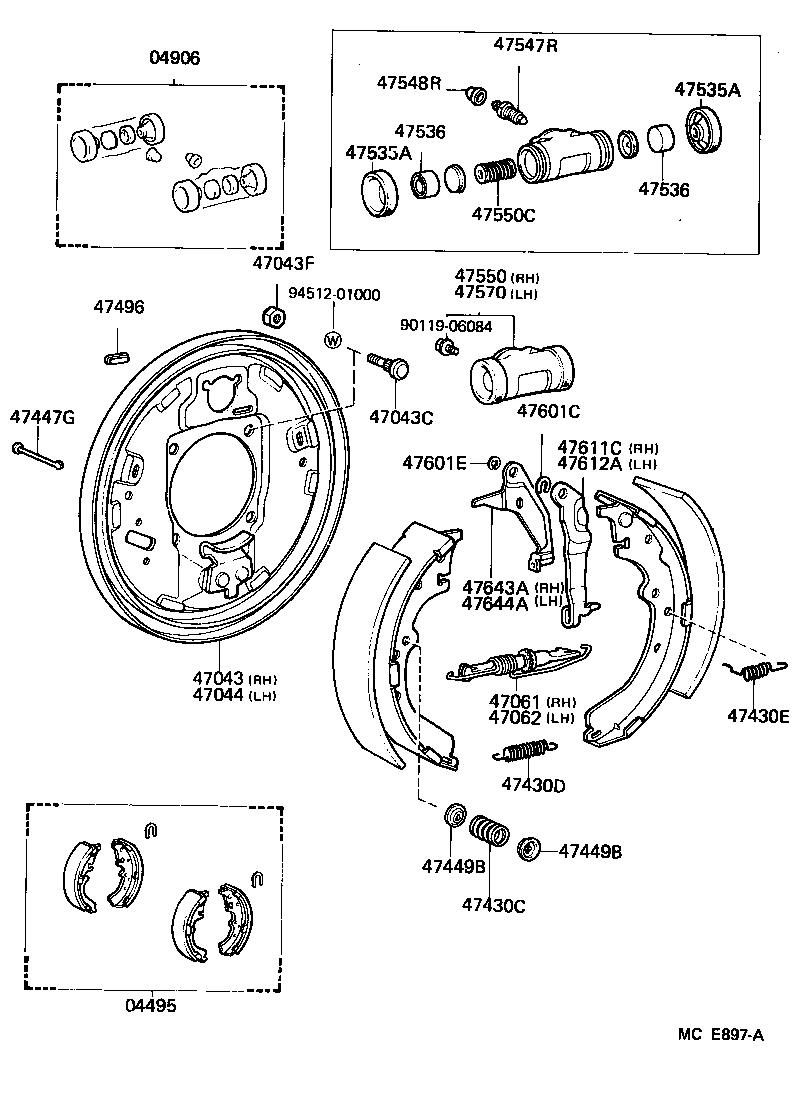

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-35060 |
LH51,YH51..WG |
1 | ||
| 04495-35061 |
LH51,YH51..WG |
1 | ||
| 04497-26061 |
LH51,YH51..WG REBUILT |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-30100 |
LH51,61,71,YH51,61..WG |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-35060 |
LH51,YH51..WG |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90114-10002 |
LH56,66..05S;LH66..(DX,SGL)..08S;LH51,61,71,YH51,57,61..WG *10−1.25PX37−18.5 |
8 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90179-10041 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..ST |
8 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-35050 |
LH51,YH51..WG |
1 | ||
| 47061 - STRUT SET, PARKING BRAKE SHOE, RH | ||||
| 47061-35020 |
LH51,YH51..WG |
1 | ||
| 47062 - STRUT SET, PARKING BRAKE SHOE, LH | ||||
| 47062-35020 |
LH51,YH51..WG |
1 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20756 |
LH61,YH61..WT;LH51,61,71,YH51,61..WG |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-20005 |
LH51,61,71,YH51,61..WG |
2 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-12015 |
LH51,61,71,YH51,61..WG |
2 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-30020 |
LH56,66..05S;LH66..(DX,SGL)..08S;LH51,61,71,YH51,57,61..WG |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
8 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-20011 |
LH56,66..05S;LH66..(DX,SGL)..08S;LH51,61,71,YH51,57,61..WG |
2 | ||
| 47535A - BOOT, REAR WHEEL CYLINDER | ||||
| 47535-30100 |
LH51,61,71,YH51,61..WG |
2 | ||
| 47535A - BOOT, REAR WHEEL CYLINDER | ||||
| 47535-30100 |
LH51,61,71,YH51,61..WG |
2 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47051-22020 |
LH51,61,71,YH51,61..WG |
4 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47051-22020 |
LH51,61,71,YH51,61..WG |
4 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-20030 |
LH51,61,71,YH51,61..WG |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-30130 |
LH51,61,71,YH51,61..WG |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 47509-20010 |
LH51,61,71,YH50,51,52,6#,71..ST |
2 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47550-30130 |
LH51,61,71,YH51,61..WG |
1 | ||
| 47601E - RING, E(FOR REAR BRAKE) | ||||
| 96160-00500 |
LH51,61,71,YH51,57,61..WG |
2 | ||
| 47611C - LEVER, PARKING BRAKE SHOE, RH | ||||
| 47611-35020 |
LH51,YH51..WG |
1 | ||
| 47612A - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47612-35020 |
LH51,YH51..WG |
1 | ||
| 47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH | ||||
| 47643-35020 |
LH51,YH51..WG |
1 | ||
| 47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH | ||||
| 47644-35020 |
LH51,YH51..WG |
1 | ||
| Common parts | ||||
| 90119-06084 | ||||
| 94512-01000 | ||||
