YH51G-SG (1982)
Toyota Hiace Van,Wagon
(8212-8508)SRF..08S ; (8212- )CTD,CTM,DLX,GL,STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,STD 12V 3.4W,12V 3.4W |
16 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,STD BULB:12V 3.4W |
15 | ||
| 83101-20070 |
LH5#,6#,71,YH5#,6#,71..CTD,CTM,DLX,GL W/GREEN CAP,BULB:12V 3.4W |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,STD BULB:12V 3.4W |
15 | ||
| 83101-20070 |
LH5#,6#,71,YH5#,6#,71..CTD,CTM,DLX,GL W/GREEN CAP,BULB:12V 3.4W |
4 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-95J01 |
YH50,51,61..CTM,GL |
1 | ||
| 83247-95J13 |
YH5#,61..CTM,GL |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24030 |
LH5#,6#,71,YH5#,6#,71..CTD,CTM,DLX,GL 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 3.4W |
4 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-95J00 |
YH5#,6#,71..4H,4HC,5H |
1 | ||
| 83110-95J21 |
YH5#,6#,71..CTD,CTM,DLX,GL |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-95J00 |
LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,STD |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-95J00 |
LH5#,6#,7#,YH5#,6#,71..CTM,DLX,GL,STD |
1 | ||
| 83132-95J03 |
LH5#,6#,71,YH5#,61,71..CTM,DLX,GL |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-95J00 |
YH5#,6#,71..CTD,CTM,DLX,GL,STD |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95J01 |
LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,STD TURN & BEAM |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-95J19 |
YH51..CTM |
1 | ||
| 83145-95J05 |
YH51,61,71..(COM,WG)..(09S,10S,15S) |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-95J02 |
LH51,61,71,YH5#,6#,71..CTD,CTM,DLX,GL |
1 | ||
| 83145-95J03 |
LH5#,6#,7#,YH50,51,61..CTM,GL |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83145-95J15 |
LH5#,6#,7#,YH50,51,61..CTM,GL DOOR WARNING |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83145-95J15 |
LH5#,6#,7#,YH50,51,61..CTM,GL DOOR WARNING |
1 | ||
| 83145D - LENS, METER, NO.5 | ||||
| 83145-95J04 |
LH5#,6#,7#,YH50,51,61..CTM,GL DOOR WARNING |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-95J00 |
YH51..CTM |
1 | ||
| 83243-95J10 |
YH5#,61,71..CTM,DLX,GL |
1 | ||
| Common parts | ||||
| 83161-20380 | ||||
| 83161-20440 | ||||
| 90183-05103 | ||||
| 93567-55018 | ||||

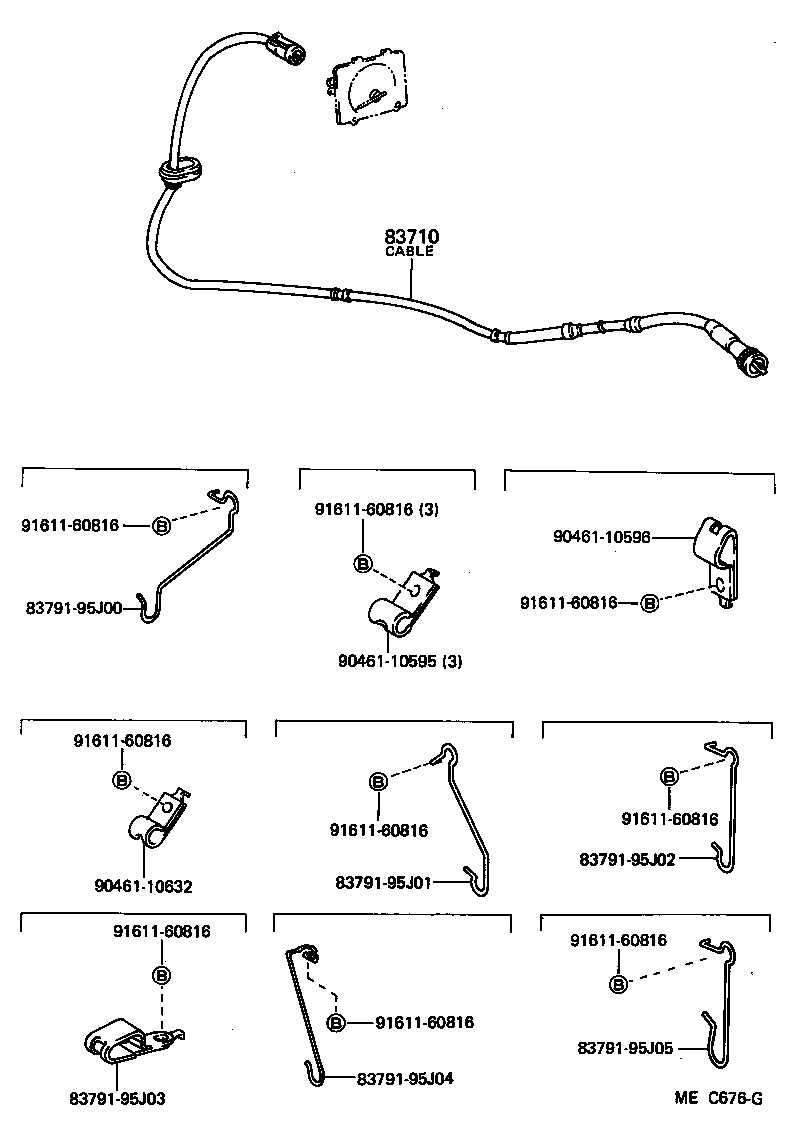

ILLUST NO. 2 OF 3(8212- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-95J01 |
YH51,61..ATM |
1 | ||
| 83710-95J02 |
YH51..SRF..5F;YH5#,6#,71..4H,5H |
1 | ||
| 83710-95J03 |
LH50,51,61..ATM |
1 | ||
| Common parts | ||||
| 83791-95J00 | ||||
| 83791-95J01 | ||||
| 83791-95J02 | ||||
| 83791-95J03 | ||||
| 83791-95J04 | ||||
| 83791-95J05 | ||||
| 90461-10595 | ||||
| 90461-10596 | ||||
| 90461-10632 | ||||
| 91611-60816 | ||||

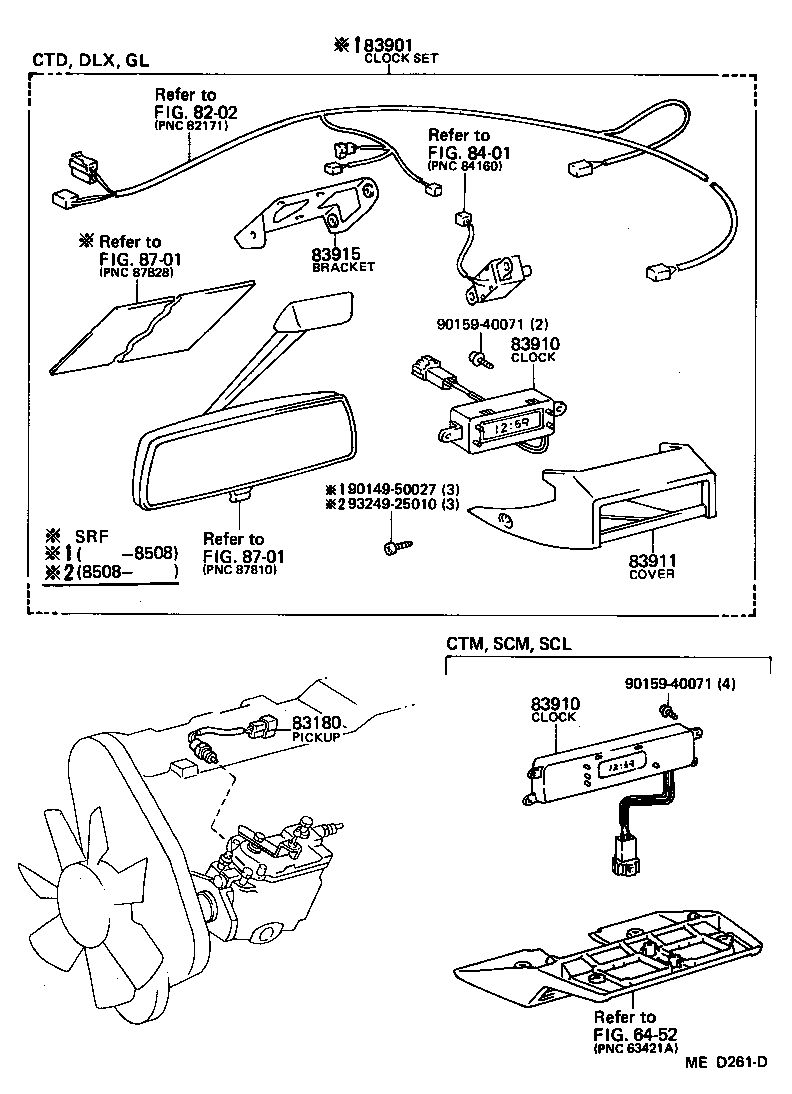

ILLUST NO. 3 OF 3(8212- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910 - CLOCK ASSY | ||||
| 83910-95J02 |
LH5#,YH51..CTM,SCM |
1 | ||
| 83910-95J03 |
LH51,YH51..CTM,SCL,SCM |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-95J02 |
LH5#,YH51..CTM,SCM |
1 | ||
| 83910-95J03 |
LH51,YH51..CTM,SCL,SCM |
1 | ||
| Common parts | ||||
| 90149-50027 | ||||
| 90159-40071 | ||||
| 93249-25010 | ||||
| Linked diagrams | ||||
| 6452 | ||||
| 8202 | ||||
| 8401 | ||||
| 8701 | ||||
