YH51G-QG (1987)

Toyota Hiace Van,Wagon

Production Aug 1987 - Aug 1989
Engine 3YU
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8708- )LH51,61,71,YH50,51,52,6#,71

Click highlighted areas on diagram

diagram 1149371010 1717572010 8712428030 8712428030 8712428030 8712428030 8712428030 8712428030 8712490B00 8712490B00 8712490B00 87205 87240 87240 87245A 87245A 87245B 87245B 87245E 87245E 87246A 87246A 87246E 87246E 87248A 87248A 87248A 87248B 87248B 87248X 87248X 87249A 87249A 87249A 87249A 87249F 87251 87263 8743695J04 8743695J04 8743695J05 8743695J05 8871895J38 8871895J38 89427D 89427D 89427D 89427D 9011908063 9011908063 9017908123 9017908123 9017908146 9046108157 9046108573 9046108573 9161160835 9165140616 9165140814 9165140816 9165140816 9165140816 9165140816 9165140816 9331515010 9331515010 9331515010 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-95J02

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
87240 - VALVE ASSY, HEATER WATER
87240-95J02

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95J10

YH50,51,52,6#,71

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95J10

YH50,51,52,6#,71

 1
87245B - HOSE, HEATER WATER, INLET B
87245-95J27

LH51,61,71,YH50,51,52,6#,71

 1
87245B - HOSE, HEATER WATER, INLET B
87245-95J27

LH51,61,71,YH50,51,52,6#,71

 1
87245E - HOSE, HEATER WATER, INLET E
87245-95J42

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
87245E - HOSE, HEATER WATER, INLET E
87245-95J42

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-95J26

LH51,61,71,YH50,51,52,6#,71

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-95J26

LH51,61,71,YH50,51,52,6#,71

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-95J12

YH50,51,52,6#,71

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-95J12

YH50,51,52,6#,71

 1
87248A - PIPE, HEATER WATER INLET, A
87208-28010

YH5#,6#,71

 1
87248A - PIPE, HEATER WATER INLET, A
87208-28010

YH5#,6#,71

 1
87248A - PIPE, HEATER WATER INLET, A
87208-28010

YH5#,6#,71

 1
87248B - PIPE, HEATER WATER INLET, B
87248-95J56

YH51..CTM,SCL,SCM

 1
87248B - PIPE, HEATER WATER INLET, B
87248-95J56

YH51..CTM,SCL,SCM

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-95J55

YH51..CTM,SCL,SCM

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-95J55

YH51..CTM,SCL,SCM

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-95J55

YH51..CTM,SCL,SCM

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-95J55

YH51..CTM,SCL,SCM

 1
87249F - PIPE, HEATER WATER OUTLET, F
87208-28021

YH5#,6#,71

 1
87263 - BRACKET, HEATER WATER PIPE, NO.1
87263-28011

YH5#,6#,71

 1
89427D - SWITCH, TEMPERATURE
89427-12051

YH51..CTM,SCL,SCM

 1
89427D - SWITCH, TEMPERATURE
89427-12051

YH51..CTM,SCL,SCM

 1
89427D - SWITCH, TEMPERATURE
89427-12051

YH51..CTM,SCL,SCM

 1
89427D - SWITCH, TEMPERATURE
89427-12051

YH51..CTM,SCL,SCM

 1
Common parts
11493-71010
17175-72010
87124-28030
87124-90B00
87436-95J04
87436-95J05
88718-95J38
90119-08063
90179-08123
90179-08146
90461-08157
90461-08573
91611-60835
91651-40616
91651-40814
91651-40816
93315-15010
96112-10250

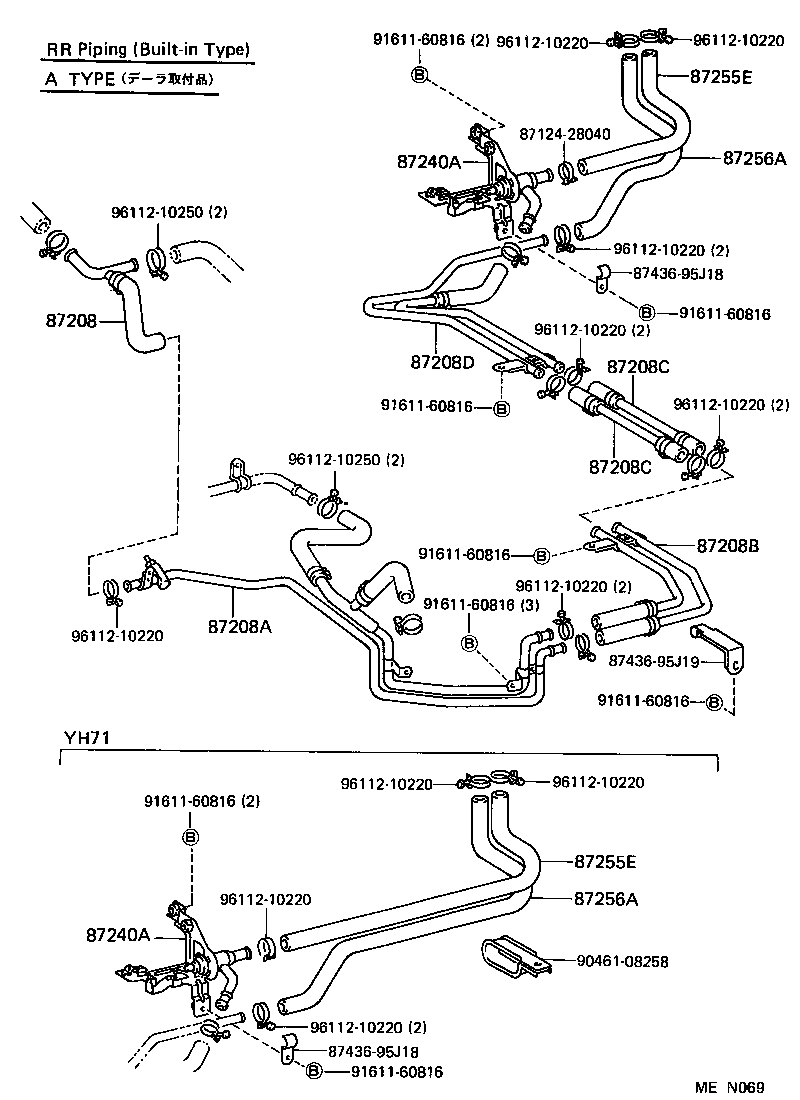

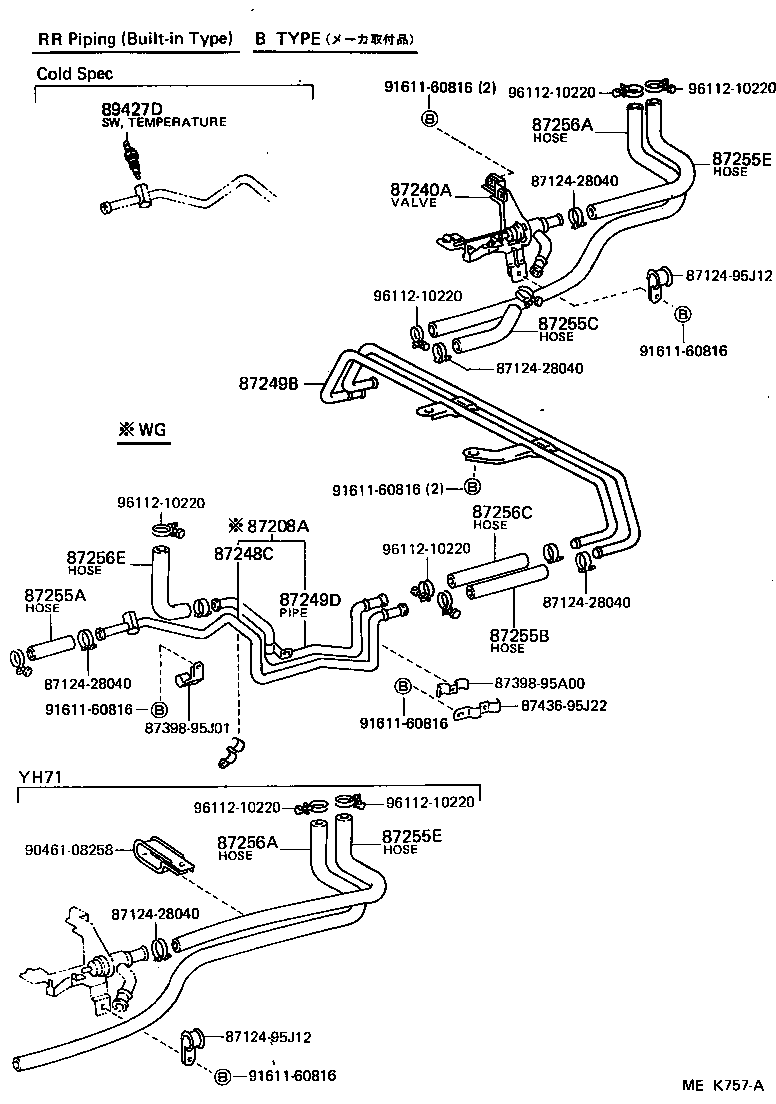

ILLUST NO. 2 OF 2(8708- )YH61..10S ; (8708- )YH50,61..V4D..ST ; (8708- )YH51,52,57,62,71..0

Click highlighted areas on diagram

diagram 8712428040 8712428040 8712428040 8712428040 8712428040 8712495J12 8712495J12 87208A 87240A 87248C 87249B 87249D 87255A 87255B 87255C 87255E 87255E 87256A 87256A 87256C 87256E 8739895A00 8739895J01 8743695J22 89427D 9046108258 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9611210220 9611210220 9611210220 9611210220 9611210220 9611210220 9611210220
Part # Description Qty Price
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-95J35

YH51..CTM,SCL,SCM

B TYPE

 1
87208-95J41

YH51..CTM,SCL,SCM

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87208-95J41

YH51..CTM,SCL,SCM

B TYPE,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
87240A - VALVE ASSY, REAR HEATER WATER
87240-95J00

LH51,71,YH51..(COM,WG)..(CTM,GL,SCL,SCM)

 1
87249B - PIPE, HEATER WATER OUTLET, B
87208-95J38

YH51..CTM,SCL,SCM

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99556-20200

LH51,71,YH51,57..(COM,WG)..(CTM,GL,SCL,SCM)

長さ=200

 1
87255B - HOSE, REAR HEATER WATER INLET, B
99556-20200

YH51..CTM,SCL,SCM

長さ=200

 1
87255C - HOSE, REAR HEATER WATER INLET, C
99556-20200

LH51,YH51..CTM,SCL,SCM

*H,L=190

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
99556-20490

LH51,YH51..CTM,SCL,SCM

*H,L=490

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
99556-20490

LH51,YH51..CTM,SCL,SCM

*H,L=490

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99556-20700

LH51,YH51..CTM,SCL,SCM

長さ=700

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99556-20700

LH51,YH51..CTM,SCL,SCM

長さ=700

 1
87256C - HOSE, REAR HEATER WATER OUTLET, C
99556-20200

YH51..CTM,SCL,SCM

長さ=200

 2
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
87245-95J15

YH51,57..CTM,SCL,SCM

 1
89427D - SWITCH, TEMPERATURE
89427-12051

YH51..CTM,SCL,SCM

 1
Common parts
87124-28040
87124-95J12
87398-95A00
87398-95J01
87436-95J22
90461-08258
91611-60816
96112-10220

ILLUST NO. 2 OF 2(8708- )YH61..10S ; (8708- )YH50,61..V4D..ST ; (8708- )YH51,52,62,71..03S,

Click highlighted areas on diagram

diagram 8712428040 87208 87208A 87208B 87208C 87208C 87208D 87240A 87240A 87255E 87255E 87256A 87256A 8743695J18 8743695J18 8743695J19 9046108258 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9611210220 9611210220 9611210220 9611210220 9611210220 9611210220 9611210220 9611210220 9611210220 9611210220 9611210220 9611210250 9611210250
Part # Description Qty Price
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-95J35

YH51..CTM,SCL,SCM

B TYPE

 1
87208-95J41

YH51..CTM,SCL,SCM

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87208-95J41

YH51..CTM,SCL,SCM

B TYPE,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
87240A - VALVE ASSY, REAR HEATER WATER
87240-95J00

LH51,71,YH51..(COM,WG)..(CTM,GL,SCL,SCM)

 1
87240A - VALVE ASSY, REAR HEATER WATER
87240-95J00

LH51,71,YH51..(COM,WG)..(CTM,GL,SCL,SCM)

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
99556-20490

LH51,YH51..CTM,SCL,SCM

*H,L=490

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
99556-20490

LH51,YH51..CTM,SCL,SCM

*H,L=490

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99556-20700

LH51,YH51..CTM,SCL,SCM

長さ=700

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99556-20700

LH51,YH51..CTM,SCL,SCM

長さ=700

 1
Common parts
87124-28040
87436-95J18
87436-95J19
90461-08258
91611-60816
96112-10220
96112-10250
