YH51G-QG (1982)
Toyota Hiace Van,Wagon

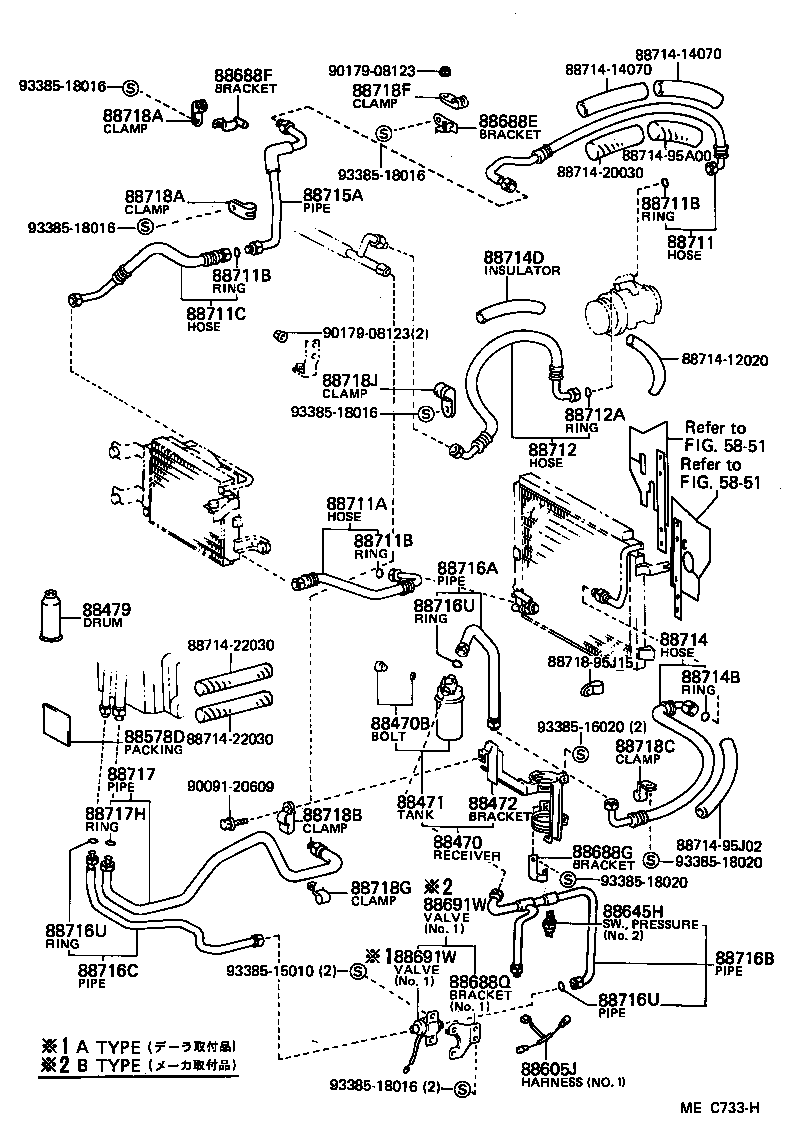

ILLUST NO. 2 OF 4(8212- )YH51,61,71..07S,08S,09S,10S,15S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88470B - BOLT, FUSE | ||||
| 90099-04579 |
LH50,51,60,61,7#,YH5#,6#,71 |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-95J00 |
LH50,51,6#,7#,YH5#,6#,71 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95J00 |
LH50,51,60,61,7#,YH5#,6#,71 |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
LH50,51,60,61,7#,YH5#,6#,71 400G |
4 | ||
| 88578D - PACKING, COOLER PIPE, NO.1 | ||||
| 88578-30360 |
LH50,51,60,61,7#,YH5#,6#,71 |
1 | ||
| 88605J - HARNESS SUB-ASSY, AIR CONDITIONER WIRING | ||||
| 88648-95J02 |
LH5#,6#,YH51,61..WG NO.2 |
1 | ||
| 88648-95J16 |
LH51,61,YH51,61..WG NO.2 |
1 | ||
| 88648-95J05 |
LH50,51,60,61,YH51,61..WG NO.1 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-30250 |
LH50,60,70,YH51,61,71..08S,09S,10S,15S |
1 | ||
| 88645-95J00 |
LH51,61,71,YH51,61,71..07S,08S,09S,10S,15S NO.1 |
1 | ||
| 88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88688-95J26 |
YH5#,6#,71 |
1 | ||
| 88688F - BRACKET, COOLER REFRIGERANT HOSE, NO.2 | ||||
| 88688-95J25 |
YH5#,6#,71 |
1 | ||
| 88688G - BRACKET, COOLER REFRIGERANT PIPE | ||||
| 88688-95J36 |
LH50,51,60,61,7#,YH5#,6#,71 |
1 | ||
| 88688Q - BRACKET (FOR MAGNET VALVE) | ||||
| 88688-95J45 |
LH51,61,71,YH51,61,71..07S,08S,09S,10S,15S NO.1 |
1 | ||
| 88688-95J49 |
LH51..4FC..TD;LH51,61,71,YH51,61,71..(07S,08S,09S,10S,15S)..(CBR,DSL) NO.2 |
1 | ||
| 88688-95J08 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S NO.2 |
1 | ||
| 88688-95J07 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S NO.1 |
1 | ||
| 88691W - VALVE, MAGNET | ||||
| 88691-95J00 |
LH50,51,60,61,7#,YH51,61,71..(07S,08S,09S,10S,15S)..(CBR,DSL) NO.1 & NO.2,A TYPE |
2 | ||
| 88691W - VALVE, MAGNET | ||||
| 88691-95J00 |
LH50,51,60,61,7#,YH51,61,71..(07S,08S,09S,10S,15S)..(CBR,DSL) NO.1 & NO.2,A TYPE |
2 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95J17 |
YH5#,6#,71 |
1 | ||
| 88711-95J03 |
YH5#,6#,71 |
1 | ||
| 88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2 | ||||
| 88711-95J04 |
YH51,61,71..07S,08S,09S,10S,15S W/*ODAC |
1 | ||
| 88711B - RING, O(FOR COOLER REFRIGERANT DISCHARGE HOSE) | ||||
| 90099-14046 |
LH50,51,60,61,7#,YH51,61,71..08S,09S,10S,15S |
6 | ||
| 88711B - RING, O(FOR COOLER REFRIGERANT DISCHARGE HOSE) | ||||
| 90099-14046 |
LH50,51,60,61,7#,YH51,61,71..08S,09S,10S,15S |
6 | ||
| 88711B - RING, O(FOR COOLER REFRIGERANT DISCHARGE HOSE) | ||||
| 90099-14046 |
LH50,51,60,61,7#,YH51,61,71..08S,09S,10S,15S |
6 | ||
| 88711C - HOSE, COOLER REFRIGERANT DISCHARGE, NO.3 | ||||
| 88711-22200 |
YH51,61,71..07S,08S,09S,10S,15S A TYPE |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95J04 |
YH51,61,71..07S,08S,09S,10S,15S W/*ODAC,A TYPE |
1 | ||
| 88712A - RING, O(FOR COOLER REFRIGERANT SUCTION HOSE) | ||||
| 90099-14045 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S |
4 | ||
| 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 | ||||
| 88721-95J00 |
YH5#,6#,71 A TYPE |
1 | ||
| 88721-95J03 |
LH50,51,60,61,7#..MTM..(08S,09S,10S,15S) W/*ODAC |
1 | ||
| 88714B - RING, O(FOR COOLER REFRIGERANT LIQUID HOSE) | ||||
| 90099-14044 |
YH5#,6#,71 |
2 | ||
| 88714D - INSULATOR, COOLER REFRIGERANT HOSE, NO.2 | ||||
| 88714-14100 |
LH5#,6#,7#,YH5#,6#,71..CBR,DSL |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-95J06 |
YH51,61,71..08S,09S,10S,15S W/*ODAC |
1 | ||
| 88715-95J09 |
YH51,61,71..07S,08S,09S,10S,15S W/*ODAC |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95J00 |
LH50,51,60,61,7#,YH5#,6#,71 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95J28 |
LH51,61,YH51,61..WG..(CBR,DSL) |
1 | ||
| 88716-95J02 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S W/*ODAC |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-95J03 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S |
1 | ||
| 88716-95J32 |
LH51,61,71,YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE) | ||||
| 90099-14044 |
LH5#,6#,7#,YH5#,6#,71 |
9 | ||
| 88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE) | ||||
| 90099-14044 |
LH5#,6#,7#,YH5#,6#,71 |
9 | ||
| 88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE) | ||||
| 90099-14044 |
LH5#,6#,7#,YH5#,6#,71 |
9 | ||
| 88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88717-95J00 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S W/*ODAC |
1 | ||
| 88717-95J16 |
LH51,61,71,YH51,61,71..(07S,08S,09S,10S,15S)..(CBR,DSL) W/*ODAC |
1 | ||
| 88717H - RING, O(FOR COOLER REFRIGERANT SUCTION PIPE) | ||||
| 90099-14045 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S |
4 | ||
| 88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-95J17 |
YH5#,6#,71 |
2 | ||
| 88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-95J17 |
YH5#,6#,71 |
2 | ||
| 88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-95J05 |
LH50,51,60,61,7#,YH5#,6#,71 |
4 | ||
| 88718C - CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-95J01 |
YH5#,6#,71 |
1 | ||
| 88718F - CLAMP, NO.1(FOR COOLER REFRIGERANT HOSE) | ||||
| 88718-95J18 |
YH5#,6#,71 |
1 | ||
| 88718G - CLAMP, NO.2(FOR COOLER REFRIGERANT HOSE) | ||||
| 88718-95J02 |
LH50,51,60,61,7#,YH5#,6#,71 |
1 | ||
| 88718J - CLAMP, NO.4(FOR COOLER REFRIGERANT HOSE) | ||||
| 88718-95J00 |
LH50,51,60,61,7#,YH5#,6#,71 |
1 | ||
| Common parts | ||||
| 88714-12020 | ||||
| 88714-14070 | ||||
| 88714-20030 | ||||
| 88714-22030 | ||||
| 88714-95A00 | ||||
| 88714-95J02 | ||||
| 88718-95J15 | ||||
| 90091-20609 | ||||
| 90179-08123 | ||||
| 93385-15010 | ||||
| 93385-16020 | ||||
| 93385-18016 | ||||
| 93385-18020 | ||||
| Linked diagrams | ||||
| 5851 | ||||
ILLUST NO. 3 OF 4(8212- )07S,08S,09S,10S,15S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88386B - PIPE, REAR COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95J05 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S |
1 | ||
| 88716-95J41 |
LH51,61,71,YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88386C - PIPE, REAR COOLER REFRIGERANT LIQUID, C | ||||
| 88716-95J06 |
LH5#,6#,70,YH51,61,71..08S,09S,10S,15S |
1 | ||
| 88716-95J06 |
LH51,61,71,YH51,61,71..07S,08S,09S,10S,15S A TYPE |
1 | ||
| 88386D - PIPE, REAR COOLER REFRIGERANT LIQUID, D | ||||
| 88716-95J07 |
LH50,51,6#,YH51,61..07S,08S,09S,10S,15S |
1 | ||
| 88387B - PIPE, REAR COOLER REFRIGERANT SUCTION, B | ||||
| 88717-95J01 |
LH51,61,71,YH51,61,71..07S,08S,09S,10S,15S A TYPE |
1 | ||
| 88717-95J01 |
LH5#,6#,70,YH51,61,71..08S,09S,10S,15S |
1 | ||
| 88387C - PIPE, REAR COOLER REFRIGERANT SUCTION, C | ||||
| 88717-95J02 |
LH50,51,60,61,7#,YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88387D - PIPE, REAR COOLER REFRIGERANT SUCTION, D | ||||
| 88717-95J05 |
LH50,51,60,61,7#,YH51,61,71..(07S,08S,09S,10S,15S)..(CBR,DSL) |
1 | ||
| 88605J - HARNESS SUB-ASSY, AIR CONDITIONER WIRING | ||||
| 88648-95J02 |
LH5#,6#,YH51,61..WG NO.2 |
1 | ||
| 88648-95J16 |
LH51,61,YH51,61..WG NO.2 |
1 | ||
| 88648-95J05 |
LH50,51,60,61,YH51,61..WG NO.1 |
1 | ||
| 88688Q - BRACKET (FOR MAGNET VALVE) | ||||
| 88688-95J45 |
LH51,61,71,YH51,61,71..07S,08S,09S,10S,15S NO.1 |
1 | ||
| 88688-95J49 |
LH51..4FC..TD;LH51,61,71,YH51,61,71..(07S,08S,09S,10S,15S)..(CBR,DSL) NO.2 |
1 | ||
| 88688-95J08 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S NO.2 |
1 | ||
| 88688-95J07 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S NO.1 |
1 | ||
| 88691W - VALVE, MAGNET | ||||
| 88691-95J00 |
LH50,51,60,61,7#,YH51,61,71..(07S,08S,09S,10S,15S)..(CBR,DSL) NO.1 & NO.2,A TYPE |
2 | ||
| 88691W - VALVE, MAGNET | ||||
| 88691-95J00 |
LH50,51,60,61,7#,YH51,61,71..(07S,08S,09S,10S,15S)..(CBR,DSL) NO.1 & NO.2,A TYPE |
2 | ||
| 88713A - HOSE, COOLER REFRIGERANT SUCTION, NO.3 | ||||
| 88712-95J02 |
LH50,51,6#,YH51,61..07S,08S,09S,10S,15S |
1 | ||
| 88714G - INSULATOR, COOLER REFRIGERANT PIPE, NO.1 | ||||
| 88714-89101 |
LH50,51,60,61,7#,YH51,61,71..07S,08S,09S,10S,15S |
7 | ||
| 88716D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88716-95J04 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S |
1 | ||
| 88716-95J40 |
LH51,61,71,YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-95J05 |
LH50,51,60,61,7#,YH5#,6#,71 |
4 | ||
| 88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-95J05 |
LH50,51,60,61,7#,YH5#,6#,71 |
4 | ||
| 88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-95J05 |
LH50,51,60,61,7#,YH5#,6#,71 |
4 | ||
| 88718D - CLAMP, NO.4(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-95J04 |
LH50,51,60,61,7#,YH51,61,71..07S,08S,09S,10S,15S |
2 | ||
| 88718D - CLAMP, NO.4(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-95J04 |
LH50,51,60,61,7#,YH51,61,71..07S,08S,09S,10S,15S |
2 | ||
| 88718E - CLAMP, NO.5(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-95A07 |
LH50,60,70,YH51,61,71..08S,09S,10S,15S |
1 | ||
| 88899C - COVER, COOLER REFRIGERANT PIPE, NO.2 | ||||
| 88899-95J00 |
LH50,51,60,61,7#,YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88899H - MOULDING, PROTECTOR | ||||
| 88899-95J08 |
LH50,51,60,61,7#,YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| Common parts | ||||
| 88714-95J01 | ||||
| 88714-95J04 | ||||
| 88714-95J05 | ||||
| 88714-95J06 | ||||
| 88714-95J07 | ||||
| 88714-95J08 | ||||
| 88714-95J09 | ||||
| 88718-22420 | ||||
| 88718-95A26 | ||||
| 88718-95J06 | ||||
| 88718-95J16 | ||||
| 88718-95J26 | ||||
| 90179-08123 | ||||
| 90468-03003 | ||||
| 90480-36003 | ||||
| 90480-36498 | ||||
| 91611-60612 | ||||
| 93385-15010 | ||||
| 93385-16020 | ||||
| 93385-18016 | ||||
| 93385-18020 | ||||
| 93385-18025 | ||||

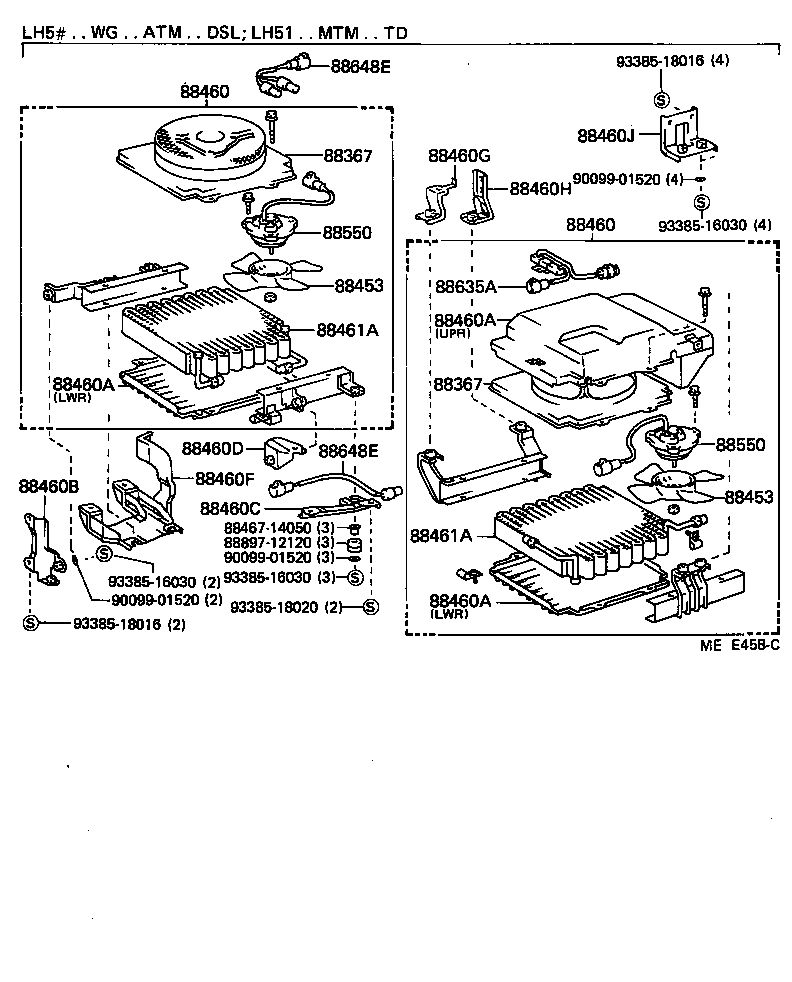

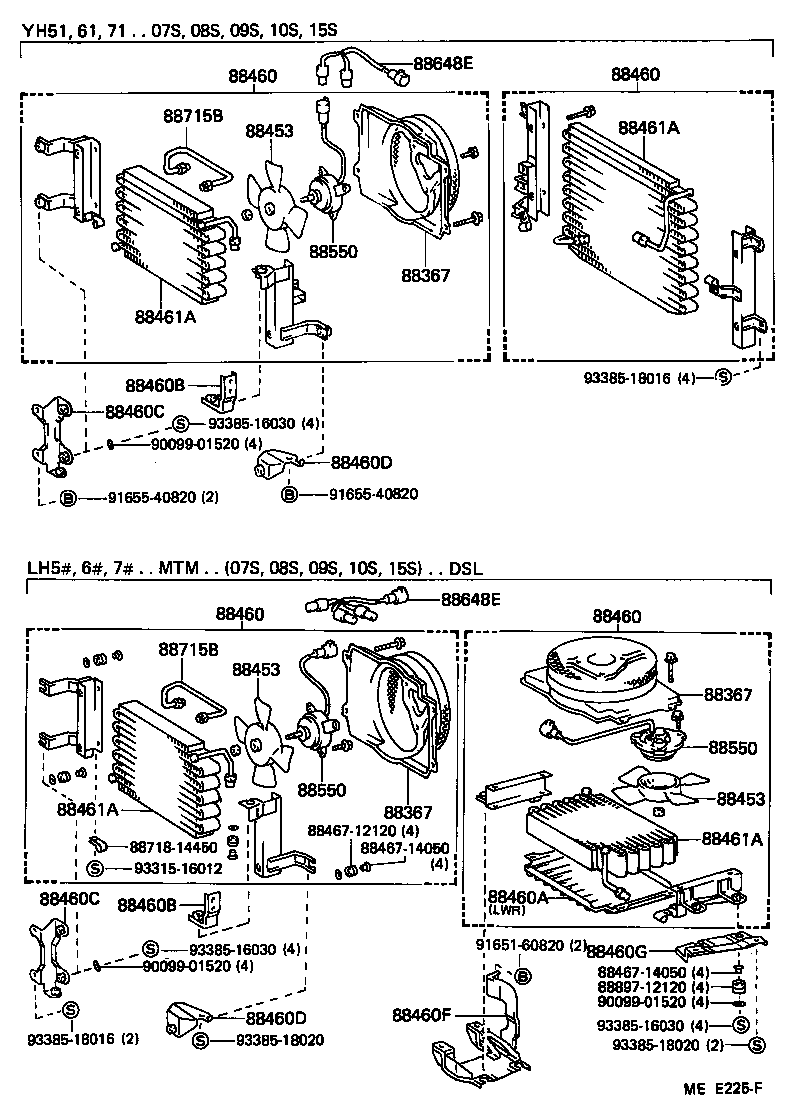

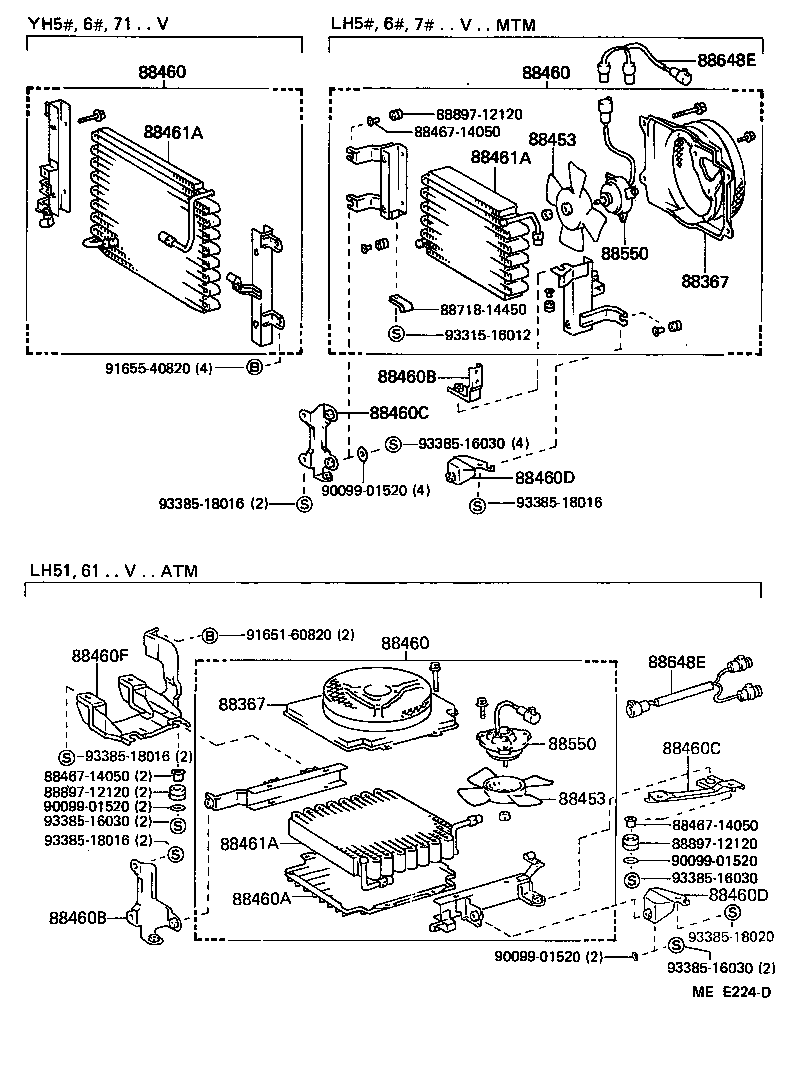

ILLUST NO. 1 OF 4(8212- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88367 - SHROUD, COOLER BLOWER FAN | ||||
| 88454-95J00 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88454-95J03 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88367 - SHROUD, COOLER BLOWER FAN | ||||
| 88454-95J00 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88454-95J03 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 11690-17702 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88453-10010 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 11690-17702 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88453-10010 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95J00 |
YH5#,6#,71 RADIATOR |
1 | ||
| 88460-95J03 |
YH51,61,71..07S,08S,09S,10S,15S FR CROSS MEMBER |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95J00 |
YH5#,6#,71 RADIATOR |
1 | ||
| 88460-95J03 |
YH51,61,71..07S,08S,09S,10S,15S FR CROSS MEMBER |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95J00 |
YH5#,6#,71 RADIATOR |
1 | ||
| 88460-95J03 |
YH51,61,71..07S,08S,09S,10S,15S FR CROSS MEMBER |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-95J06 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-95J06 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88688-95J05 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88688-95J05 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88460D - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88688-95J56 |
LH50,51,60,61,YH51,61..WG |
1 | ||
| 88460D - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88688-95J56 |
LH50,51,60,61,YH51,61..WG |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-95J00 |
YH5#,6#,71 RADIATOR |
1 | ||
| 88461-95J01 |
YH51,61,71..07S,08S,09S,10S,15S FR CROSS MEMBER |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-95J00 |
YH5#,6#,71 RADIATOR |
1 | ||
| 88461-95J01 |
YH51,61,71..07S,08S,09S,10S,15S FR CROSS MEMBER |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-95J00 |
YH5#,6#,71 RADIATOR |
1 | ||
| 88461-95J01 |
YH51,61,71..07S,08S,09S,10S,15S FR CROSS MEMBER |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-95J01 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88550-10040 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-95J01 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88550-10040 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-95J01 |
YH51,61..WG |
1 | ||
| 88648-95J00 |
LH50,51,60,61,7#..MTM..(08S,09S,10S,15S) W/*ODAC |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-95J01 |
YH51,61..WG |
1 | ||
| 88648-95J00 |
LH50,51,60,61,7#..MTM..(08S,09S,10S,15S) W/*ODAC |
1 | ||
| Common parts | ||||
| 88467-14050 | ||||
| 88718-14450 | ||||
| 88897-12120 | ||||
| 90099-01520 | ||||
| 91651-60820 | ||||
| 91655-40820 | ||||
| 93315-16012 | ||||
| 93385-16030 | ||||
| 93385-18016 | ||||
| 93385-18020 | ||||
ILLUST NO. 1 OF 4(8212- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88367 - SHROUD, COOLER BLOWER FAN | ||||
| 88454-95J00 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88454-95J03 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88367 - SHROUD, COOLER BLOWER FAN | ||||
| 88454-95J00 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88454-95J03 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88367 - SHROUD, COOLER BLOWER FAN | ||||
| 88454-95J00 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88454-95J03 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 11690-17702 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88453-10010 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 11690-17702 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88453-10010 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 11690-17702 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88453-10010 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95J00 |
YH5#,6#,71 RADIATOR |
1 | ||
| 88460-95J03 |
YH51,61,71..07S,08S,09S,10S,15S FR CROSS MEMBER |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95J00 |
YH5#,6#,71 RADIATOR |
1 | ||
| 88460-95J03 |
YH51,61,71..07S,08S,09S,10S,15S FR CROSS MEMBER |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95J00 |
YH5#,6#,71 RADIATOR |
1 | ||
| 88460-95J03 |
YH51,61,71..07S,08S,09S,10S,15S FR CROSS MEMBER |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95J00 |
YH5#,6#,71 RADIATOR |
1 | ||
| 88460-95J03 |
YH51,61,71..07S,08S,09S,10S,15S FR CROSS MEMBER |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-95J06 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-95J06 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88688-95J05 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88688-95J05 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88460D - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88688-95J56 |
LH50,51,60,61,YH51,61..WG |
1 | ||
| 88460D - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88688-95J56 |
LH50,51,60,61,YH51,61..WG |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-95J00 |
YH5#,6#,71 RADIATOR |
1 | ||
| 88461-95J01 |
YH51,61,71..07S,08S,09S,10S,15S FR CROSS MEMBER |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-95J00 |
YH5#,6#,71 RADIATOR |
1 | ||
| 88461-95J01 |
YH51,61,71..07S,08S,09S,10S,15S FR CROSS MEMBER |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-95J00 |
YH5#,6#,71 RADIATOR |
1 | ||
| 88461-95J01 |
YH51,61,71..07S,08S,09S,10S,15S FR CROSS MEMBER |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-95J00 |
YH5#,6#,71 RADIATOR |
1 | ||
| 88461-95J01 |
YH51,61,71..07S,08S,09S,10S,15S FR CROSS MEMBER |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-95J01 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88550-10040 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-95J01 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88550-10040 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-95J01 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88550-10040 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-95J01 |
YH51,61..WG |
1 | ||
| 88648-95J00 |
LH50,51,60,61,7#..MTM..(08S,09S,10S,15S) W/*ODAC |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-95J01 |
YH51,61..WG |
1 | ||
| 88648-95J00 |
LH50,51,60,61,7#..MTM..(08S,09S,10S,15S) W/*ODAC |
1 | ||
| 88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B | ||||
| 88715-95J02 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B | ||||
| 88715-95J02 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| Common parts | ||||
| 88467-12120 | ||||
| 88467-14050 | ||||
| 88718-14450 | ||||
| 88897-12120 | ||||
| 90099-01520 | ||||
| 91651-60820 | ||||
| 91655-40820 | ||||
| 93315-16012 | ||||
| 93385-16030 | ||||
| 93385-18016 | ||||
| 93385-18020 | ||||
ILLUST NO. 1 OF 4(8212- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88367 - SHROUD, COOLER BLOWER FAN | ||||
| 88454-95J00 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88454-95J03 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88367 - SHROUD, COOLER BLOWER FAN | ||||
| 88454-95J00 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88454-95J03 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 11690-17702 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88453-10010 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 11690-17702 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88453-10010 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95J00 |
YH5#,6#,71 RADIATOR |
1 | ||
| 88460-95J03 |
YH51,61,71..07S,08S,09S,10S,15S FR CROSS MEMBER |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95J00 |
YH5#,6#,71 RADIATOR |
1 | ||
| 88460-95J03 |
YH51,61,71..07S,08S,09S,10S,15S FR CROSS MEMBER |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-95J06 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88688-95J05 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88460D - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88688-95J56 |
LH50,51,60,61,YH51,61..WG |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-95J00 |
YH5#,6#,71 RADIATOR |
1 | ||
| 88461-95J01 |
YH51,61,71..07S,08S,09S,10S,15S FR CROSS MEMBER |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-95J00 |
YH5#,6#,71 RADIATOR |
1 | ||
| 88461-95J01 |
YH51,61,71..07S,08S,09S,10S,15S FR CROSS MEMBER |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-95J01 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88550-10040 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-95J01 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88550-10040 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-95J01 |
YH51,61..WG |
1 | ||
| 88648-95J00 |
LH50,51,60,61,7#..MTM..(08S,09S,10S,15S) W/*ODAC |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-95J01 |
YH51,61..WG |
1 | ||
| 88648-95J00 |
LH50,51,60,61,7#..MTM..(08S,09S,10S,15S) W/*ODAC |
1 | ||
| Common parts | ||||
| 88467-14050 | ||||
| 88897-12120 | ||||
| 90099-01520 | ||||
| 93385-16030 | ||||
| 93385-18016 | ||||
| 93385-18020 | ||||
ILLUST NO. 1 OF 4(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88367 - SHROUD, COOLER BLOWER FAN | ||||
| 88454-95J00 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88454-95J03 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88367 - SHROUD, COOLER BLOWER FAN | ||||
| 88454-95J00 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88454-95J03 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 11690-17702 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88453-10010 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 11690-17702 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88453-10010 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95J00 |
YH5#,6#,71 RADIATOR |
1 | ||
| 88460-95J03 |
YH51,61,71..07S,08S,09S,10S,15S FR CROSS MEMBER |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95J00 |
YH5#,6#,71 RADIATOR |
1 | ||
| 88460-95J03 |
YH51,61,71..07S,08S,09S,10S,15S FR CROSS MEMBER |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-95J06 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88688-95J05 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88460D - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88688-95J56 |
LH50,51,60,61,YH51,61..WG |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-95J00 |
YH5#,6#,71 RADIATOR |
1 | ||
| 88461-95J01 |
YH51,61,71..07S,08S,09S,10S,15S FR CROSS MEMBER |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-95J00 |
YH5#,6#,71 RADIATOR |
1 | ||
| 88461-95J01 |
YH51,61,71..07S,08S,09S,10S,15S FR CROSS MEMBER |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 90099-04579 |
LH50,51,60,61,7#,YH5#,6#,71 |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-95J00 |
LH50,51,6#,7#,YH5#,6#,71 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95J00 |
LH50,51,60,61,7#,YH5#,6#,71 |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-95J01 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88550-10040 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-95J01 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88550-10040 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-95J01 |
YH51,61..WG |
1 | ||
| 88648-95J00 |
LH50,51,60,61,7#..MTM..(08S,09S,10S,15S) W/*ODAC |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-95J01 |
YH51,61..WG |
1 | ||
| 88648-95J00 |
LH50,51,60,61,7#..MTM..(08S,09S,10S,15S) W/*ODAC |
1 | ||
| Common parts | ||||
| 88467-14050 | ||||
| 88718-14450 | ||||
| 88897-12120 | ||||
| 90099-01520 | ||||
| 90179-08123 | ||||
| 93315-16012 | ||||
| 93385-16030 | ||||
| 93385-18016 | ||||
| 93385-18020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
