YH51G-QG (1982)

Toyota Hiace Van,Wagon

Production Dec 1982 - Aug 1987
Engine 3YU
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212- )SRF..CTM,SCM

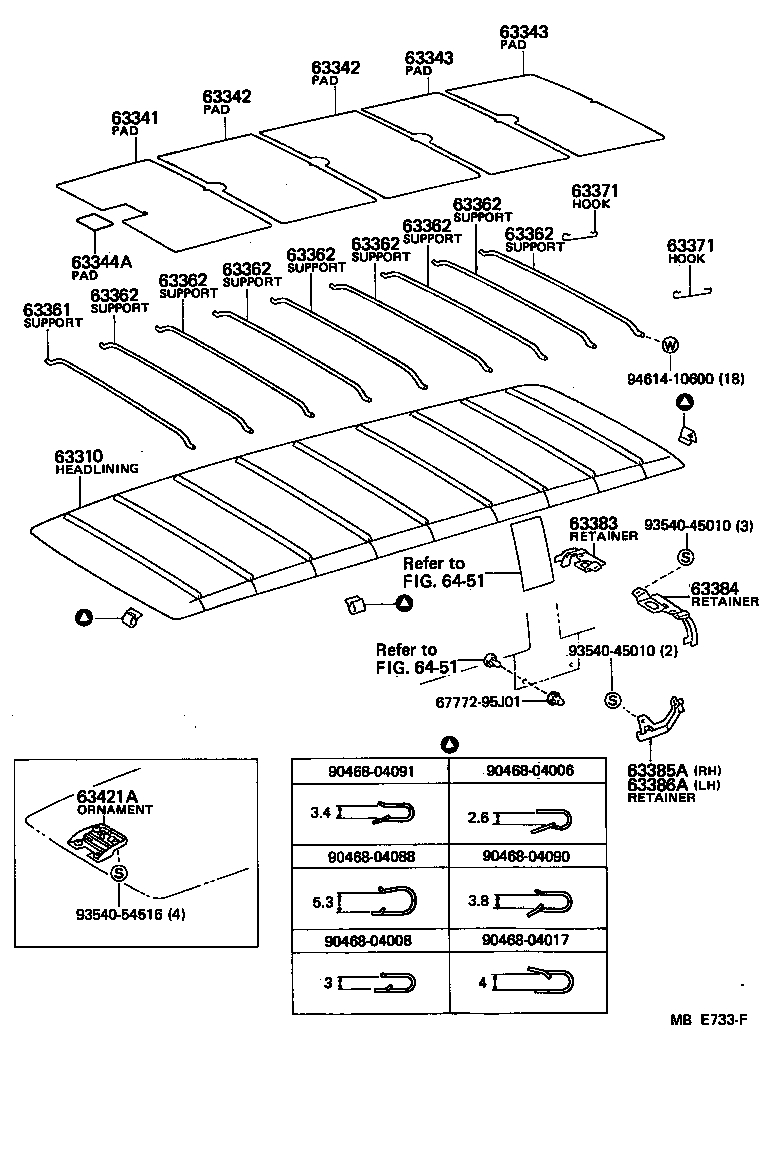

Click highlighted areas on diagram

diagram 63310 63341 63342 63342 63343 63343 63344A 63361 63362 63362 63362 63362 63362 63362 63362 63362 63371 63371 63383 63384 63385A 63386A 63421A 6451 6451 6777295J01 9046804006 9046804008 9046804017 9046804088 9046804090 9046804091 9354045010 9354045010 9354054516 9461410600
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-95J0008

LH5#,YH51..SRF..CTM

IVORY,IVORY

 1
63310-95J0203

LH51,YH51..CTM

GRAY,GRAY

 1
63310-95J0003

LH5#,YH51..SRF..CTM

GRAY,GRAY

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-95J00

LH50,51,YH51..SRF..(CTM,SCM)

 1
63342 - PAD, ROOF SILENCER, NO.2
63342-95J00

LH50,51,YH51..SRF..(CTM,SCM)

 2
63342 - PAD, ROOF SILENCER, NO.2
63342-95J00

LH50,51,YH51..SRF..(CTM,SCM)

 2
63343 - PAD, ROOF SILENCER, NO.3
63343-95J00

LH50,51,YH51..SRF..(CTM,SCM)

 2
63343 - PAD, ROOF SILENCER, NO.3
63343-95J00

LH50,51,YH51..SRF..(CTM,SCM)

 2
63344A - SILENCER, ROOF, NO.4
63344-95J00

LH51,YH51..SRF..(CTM,SCM)

 1
63361 - SUPPORT, ROOF HEADLINING, NO.1
63361-95J00

LH50,51,YH51..SRF..(CTM,SCM)

 1
63362 - SUPPORT, ROOF HEADLINING, NO.2
63362-95J00

LH50,51,YH51..SRF..(CTM,SCM)

 8
63362 - SUPPORT, ROOF HEADLINING, NO.2
63362-95J00

LH50,51,YH51..SRF..(CTM,SCM)

 8
63362 - SUPPORT, ROOF HEADLINING, NO.2
63362-95J00

LH50,51,YH51..SRF..(CTM,SCM)

 8
63362 - SUPPORT, ROOF HEADLINING, NO.2
63362-95J00

LH50,51,YH51..SRF..(CTM,SCM)

 8
63362 - SUPPORT, ROOF HEADLINING, NO.2
63362-95J00

LH50,51,YH51..SRF..(CTM,SCM)

 8
63362 - SUPPORT, ROOF HEADLINING, NO.2
63362-95J00

LH50,51,YH51..SRF..(CTM,SCM)

 8
63362 - SUPPORT, ROOF HEADLINING, NO.2
63362-95J00

LH50,51,YH51..SRF..(CTM,SCM)

 8
63362 - SUPPORT, ROOF HEADLINING, NO.2
63362-95J00

LH50,51,YH51..SRF..(CTM,SCM)

 8
63371 - HOOK, ROOF HEADLINING SUPPORT
63364-95J00

LH50,51,YH51..SRF..(CTM,SCM)

 2
63371 - HOOK, ROOF HEADLINING SUPPORT
63364-95J00

LH50,51,YH51..SRF..(CTM,SCM)

 2
63383 - RETAINER, ROOF HEADLINING, REAR RH
63383-95J00

LH50,51,YH51..CTM,SCM

 1
63384 - RETAINER, ROOF HEADLINING, REAR LH
63384-95J00

LH50,51,YH51..CTM,SCM

 1
63385A - RETAINER, ROOF HEADLINING TRIM SIDE, RH
63385-95J00

LH50,51,YH51..SRF..(CTM,SCM)

 1
63386A - RETAINER, ROOF HEADLINING TRIM SIDE, LH
63386-95J00

LH50,51,YH51..SRF..(CTM,SCM)

 1
63421A - ORNAMENT, ROOF CONSOLE
63421-95J0103

LH50,51,YH51..SRF..(CTM,SCM)

GRAY,GRAY

 1
63421-95J0108

LH5#,YH51..SRF..(CTM,SCM)

IVORY,IVORY

 1
Common parts
67772-95J01
90468-04006
90468-04008
90468-04017
90468-04088
90468-04090
90468-04091
93540-45010
93540-54516
94614-10600
Linked diagrams
6451
