YH51G-QD (1982)
Toyota Hiace Van,Wagon
(8212- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-95J02 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-95J02 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-95J11 |
LH50,51,60,61,7# |
1 | ||
| 87245-95J10 |
YH5#,6#,71 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-95J11 |
LH50,51,60,61,7# |
1 | ||
| 87245-95J10 |
YH5#,6#,71 |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-95J08 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 87245-95J27 |
LH51,61,71,YH5#,6#,71 |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-95J08 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 87245-95J27 |
LH51,61,71,YH5#,6#,71 |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-95J42 |
LH51,6#,71,YH51,61,71 |
1 | ||
| 87245-95J04 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-95J42 |
LH51,6#,71,YH51,61,71 |
1 | ||
| 87245-95J04 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-95J06 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 87245-95J26 |
LH51,61,71,YH5#,6#,71 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-95J06 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 87245-95J26 |
LH51,61,71,YH5#,6#,71 |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-95J12 |
YH5#,6#,71 |
1 | ||
| 87245-95J13 |
LH50,51,60,61,7# |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-95J12 |
YH5#,6#,71 |
1 | ||
| 87245-95J13 |
LH50,51,60,61,7# |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87208-28010 |
YH5#,6#,71 |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87208-28010 |
YH5#,6#,71 |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87208-28010 |
YH5#,6#,71 |
1 | ||
| 87248B - PIPE, HEATER WATER INLET, B | ||||
| 87248-95J12 |
YH5#,6#,71..CTD,DLX,GL,STD |
1 | ||
| 87248-95J13 |
YH51,61,71..COM,WG W/RR HEATER |
1 | ||
| 87248-95J60 |
YH5#,6#,71..CTD,DLX,GL |
1 | ||
| 87248-95J56 |
YH51,61,71..COM,WG W/RR HEATER |
1 | ||
| 87248B - PIPE, HEATER WATER INLET, B | ||||
| 87248-95J12 |
YH5#,6#,71..CTD,DLX,GL,STD |
1 | ||
| 87248-95J13 |
YH51,61,71..COM,WG W/RR HEATER |
1 | ||
| 87248-95J60 |
YH5#,6#,71..CTD,DLX,GL |
1 | ||
| 87248-95J56 |
YH51,61,71..COM,WG W/RR HEATER |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87248-95J09 |
YH51,61,71..COM,WG W/RR HEATER |
1 | ||
| 87248-95J50 |
YH51,61,71..COM,WG W/RR HEATER |
1 | ||
| 87248-95J08 |
YH5#,6#,71..CTD,DLX,GL,STD |
1 | ||
| 87248-95J59 |
YH5#,6#,71..CTD,DLX,GL |
1 | ||
| 87248-95J55 |
YH51,61,71..COM,WG W/RR HEATER |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87248-95J09 |
YH51,61,71..COM,WG W/RR HEATER |
1 | ||
| 87248-95J50 |
YH51,61,71..COM,WG W/RR HEATER |
1 | ||
| 87248-95J08 |
YH5#,6#,71..CTD,DLX,GL,STD |
1 | ||
| 87248-95J59 |
YH5#,6#,71..CTD,DLX,GL |
1 | ||
| 87248-95J55 |
YH51,61,71..COM,WG W/RR HEATER |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87248-95J09 |
YH51,61,71..COM,WG W/RR HEATER |
1 | ||
| 87248-95J50 |
YH51,61,71..COM,WG W/RR HEATER |
1 | ||
| 87248-95J08 |
YH5#,6#,71..CTD,DLX,GL,STD |
1 | ||
| 87248-95J59 |
YH5#,6#,71..CTD,DLX,GL |
1 | ||
| 87248-95J55 |
YH51,61,71..COM,WG W/RR HEATER |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87248-95J09 |
YH51,61,71..COM,WG W/RR HEATER |
1 | ||
| 87248-95J50 |
YH51,61,71..COM,WG W/RR HEATER |
1 | ||
| 87248-95J08 |
YH5#,6#,71..CTD,DLX,GL,STD |
1 | ||
| 87248-95J59 |
YH5#,6#,71..CTD,DLX,GL |
1 | ||
| 87248-95J55 |
YH51,61,71..COM,WG W/RR HEATER |
1 | ||
| 87249F - PIPE, HEATER WATER OUTLET, F | ||||
| 87208-28020 |
YH5#,6#,71 |
1 | ||
| 87208-28021 |
YH5#,6#,71 |
1 | ||
| 87263 - BRACKET, HEATER WATER PIPE, NO.1 | ||||
| 87263-28010 |
YH5#,6#,71 |
1 | ||
| 87263-28011 |
YH5#,6#,71 |
1 | ||
| 89427D - SWITCH, TEMPERATURE | ||||
| 89427-12051 |
YH51,61,71..COM,WG COLD SPEC |
1 | ||
| 89427D - SWITCH, TEMPERATURE | ||||
| 89427-12051 |
YH51,61,71..COM,WG COLD SPEC |
1 | ||
| 89427D - SWITCH, TEMPERATURE | ||||
| 89427-12051 |
YH51,61,71..COM,WG COLD SPEC |
1 | ||
| 89427D - SWITCH, TEMPERATURE | ||||
| 89427-12051 |
YH51,61,71..COM,WG COLD SPEC |
1 | ||
| Common parts | ||||
| 11493-71010 | ||||
| 17175-72010 | ||||
| 87124-28030 | ||||
| 87124-90B00 | ||||
| 87436-95J04 | ||||
| 87436-95J05 | ||||
| 88718-95J38 | ||||
| 90119-08063 | ||||
| 90179-08123 | ||||
| 90179-08146 | ||||
| 90461-08157 | ||||
| 90461-08573 | ||||
| 91611-60835 | ||||
| 91651-40610 | ||||
| 91651-40616 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 93315-15010 | ||||
| 96112-10250 | ||||

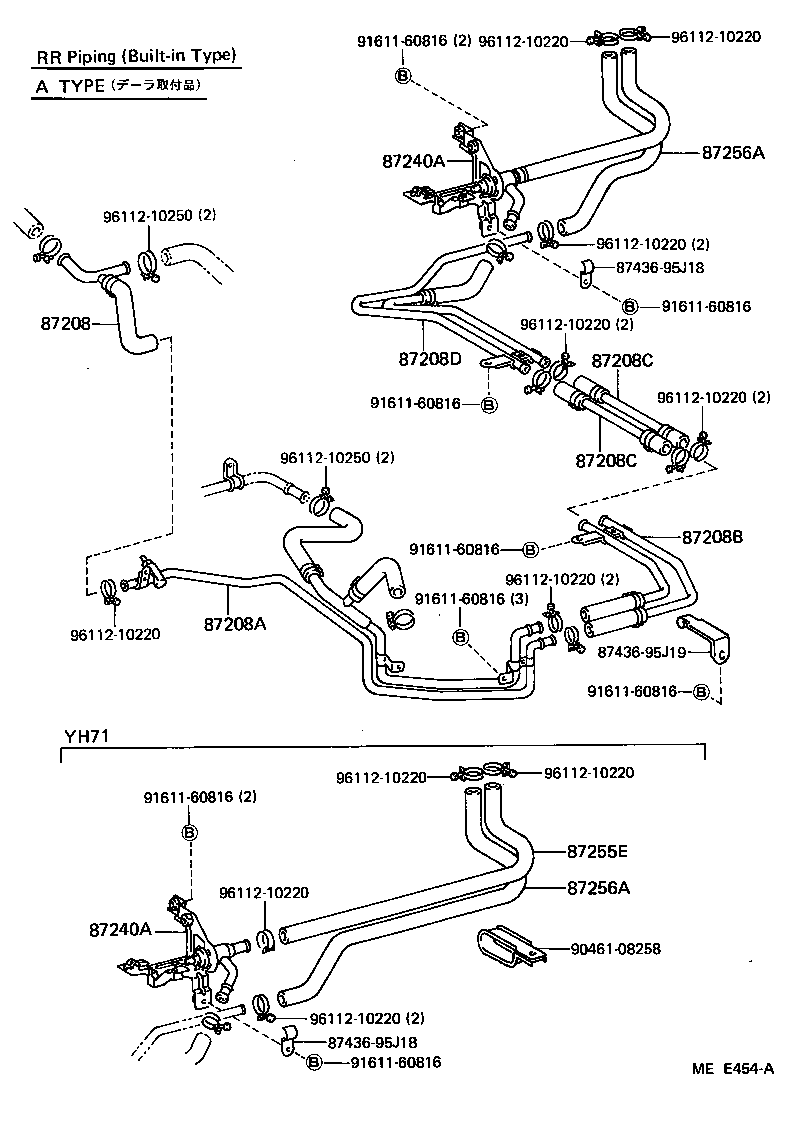

(8212-8708)YH51..MRF..4FC..08S ; (8212- )YH51..MRF..07S,08S ; (8212- )YH51,61
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87240A - VALVE ASSY, REAR HEATER WATER | ||||
| 87240-95J00 |
LH50,51,60,61,7#,YH51,61,71..COM,WG B TYPE |
1 | ||
| 87250-95J00 |
LH5#,6#,YH51,61..WG..(DLX,STD) A TYPE |
1 | ||
| 87248C - PIPE, HEATER WATER INLET, C | ||||
| 87248-95J17 |
YH51,61,71..COM,WG |
1 | ||
| 87248-95J31 |
YH51,61,71..COM,WG COLD SPEC |
1 | ||
| 87248-95J63 |
YH51,61,71..COM,WG |
1 | ||
| 87248D - PIPE, HEATER WATER INLET, D | ||||
| 87248-95J22 |
LH5#,6#,7#,YH51,61,71..COM,WG |
1 | ||
| 87249B - PIPE, HEATER WATER OUTLET, B | ||||
| 87248-95J21 |
LH5#,6#,7#,YH51,61,71..COM,WG |
1 | ||
| 87208-95J13 |
LH51,61,71,YH51,61,71..COM,WG |
1 | ||
| 87249B - PIPE, HEATER WATER OUTLET, B | ||||
| 87248-95J21 |
LH5#,6#,7#,YH51,61,71..COM,WG |
1 | ||
| 87208-95J13 |
LH51,61,71,YH51,61,71..COM,WG |
1 | ||
| 87249D - PIPE, HEATER WATER OUTLET, D | ||||
| 87248-95J18 |
YH51,61,71..COM,WG |
1 | ||
| 87248-95J18 |
YH51,61,71..COM,WG COLD SPEC |
1 | ||
| 87248-95J64 |
YH51,61,71..COM,WG |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 99556-20130 |
LH51,61,71,YH51,61,71..COM,WG *H,L=130 |
1 | ||
| 99556-20200 |
LH51,61,71,YH51,61,71..COM,WG *H,L=130 |
1 | ||
| 99552-20200 |
LH5#,6#,7#,YH51,61,71..COM,WG *H,L=130 |
1 | ||
| 87255B - HOSE, REAR HEATER WATER INLET, B | ||||
| 99552-20300 |
LH5#,6#,7#,YH51,61,71..COM,WG *H,L=250 |
1 | ||
| 99556-20250 |
LH51,61,71,YH51,61,71..COM,WG *H,L=250 |
1 | ||
| 99556-20300 |
LH51,61,71,YH51,61,71..COM,WG *H,L=250 |
1 | ||
| 87255C - HOSE, REAR HEATER WATER INLET, C | ||||
| 99556-20190 |
LH51,61,71,YH51,61,71..COM,WG *H,L=190 |
1 | ||
| 99552-20200 |
LH5#,6#,7#,YH51,61,71..COM,WG *H,L=190 |
1 | ||
| 99556-20200 |
LH51,61,71,YH51,61,71..COM,WG *H,L=190 |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 99556-20380 |
LH51,61,YH51,61..WG *H,L=380 |
1 | ||
| 99556-20490 |
LH51,61,YH51,61..WG *H,L=380 |
1 | ||
| 99552-20500 |
LH5#,6#,YH51,61..WG *H,L=380 |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 99556-20380 |
LH51,61,YH51,61..WG *H,L=380 |
1 | ||
| 99556-20490 |
LH51,61,YH51,61..WG *H,L=380 |
1 | ||
| 99552-20500 |
LH5#,6#,YH51,61..WG *H,L=380 |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 99552-20700 |
LH5#,6#,YH51,61..WG *H,L=600,B TYPE |
1 | ||
| 99552-20500 |
LH5#,6#,YH51,61..WG..(DLX,STD) *H,L=380,A TYPE |
1 | ||
| 99556-20600 |
LH51,61,YH51,61..WG L=600,B TYPE |
1 | ||
| 99556-20700 |
LH51,61,YH51,61..WG *H,L=600,B TYPE |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 99552-20700 |
LH5#,6#,YH51,61..WG *H,L=600,B TYPE |
1 | ||
| 99552-20500 |
LH5#,6#,YH51,61..WG..(DLX,STD) *H,L=380,A TYPE |
1 | ||
| 99556-20600 |
LH51,61,YH51,61..WG L=600,B TYPE |
1 | ||
| 99556-20700 |
LH51,61,YH51,61..WG *H,L=600,B TYPE |
1 | ||
| 87256C - HOSE, REAR HEATER WATER OUTLET, C | ||||
| 99556-20300 |
LH51,61,71,YH51,61,71..COM,WG *H,L=250 |
1 | ||
| 99552-20300 |
LH5#,6#,7#,YH51,61,71..COM,WG *H,L=250 |
1 | ||
| 99556-20250 |
LH51,61,71,YH51,61,71..COM,WG *H,L=250 |
1 | ||
| 87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE) | ||||
| 87245-95J15 |
YH51,61,71..COM,WG |
1 | ||
| 89427D - SWITCH, TEMPERATURE | ||||
| 89427-12051 |
YH51,61,71..COM,WG COLD SPEC |
1 | ||
| Common parts | ||||
| 87124-28040 | ||||
| 87124-95J12 | ||||
| 87398-95A00 | ||||
| 87398-95J01 | ||||
| 87436-95J07 | ||||
| 87436-95J22 | ||||
| 90460-22073 | ||||
| 90461-08258 | ||||
| 91611-60816 | ||||
| 96112-10220 | ||||

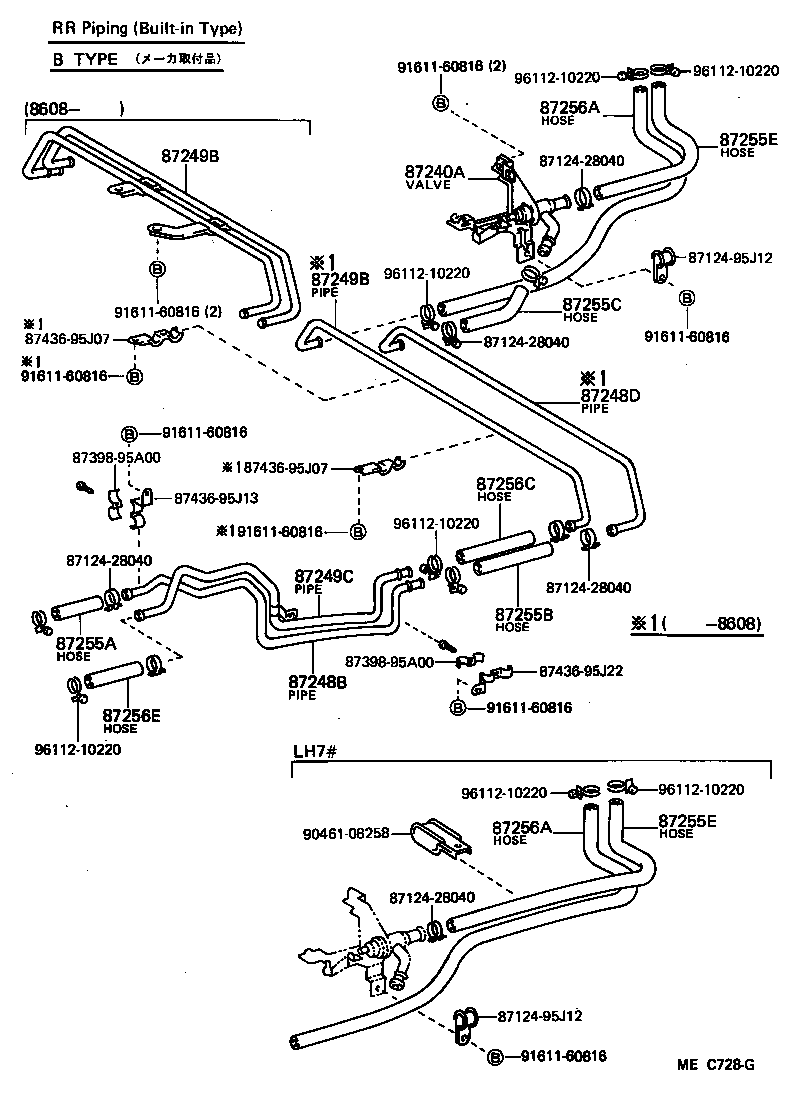

(8212- )LH50,51,60,61..WG ; (8212- )LH50,51,60,61,7#..V4D..ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87240A - VALVE ASSY, REAR HEATER WATER | ||||
| 87240-95J00 |
LH50,51,60,61,7#,YH51,61,71..COM,WG B TYPE |
1 | ||
| 87250-95J00 |
LH5#,6#,YH51,61..WG..(DLX,STD) A TYPE |
1 | ||
| 87248B - PIPE, HEATER WATER INLET, B | ||||
| 87248-95J12 |
YH5#,6#,71..CTD,DLX,GL,STD |
1 | ||
| 87248-95J13 |
YH51,61,71..COM,WG W/RR HEATER |
1 | ||
| 87248-95J60 |
YH5#,6#,71..CTD,DLX,GL |
1 | ||
| 87248-95J56 |
YH51,61,71..COM,WG W/RR HEATER |
1 | ||
| 87248D - PIPE, HEATER WATER INLET, D | ||||
| 87248-95J22 |
LH5#,6#,7#,YH51,61,71..COM,WG |
1 | ||
| 87249B - PIPE, HEATER WATER OUTLET, B | ||||
| 87248-95J21 |
LH5#,6#,7#,YH51,61,71..COM,WG |
1 | ||
| 87208-95J13 |
LH51,61,71,YH51,61,71..COM,WG |
1 | ||
| 87249B - PIPE, HEATER WATER OUTLET, B | ||||
| 87248-95J21 |
LH5#,6#,7#,YH51,61,71..COM,WG |
1 | ||
| 87208-95J13 |
LH51,61,71,YH51,61,71..COM,WG |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 99556-20130 |
LH51,61,71,YH51,61,71..COM,WG *H,L=130 |
1 | ||
| 99556-20200 |
LH51,61,71,YH51,61,71..COM,WG *H,L=130 |
1 | ||
| 99552-20200 |
LH5#,6#,7#,YH51,61,71..COM,WG *H,L=130 |
1 | ||
| 87255B - HOSE, REAR HEATER WATER INLET, B | ||||
| 99552-20300 |
LH5#,6#,7#,YH51,61,71..COM,WG *H,L=250 |
1 | ||
| 99556-20250 |
LH51,61,71,YH51,61,71..COM,WG *H,L=250 |
1 | ||
| 99556-20300 |
LH51,61,71,YH51,61,71..COM,WG *H,L=250 |
1 | ||
| 87255C - HOSE, REAR HEATER WATER INLET, C | ||||
| 99556-20190 |
LH51,61,71,YH51,61,71..COM,WG *H,L=190 |
1 | ||
| 99552-20200 |
LH5#,6#,7#,YH51,61,71..COM,WG *H,L=190 |
1 | ||
| 99556-20200 |
LH51,61,71,YH51,61,71..COM,WG *H,L=190 |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 99556-20380 |
LH51,61,YH51,61..WG *H,L=380 |
1 | ||
| 99556-20490 |
LH51,61,YH51,61..WG *H,L=380 |
1 | ||
| 99552-20500 |
LH5#,6#,YH51,61..WG *H,L=380 |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 99556-20380 |
LH51,61,YH51,61..WG *H,L=380 |
1 | ||
| 99556-20490 |
LH51,61,YH51,61..WG *H,L=380 |
1 | ||
| 99552-20500 |
LH5#,6#,YH51,61..WG *H,L=380 |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 99552-20700 |
LH5#,6#,YH51,61..WG *H,L=600,B TYPE |
1 | ||
| 99552-20500 |
LH5#,6#,YH51,61..WG..(DLX,STD) *H,L=380,A TYPE |
1 | ||
| 99556-20600 |
LH51,61,YH51,61..WG L=600,B TYPE |
1 | ||
| 99556-20700 |
LH51,61,YH51,61..WG *H,L=600,B TYPE |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 99552-20700 |
LH5#,6#,YH51,61..WG *H,L=600,B TYPE |
1 | ||
| 99552-20500 |
LH5#,6#,YH51,61..WG..(DLX,STD) *H,L=380,A TYPE |
1 | ||
| 99556-20600 |
LH51,61,YH51,61..WG L=600,B TYPE |
1 | ||
| 99556-20700 |
LH51,61,YH51,61..WG *H,L=600,B TYPE |
1 | ||
| 87256C - HOSE, REAR HEATER WATER OUTLET, C | ||||
| 99556-20300 |
LH51,61,71,YH51,61,71..COM,WG *H,L=250 |
1 | ||
| 99552-20300 |
LH5#,6#,7#,YH51,61,71..COM,WG *H,L=250 |
1 | ||
| 99556-20250 |
LH51,61,71,YH51,61,71..COM,WG *H,L=250 |
1 | ||
| 87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE) | ||||
| 87245-95J15 |
YH51,61,71..COM,WG |
1 | ||
| Common parts | ||||
| 87124-28040 | ||||
| 87124-95J12 | ||||
| 87398-95A00 | ||||
| 87436-95J07 | ||||
| 87436-95J13 | ||||
| 87436-95J22 | ||||
| 90461-08258 | ||||
| 91611-60816 | ||||
| 96112-10220 | ||||
(8310-8508)YH61..10S ; (8310-8508)YH50,61..V4D ;(8310-8508)YH51,52,62,71..V,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87207-95J28 |
YH51,61..5H..(DLX,STD) |
1 | ||
| 87208A - PIPE SUB-ASSY, HEATER WATER, A | ||||
| 87207-95J29 |
YH51,61..5H..(DLX,STD) |
1 | ||
| 87208B - PIPE SUB-ASSY, HEATER WATER, B | ||||
| 87207-95J23 |
LH5#,6#,YH51,61..WG..(DLX,STD) |
1 | ||
| 87208C - PIPE SUB-ASSY, HEATER WATER, C | ||||
| 87207-95J24 |
LH5#,6#,YH51,61..WG..(DLX,STD) |
2 | ||
| 87208C - PIPE SUB-ASSY, HEATER WATER, C | ||||
| 87207-95J24 |
LH5#,6#,YH51,61..WG..(DLX,STD) |
2 | ||
| 87208D - PIPE SUB-ASSY, HEATER WATER, D | ||||
| 87207-95J25 |
LH5#,6#,YH51,61..WG..(DLX,STD) |
1 | ||
| 87240A - VALVE ASSY, REAR HEATER WATER | ||||
| 87240-95J00 |
LH50,51,60,61,7#,YH51,61,71..COM,WG B TYPE |
1 | ||
| 87250-95J00 |
LH5#,6#,YH51,61..WG..(DLX,STD) A TYPE |
1 | ||
| 87240A - VALVE ASSY, REAR HEATER WATER | ||||
| 87240-95J00 |
LH50,51,60,61,7#,YH51,61,71..COM,WG B TYPE |
1 | ||
| 87250-95J00 |
LH5#,6#,YH51,61..WG..(DLX,STD) A TYPE |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 99556-20380 |
LH51,61,YH51,61..WG *H,L=380 |
1 | ||
| 99556-20490 |
LH51,61,YH51,61..WG *H,L=380 |
1 | ||
| 99552-20500 |
LH5#,6#,YH51,61..WG *H,L=380 |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 99552-20700 |
LH5#,6#,YH51,61..WG *H,L=600,B TYPE |
1 | ||
| 99552-20500 |
LH5#,6#,YH51,61..WG..(DLX,STD) *H,L=380,A TYPE |
1 | ||
| 99556-20600 |
LH51,61,YH51,61..WG L=600,B TYPE |
1 | ||
| 99556-20700 |
LH51,61,YH51,61..WG *H,L=600,B TYPE |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 99552-20700 |
LH5#,6#,YH51,61..WG *H,L=600,B TYPE |
1 | ||
| 99552-20500 |
LH5#,6#,YH51,61..WG..(DLX,STD) *H,L=380,A TYPE |
1 | ||
| 99556-20600 |
LH51,61,YH51,61..WG L=600,B TYPE |
1 | ||
| 99556-20700 |
LH51,61,YH51,61..WG *H,L=600,B TYPE |
1 | ||
| Common parts | ||||
| 87436-95J18 | ||||
| 87436-95J19 | ||||
| 90461-08258 | ||||
| 91611-60816 | ||||
| 96112-10220 | ||||
| 96112-10250 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
