YH51G-QD (1982)

Toyota Hiace Van,Wagon

Production Dec 1982 - Aug 1987
Engine 3YU
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212- )WG

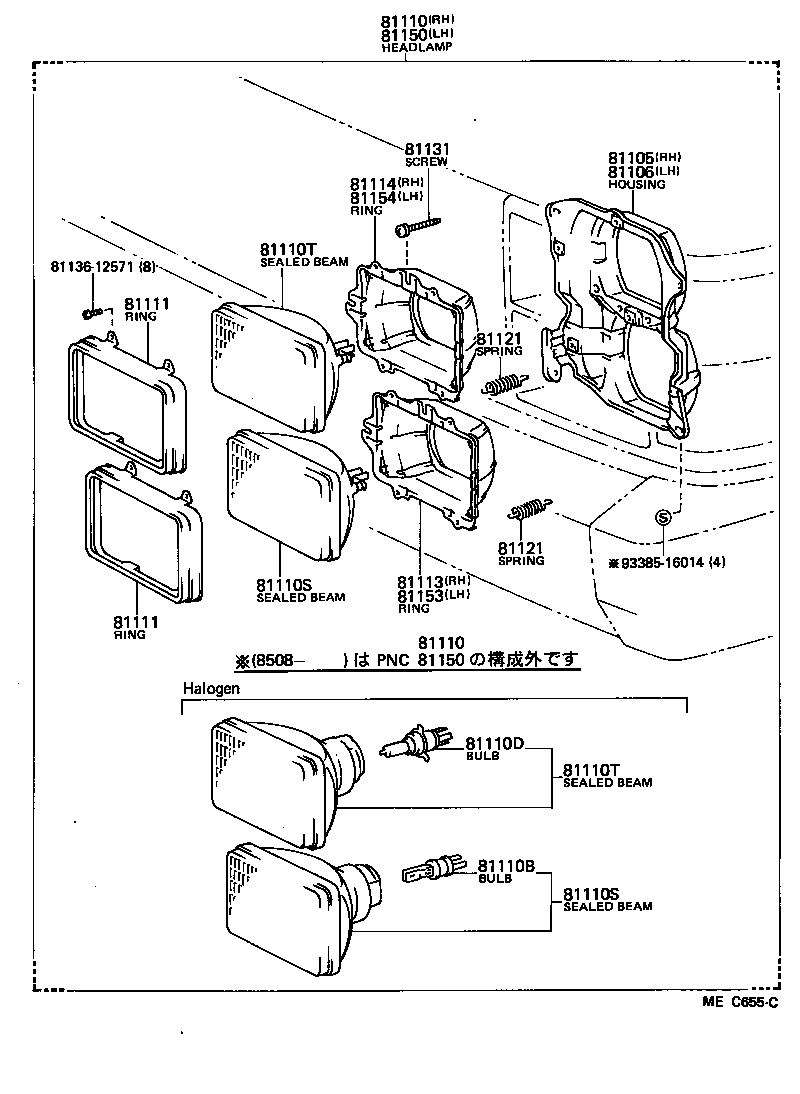

Click highlighted areas on diagram

diagram 81105 81106 81110 81110 81110B 81110D 81110S 81110S 81110T 81110T 81111 81111 81113 81114 81121 81121 81131 8113612571 81150 81153 81154 9338516014
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-95J08

LH5#,6#,YH51,61..WG

 1
81105-95J25

LH51,61,YH51,61..WG

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-95J25

LH51,61,YH51,61..WG

 1
81106-95J08

LH5#,6#,YH51,61..WG

 1
81110 - HEADLAMP ASSY, RH
81110-80293

YH51,61..5H..(DLX,STD)

 1
81110-95J24

LH51,61,YH51,61..WG..DLX

 1
81110 - HEADLAMP ASSY, RH
81110-80293

YH51,61..5H..(DLX,STD)

 1
81110-95J24

LH51,61,YH51,61..WG..DLX

 1
81110S - SEALED BEAM UNIT, NO.1
90981-05002

YH51,61..5H..(DLX,STD)

12V 50W,*WB,12V 50W

 2
90981-05034

LH51,61,YH51,61..WG..DLX

12V 50W,*WB,12V 50W

 2
81110S - SEALED BEAM UNIT, NO.1
90981-05002

YH51,61..5H..(DLX,STD)

12V 50W,*WB,12V 50W

 2
90981-05034

LH51,61,YH51,61..WG..DLX

12V 50W,*WB,12V 50W

 2
81110T - SEALED BEAM UNIT, NO.2
90981-05041

LH51,61,YH51,61..WG..DLX

12V 40/60W,*WB,12V 40/60W

 2
90981-05004

YH51,61..5H..(DLX,STD)

12V 40/60W,*WB,12V 40/60W

 2
81110T - SEALED BEAM UNIT, NO.2
90981-05041

LH51,61,YH51,61..WG..DLX

12V 40/60W,*WB,12V 40/60W

 2
90981-05004

YH51,61..5H..(DLX,STD)

12V 40/60W,*WB,12V 40/60W

 2
81111 - RING, SEALED BEAM RETAINING
81111-20360

LH50,51,60,61,YH51,61..WG

 1
81111 - RING, SEALED BEAM RETAINING
81111-20360

LH50,51,60,61,YH51,61..WG

 1
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81113-22391

LH50,51,60,61,YH51,61..WG

 1
81114 - RING, SEALED BEAM MOUNTING, NO.2 RH
81154-22391

LH50,51,60,61,YH51,61..WG

 1
81121 - SPRING, HEADLAMP TENSION
81121-14320

LH50,51,60,61,YH51,61..WG

 1
81121 - SPRING, HEADLAMP TENSION
81121-14320

LH50,51,60,61,YH51,61..WG

 1
81131 - SCREW, HEADLAMP ADJUSTING
81131-20360

LH50,51,60,61,YH51,61..WG

 1
81150 - HEADLAMP ASSY, LH
81150-80290

YH51,61..5H..(DLX,STD)

 1
81150-95J24

LH51,61,YH51,61..WG..DLX

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-22391

LH50,51,60,61,YH51,61..WG

 1
81154 - RING, SEALED BEAM MOUNTING, NO.2 LH
81114-22391

LH50,51,60,61,YH51,61..WG

 1
Common parts
81136-12571
93385-16014
