YH51G-PQS (1987)

Toyota Hiace Van,Wagon

Production Aug 1987 - Aug 1989
Engine 3YU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )ATM..CBR,DSL

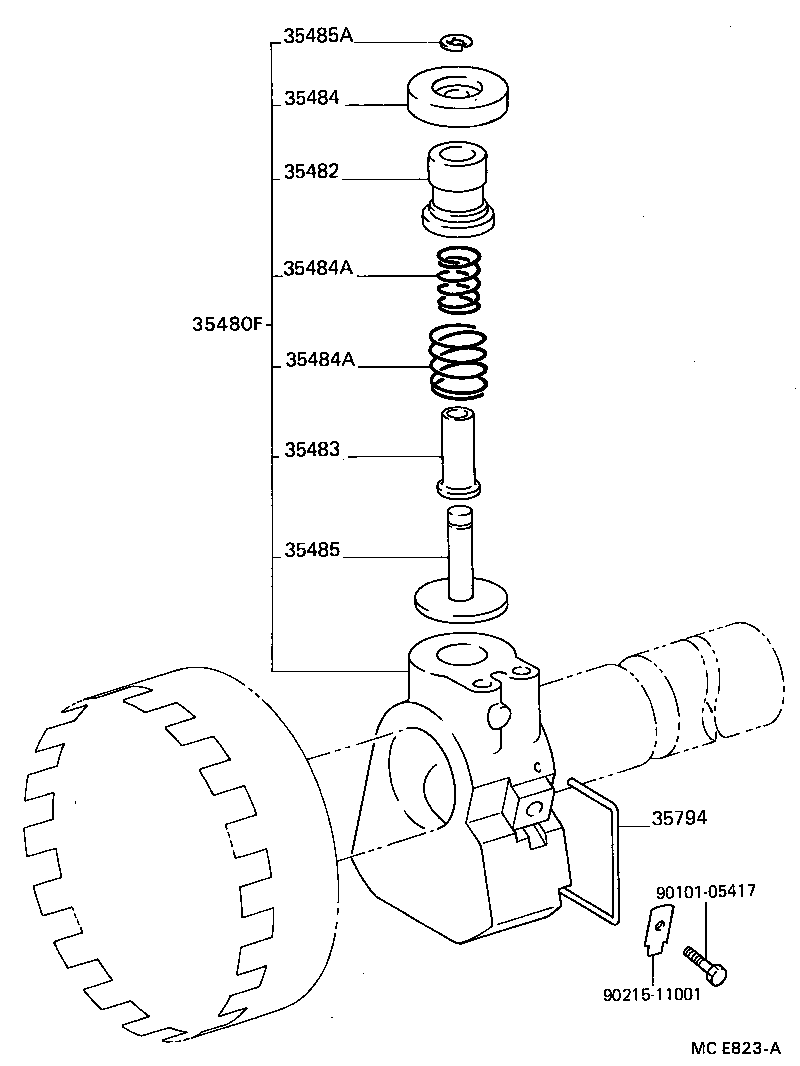

Click highlighted areas on diagram

A44DL,A45DL

diagram 35480F 35482 35483 35484 35484A 35484A 35485 35485A 35794 9010105417 9021511001
Part # Description Qty Price
35480F - BODY ASSY, GOVERNOR
35480-28010

YH51,61..ATM

 1
35482 - VALVE, GOVERNOR
35482-28010

LH51,61,YH51,61..ATM..(CBR,DSL)

 1
35483 - WEIGHT, GOVERNOR, INNER
35483-14010

LH51,61,YH51,61..ATM..(CBR,DSL)

 1
35484 - WEIGHT, GOVERNOR, OUTER
35484-22010

LH51,61,YH51,61..ATM..(CBR,DSL)

 1
35484A - SPRING, COMPRESSION (FOR GOVERNOR WEIGHT)
90501-08052

YH51,61..ATM

内側

 1
90501-08051

YH51,61..ATM

外側

 1
35484A - SPRING, COMPRESSION (FOR GOVERNOR WEIGHT)
90501-08052

YH51,61..ATM

内側

 1
90501-08051

YH51,61..ATM

外側

 1
35485 - SHAFT, GOVERNOR VALVE
35485-14010

LH51,61,YH51,61..ATM..(CBR,DSL)

 1
35485A - RING, E (FOR GOVERNOR VALVE SHAFT)
90523-05020

LH51,61,YH51,61..ATM..(CBR,DSL)

 1
35794 - RING, GOVERNOR RETAINING
35794-22010

LH51,61,YH51,61..ATM..(CBR,DSL)

 1
Common parts
90101-05417
90215-11001
