YH51G-PQS (1985)

Toyota Hiace Van,Wagon

Production Aug 1985 - Aug 1987
Engine 3YU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )CTM,SCL,SCM

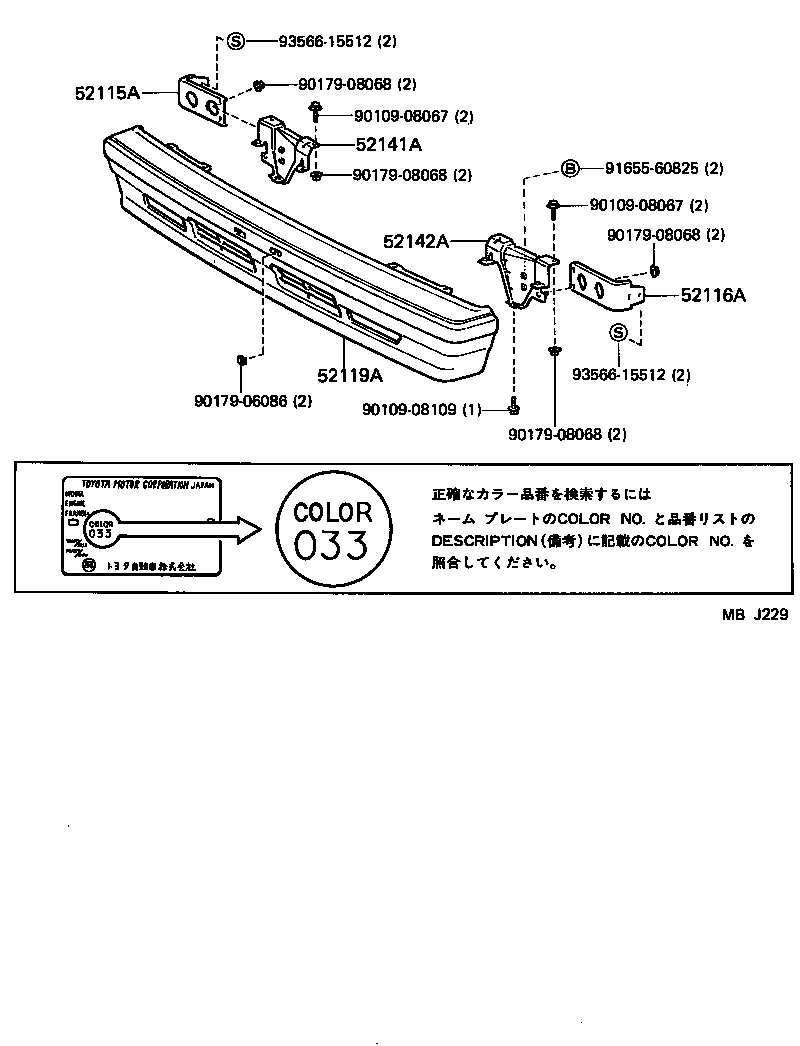

Click highlighted areas on diagram

diagram 52115A 52116A 52119A 52141A 52142A 9010908067 9010908067 9010908109 9017906086 9017908068 9017908068 9017908068 9017908068 9165560825 9356615512 9356615512
Part # Description Qty Price
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-95J00

LH51,YH51..CTM,SCL,SCM

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52115-95J00

LH51,YH51..CTM,SCL,SCM

 1
52119A - COVER, FRONT BUMPER
52119-95J0605

LH51,YH51..07S,08S

BEIGE-M,BEIGE METALLIC,4D2 ,2Y4

 1
52141A - ARM, FRONT BUMPER, UPPER RH
52141-95J03

LH51,YH51..CTM,SCL,SCM

 1
52142A - ARM, FRONT BUMPER, UPPER LH
52142-95J03

LH51,YH51..CTM,SCL,SCM

 1
Common parts
90109-08067
90109-08109
90179-06086
90179-08068
91655-60825
93566-15512
