YH51G-PES (1982)

Toyota Hiace Van,Wagon

Production Dec 1982 - Aug 1987
Engine 3YU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8212- )YH5#,6#,71

Click highlighted areas on diagram

diagram 88031 88031 88645B 88645B 88691 88691 88691C 88691C 88691C 88691C 88691C 88691S 88691S 88691S 88691S 9161160814 9161160814 9161160816 9338116014
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-28010

YH51,61,71..COM,WG

*CIU

 1
88031 - ACTUATOR SET, IDLE-UP
88031-28010

YH51,61,71..COM,WG

*CIU

 1
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90413-04005

YH5#,6#,71

 2
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90413-04005

YH5#,6#,71

 2
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95J05

YH51,61,71..COM,WG

*HIU,W/PS

 1
88691-87002

YH51..08S

W/COOL BOX

 1
88690-95J06

YH51,61,71..COM,WG

COOLER IDLE UP

 1
88690-95J15

YH51,61..WG

COOLER IDLE UP

 1
88690-95J23

YH51,61..WG

*HIU,W/PS

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95J05

YH51,61,71..COM,WG

*HIU,W/PS

 1
88691-87002

YH51..08S

W/COOL BOX

 1
88690-95J06

YH51,61,71..COM,WG

COOLER IDLE UP

 1
88690-95J15

YH51,61..WG

COOLER IDLE UP

 1
88690-95J23

YH51,61..WG

*HIU,W/PS

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10130

YH51,61,71..COM,WG

*H,L=160,ﾏｰｸ=#1,*HIU,W/PS

 1
95411-10130

YH51,61,71..COM,WG

*H,L=280,ﾏｰｸ=#1,*HIU

 1
95411-10130

YH51,61,71..COM,WG

*H,L=180,ﾏｰｸ=#1,*HIU,W/PS

 1
95411-10030

YH51,61,71..COM,WG

*H,L=200,ﾏｰｸ=#0,*HIU,W/PS

 1
95411-10030

YH51,61..WG

*H,L=160,ﾏｰｸ=#0,*HIU,W/PS

 1
95411-19960

YH51,61..WG

*H,L=330,ﾏｰｸ=#*,*HIU,W/PS

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10130

YH51,61,71..COM,WG

*H,L=160,ﾏｰｸ=#1,*HIU,W/PS

 1
95411-10130

YH51,61,71..COM,WG

*H,L=280,ﾏｰｸ=#1,*HIU

 1
95411-10130

YH51,61,71..COM,WG

*H,L=180,ﾏｰｸ=#1,*HIU,W/PS

 1
95411-10030

YH51,61,71..COM,WG

*H,L=200,ﾏｰｸ=#0,*HIU,W/PS

 1
95411-10030

YH51,61..WG

*H,L=160,ﾏｰｸ=#0,*HIU,W/PS

 1
95411-19960

YH51,61..WG

*H,L=330,ﾏｰｸ=#*,*HIU,W/PS

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10130

YH51,61,71..COM,WG

*H,L=160,ﾏｰｸ=#1,*HIU,W/PS

 1
95411-10130

YH51,61,71..COM,WG

*H,L=280,ﾏｰｸ=#1,*HIU

 1
95411-10130

YH51,61,71..COM,WG

*H,L=180,ﾏｰｸ=#1,*HIU,W/PS

 1
95411-10030

YH51,61,71..COM,WG

*H,L=200,ﾏｰｸ=#0,*HIU,W/PS

 1
95411-10030

YH51,61..WG

*H,L=160,ﾏｰｸ=#0,*HIU,W/PS

 1
95411-19960

YH51,61..WG

*H,L=330,ﾏｰｸ=#*,*HIU,W/PS

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10130

YH51,61,71..COM,WG

*H,L=160,ﾏｰｸ=#1,*HIU,W/PS

 1
95411-10130

YH51,61,71..COM,WG

*H,L=280,ﾏｰｸ=#1,*HIU

 1
95411-10130

YH51,61,71..COM,WG

*H,L=180,ﾏｰｸ=#1,*HIU,W/PS

 1
95411-10030

YH51,61,71..COM,WG

*H,L=200,ﾏｰｸ=#0,*HIU,W/PS

 1
95411-10030

YH51,61..WG

*H,L=160,ﾏｰｸ=#0,*HIU,W/PS

 1
95411-19960

YH51,61..WG

*H,L=330,ﾏｰｸ=#*,*HIU,W/PS

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10130

YH51,61,71..COM,WG

*H,L=160,ﾏｰｸ=#1,*HIU,W/PS

 1
95411-10130

YH51,61,71..COM,WG

*H,L=280,ﾏｰｸ=#1,*HIU

 1
95411-10130

YH51,61,71..COM,WG

*H,L=180,ﾏｰｸ=#1,*HIU,W/PS

 1
95411-10030

YH51,61,71..COM,WG

*H,L=200,ﾏｰｸ=#0,*HIU,W/PS

 1
95411-10030

YH51,61..WG

*H,L=160,ﾏｰｸ=#0,*HIU,W/PS

 1
95411-19960

YH51,61..WG

*H,L=330,ﾏｰｸ=#*,*HIU,W/PS

 1
88691S - CLAMP (FOR IDLE UP DIVICE), NO.1
90464-00074

YH51,71..08S,15S

3P

 2
90464-00081

YH51..08S

4P

 1
90464-00082

YH5#,6#,71

2P

 2
88691S - CLAMP (FOR IDLE UP DIVICE), NO.1
90464-00074

YH51,71..08S,15S

3P

 2
90464-00081

YH51..08S

4P

 1
90464-00082

YH5#,6#,71

2P

 2
88691S - CLAMP (FOR IDLE UP DIVICE), NO.1
90464-00074

YH51,71..08S,15S

3P

 2
90464-00081

YH51..08S

4P

 1
90464-00082

YH5#,6#,71

2P

 2
88691S - CLAMP (FOR IDLE UP DIVICE), NO.1
90464-00074

YH51,71..08S,15S

3P

 2
90464-00081

YH51..08S

4P

 1
90464-00082

YH5#,6#,71

2P

 2
Common parts
91611-60814
91611-60816
93381-16014

(8212- )YH5#,6#,71

Click highlighted areas on diagram

diagram 88031 88031 88645B 88645B 88648B 88648B 88691 88691 88691S 88691S 88691S 88691S 88691S 88691S
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-28010

YH51,61,71..COM,WG

*CIU

 1
88031 - ACTUATOR SET, IDLE-UP
88031-28010

YH51,61,71..COM,WG

*CIU

 1
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90413-04005

YH5#,6#,71

 2
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90413-04005

YH5#,6#,71

 2
88648B - WIRING, COOLER, NO.1
88648-95J06

YH5#,6#,71

COOLER IDLE UP

 1
88648B - WIRING, COOLER, NO.1
88648-95J06

YH5#,6#,71

COOLER IDLE UP

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95J05

YH51,61,71..COM,WG

*HIU,W/PS

 1
88691-87002

YH51..08S

W/COOL BOX

 1
88690-95J06

YH51,61,71..COM,WG

COOLER IDLE UP

 1
88690-95J15

YH51,61..WG

COOLER IDLE UP

 1
88690-95J23

YH51,61..WG

*HIU,W/PS

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95J05

YH51,61,71..COM,WG

*HIU,W/PS

 1
88691-87002

YH51..08S

W/COOL BOX

 1
88690-95J06

YH51,61,71..COM,WG

COOLER IDLE UP

 1
88690-95J15

YH51,61..WG

COOLER IDLE UP

 1
88690-95J23

YH51,61..WG

*HIU,W/PS

 1
88691S - CLAMP (FOR IDLE UP DIVICE), NO.1
90464-00074

YH51,71..08S,15S

3P

 2
90464-00081

YH51..08S

4P

 1
90464-00082

YH5#,6#,71

2P

 2
88691S - CLAMP (FOR IDLE UP DIVICE), NO.1
90464-00074

YH51,71..08S,15S

3P

 2
90464-00081

YH51..08S

4P

 1
90464-00082

YH5#,6#,71

2P

 2
88691S - CLAMP (FOR IDLE UP DIVICE), NO.1
90464-00074

YH51,71..08S,15S

3P

 2
90464-00081

YH51..08S

4P

 1
90464-00082

YH5#,6#,71

2P

 2
88691S - CLAMP (FOR IDLE UP DIVICE), NO.1
90464-00074

YH51,71..08S,15S

3P

 2
90464-00081

YH51..08S

4P

 1
90464-00082

YH5#,6#,71

2P

 2
88691S - CLAMP (FOR IDLE UP DIVICE), NO.1
90464-00074

YH51,71..08S,15S

3P

 2
90464-00081

YH51..08S

4P

 1
90464-00082

YH5#,6#,71

2P

 2
88691S - CLAMP (FOR IDLE UP DIVICE), NO.1
90464-00074

YH51,71..08S,15S

3P

 2
90464-00081

YH51..08S

4P

 1
90464-00082

YH5#,6#,71

2P

 2

(8212- )YH5#,6#,71

Click highlighted areas on diagram

diagram 88031 88031 88645B 88645B 88645D 88645D 88648B 88648B 88691 88691 88691S 88691S 88691S 88691S 9338116014 9338116014 9338518016 9338518016
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-28010

YH51,61,71..COM,WG

*CIU

 1
88031 - ACTUATOR SET, IDLE-UP
88031-28010

YH51,61,71..COM,WG

*CIU

 1
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90413-04005

YH5#,6#,71

 2
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90413-04005

YH5#,6#,71

 2
88648B - WIRING, COOLER, NO.1
88648-95J06

YH5#,6#,71

COOLER IDLE UP

 1
88648B - WIRING, COOLER, NO.1
88648-95J06

YH5#,6#,71

COOLER IDLE UP

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95J05

YH51,61,71..COM,WG

*HIU,W/PS

 1
88691-87002

YH51..08S

W/COOL BOX

 1
88690-95J06

YH51,61,71..COM,WG

COOLER IDLE UP

 1
88690-95J15

YH51,61..WG

COOLER IDLE UP

 1
88690-95J23

YH51,61..WG

*HIU,W/PS

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95J05

YH51,61,71..COM,WG

*HIU,W/PS

 1
88691-87002

YH51..08S

W/COOL BOX

 1
88690-95J06

YH51,61,71..COM,WG

COOLER IDLE UP

 1
88690-95J15

YH51,61..WG

COOLER IDLE UP

 1
88690-95J23

YH51,61..WG

*HIU,W/PS

 1
88691S - CLAMP (FOR IDLE UP DIVICE), NO.1
90464-00074

YH51,71..08S,15S

3P

 2
90464-00081

YH51..08S

4P

 1
90464-00082

YH5#,6#,71

2P

 2
88691S - CLAMP (FOR IDLE UP DIVICE), NO.1
90464-00074

YH51,71..08S,15S

3P

 2
90464-00081

YH51..08S

4P

 1
90464-00082

YH5#,6#,71

2P

 2
88691S - CLAMP (FOR IDLE UP DIVICE), NO.1
90464-00074

YH51,71..08S,15S

3P

 2
90464-00081

YH51..08S

4P

 1
90464-00082

YH5#,6#,71

2P

 2
88691S - CLAMP (FOR IDLE UP DIVICE), NO.1
90464-00074

YH51,71..08S,15S

3P

 2
90464-00081

YH51..08S

4P

 1
90464-00082

YH5#,6#,71

2P

 2
Common parts
93381-16014
93385-18016

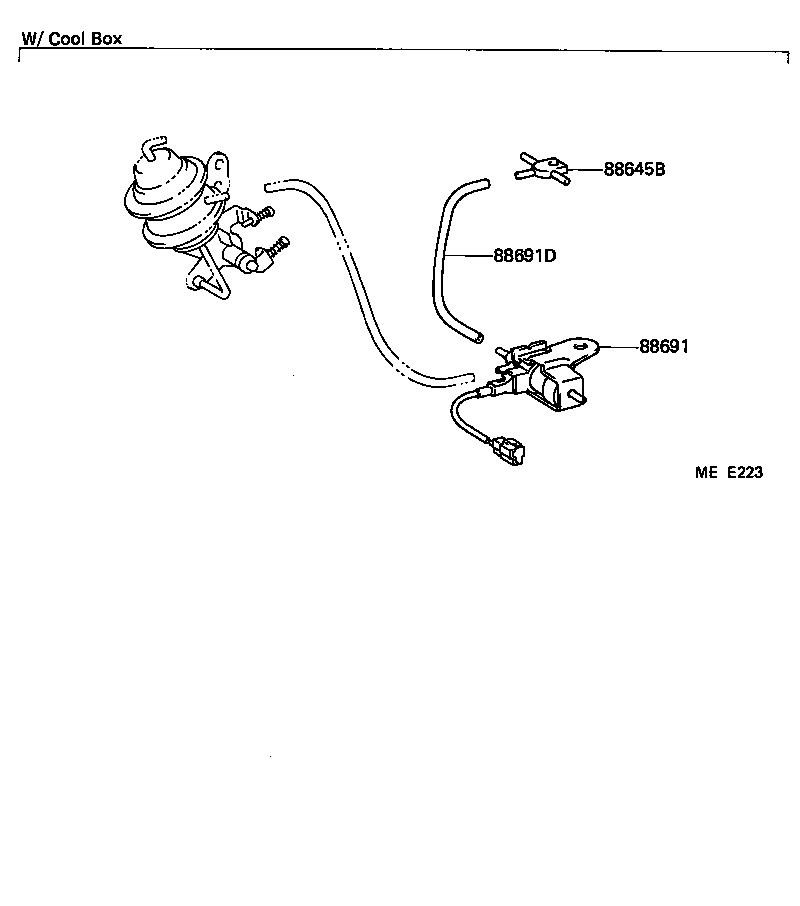

(8306- )YH51..08S

Click highlighted areas on diagram

diagram 88645B 88691 88691D
Part # Description Qty Price
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90413-04005

YH5#,6#,71

 2
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95J05

YH51,61,71..COM,WG

*HIU,W/PS

 1
88691-87002

YH51..08S

W/COOL BOX

 1
88690-95J06

YH51,61,71..COM,WG

COOLER IDLE UP

 1
88690-95J15

YH51,61..WG

COOLER IDLE UP

 1
88690-95J23

YH51,61..WG

*HIU,W/PS

 1
88691D - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.2
95411-10030

YH51..08S

*H,L=60,ﾏｰｸ=#0

 1
