YH51G-PES (1982)
Toyota Hiace Van,Wagon
ILLUST NO. 1 OF 7(8212- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-95J00 |
LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCM,STD |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-95J00 |
LH5#,6#,7#,YH5#,6#,71 FR HEATER |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-95J00 |
LH5#,6#,7#,YH5#,6#,71 FR HEATER |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-95J00 |
LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCM,STD FR HEATER |
1 | ||
| 55910-95J05 |
LH50,51,YH51..07S,08S RR HEATER |
1 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-12070 |
LH50,60,70,YH5#,61,71 FR HEATER |
4 | ||
| 55905-95J00 |
LH50,51,YH51..07S,08S RR HEATER |
1 | ||
| 55905-95J01 |
LH5#,6#,71,YH5#,6#,71 FR HEATER,FRESH-RECIRC |
1 | ||
| 55905-12070 |
LH5#,6#,71,YH5#,6#,71 FR,DEF-VENT,WARM-COOL,HI-OFF |
3 | ||
| Common parts | ||||
| 55933-24010 | ||||
| 90044-64009 | ||||
| 90183-05013 | ||||
| 90480-13013 | ||||
| 93566-14512 | ||||
| 93567-55018 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 7(8212- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55907B - CABLE SUB-ASSY, TEMPERATURE DAMPER CONTROL | ||||
| 55907-95J01 |
LH50,51,60,61,7#,YH51,61,71..(COM,WG)..(DLX,GL,SCL,SCM) RR HEATER |
1 | ||
| 55907B - CABLE SUB-ASSY, TEMPERATURE DAMPER CONTROL | ||||
| 55907-95J01 |
LH50,51,60,61,7#,YH51,61,71..(COM,WG)..(DLX,GL,SCL,SCM) RR HEATER |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-95J00 |
LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCM,STD FR HEATER |
1 | ||
| 55910-95J05 |
LH50,51,YH51..07S,08S RR HEATER |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-95J00 |
LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCM,STD FR HEATER |
1 | ||
| 55910-95J05 |
LH50,51,YH51..07S,08S RR HEATER |
1 | ||
| 55913A - PLATE, HEATER CONTROL LEVER GUIDE | ||||
| 55913-95J01 |
LH50,51,YH51..07S,08S RR HEATER |
1 | ||
| 55913A - PLATE, HEATER CONTROL LEVER GUIDE | ||||
| 55913-95J01 |
LH50,51,YH51..07S,08S RR HEATER |
1 | ||
| 55913A - PLATE, HEATER CONTROL LEVER GUIDE | ||||
| 55913-95J01 |
LH50,51,YH51..07S,08S RR HEATER |
1 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-12070 |
LH50,60,70,YH5#,61,71 FR HEATER |
4 | ||
| 55905-95J00 |
LH50,51,YH51..07S,08S RR HEATER |
1 | ||
| 55905-95J01 |
LH5#,6#,71,YH5#,6#,71 FR HEATER,FRESH-RECIRC |
1 | ||
| 55905-12070 |
LH5#,6#,71,YH5#,6#,71 FR,DEF-VENT,WARM-COOL,HI-OFF |
3 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-12070 |
LH50,60,70,YH5#,61,71 FR HEATER |
4 | ||
| 55905-95J00 |
LH50,51,YH51..07S,08S RR HEATER |
1 | ||
| 55905-95J01 |
LH5#,6#,71,YH5#,6#,71 FR HEATER,FRESH-RECIRC |
1 | ||
| 55905-12070 |
LH5#,6#,71,YH5#,6#,71 FR,DEF-VENT,WARM-COOL,HI-OFF |
3 | ||
| Common parts | ||||
| 55937-20040 | ||||
| 63249-95700 | ||||
| 88438-95J00 | ||||
| 90044-64009 | ||||
| 90560-11014 | ||||
| 93319-13016 | ||||
| 93566-14512 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||

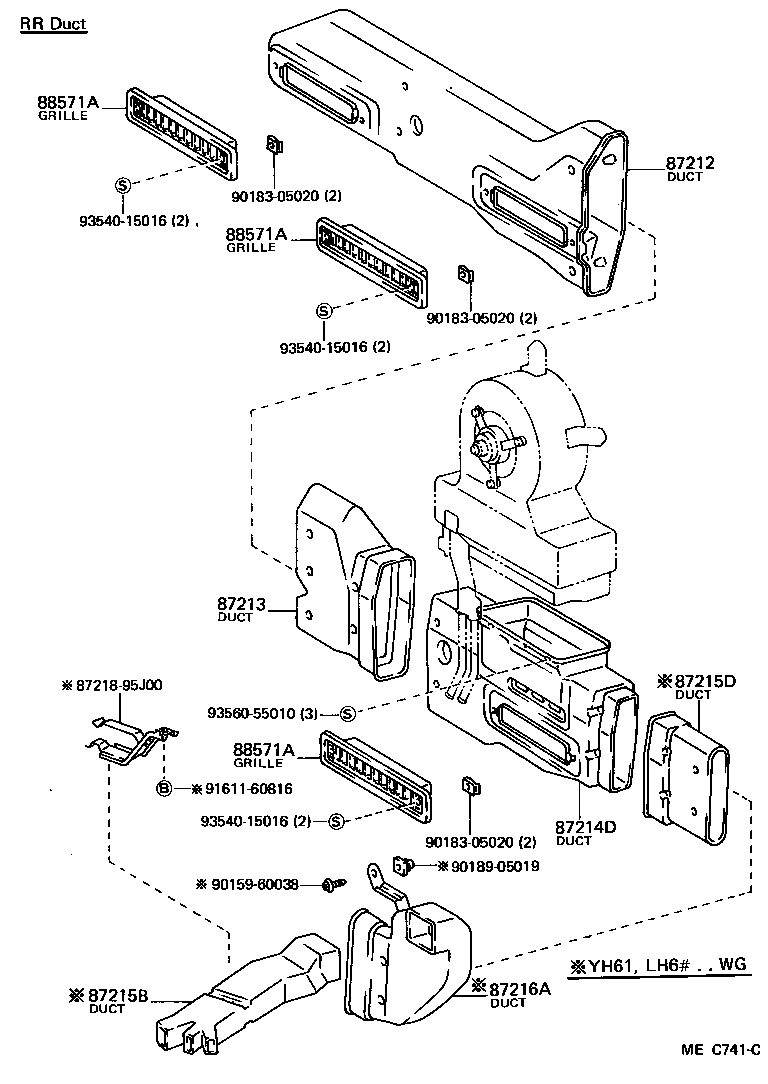

ILLUST NO. 5 OF 7(8212- )WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-95J00 |
LH50,51,60,61,YH51,61..WG |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-95J00 |
LH50,51,60,61,YH51,61..WG |
1 | ||
| 87214D - DUCT, AIR, REAR NO.3 | ||||
| 87214-95J00 |
LH50,51,YH51..WG |
1 | ||
| 88571A - GRILLE, AIR OUTLET | ||||
| 87125-95J0104 |
LH5#,YH51..08S BLUE,BLUE |
3 | ||
| 87125-95J0106 |
LH5#,YH51..08S BROWN,BROWN |
3 | ||
| 87125-95J0114 |
LH51,YH51..07S,08S BLUE,BLUE |
3 | ||
| 87125-95J0116 |
LH51,YH51..07S,08S BROWN,BROWN |
3 | ||
| 88571A - GRILLE, AIR OUTLET | ||||
| 87125-95J0104 |
LH5#,YH51..08S BLUE,BLUE |
3 | ||
| 87125-95J0106 |
LH5#,YH51..08S BROWN,BROWN |
3 | ||
| 87125-95J0114 |
LH51,YH51..07S,08S BLUE,BLUE |
3 | ||
| 87125-95J0116 |
LH51,YH51..07S,08S BROWN,BROWN |
3 | ||
| 88571A - GRILLE, AIR OUTLET | ||||
| 87125-95J0104 |
LH5#,YH51..08S BLUE,BLUE |
3 | ||
| 87125-95J0106 |
LH5#,YH51..08S BROWN,BROWN |
3 | ||
| 87125-95J0114 |
LH51,YH51..07S,08S BLUE,BLUE |
3 | ||
| 87125-95J0116 |
LH51,YH51..07S,08S BROWN,BROWN |
3 | ||
| Common parts | ||||
| 87218-95J00 | ||||
| 90159-60038 | ||||
| 90183-05020 | ||||
| 90189-05019 | ||||
| 91611-60816 | ||||
| 93540-15016 | ||||
| 93560-55010 | ||||
ILLUST NO. 6 OF 7(8212- )MRF,SRF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55937A - KNOB, COOLER CONTROL LEVER | ||||
| 88895-95A00 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S |
2 | ||
| 55937A - KNOB, COOLER CONTROL LEVER | ||||
| 88895-95A00 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S |
2 | ||
| 88510C - COVER ASSY, COOLER UNIT | ||||
| 88896-95J0108 |
LH5#,YH51..MRF IVORY,IVORY |
1 | ||
| 88896-95J0103 |
LH50,51,YH51..MRF..(08S,09S) GRAY,GRAY |
1 | ||
| 88896-95J0606 |
LH51,YH51..MRF..08S BROWN,W/POWER CURTAIN,BROWN |
1 | ||
| 88896-95J0106 |
LH51,YH51..MRF..08S BROWN,BROWN |
1 | ||
| 88896-95J0603 |
LH51,YH51..MRF..08S GRAY,W/POWER CURTAIN,GRAY |
1 | ||
| 88510C - COVER ASSY, COOLER UNIT | ||||
| 88896-95J0108 |
LH5#,YH51..MRF IVORY,IVORY |
1 | ||
| 88896-95J0103 |
LH50,51,YH51..MRF..(08S,09S) GRAY,GRAY |
1 | ||
| 88896-95J0606 |
LH51,YH51..MRF..08S BROWN,W/POWER CURTAIN,BROWN |
1 | ||
| 88896-95J0106 |
LH51,YH51..MRF..08S BROWN,BROWN |
1 | ||
| 88896-95J0603 |
LH51,YH51..MRF..08S GRAY,W/POWER CURTAIN,GRAY |
1 | ||
| 88561B - GRILLE, COOLER AIR INLET | ||||
| 88561-95J0008 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S LH,IVORY,IVORY |
1 | ||
| 88561-95J0006 |
LH51,61,71,YH51,61,71..07S,08S,09S,10S,15S LH,BROWN,BROWN |
1 | ||
| 88561-95J0108 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S RH,IVORY,IVORY |
1 | ||
| 88561-95J0106 |
LH51,61,71,YH51,61,71..07S,08S,09S,10S,15S RH,BROWN,BROWN |
1 | ||
| 88561-95J0003 |
LH50,51,YH51..CTM,SCM LH,GRAY,GRAY |
1 | ||
| 88561-95J0103 |
LH50,51,YH51..CTM,SCM RH,GRAY,GRAY |
1 | ||
| 88561B - GRILLE, COOLER AIR INLET | ||||
| 88561-95J0008 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S LH,IVORY,IVORY |
1 | ||
| 88561-95J0006 |
LH51,61,71,YH51,61,71..07S,08S,09S,10S,15S LH,BROWN,BROWN |
1 | ||
| 88561-95J0108 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S RH,IVORY,IVORY |
1 | ||
| 88561-95J0106 |
LH51,61,71,YH51,61,71..07S,08S,09S,10S,15S RH,BROWN,BROWN |
1 | ||
| 88561-95J0003 |
LH50,51,YH51..CTM,SCM LH,GRAY,GRAY |
1 | ||
| 88561-95J0103 |
LH50,51,YH51..CTM,SCM RH,GRAY,GRAY |
1 | ||
| 88561C - GRILLE, COOLER AIR INLET | ||||
| 88561-95J0203 |
LH50,51,YH51..CTM,SCM GRAY,GRAY |
2 | ||
| 88561-95J0208 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S IVORY,IVORY |
2 | ||
| 88561-95J0206 |
LH51,61,71,YH51,61,71..07S,08S,09S,10S,15S BROWN,BROWN |
2 | ||
| 88561C - GRILLE, COOLER AIR INLET | ||||
| 88561-95J0203 |
LH50,51,YH51..CTM,SCM GRAY,GRAY |
2 | ||
| 88561-95J0208 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S IVORY,IVORY |
2 | ||
| 88561-95J0206 |
LH51,61,71,YH51,61,71..07S,08S,09S,10S,15S BROWN,BROWN |
2 | ||
| 88570E - GRILLE ASSY, AIR OUTLET | ||||
| 88570-95J0003 |
LH50,51,YH51..CTM,SCM GRAY,GRAY |
2 | ||
| 88570-95J0006 |
LH51,61,71,YH51,61,71..08S,09S,10S,15S BROWN,BROWN |
2 | ||
| 88570-95J0008 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S IVORY,IVORY |
2 | ||
| 88570E - GRILLE ASSY, AIR OUTLET | ||||
| 88570-95J0003 |
LH50,51,YH51..CTM,SCM GRAY,GRAY |
2 | ||
| 88570-95J0006 |
LH51,61,71,YH51,61,71..08S,09S,10S,15S BROWN,BROWN |
2 | ||
| 88570-95J0008 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S IVORY,IVORY |
2 | ||
| 88604F - PANEL SUB-ASSY, COOLER CONTROL | ||||
| 88604-95J0003 |
LH50,51,YH51..CTM,SCM GRAY,GRAY |
1 | ||
| 88604-95J0008 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S IVORY,IVORY |
1 | ||
| 88604-95J0006 |
LH51,61,71,YH51,61,71..08S,09S,10S,15S BROWN,BROWN |
1 | ||
| 88898B - GROMMET, COOLER UNIT COVER | ||||
| 88898-95J0003 |
LH50,51,YH51..MRF..(07S,08S) GRAY,GRAY |
1 | ||
| 88898-95J0008 |
LH5#,YH51..MRF..08S IVORY,IVORY |
1 | ||
| 88898-95J0006 |
LH51,YH51..MRF..08S BROWN,BROWN |
1 | ||
| 88899F - SPACER | ||||
| 88899-95J0208 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S IVORY,IVORY |
6 | ||
| 88899-95J0203 |
LH50,51,YH51..CTM,SCM GRAY,GRAY |
4 | ||
| 88899-95J0206 |
LH51,61,71,YH51,61,71..08S,09S,10S,15S BROWN,BROWN |
6 | ||
| 88899F - SPACER | ||||
| 88899-95J0208 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S IVORY,IVORY |
6 | ||
| 88899-95J0203 |
LH50,51,YH51..CTM,SCM GRAY,GRAY |
4 | ||
| 88899-95J0206 |
LH51,61,71,YH51,61,71..08S,09S,10S,15S BROWN,BROWN |
6 | ||
| Common parts | ||||
| 90159-50026 | ||||
| 93540-15020 | ||||
| 93540-25020 | ||||
ILLUST NO. 4 OF 7(8212- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87195 - COVER, HOLE | ||||
| 88899-95J07 |
LH50,51,60,61,YH51,61..WG W/*ODAC,A TYPE |
1 | ||
| 87239-95J00 |
LH5#,6#,71,YH5#,6#,71 COLD SPEC(W/DRAIN HOLE) |
1 | ||
| 88899-95J05 |
YH51..08S W/*ODAC,DEALER,COOL BOX |
1 | ||
| 88899-95J05 |
LH50,51,YH51..08S W/*ODAC,B TYPE |
1 | ||
| 87195-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 87195 - COVER, HOLE | ||||
| 88899-95J07 |
LH50,51,60,61,YH51,61..WG W/*ODAC,A TYPE |
1 | ||
| 87239-95J00 |
LH5#,6#,71,YH5#,6#,71 COLD SPEC(W/DRAIN HOLE) |
1 | ||
| 88899-95J05 |
YH51..08S W/*ODAC,DEALER,COOL BOX |
1 | ||
| 88899-95J05 |
LH50,51,YH51..08S W/*ODAC,B TYPE |
1 | ||
| 87195-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 87195 - COVER, HOLE | ||||
| 88899-95J07 |
LH50,51,60,61,YH51,61..WG W/*ODAC,A TYPE |
1 | ||
| 87239-95J00 |
LH5#,6#,71,YH5#,6#,71 COLD SPEC(W/DRAIN HOLE) |
1 | ||
| 88899-95J05 |
YH51..08S W/*ODAC,DEALER,COOL BOX |
1 | ||
| 88899-95J05 |
LH50,51,YH51..08S W/*ODAC,B TYPE |
1 | ||
| 87195-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 55086-95J00 |
LH50,51,60,61,7#,YH5#,6#,71 |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 87211-95J09 |
LH5#,6#,71,YH5#,6#,71 COLD SPEC(W/DRAIN HOLE) |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87211-95J04 |
LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCM,STD COLD SPEC |
1 | ||
| 87214 - DUCT, AIR, SIDE NO.1 RH | ||||
| 55084-95J01 |
LH50,51,60,61,7#,YH5#,6#,71 |
1 | ||
| 87215 - DUCT, AIR, SIDE NO.1 LH | ||||
| 55085-95J00 |
LH50,51,60,61,7#,YH5#,6#,71 |
1 | ||
| 87219 - BRACKET, FRONT AIR DUCT | ||||
| 87219-95J00 |
LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCM,STD COLD SPEC |
1 | ||
| 88539F - HOSE, DRAIN | ||||
| 88539-95J05 |
LH5#,6#,71,YH5#,6#,71 |
1 | ||
| Common parts | ||||
| 88578-95J03 | ||||
| 90093-00609 | ||||
| 90099-00930 | ||||
| 90159-50134 | ||||
| 90159-50184 | ||||
| 90159-50203 | ||||
| 90159-60069 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90189-06084 | ||||
| 90480-26003 | ||||
| 93381-16016 | ||||
| 93567-55016 | ||||
| 93567-55018 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
