YH51G-PES (1982)
Toyota Hiace Van,Wagon

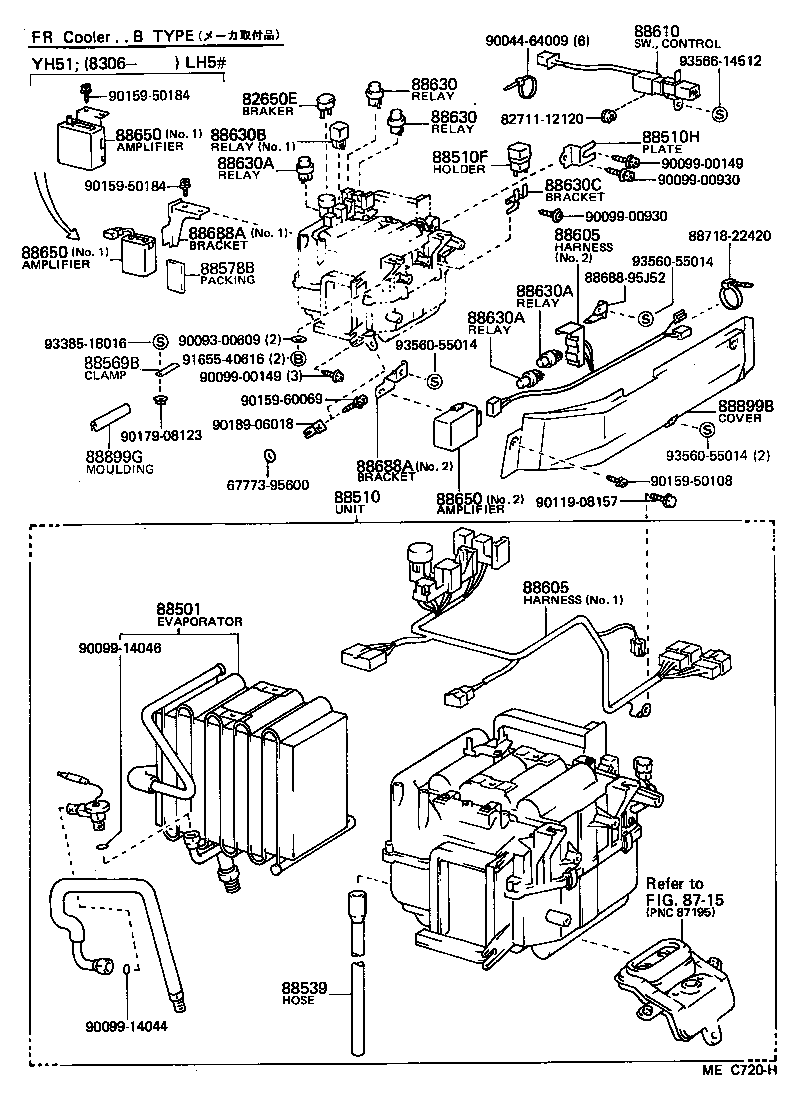

ILLUST NO. 1 OF 4(8212- )LH50,51,YH51..08S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82650E - BREAKER ASSY, WIRING CIRCUIT | ||||
| 82650-20011 |
LH50,51,6#,7#..08S,09S,10S,15S 30A,30A |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-95J00 |
LH5#,6#,7#,YH5#,6#,71 FR |
1 | ||
| 88501-95J08 |
LH51,6#,71,YH5#,6#,71 FR |
1 | ||
| 88501-95J01 |
LH50,51,6#,7#,YH51,61,71..08S,09S,10S,15S RR |
1 | ||
| 88501-95J04 |
LH51,61,71,YH5#,6#,71 FR |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-95J03 |
LH5#,YH51..08S RR,B TYPE |
1 | ||
| 88510-95J00 |
YH51..08S FR,B TYPE |
1 | ||
| 88510-95J50 |
YH51..08S FR,B TYPE |
1 | ||
| 88510-95J08 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S FR,A TYPE,W/*ODAC |
1 | ||
| 88510-95J49 |
LH51,YH51..08S RR,B TYPE |
1 | ||
| 88510-95J31 |
LH51,61,71,YH51,61,71..07S,08S,09S,10S,15S FR,A TYPE,W/*ODAC |
1 | ||
| 88510-95J09 |
LH50,51,60,61,7#,YH51,61,71..07S,08S,09S,10S,15S RR,A TYPE |
1 | ||
| 88510F - HOLDER, FUSE | ||||
| 82630-95J00 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88510H - PLATE, COOLER UNIT, NO.1 | ||||
| 88688-95J23 |
LH50,51,60,61,7#,YH5#,6#,71 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-95A03 |
LH50,51,60,61,7#,YH5#,6#,71 |
1 | ||
| 88539-95J04 |
LH51,YH51..08S W/COOL BOX |
1 | ||
| 88569B - CLAMP, NO.2(FOR COOLER WIRING HARNESS) | ||||
| 88569-12030 |
LH50,51,60,61,7#,YH5#,6#,71 |
2 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-95703 |
LH50,51,60,61,7#,YH5#,6#,71 |
7 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-95J33 |
YH51..08S FR,W/COOL BOX,NO.1 |
1 | ||
| 88605-95J31 |
YH51..CTM,SCM FR,NO.1 |
1 | ||
| 88605-95J00 |
YH51,61..WG FR,NO.1 |
1 | ||
| 88605-95J16 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S RR,A TYPE |
1 | ||
| 88605-95J36 |
YH51..08S FR,W/COOL BOX,NO.1 |
1 | ||
| 88605-95J31 |
YH51,61..WG FR,NO.1 |
1 | ||
| 88605-95J03 |
LH5#,YH51..08S RR, B TYPE |
1 | ||
| 88605-95J42 |
LH51,YH51..08S RR, B TYPE |
1 | ||
| 88605-95J55 |
LH51,61,YH51,61..WG RR,A TYPE |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-95J33 |
YH51..08S FR,W/COOL BOX,NO.1 |
1 | ||
| 88605-95J31 |
YH51..CTM,SCM FR,NO.1 |
1 | ||
| 88605-95J00 |
YH51,61..WG FR,NO.1 |
1 | ||
| 88605-95J16 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S RR,A TYPE |
1 | ||
| 88605-95J36 |
YH51..08S FR,W/COOL BOX,NO.1 |
1 | ||
| 88605-95J31 |
YH51,61..WG FR,NO.1 |
1 | ||
| 88605-95J03 |
LH5#,YH51..08S RR, B TYPE |
1 | ||
| 88605-95J42 |
LH51,YH51..08S RR, B TYPE |
1 | ||
| 88605-95J55 |
LH51,61,YH51,61..WG RR,A TYPE |
1 | ||
| 88610 - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-87003 |
LH5#,YH51..08S W/COOL BOX |
1 | ||
| 88610-87004 |
LH51,YH51..08S W/COOL BOX |
1 | ||
| 84660-95J00 |
LH5#,6#,7#,YH5#,6#,71..CBR,DSL FR |
1 | ||
| 88610-95A04 |
LH50,51,6#,7#,YH51,61,71..07S,08S,09S,10S,15S RR |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-02004 |
LH50,51,60,61,7#,YH5#,6#,71 W/FR COOLER |
2 | ||
| 88630-95702 |
LH5#,YH51..08S W/COOL BOX |
3 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-02004 |
LH50,51,60,61,7#,YH5#,6#,71 W/FR COOLER |
2 | ||
| 88630-95702 |
LH5#,YH51..08S W/COOL BOX |
3 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 90987-03001 |
LH50,51,60,61,7#,YH5#,6#,71 |
7 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 90987-03001 |
LH50,51,60,61,7#,YH5#,6#,71 |
7 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 90987-03001 |
LH50,51,60,61,7#,YH5#,6#,71 |
7 | ||
| 88630B - RELAY ASSY, COOLER | ||||
| 85913-30020 |
LH50,51,60,61,7#,YH51,61,71..07S,08S,09S,10S,15S NO.1 |
1 | ||
| 88630C - BRACKET, COOLER RELAY | ||||
| 88688-95J31 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88688-95J31 |
LH50,51,60,61,7# |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-95J00 |
YH51,61,71..08S,09S,10S,15S W/*ODAC,NO.1 |
1 | ||
| 88650-95J01 |
YH51,61,71..07S,08S,09S,10S,15S W/*ODAC,NO.1 |
1 | ||
| 88650-95J01 |
YH51..CTM,SCM W/*ODAC,NO.1 |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-95J00 |
YH51,61,71..08S,09S,10S,15S W/*ODAC,NO.1 |
1 | ||
| 88650-95J01 |
YH51,61,71..07S,08S,09S,10S,15S W/*ODAC,NO.1 |
1 | ||
| 88650-95J01 |
YH51..CTM,SCM W/*ODAC,NO.1 |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-95J00 |
YH51,61,71..08S,09S,10S,15S W/*ODAC,NO.1 |
1 | ||
| 88650-95J01 |
YH51,61,71..07S,08S,09S,10S,15S W/*ODAC,NO.1 |
1 | ||
| 88650-95J01 |
YH51..CTM,SCM W/*ODAC,NO.1 |
1 | ||
| 88688A - BRACKET, COOLER STABILIZER AMPLIFIER | ||||
| 88688-14080 |
LH5#,YH51..08S COOL BOX |
1 | ||
| 88688A - BRACKET, COOLER STABILIZER AMPLIFIER | ||||
| 88688-14080 |
LH5#,YH51..08S COOL BOX |
1 | ||
| 88899B - COVER, COOLER CONTROL | ||||
| 88899-95J03 |
LH50,51,60,61,7#,YH5#,6#,71 |
1 | ||
| 88899G - MOULDING, PROTECTOR | ||||
| 88899-95J17 |
LH51,61,71,YH51,61,71 FR |
1 | ||
| 88899-95J10 |
LH50,51,60,61,7#,YH5#,6#,71 FR |
1 | ||
| 88899-95J09 |
LH50,51,60,61,7#,YH51,61,71..07S,08S,09S,10S,15S RR,NO.1 |
1 | ||
| Common parts | ||||
| 67773-95600 | ||||
| 82711-12120 | ||||
| 88688-95J52 | ||||
| 88718-22420 | ||||
| 90044-64009 | ||||
| 90093-00609 | ||||
| 90099-00149 | ||||
| 90099-00930 | ||||
| 90099-14044 | ||||
| 90099-14046 | ||||
| 90119-08157 | ||||
| 90159-50108 | ||||
| 90159-50184 | ||||
| 90159-60069 | ||||
| 90179-08123 | ||||
| 90189-06018 | ||||
| 91655-40616 | ||||
| 93385-18016 | ||||
| 93560-55014 | ||||
| 93566-14512 | ||||
| Linked diagrams | ||||
| 8715 | ||||

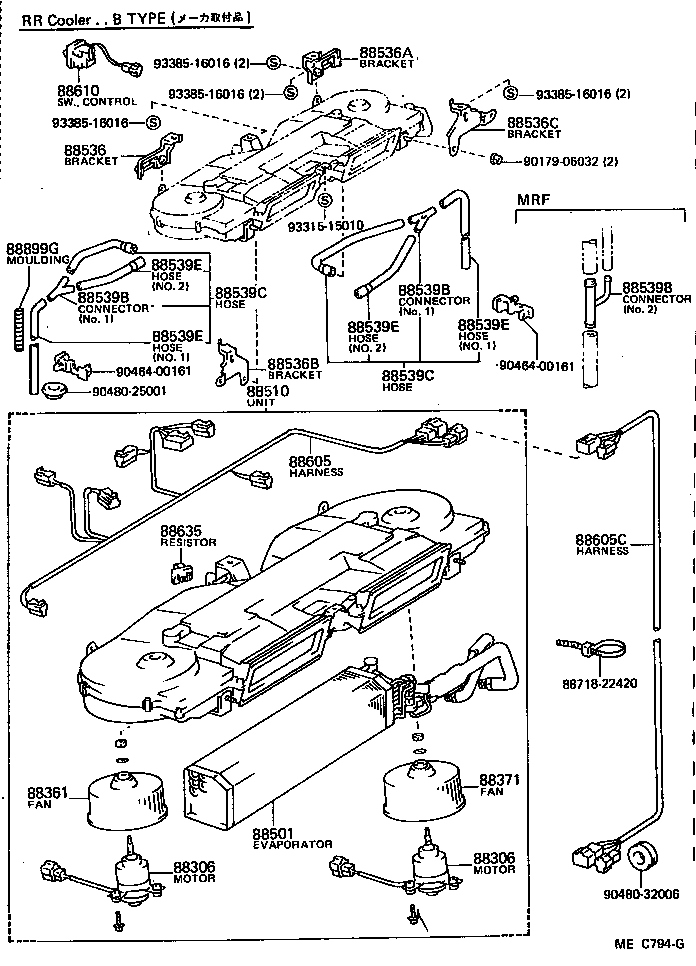

ILLUST NO. 2 OF 4(8212- )LH50,51,YH51..08S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 88550-95J00 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S |
2 | ||
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 88550-95J00 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S |
2 | ||
| 88361 - FAN, COOLER BLOWER, NO.1 | ||||
| 88541-95J00 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S |
1 | ||
| 88371 - FAN, COOLER BLOWER, NO.2 | ||||
| 87105-95J00 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-95J00 |
LH5#,6#,7#,YH5#,6#,71 FR |
1 | ||
| 88501-95J08 |
LH51,6#,71,YH5#,6#,71 FR |
1 | ||
| 88501-95J01 |
LH50,51,6#,7#,YH51,61,71..08S,09S,10S,15S RR |
1 | ||
| 88501-95J04 |
LH51,61,71,YH5#,6#,71 FR |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-95J03 |
LH5#,YH51..08S RR,B TYPE |
1 | ||
| 88510-95J00 |
YH51..08S FR,B TYPE |
1 | ||
| 88510-95J50 |
YH51..08S FR,B TYPE |
1 | ||
| 88510-95J08 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S FR,A TYPE,W/*ODAC |
1 | ||
| 88510-95J49 |
LH51,YH51..08S RR,B TYPE |
1 | ||
| 88510-95J31 |
LH51,61,71,YH51,61,71..07S,08S,09S,10S,15S FR,A TYPE,W/*ODAC |
1 | ||
| 88510-95J09 |
LH50,51,60,61,7#,YH51,61,71..07S,08S,09S,10S,15S RR,A TYPE |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88536-95J04 |
LH50,51,YH51..MRF..(07S,08S) |
1 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88536-95J05 |
LH50,51,YH51..MRF..(07S,08S) |
1 | ||
| 88536B - BRACKET, COOLING UNIT, NO.3 | ||||
| 88536-95J06 |
LH50,51,YH51..MRF..(07S,08S) |
1 | ||
| 88536C - BRACKET, COOLING UNIT, NO.4 | ||||
| 88536-95J07 |
LH50,51,YH51..MRF..(07S,08S) |
1 | ||
| 88539B - CONNECTOR, COOLER DRAIN HOSE | ||||
| 88899-95J12 |
LH51,YH51..08S W/COOL BOX,NO.2 |
1 | ||
| 88899-95J11 |
LH51,YH51..08S W/COOL BOX,NO.1 |
1 | ||
| 88897-87101 |
LH50,51,6#,7#,YH51,61,71..07S,08S,09S,10S,15S RR,NO.1 |
2 | ||
| 90413-15001 |
LH50,51,YH51..MRF RR,NO.2 |
2 | ||
| 88539B - CONNECTOR, COOLER DRAIN HOSE | ||||
| 88899-95J12 |
LH51,YH51..08S W/COOL BOX,NO.2 |
1 | ||
| 88899-95J11 |
LH51,YH51..08S W/COOL BOX,NO.1 |
1 | ||
| 88897-87101 |
LH50,51,6#,7#,YH51,61,71..07S,08S,09S,10S,15S RR,NO.1 |
2 | ||
| 90413-15001 |
LH50,51,YH51..MRF RR,NO.2 |
2 | ||
| 88539B - CONNECTOR, COOLER DRAIN HOSE | ||||
| 88899-95J12 |
LH51,YH51..08S W/COOL BOX,NO.2 |
1 | ||
| 88899-95J11 |
LH51,YH51..08S W/COOL BOX,NO.1 |
1 | ||
| 88897-87101 |
LH50,51,6#,7#,YH51,61,71..07S,08S,09S,10S,15S RR,NO.1 |
2 | ||
| 90413-15001 |
LH50,51,YH51..MRF RR,NO.2 |
2 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-95J03 |
LH50,51,YH51..MRF |
2 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-95J03 |
LH50,51,YH51..MRF |
2 | ||
| 88539E - HOSE, COOLER UNIT DRAIN, NO.3 | ||||
| 88539-95A07 |
LH50,51,6#,YH51,61..07S,08S,09S,10S,15S NO.2 |
2 | ||
| 88539E - HOSE, COOLER UNIT DRAIN, NO.3 | ||||
| 88539-95A07 |
LH50,51,6#,YH51,61..07S,08S,09S,10S,15S NO.2 |
2 | ||
| 88539E - HOSE, COOLER UNIT DRAIN, NO.3 | ||||
| 88539-95A07 |
LH50,51,6#,YH51,61..07S,08S,09S,10S,15S NO.2 |
2 | ||
| 88539E - HOSE, COOLER UNIT DRAIN, NO.3 | ||||
| 88539-95A07 |
LH50,51,6#,YH51,61..07S,08S,09S,10S,15S NO.2 |
2 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-95J33 |
YH51..08S FR,W/COOL BOX,NO.1 |
1 | ||
| 88605-95J31 |
YH51..CTM,SCM FR,NO.1 |
1 | ||
| 88605-95J00 |
YH51,61..WG FR,NO.1 |
1 | ||
| 88605-95J16 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S RR,A TYPE |
1 | ||
| 88605-95J36 |
YH51..08S FR,W/COOL BOX,NO.1 |
1 | ||
| 88605-95J31 |
YH51,61..WG FR,NO.1 |
1 | ||
| 88605-95J03 |
LH5#,YH51..08S RR, B TYPE |
1 | ||
| 88605-95J42 |
LH51,YH51..08S RR, B TYPE |
1 | ||
| 88605-95J55 |
LH51,61,YH51,61..WG RR,A TYPE |
1 | ||
| 88605C - HARNESS SUB-ASSY, COOLER WIRING, NO.2 | ||||
| 88648-95J13 |
LH51,YH51..08S |
1 | ||
| 88648-95J09 |
LH5#,YH51..08S |
1 | ||
| 88610 - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-87003 |
LH5#,YH51..08S W/COOL BOX |
1 | ||
| 88610-87004 |
LH51,YH51..08S W/COOL BOX |
1 | ||
| 84660-95J00 |
LH5#,6#,7#,YH5#,6#,71..CBR,DSL FR |
1 | ||
| 88610-95A04 |
LH50,51,6#,7#,YH51,61,71..07S,08S,09S,10S,15S RR |
1 | ||
| 88635 - RESISTOR, COOLER UNIT BLOWER | ||||
| 88635-95J00 |
LH50,51,6#,7#,YH51,61,71..08S,09S,10S,15S |
1 | ||
| 88899G - MOULDING, PROTECTOR | ||||
| 88899-95J17 |
LH51,61,71,YH51,61,71 FR |
1 | ||
| 88899-95J10 |
LH50,51,60,61,7#,YH5#,6#,71 FR |
1 | ||
| 88899-95J09 |
LH50,51,60,61,7#,YH51,61,71..07S,08S,09S,10S,15S RR,NO.1 |
1 | ||
| Common parts | ||||
| 88718-22420 | ||||
| 90179-06032 | ||||
| 90464-00161 | ||||
| 90480-25001 | ||||
| 90480-32006 | ||||
| 93315-15010 | ||||
| 93385-16016 | ||||
ILLUST NO. 1 OF 4(8212- )CTD,CTM,DLX,GL,SCM,STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82650E - BREAKER ASSY, WIRING CIRCUIT | ||||
| 82650-20011 |
LH50,51,6#,7#..08S,09S,10S,15S 30A,30A |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-95J00 |
LH5#,6#,7#,YH5#,6#,71 FR |
1 | ||
| 88501-95J08 |
LH51,6#,71,YH5#,6#,71 FR |
1 | ||
| 88501-95J01 |
LH50,51,6#,7#,YH51,61,71..08S,09S,10S,15S RR |
1 | ||
| 88501-95J04 |
LH51,61,71,YH5#,6#,71 FR |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-95J03 |
LH5#,YH51..08S RR,B TYPE |
1 | ||
| 88510-95J00 |
YH51..08S FR,B TYPE |
1 | ||
| 88510-95J50 |
YH51..08S FR,B TYPE |
1 | ||
| 88510-95J08 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S FR,A TYPE,W/*ODAC |
1 | ||
| 88510-95J49 |
LH51,YH51..08S RR,B TYPE |
1 | ||
| 88510-95J31 |
LH51,61,71,YH51,61,71..07S,08S,09S,10S,15S FR,A TYPE,W/*ODAC |
1 | ||
| 88510-95J09 |
LH50,51,60,61,7#,YH51,61,71..07S,08S,09S,10S,15S RR,A TYPE |
1 | ||
| 88510F - HOLDER, FUSE | ||||
| 82630-95J00 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88510H - PLATE, COOLER UNIT, NO.1 | ||||
| 88688-95J23 |
LH50,51,60,61,7#,YH5#,6#,71 |
1 | ||
| 88510P - PLATE, COOLER UNIT, NO.2 | ||||
| 88688-95J32 |
LH50,51,60,61,7#,YH5#,6#,71 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-16030 |
LH50,51,6#,7#,YH5#,6#,71 FR |
1 | ||
| 88515-95J00 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S RR |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-95A03 |
LH50,51,60,61,7#,YH5#,6#,71 |
1 | ||
| 88539-95J04 |
LH51,YH51..08S W/COOL BOX |
1 | ||
| 88569A - CLAMP, NO.1(FOR COOLER WIRING HARNESS) | ||||
| 88569-32010 |
LH5#,YH51..08S W/COOL BOX |
2 | ||
| 88569-95J00 |
LH50,51,60,61,7#,YH51,61,71..07S,08S,09S,10S,15S W/*ODAC |
9 | ||
| 88569B - CLAMP, NO.2(FOR COOLER WIRING HARNESS) | ||||
| 88569-12030 |
LH50,51,60,61,7#,YH5#,6#,71 |
2 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-95703 |
LH50,51,60,61,7#,YH5#,6#,71 |
7 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-95J33 |
YH51..08S FR,W/COOL BOX,NO.1 |
1 | ||
| 88605-95J31 |
YH51..CTM,SCM FR,NO.1 |
1 | ||
| 88605-95J00 |
YH51,61..WG FR,NO.1 |
1 | ||
| 88605-95J16 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S RR,A TYPE |
1 | ||
| 88605-95J36 |
YH51..08S FR,W/COOL BOX,NO.1 |
1 | ||
| 88605-95J31 |
YH51,61..WG FR,NO.1 |
1 | ||
| 88605-95J03 |
LH5#,YH51..08S RR, B TYPE |
1 | ||
| 88605-95J42 |
LH51,YH51..08S RR, B TYPE |
1 | ||
| 88605-95J55 |
LH51,61,YH51,61..WG RR,A TYPE |
1 | ||
| 88610 - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-87003 |
LH5#,YH51..08S W/COOL BOX |
1 | ||
| 88610-87004 |
LH51,YH51..08S W/COOL BOX |
1 | ||
| 84660-95J00 |
LH5#,6#,7#,YH5#,6#,71..CBR,DSL FR |
1 | ||
| 88610-95A04 |
LH50,51,6#,7#,YH51,61,71..07S,08S,09S,10S,15S RR |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-95J01 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S RR |
1 | ||
| 88625-95J00 |
LH50,51,60,61,7#,YH5#,6#,71 FR |
1 | ||
| 88625A - THERMISTOR, COOLER NO.2 | ||||
| 88625-90A00 |
LH50,51,60,61,7#,YH5#,6#,71 |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-02004 |
LH50,51,60,61,7#,YH5#,6#,71 W/FR COOLER |
2 | ||
| 88630-95702 |
LH5#,YH51..08S W/COOL BOX |
3 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 90987-03001 |
LH50,51,60,61,7#,YH5#,6#,71 |
7 | ||
| 88630B - RELAY ASSY, COOLER | ||||
| 85913-30020 |
LH50,51,60,61,7#,YH51,61,71..07S,08S,09S,10S,15S NO.1 |
1 | ||
| 88630B - RELAY ASSY, COOLER | ||||
| 85913-30020 |
LH50,51,60,61,7#,YH51,61,71..07S,08S,09S,10S,15S NO.1 |
1 | ||
| 88630C - BRACKET, COOLER RELAY | ||||
| 88688-95J31 |
YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88688-95J31 |
LH50,51,60,61,7# |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-95J00 |
YH51,61,71..08S,09S,10S,15S W/*ODAC,NO.1 |
1 | ||
| 88650-95J01 |
YH51,61,71..07S,08S,09S,10S,15S W/*ODAC,NO.1 |
1 | ||
| 88650-95J01 |
YH51..CTM,SCM W/*ODAC,NO.1 |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-95J00 |
YH51,61,71..08S,09S,10S,15S W/*ODAC,NO.1 |
1 | ||
| 88650-95J01 |
YH51,61,71..07S,08S,09S,10S,15S W/*ODAC,NO.1 |
1 | ||
| 88650-95J01 |
YH51..CTM,SCM W/*ODAC,NO.1 |
1 | ||
| 88688A - BRACKET, COOLER STABILIZER AMPLIFIER | ||||
| 88688-14080 |
LH5#,YH51..08S COOL BOX |
1 | ||
| 88899B - COVER, COOLER CONTROL | ||||
| 88899-95J03 |
LH50,51,60,61,7#,YH5#,6#,71 |
1 | ||
| 88899G - MOULDING, PROTECTOR | ||||
| 88899-95J17 |
LH51,61,71,YH51,61,71 FR |
1 | ||
| 88899-95J10 |
LH50,51,60,61,7#,YH5#,6#,71 FR |
1 | ||
| 88899-95J09 |
LH50,51,60,61,7#,YH51,61,71..07S,08S,09S,10S,15S RR,NO.1 |
1 | ||
| Common parts | ||||
| 82711-12120 | ||||
| 87116-14010 | ||||
| 90044-64009 | ||||
| 90093-00609 | ||||
| 90099-00149 | ||||
| 90099-00930 | ||||
| 90099-00968 | ||||
| 90099-14044 | ||||
| 90099-14046 | ||||
| 90179-08123 | ||||
| 93381-16016 | ||||
| 93385-18016 | ||||
| 93540-14012 | ||||
| 93540-15012 | ||||
| 93560-55014 | ||||
| 93566-14512 | ||||
ILLUST NO. 2 OF 4(8212- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 88550-95J00 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S |
2 | ||
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 88550-95J00 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S |
2 | ||
| 88361 - FAN, COOLER BLOWER, NO.1 | ||||
| 88541-95J00 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S |
1 | ||
| 88371 - FAN, COOLER BLOWER, NO.2 | ||||
| 87105-95J00 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-95J00 |
LH5#,6#,7#,YH5#,6#,71 FR |
1 | ||
| 88501-95J08 |
LH51,6#,71,YH5#,6#,71 FR |
1 | ||
| 88501-95J01 |
LH50,51,6#,7#,YH51,61,71..08S,09S,10S,15S RR |
1 | ||
| 88501-95J04 |
LH51,61,71,YH5#,6#,71 FR |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-95J03 |
LH5#,YH51..08S RR,B TYPE |
1 | ||
| 88510-95J00 |
YH51..08S FR,B TYPE |
1 | ||
| 88510-95J50 |
YH51..08S FR,B TYPE |
1 | ||
| 88510-95J08 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S FR,A TYPE,W/*ODAC |
1 | ||
| 88510-95J49 |
LH51,YH51..08S RR,B TYPE |
1 | ||
| 88510-95J31 |
LH51,61,71,YH51,61,71..07S,08S,09S,10S,15S FR,A TYPE,W/*ODAC |
1 | ||
| 88510-95J09 |
LH50,51,60,61,7#,YH51,61,71..07S,08S,09S,10S,15S RR,A TYPE |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-16030 |
LH50,51,6#,7#,YH5#,6#,71 FR |
1 | ||
| 88515-95J00 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S RR |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88536-95J04 |
LH50,51,YH51..MRF..(07S,08S) |
1 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88536-95J05 |
LH50,51,YH51..MRF..(07S,08S) |
1 | ||
| 88536B - BRACKET, COOLING UNIT, NO.3 | ||||
| 88536-95J06 |
LH50,51,YH51..MRF..(07S,08S) |
1 | ||
| 88536C - BRACKET, COOLING UNIT, NO.4 | ||||
| 88536-95J07 |
LH50,51,YH51..MRF..(07S,08S) |
1 | ||
| 88536D - COVER, COOLER UNIT BRACKET | ||||
| 88688-95J30 |
LH50,YH51..MRF..08S |
1 | ||
| 88688-95J30 |
LH51,61,YH51,61..07S,08S,09S,10S,15S |
1 | ||
| 88536E - BRACKET, COOLING UNIT, NO.5 | ||||
| 88688-95J29 |
LH50,51,60,61,YH51,61..08S,09S,10S,15S |
2 | ||
| 88536E - BRACKET, COOLING UNIT, NO.5 | ||||
| 88688-95J29 |
LH50,51,60,61,YH51,61..08S,09S,10S,15S |
2 | ||
| 88536F - BRACKET, COOLING UNIT, NO.6 | ||||
| 88688-95J28 |
LH50,51,6#,7#,YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88539B - CONNECTOR, COOLER DRAIN HOSE | ||||
| 88899-95J12 |
LH51,YH51..08S W/COOL BOX,NO.2 |
1 | ||
| 88899-95J11 |
LH51,YH51..08S W/COOL BOX,NO.1 |
1 | ||
| 88897-87101 |
LH50,51,6#,7#,YH51,61,71..07S,08S,09S,10S,15S RR,NO.1 |
2 | ||
| 90413-15001 |
LH50,51,YH51..MRF RR,NO.2 |
2 | ||
| 88539B - CONNECTOR, COOLER DRAIN HOSE | ||||
| 88899-95J12 |
LH51,YH51..08S W/COOL BOX,NO.2 |
1 | ||
| 88899-95J11 |
LH51,YH51..08S W/COOL BOX,NO.1 |
1 | ||
| 88897-87101 |
LH50,51,6#,7#,YH51,61,71..07S,08S,09S,10S,15S RR,NO.1 |
2 | ||
| 90413-15001 |
LH50,51,YH51..MRF RR,NO.2 |
2 | ||
| 88539B - CONNECTOR, COOLER DRAIN HOSE | ||||
| 88899-95J12 |
LH51,YH51..08S W/COOL BOX,NO.2 |
1 | ||
| 88899-95J11 |
LH51,YH51..08S W/COOL BOX,NO.1 |
1 | ||
| 88897-87101 |
LH50,51,6#,7#,YH51,61,71..07S,08S,09S,10S,15S RR,NO.1 |
2 | ||
| 90413-15001 |
LH50,51,YH51..MRF RR,NO.2 |
2 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-95J03 |
LH50,51,YH51..MRF |
2 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-95J03 |
LH50,51,YH51..MRF |
2 | ||
| 88539E - HOSE, COOLER UNIT DRAIN, NO.3 | ||||
| 88539-95A07 |
LH50,51,6#,YH51,61..07S,08S,09S,10S,15S NO.2 |
2 | ||
| 88539E - HOSE, COOLER UNIT DRAIN, NO.3 | ||||
| 88539-95A07 |
LH50,51,6#,YH51,61..07S,08S,09S,10S,15S NO.2 |
2 | ||
| 88539E - HOSE, COOLER UNIT DRAIN, NO.3 | ||||
| 88539-95A07 |
LH50,51,6#,YH51,61..07S,08S,09S,10S,15S NO.2 |
2 | ||
| 88539E - HOSE, COOLER UNIT DRAIN, NO.3 | ||||
| 88539-95A07 |
LH50,51,6#,YH51,61..07S,08S,09S,10S,15S NO.2 |
2 | ||
| 88569A - CLAMP, NO.1(FOR COOLER WIRING HARNESS) | ||||
| 88569-32010 |
LH5#,YH51..08S W/COOL BOX |
2 | ||
| 88569-95J00 |
LH50,51,60,61,7#,YH51,61,71..07S,08S,09S,10S,15S W/*ODAC |
9 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-95J33 |
YH51..08S FR,W/COOL BOX,NO.1 |
1 | ||
| 88605-95J31 |
YH51..CTM,SCM FR,NO.1 |
1 | ||
| 88605-95J00 |
YH51,61..WG FR,NO.1 |
1 | ||
| 88605-95J16 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S RR,A TYPE |
1 | ||
| 88605-95J36 |
YH51..08S FR,W/COOL BOX,NO.1 |
1 | ||
| 88605-95J31 |
YH51,61..WG FR,NO.1 |
1 | ||
| 88605-95J03 |
LH5#,YH51..08S RR, B TYPE |
1 | ||
| 88605-95J42 |
LH51,YH51..08S RR, B TYPE |
1 | ||
| 88605-95J55 |
LH51,61,YH51,61..WG RR,A TYPE |
1 | ||
| 88610 - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-87003 |
LH5#,YH51..08S W/COOL BOX |
1 | ||
| 88610-87004 |
LH51,YH51..08S W/COOL BOX |
1 | ||
| 84660-95J00 |
LH5#,6#,7#,YH5#,6#,71..CBR,DSL FR |
1 | ||
| 88610-95A04 |
LH50,51,6#,7#,YH51,61,71..07S,08S,09S,10S,15S RR |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-95J01 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S RR |
1 | ||
| 88625-95J00 |
LH50,51,60,61,7#,YH5#,6#,71 FR |
1 | ||
| 88635 - RESISTOR, COOLER UNIT BLOWER | ||||
| 88635-95J00 |
LH50,51,6#,7#,YH51,61,71..08S,09S,10S,15S |
1 | ||
| 88899G - MOULDING, PROTECTOR | ||||
| 88899-95J17 |
LH51,61,71,YH51,61,71 FR |
1 | ||
| 88899-95J10 |
LH50,51,60,61,7#,YH5#,6#,71 FR |
1 | ||
| 88899-95J09 |
LH50,51,60,61,7#,YH51,61,71..07S,08S,09S,10S,15S RR,NO.1 |
1 | ||
| 88899G - MOULDING, PROTECTOR | ||||
| 88899-95J17 |
LH51,61,71,YH51,61,71 FR |
1 | ||
| 88899-95J10 |
LH50,51,60,61,7#,YH5#,6#,71 FR |
1 | ||
| 88899-95J09 |
LH50,51,60,61,7#,YH51,61,71..07S,08S,09S,10S,15S RR,NO.1 |
1 | ||
| Common parts | ||||
| 88569-12170 | ||||
| 88578-30360 | ||||
| 88578-95J00 | ||||
| 88578-95J01 | ||||
| 88898-90C00 | ||||
| 88899-95A14 | ||||
| 90099-00905 | ||||
| 90099-00930 | ||||
| 90099-02210 | ||||
| 90099-05164 | ||||
| 90099-14044 | ||||
| 90099-14046 | ||||
| 90099-14067 | ||||
| 90159-50026 | ||||
| 90179-06032 | ||||
| 90480-32006 | ||||
| 93385-16014 | ||||
| 93540-15012 | ||||
| 93540-15016 | ||||

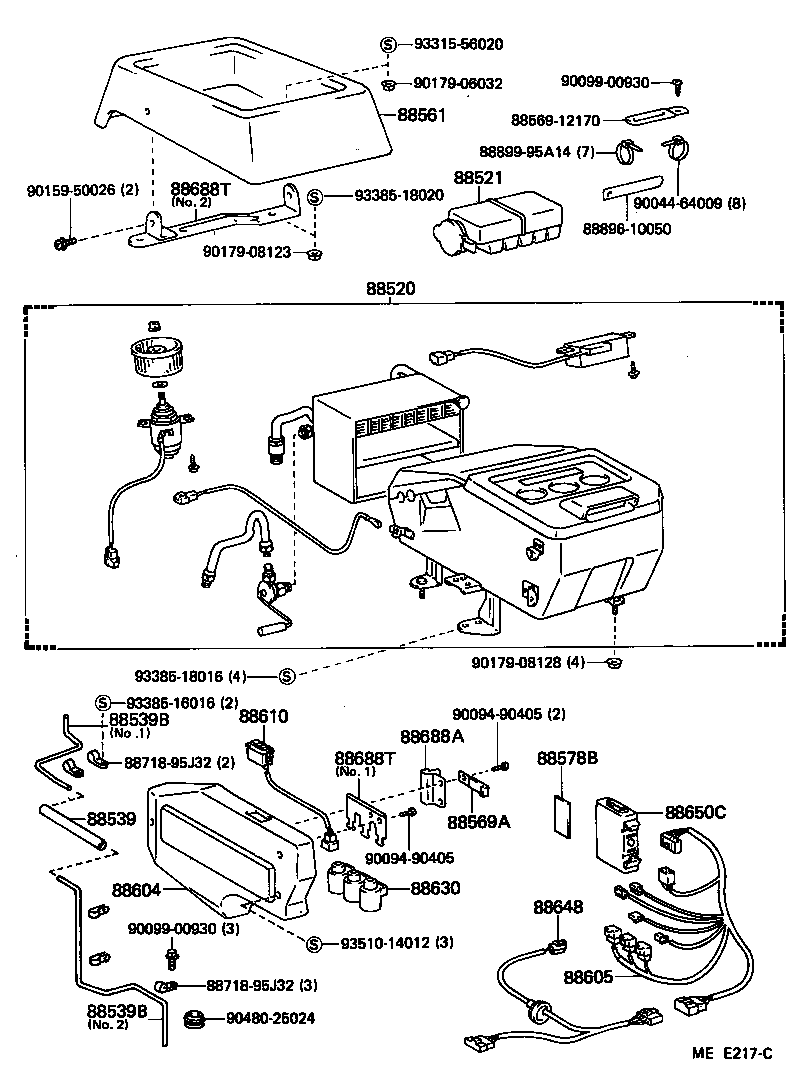

ILLUST NO. 4 OF 4(8306- )LH50,51,YH51..07S,08S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88520 - BOX ASSY, COOLING | ||||
| 88520-95J03 |
LH51,YH51..08S BLUE,W/COOL BOX |
1 | ||
| 88520-95J02 |
LH51,YH51..08S BEIGE,W/COOL BOX |
1 | ||
| 88520-95J01 |
LH5#,YH51..08S BLUE,W/COOL BOX |
1 | ||
| 88520-95J00 |
LH5#,YH51..08S BEIGE,W/COOL BOX |
1 | ||
| 88521 - CASE, COOLER UNIT | ||||
| 88899-87010 |
LH5#,YH51..08S W/COOL BOX |
2 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-95A03 |
LH50,51,60,61,7#,YH5#,6#,71 |
1 | ||
| 88539-95J04 |
LH51,YH51..08S W/COOL BOX |
1 | ||
| 88539B - CONNECTOR, COOLER DRAIN HOSE | ||||
| 88899-95J12 |
LH51,YH51..08S W/COOL BOX,NO.2 |
1 | ||
| 88899-95J11 |
LH51,YH51..08S W/COOL BOX,NO.1 |
1 | ||
| 88897-87101 |
LH50,51,6#,7#,YH51,61,71..07S,08S,09S,10S,15S RR,NO.1 |
2 | ||
| 90413-15001 |
LH50,51,YH51..MRF RR,NO.2 |
2 | ||
| 88539B - CONNECTOR, COOLER DRAIN HOSE | ||||
| 88899-95J12 |
LH51,YH51..08S W/COOL BOX,NO.2 |
1 | ||
| 88899-95J11 |
LH51,YH51..08S W/COOL BOX,NO.1 |
1 | ||
| 88897-87101 |
LH50,51,6#,7#,YH51,61,71..07S,08S,09S,10S,15S RR,NO.1 |
2 | ||
| 90413-15001 |
LH50,51,YH51..MRF RR,NO.2 |
2 | ||
| 88561 - COVER, COOLER UNIT | ||||
| 88898-95J17 |
LH51,YH51..08S BEIGE |
1 | ||
| 88898-95J18 |
LH51,YH51..08S BLUE |
1 | ||
| 88898-95J23 |
LH51,YH51..07S,08S BROWN |
1 | ||
| 88898-95J22 |
LH51,YH51..07S,08S BLUE |
1 | ||
| 88569A - CLAMP, NO.1(FOR COOLER WIRING HARNESS) | ||||
| 88569-32010 |
LH5#,YH51..08S W/COOL BOX |
2 | ||
| 88569-95J00 |
LH50,51,60,61,7#,YH51,61,71..07S,08S,09S,10S,15S W/*ODAC |
9 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-95703 |
LH50,51,60,61,7#,YH5#,6#,71 |
7 | ||
| 88604 - PANEL SUB-ASSY, COOLER CONTROL | ||||
| 88898-95J05 |
LH5#,YH51..08S W/COOL BOX |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-95J33 |
YH51..08S FR,W/COOL BOX,NO.1 |
1 | ||
| 88605-95J31 |
YH51..CTM,SCM FR,NO.1 |
1 | ||
| 88605-95J00 |
YH51,61..WG FR,NO.1 |
1 | ||
| 88605-95J16 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S RR,A TYPE |
1 | ||
| 88605-95J36 |
YH51..08S FR,W/COOL BOX,NO.1 |
1 | ||
| 88605-95J31 |
YH51,61..WG FR,NO.1 |
1 | ||
| 88605-95J03 |
LH5#,YH51..08S RR, B TYPE |
1 | ||
| 88605-95J42 |
LH51,YH51..08S RR, B TYPE |
1 | ||
| 88605-95J55 |
LH51,61,YH51,61..WG RR,A TYPE |
1 | ||
| 88610 - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-87003 |
LH5#,YH51..08S W/COOL BOX |
1 | ||
| 88610-87004 |
LH51,YH51..08S W/COOL BOX |
1 | ||
| 84660-95J00 |
LH5#,6#,7#,YH5#,6#,71..CBR,DSL FR |
1 | ||
| 88610-95A04 |
LH50,51,6#,7#,YH51,61,71..07S,08S,09S,10S,15S RR |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-02004 |
LH50,51,60,61,7#,YH5#,6#,71 W/FR COOLER |
2 | ||
| 88630-95702 |
LH5#,YH51..08S W/COOL BOX |
3 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-95J11 |
YH51..08S W/COOL BOX |
1 | ||
| 88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER | ||||
| 88650-87009 |
LH5#,YH51..08S W/COOL BOX |
1 | ||
| 88650-95J03 |
LH50,YH51..08S W/COOL BOX |
1 | ||
| 88650-87011 |
LH51,YH51..08S W/COOL BOX |
1 | ||
| 88688A - BRACKET, COOLER STABILIZER AMPLIFIER | ||||
| 88688-14080 |
LH5#,YH51..08S COOL BOX |
1 | ||
| 88688T - BRACKET (FOR COOL BOX) | ||||
| 88688-87019 |
LH5#,YH51..08S W/COOL BOX,NO.1 |
1 | ||
| 88688-87025 |
LH51,YH51..08S W/COOL BOX,NO.1 |
1 | ||
| 88688-95J43 |
LH51,YH51..08S W/COOL BOX,NO.2 |
1 | ||
| 88688T - BRACKET (FOR COOL BOX) | ||||
| 88688-87019 |
LH5#,YH51..08S W/COOL BOX,NO.1 |
1 | ||
| 88688-87025 |
LH51,YH51..08S W/COOL BOX,NO.1 |
1 | ||
| 88688-95J43 |
LH51,YH51..08S W/COOL BOX,NO.2 |
1 | ||
| Common parts | ||||
| 88569-12170 | ||||
| 88718-95J32 | ||||
| 88896-10050 | ||||
| 88899-95A14 | ||||
| 90044-64009 | ||||
| 90094-90405 | ||||
| 90099-00930 | ||||
| 90159-50026 | ||||
| 90179-06032 | ||||
| 90179-08123 | ||||
| 90179-08128 | ||||
| 90480-25024 | ||||
| 93315-56020 | ||||
| 93385-16016 | ||||
| 93385-18016 | ||||
| 93385-18020 | ||||
| 93510-14012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
