YH51G-PES (1982)
Toyota Hiace Van,Wagon
(8212-8508)CTM,SCM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88850 - EVAPORATOR AND COMPRESSOR ASSY | ||||
| 88850-95J10 |
YH51..MRF *ODAC |
1 | ||
| 88850-95J03 |
YH51..MRF..08S *ODAC |
1 | ||
| 88870 - DUCT AND ACCESSORY ASSY | ||||
| 88870-95J0108 |
LH5#,YH51..MRF *ODAC,IVORY,IVORY |
1 | ||
| 88870-95J0306 |
LH51,YH51..MRF..08S W/POWER COURTAIN,*ODAC,BROWN,BROWN |
1 | ||
| 88870-95J0206 |
LH51,YH51..MRF..08S *ODAC,BROWN,BROWN |
1 | ||
| 88870-95J0103 |
LH5#,YH51..MRF *ODAC,GRAY,GRAY |
1 | ||
| 88870-95J0303 |
LH51,YH51..MRF..08S W/POWER COURTAIN,*ODAC,GRAY,GRAY |
1 | ||
| 88870-95J0203 |
LH51,YH51..MRF..08S *ODAC,GRAY,GRAY |
1 | ||
(8310-8508)
| Part # | Description | Qty | Price |
|---|
(8306- )LH50,51,YH51..07S,08S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

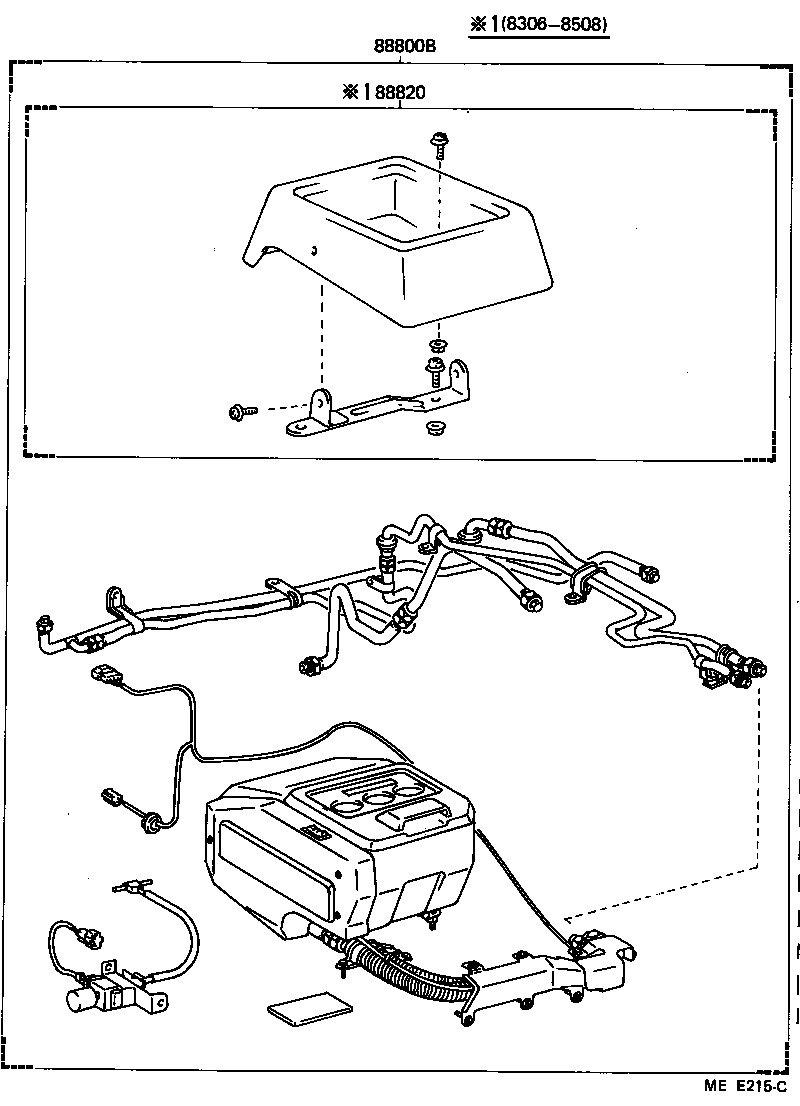

| 88800B - COOL BOX AND ACCESSORY ASSY, NO.1 | ||||
| 88800-95J01 |
YH51..08S BLUE |
1 | ||
| 88800-95J00 |
YH51..08S BEIGE |
1 | ||
| 88800-95J08 |
YH51..07S,08S BLUE |
1 | ||
| 88800-95J04 |
YH51..08S BEIGE |
1 | ||
| 88800-95J09 |
YH51..07S,08S BROWN |
1 | ||
| 88800-95J05 |
YH51..08S BLUE |
1 | ||
| 88820 - AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.1 | ||||
| 88840-95J00 |
LH51,YH51..08S BEIGE |
1 | ||
| 88840-95J01 |
LH51,YH51..08S BLUE |
1 | ||
| 88820-95J01 |
LH51,61,71,YH51,61,71..07S,08S,09S,10S,15S *ODAC |
1 | ||
(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88820 - AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.1 | ||||
| 88840-95J00 |
LH51,YH51..08S BEIGE |
1 | ||
| 88840-95J01 |
LH51,YH51..08S BLUE |
1 | ||
| 88820-95J01 |
LH51,61,71,YH51,61,71..07S,08S,09S,10S,15S *ODAC |
1 | ||
| 88820 - AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.1 | ||||
| 88840-95J00 |
LH51,YH51..08S BEIGE |
1 | ||
| 88840-95J01 |
LH51,YH51..08S BLUE |
1 | ||
| 88820-95J01 |
LH51,61,71,YH51,61,71..07S,08S,09S,10S,15S *ODAC |
1 | ||
| 88820A - AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.2 | ||||
| 88830-95J03 |
YH51,61..WG |
1 | ||
| 88820A - AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.2 | ||||
| 88830-95J03 |
YH51,61..WG |
1 | ||
| 88820B - AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.3 | ||||
| 88840-95J02 |
LH51,61,71,YH51,61,71..07S,08S,09S,10S,15S |
1 | ||
| 88870 - DUCT AND ACCESSORY ASSY | ||||
| 88870-95J0108 |
LH5#,YH51..MRF *ODAC,IVORY,IVORY |
1 | ||
| 88870-95J0306 |
LH51,YH51..MRF..08S W/POWER COURTAIN,*ODAC,BROWN,BROWN |
1 | ||
| 88870-95J0206 |
LH51,YH51..MRF..08S *ODAC,BROWN,BROWN |
1 | ||
| 88870-95J0103 |
LH5#,YH51..MRF *ODAC,GRAY,GRAY |
1 | ||
| 88870-95J0303 |
LH51,YH51..MRF..08S W/POWER COURTAIN,*ODAC,GRAY,GRAY |
1 | ||
| 88870-95J0203 |
LH51,YH51..MRF..08S *ODAC,GRAY,GRAY |
1 | ||
(8610- )
| Part # | Description | Qty | Price |
|---|
