YH51G-PES (1982)
Toyota Hiace Van,Wagon
ILLUST NO. 1 OF 5(8212- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04048 |
YH51..MRF..08S LEAD WIRE:L=100 & 155 |
1 | ||
| 90980-04041 |
YH51,61,71..(COM,WG)..(CTM,DLX,SCM) LEAD WIRE:L=100 |
1 | ||
| 90980-04041 |
YH51,61..WG LEAD WIRE:L=100 |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04048 |
YH51..MRF..08S LEAD WIRE:L=100 & 155 |
1 | ||
| 90980-04041 |
YH51,61,71..(COM,WG)..(CTM,DLX,SCM) LEAD WIRE:L=100 |
1 | ||
| 90980-04041 |
YH51,61..WG LEAD WIRE:L=100 |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04048 |
YH51..MRF..08S LEAD WIRE:L=100 & 155 |
1 | ||
| 90980-04041 |
YH51,61,71..(COM,WG)..(CTM,DLX,SCM) LEAD WIRE:L=100 |
1 | ||
| 90980-04041 |
YH51,61..WG LEAD WIRE:L=100 |
1 | ||
| 86011C - FILTER, NOISE | ||||
| 90980-05118 |
LH5#,6#,71,YH5#,61..GL,SCL,SCM W/*BS |
1 | ||
| 90980-05099 |
LH51,YH51..08S W/*19 OR *36 |
1 | ||
| 90980-05049 |
LH5#,6#,71,YH5#,6#,71 W/*19 OR *36 |
1 | ||
| 90980-05039 |
LH50,YH51..08S W/*19 |
1 | ||
| 86011C - FILTER, NOISE | ||||
| 90980-05118 |
LH5#,6#,71,YH5#,61..GL,SCL,SCM W/*BS |
1 | ||
| 90980-05099 |
LH51,YH51..08S W/*19 OR *36 |
1 | ||
| 90980-05049 |
LH5#,6#,71,YH5#,6#,71 W/*19 OR *36 |
1 | ||
| 90980-05039 |
LH50,YH51..08S W/*19 |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-89125 |
LH5#,61,71,YH5#,6#,71..CTM,DLX,GL,SCM *19 |
1 | ||
| 86120-14540 |
LH50,YH51..08S *19 |
1 | ||
| 86120-89124 |
LH5#,61,71,YH5#,6#,71 AM |
1 | ||
| 86120-14520 |
LH50,60,70,YH5#,61,71..CTM,DLX,GL,SCM AM |
1 | ||
| 86120-17010 |
LH5#,6#,71,YH5#,6#,71..CTD,CTM,DLX,GL,SCM AM |
1 | ||
| 86120-95J00 |
LH50,51,YH51..MRF..(07S,08S) W/CAR COMPO(OZMA) |
1 | ||
| 86120-20480 |
LH5#,YH51..WG W/CAR COMPO(4 SP),W/O *SIS |
1 | ||
| 86120-17020 |
LH5#,6#,71,YH5#,6#,71..CTD,CTM,DLX,GL,SCM *19 |
1 | ||
| 86120-95J01 |
LH51,YH51..CTM,SCL,SCM *SIS |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86201-95J00 |
LH50,60,70,YH5#,61,71 |
1 | ||
| 86201-95J01 |
LH5#,61,71,YH5#,6#,71 |
1 | ||
| 86211-95J08 |
LH5#,6#,71,YH5#,6#,71 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-95J03 |
LH5#,6#,71,YH5#,6#,71 |
1 | ||
| 86212-95J01 |
LH50,60,70,YH5#,61,71 |
1 | ||
| 86212-95J06 |
LH5#,61,71,YH5#,6#,71 |
1 | ||
| 86260 - TAPE PLAYER ASSY | ||||
| 86260-14260 |
LH5#,6#,7#,YH5#,6#,71 2 SPEAKERS,B TYPE |
1 | ||
| 86260-19065 |
LH5#,YH51..WG W/CAR COMPO(4 SP),W/O REC. |
1 | ||
| 86260-19055 |
LH5#,6#,7#,YH5#,6#,71 2 SPEAKERS,A TYPE |
1 | ||
| 86260-19075 |
LH50,YH51..WG W/CAR COMPO(4 SP),W/REC. |
1 | ||
| 86260-19076 |
LH51,YH51..WG W/CAR COMPO(4 SP),W/REC. |
1 | ||
| 86260-95J00 |
LH50,51,YH51..MRF..(07S,08S) W/CAR COMPO(OZMA) |
1 | ||
| 86260 - TAPE PLAYER ASSY | ||||
| 86260-14260 |
LH5#,6#,7#,YH5#,6#,71 2 SPEAKERS,B TYPE |
1 | ||
| 86260-19065 |
LH5#,YH51..WG W/CAR COMPO(4 SP),W/O REC. |
1 | ||
| 86260-19055 |
LH5#,6#,7#,YH5#,6#,71 2 SPEAKERS,A TYPE |
1 | ||
| 86260-19075 |
LH50,YH51..WG W/CAR COMPO(4 SP),W/REC. |
1 | ||
| 86260-19076 |
LH51,YH51..WG W/CAR COMPO(4 SP),W/REC. |
1 | ||
| 86260-95J00 |
LH50,51,YH51..MRF..(07S,08S) W/CAR COMPO(OZMA) |
1 | ||
| 86260 - TAPE PLAYER ASSY | ||||
| 86260-14260 |
LH5#,6#,7#,YH5#,6#,71 2 SPEAKERS,B TYPE |
1 | ||
| 86260-19065 |
LH5#,YH51..WG W/CAR COMPO(4 SP),W/O REC. |
1 | ||
| 86260-19055 |
LH5#,6#,7#,YH5#,6#,71 2 SPEAKERS,A TYPE |
1 | ||
| 86260-19075 |
LH50,YH51..WG W/CAR COMPO(4 SP),W/REC. |
1 | ||
| 86260-19076 |
LH51,YH51..WG W/CAR COMPO(4 SP),W/REC. |
1 | ||
| 86260-95J00 |
LH50,51,YH51..MRF..(07S,08S) W/CAR COMPO(OZMA) |
1 | ||
| 86260 - TAPE PLAYER ASSY | ||||
| 86260-14260 |
LH5#,6#,7#,YH5#,6#,71 2 SPEAKERS,B TYPE |
1 | ||
| 86260-19065 |
LH5#,YH51..WG W/CAR COMPO(4 SP),W/O REC. |
1 | ||
| 86260-19055 |
LH5#,6#,7#,YH5#,6#,71 2 SPEAKERS,A TYPE |
1 | ||
| 86260-19075 |
LH50,YH51..WG W/CAR COMPO(4 SP),W/REC. |
1 | ||
| 86260-19076 |
LH51,YH51..WG W/CAR COMPO(4 SP),W/REC. |
1 | ||
| 86260-95J00 |
LH50,51,YH51..MRF..(07S,08S) W/CAR COMPO(OZMA) |
1 | ||
| Common parts | ||||
| 90159-50108 | ||||
| 90980-04036 | ||||
| 90980-04040 | ||||
| 90980-04041 | ||||
| 90980-04048 | ||||
| 90980-05039 | ||||
| 90980-05049 | ||||
| 90980-05099 | ||||
| 90980-05118 | ||||
| 91651-40816 | ||||
| 93229-15008 | ||||
| 93319-15008 | ||||
| 93319-15010 | ||||
| 93385-16012 | ||||

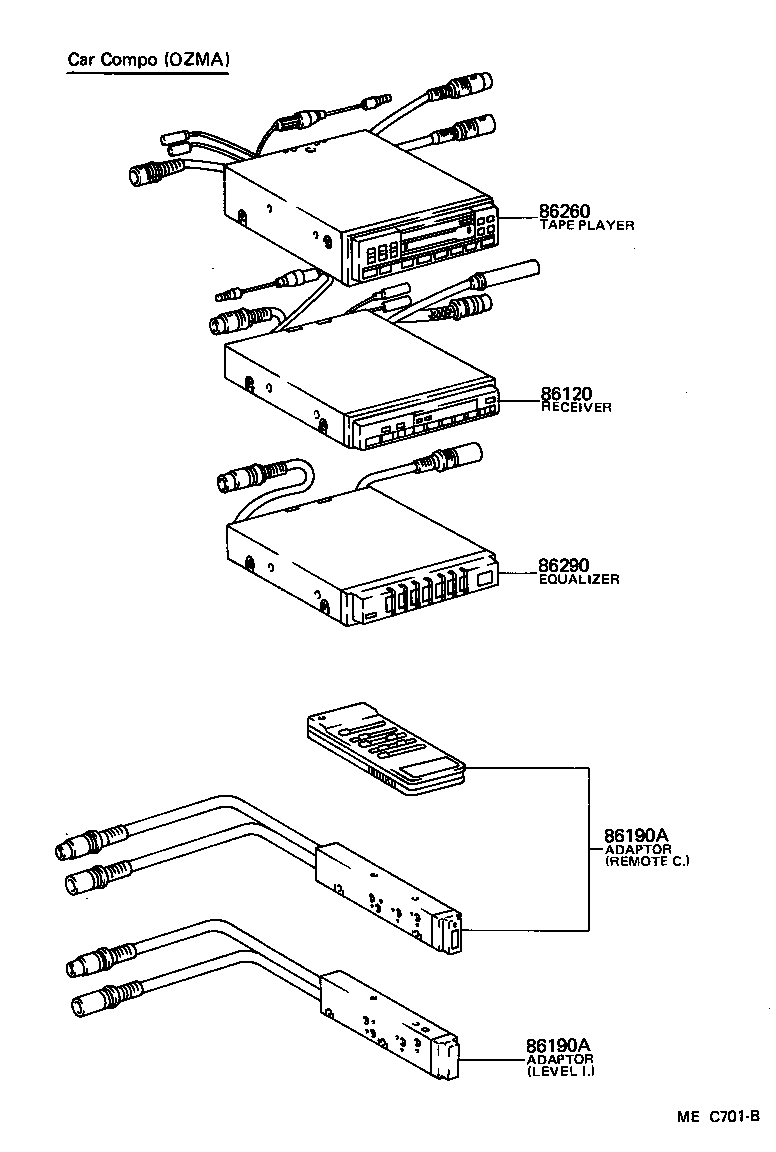

ILLUST NO. 2 OF 5(8212- )MRF..07S,08S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-89125 |
LH5#,61,71,YH5#,6#,71..CTM,DLX,GL,SCM *19 |
1 | ||
| 86120-14540 |
LH50,YH51..08S *19 |
1 | ||
| 86120-89124 |
LH5#,61,71,YH5#,6#,71 AM |
1 | ||
| 86120-14520 |
LH50,60,70,YH5#,61,71..CTM,DLX,GL,SCM AM |
1 | ||
| 86120-17010 |
LH5#,6#,71,YH5#,6#,71..CTD,CTM,DLX,GL,SCM AM |
1 | ||
| 86120-95J00 |
LH50,51,YH51..MRF..(07S,08S) W/CAR COMPO(OZMA) |
1 | ||
| 86120-20480 |
LH5#,YH51..WG W/CAR COMPO(4 SP),W/O *SIS |
1 | ||
| 86120-17020 |
LH5#,6#,71,YH5#,6#,71..CTD,CTM,DLX,GL,SCM *19 |
1 | ||
| 86120-95J01 |
LH51,YH51..CTM,SCL,SCM *SIS |
1 | ||
| 86190A - ADAPTER ASSY, REMOTE CONTROL | ||||
| 86190-95J01 |
LH50,51,YH51..MRF..(07S,08S) LEVEL INDICATOR |
1 | ||
| 86190-95J00 |
LH50,51,YH51..MRF..(07S,08S) REMOTE CONTROL |
1 | ||
| 86190A - ADAPTER ASSY, REMOTE CONTROL | ||||
| 86190-95J01 |
LH50,51,YH51..MRF..(07S,08S) LEVEL INDICATOR |
1 | ||
| 86190-95J00 |
LH50,51,YH51..MRF..(07S,08S) REMOTE CONTROL |
1 | ||
| 86260 - TAPE PLAYER ASSY | ||||
| 86260-14260 |
LH5#,6#,7#,YH5#,6#,71 2 SPEAKERS,B TYPE |
1 | ||
| 86260-19065 |
LH5#,YH51..WG W/CAR COMPO(4 SP),W/O REC. |
1 | ||
| 86260-19055 |
LH5#,6#,7#,YH5#,6#,71 2 SPEAKERS,A TYPE |
1 | ||
| 86260-19075 |
LH50,YH51..WG W/CAR COMPO(4 SP),W/REC. |
1 | ||
| 86260-19076 |
LH51,YH51..WG W/CAR COMPO(4 SP),W/REC. |
1 | ||
| 86260-95J00 |
LH50,51,YH51..MRF..(07S,08S) W/CAR COMPO(OZMA) |
1 | ||
| 86290 - EQUALIZER ASSY, STEREO COMPONENT | ||||
| 86290-95J00 |
LH50,51,YH51..MRF..(07S,08S) W/CAR COMPO(OZMA) |
1 | ||

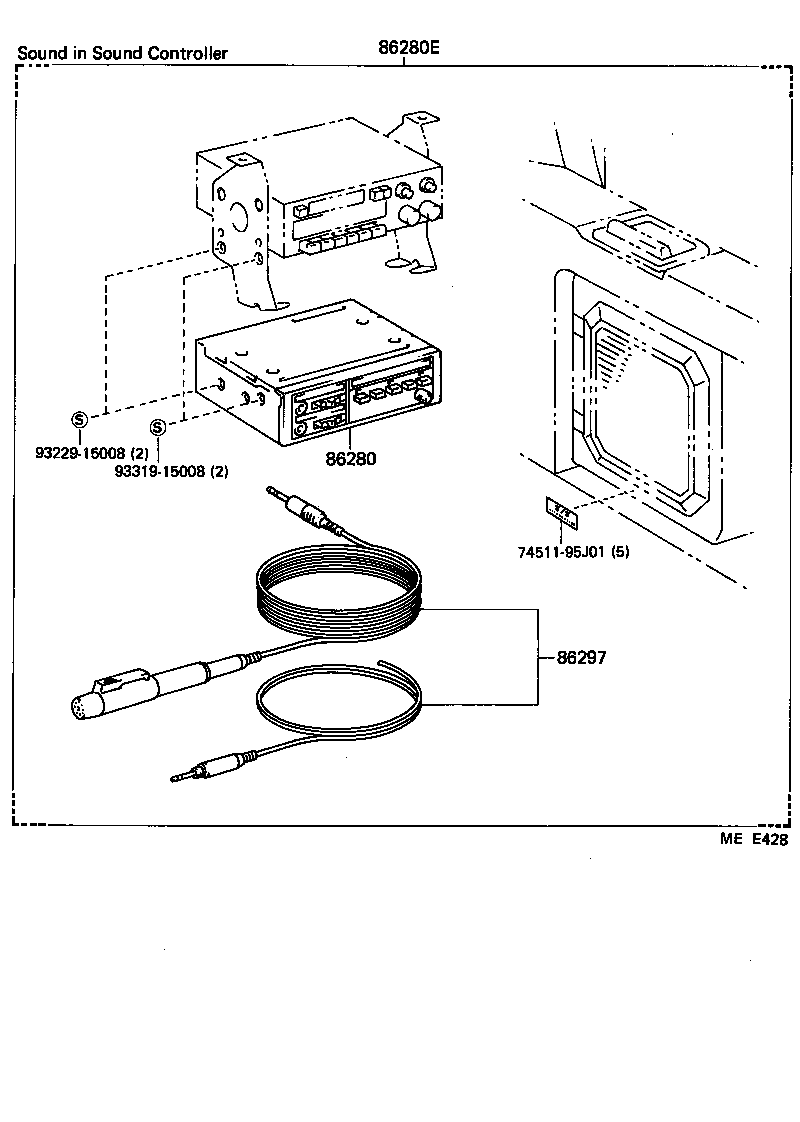

ILLUST NO. 4 OF 5(8212- )LH50,51,YH51..07S,08S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-95J05 |
LH51,YH51..07S,08S *SIS CONTROLLER |
1 | ||
| 86280-95J03 |
LH51,YH51..07S,08S NO.2,W/*SIS |
1 | ||
| 86280-95J04 |
LH50,51,YH51..MRF..(07S,08S) NO.3,W/CAR COMPO(OZMA) |
1 | ||
| 86280-95J02 |
LH50,51,YH51..MRF..(07S,08S) NO.1,COMPO(OZMA) OR *SIS(7 SP) |
1 | ||
| 86280-95J03 |
LH50,51,YH51..MRF..(07S,08S) NO.2,W/CAR COMPO(OZMA) |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-95J05 |
LH51,YH51..07S,08S *SIS CONTROLLER |
1 | ||
| 86280-95J03 |
LH51,YH51..07S,08S NO.2,W/*SIS |
1 | ||
| 86280-95J04 |
LH50,51,YH51..MRF..(07S,08S) NO.3,W/CAR COMPO(OZMA) |
1 | ||
| 86280-95J02 |
LH50,51,YH51..MRF..(07S,08S) NO.1,COMPO(OZMA) OR *SIS(7 SP) |
1 | ||
| 86280-95J03 |
LH50,51,YH51..MRF..(07S,08S) NO.2,W/CAR COMPO(OZMA) |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-95J05 |
LH51,YH51..07S,08S *SIS CONTROLLER |
1 | ||
| 86280-95J03 |
LH51,YH51..07S,08S NO.2,W/*SIS |
1 | ||
| 86280-95J04 |
LH50,51,YH51..MRF..(07S,08S) NO.3,W/CAR COMPO(OZMA) |
1 | ||
| 86280-95J02 |
LH50,51,YH51..MRF..(07S,08S) NO.1,COMPO(OZMA) OR *SIS(7 SP) |
1 | ||
| 86280-95J03 |
LH50,51,YH51..MRF..(07S,08S) NO.2,W/CAR COMPO(OZMA) |
1 | ||
| 86289 - CONTROLLER, STEREO COMPONENT SPEAKER | ||||
| 86289-95J00 |
LH50,51,YH51..MRF..(07S,08S) 2 OR 3 AMPLIFIER SYSTEM |
1 | ||
| 86289-95J02 |
LH50,51,YH51..MRF..(07S,08S) 1 AMPLIFIER SYSTEM |
1 | ||
| 86289-95J03 |
LH51,YH51..07S,08S *SIS RR CONTROLLER |
1 | ||
| 86289 - CONTROLLER, STEREO COMPONENT SPEAKER | ||||
| 86289-95J00 |
LH50,51,YH51..MRF..(07S,08S) 2 OR 3 AMPLIFIER SYSTEM |
1 | ||
| 86289-95J02 |
LH50,51,YH51..MRF..(07S,08S) 1 AMPLIFIER SYSTEM |
1 | ||
| 86289-95J03 |
LH51,YH51..07S,08S *SIS RR CONTROLLER |
1 | ||
| 86289A - MIXER, MICROPHONE | ||||
| 86289-95J01 |
LH50,51,YH51..MRF..(07S,08S) W/CAR COMPO(OZMA) |
1 | ||
| 86289-95J01 |
LH51,YH51..MRF W/*SIS |
1 | ||

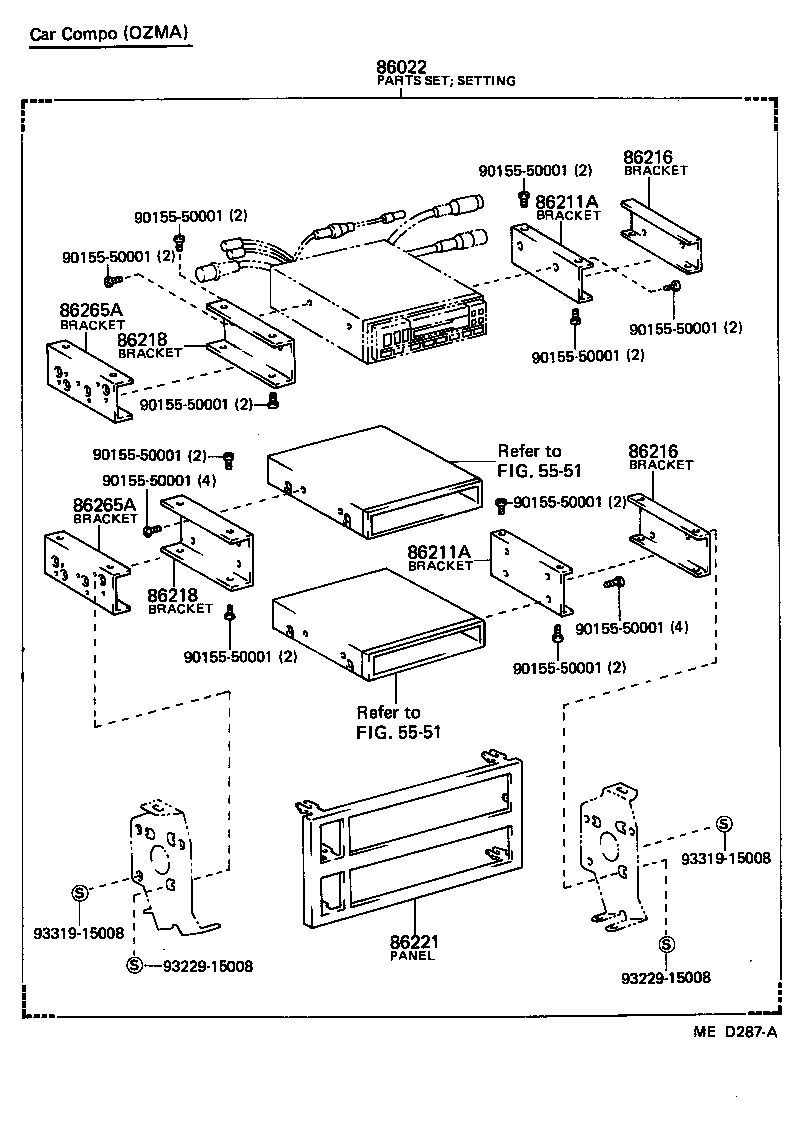

ILLUST NO. 3 OF 5(8212- )MRF..07S,08S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86022 - PARTS SET, TAPE PLAYER SETTING | ||||
| 86022-29085 |
LH50,51,YH51..MRF..(07S,08S) W/CAR COMPO(OZMA) |
1 | ||
| 86211A - BRACKET, STEREO COMPONENT, NO.1 | ||||
| 86211-95J02 |
LH50,51,YH51..MRF..(07S,08S) W/CAR COMPO(OZMA) |
2 | ||
| 86211A - BRACKET, STEREO COMPONENT, NO.1 | ||||
| 86211-95J02 |
LH50,51,YH51..MRF..(07S,08S) W/CAR COMPO(OZMA) |
2 | ||
| 86216 - BRACKET, STEREO COMPONENT, NO.2 | ||||
| 86211-95J03 |
LH50,51,YH51..MRF..(07S,08S) W/CAR COMPO(OZMA) |
2 | ||
| 86216 - BRACKET, STEREO COMPONENT, NO.2 | ||||
| 86211-95J03 |
LH50,51,YH51..MRF..(07S,08S) W/CAR COMPO(OZMA) |
2 | ||
| 86218 - BRACKET, STEREO COMPONENT, NO.3 | ||||
| 86211-95J04 |
LH50,51,YH51..MRF..(07S,08S) W/CAR COMPO(OZMA) |
2 | ||
| 86218 - BRACKET, STEREO COMPONENT, NO.3 | ||||
| 86211-95J04 |
LH50,51,YH51..MRF..(07S,08S) W/CAR COMPO(OZMA) |
2 | ||
| 86221 - PANEL, STEREO COMPONENT | ||||
| 86220-95J00 |
LH50,51,YH51..MRF..(07S,08S) W/CAR COMPO(OZMA) |
1 | ||
| 86265A - BRACKET, STEREO COMPONENT, NO.4 | ||||
| 86211-95J05 |
LH50,51,YH51..MRF..(07S,08S) W/CAR COMPO(OZMA) |
2 | ||
| 86265A - BRACKET, STEREO COMPONENT, NO.4 | ||||
| 86211-95J05 |
LH50,51,YH51..MRF..(07S,08S) W/CAR COMPO(OZMA) |
2 | ||
| Common parts | ||||
| 90155-50001 | ||||
| 93229-15008 | ||||
| 93319-15008 | ||||
| Linked diagrams | ||||
| 5551 | ||||

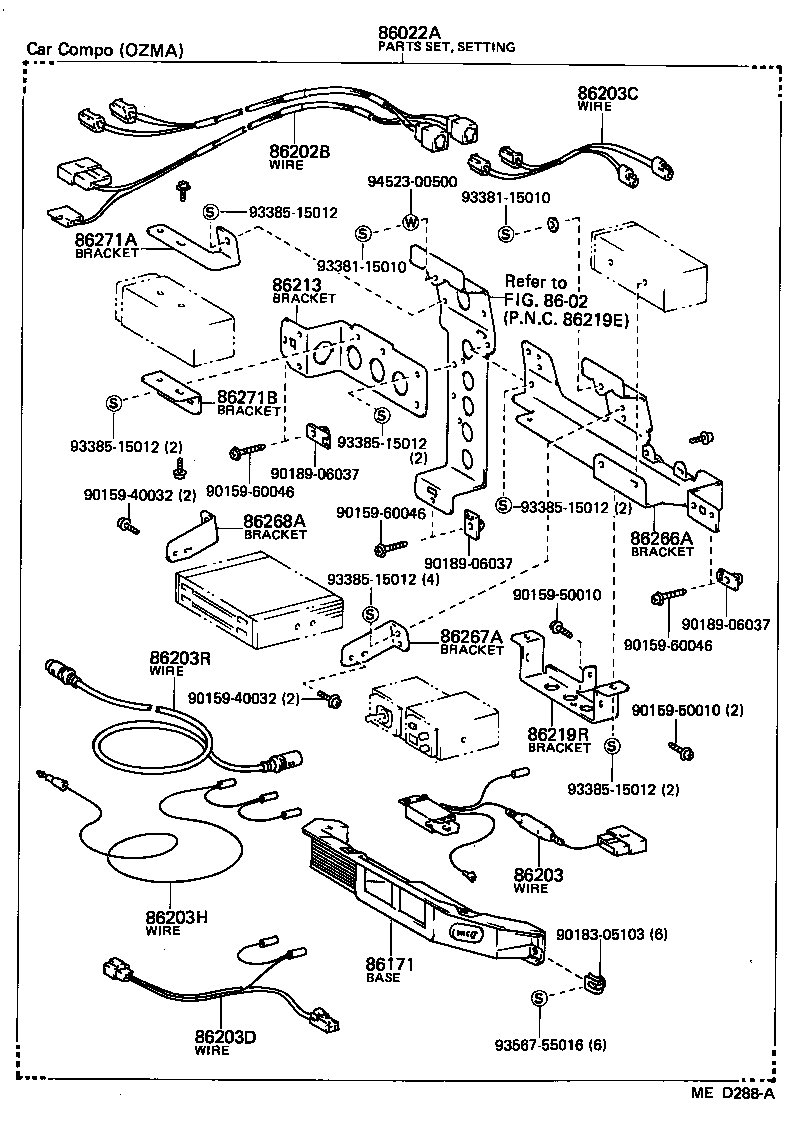

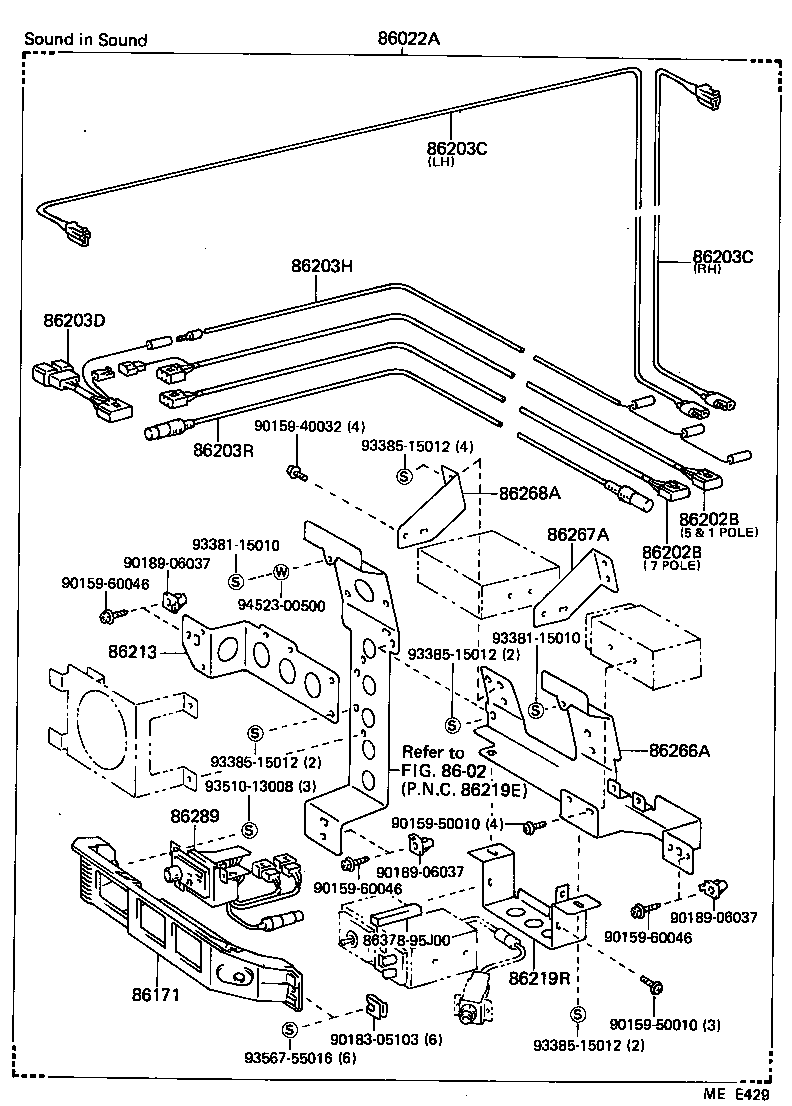

ILLUST NO. 5 OF 5(8212- )MRF..07S,08S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86022A - PARTS SET, STEREO COMPONENT SETTING | ||||
| 86022-29095 |
LH50,51,YH51..MRF..(07S,08S) W/CAR COMPO(OZMA) |
1 | ||
| 86022-29105 |
LH51,YH51..07S,08S W/*SIS |
1 | ||
| 86171 - BASE, RADIO REMOTE CONTROL | ||||
| 86171-95J00 |
LH50,51,YH51..MRF..(07S,08S) W/CAR COMPO(OZMA) |
1 | ||
| 86171-95J01 |
LH51,YH51..07S,08S W/*SIS |
1 | ||
| 86202B - WIRE, TAPE PLAYER | ||||
| 86202-95J07 |
LH50,51,YH51..MRF..(07S,08S) W/CAR COMPO(OZMA) |
1 | ||
| 86202-95J11 |
LH51,YH51..07S,08S W/*SIS,5 & 1 POLE |
1 | ||
| 86202-95J13 |
LH51,YH51..07S,08S W/*SIS,7 POLE |
1 | ||
| 86203 - WIRE, RADIO | ||||
| 86202-95J08 |
LH50,51,YH51..MRF..(07S,08S) W/CAR COMPO(OZMA) |
1 | ||
| 86203C - WIRE, TAPE PLAYER | ||||
| 86202-95J02 |
LH50,51,YH51..MRF..(07S,08S) W/CAR COMPO(OZMA) |
1 | ||
| 86202-95J14 |
LH51,YH51..07S,08S W/*SIS,RH |
1 | ||
| 86202-95J15 |
LH51,YH51..07S,08S W/*SIS,LH |
1 | ||
| 86203D - WIRE, STEREO COMPONENT, NO.1 | ||||
| 86202-95J03 |
LH50,51,YH51..MRF..(07S,08S) W/CAR COMPO(OZMA) |
1 | ||
| 86202-95J10 |
LH51,YH51..07S,08S W/*SIS |
1 | ||
| 86203H - WIRE, STEREO COMPONENT, NO.2 | ||||
| 86202-95J04 |
LH50,51,YH51..MRF..(07S,08S) W/CAR COMPO(OZMA) OR *SIS |
1 | ||
| 86203R - WIRE SUB-ASSY, RR | ||||
| 86202-95J12 |
LH51,YH51..07S,08S W/*SIS |
1 | ||
| 86202-95J09 |
LH50,51,YH51..MRF..(07S,08S) W/CAR COMPO(OZMA) |
1 | ||
| 86213 - BRACKET, RADIO, NO.3 | ||||
| 86274-95J01 |
LH50,51,YH51..MRF..(07S,08S) W/CAR COMPO(OZMA) |
1 | ||
| 86274-95J01 |
LH51,YH51..07S,08S W/*SIS |
1 | ||
| 86219R - BRACKET, SPEAKER CONTROLLER | ||||
| 86276-95J00 |
LH50,51,YH51..MRF..(07S,08S) W/MIC MIXER,CAR COMPO(OZMA) |
1 | ||
| 86276-95J01 |
LH50,51,YH51..MRF..(07S,08S) W/O MIC MIXER,CAR COMPO(OZMA) |
1 | ||
| 86276-95J00 |
LH51,YH51..07S,08S W/*SIS |
1 | ||
| 86266A - BRACKET, STEREO COMPONENT, NO.5 | ||||
| 86275-95J00 |
LH50,51,YH51..MRF..(07S,08S) W/CAR COMPO(OZMA) |
1 | ||
| 86275-95J00 |
LH51,YH51..07S,08S W/*SIS |
1 | ||
| 86267A - BRACKET, STEREO COMPONENT, NO.6 | ||||
| 86277-95J00 |
LH50,51,YH51..MRF..(07S,08S) W/CAR COMPO(OZMA) |
1 | ||
| 86277-95J00 |
LH51,YH51..07S,08S W/*SIS |
1 | ||
| 86268A - BRACKET, STEREO COMPONENT, NO.7 | ||||
| 86277-95J01 |
LH51,YH51..07S,08S W/*SIS |
1 | ||
| 86277-95J01 |
LH50,51,YH51..MRF..(07S,08S) W/CAR COMPO(OZMA) |
1 | ||
| 86271A - BRACKET, STEREO COMPONENT, A | ||||
| 86278-95J00 |
LH50,51,YH51..MRF..(07S,08S) W/CAR COMPO(OZMA) |
1 | ||
| 86271B - BRACKET, STEREO COMPONENT, B | ||||
| 86278-95J01 |
LH50,51,YH51..MRF..(07S,08S) W/CAR COMPO(OZMA) |
1 | ||
| Common parts | ||||
| 90159-40032 | ||||
| 90159-50010 | ||||
| 90159-60046 | ||||
| 90183-05103 | ||||
| 90189-06037 | ||||
| 93381-15010 | ||||
| 93385-15012 | ||||
| 93567-55016 | ||||
| 94523-00500 | ||||
| Linked diagrams | ||||
| 8602 | ||||
ILLUST NO. 2 OF 5(8401- )LH51,YH51..07S,08S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-95J05 |
LH51,YH51..07S,08S *SIS CONTROLLER |
1 | ||
| 86280-95J03 |
LH51,YH51..07S,08S NO.2,W/*SIS |
1 | ||
| 86280-95J04 |
LH50,51,YH51..MRF..(07S,08S) NO.3,W/CAR COMPO(OZMA) |
1 | ||
| 86280-95J02 |
LH50,51,YH51..MRF..(07S,08S) NO.1,COMPO(OZMA) OR *SIS(7 SP) |
1 | ||
| 86280-95J03 |
LH50,51,YH51..MRF..(07S,08S) NO.2,W/CAR COMPO(OZMA) |
1 | ||
| 86280E - AMPLIFIER SET, STEREO COMPONENT | ||||
| 86280-29115 |
LH51,YH51..07S,08S W/*SIS |
1 | ||
| 86297 - MICROPHONE, WIRELESS | ||||
| 86297-95J00 |
LH51,YH51..07S,08S W/*SIS |
1 | ||
| Common parts | ||||
| 74511-95J01 | ||||
| 93229-15008 | ||||
| 93319-15008 | ||||
ILLUST NO. 5 OF 5(8401- )LH51,YH51..07S,08S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86022A - PARTS SET, STEREO COMPONENT SETTING | ||||
| 86022-29095 |
LH50,51,YH51..MRF..(07S,08S) W/CAR COMPO(OZMA) |
1 | ||
| 86022-29105 |
LH51,YH51..07S,08S W/*SIS |
1 | ||
| 86171 - BASE, RADIO REMOTE CONTROL | ||||
| 86171-95J00 |
LH50,51,YH51..MRF..(07S,08S) W/CAR COMPO(OZMA) |
1 | ||
| 86171-95J01 |
LH51,YH51..07S,08S W/*SIS |
1 | ||
| 86202B - WIRE, TAPE PLAYER | ||||
| 86202-95J07 |
LH50,51,YH51..MRF..(07S,08S) W/CAR COMPO(OZMA) |
1 | ||
| 86202-95J11 |
LH51,YH51..07S,08S W/*SIS,5 & 1 POLE |
1 | ||
| 86202-95J13 |
LH51,YH51..07S,08S W/*SIS,7 POLE |
1 | ||
| 86202B - WIRE, TAPE PLAYER | ||||
| 86202-95J07 |
LH50,51,YH51..MRF..(07S,08S) W/CAR COMPO(OZMA) |
1 | ||
| 86202-95J11 |
LH51,YH51..07S,08S W/*SIS,5 & 1 POLE |
1 | ||
| 86202-95J13 |
LH51,YH51..07S,08S W/*SIS,7 POLE |
1 | ||
| 86203C - WIRE, TAPE PLAYER | ||||
| 86202-95J02 |
LH50,51,YH51..MRF..(07S,08S) W/CAR COMPO(OZMA) |
1 | ||
| 86202-95J14 |
LH51,YH51..07S,08S W/*SIS,RH |
1 | ||
| 86202-95J15 |
LH51,YH51..07S,08S W/*SIS,LH |
1 | ||
| 86203C - WIRE, TAPE PLAYER | ||||
| 86202-95J02 |
LH50,51,YH51..MRF..(07S,08S) W/CAR COMPO(OZMA) |
1 | ||
| 86202-95J14 |
LH51,YH51..07S,08S W/*SIS,RH |
1 | ||
| 86202-95J15 |
LH51,YH51..07S,08S W/*SIS,LH |
1 | ||
| 86203D - WIRE, STEREO COMPONENT, NO.1 | ||||
| 86202-95J03 |
LH50,51,YH51..MRF..(07S,08S) W/CAR COMPO(OZMA) |
1 | ||
| 86202-95J10 |
LH51,YH51..07S,08S W/*SIS |
1 | ||
| 86203H - WIRE, STEREO COMPONENT, NO.2 | ||||
| 86202-95J04 |
LH50,51,YH51..MRF..(07S,08S) W/CAR COMPO(OZMA) OR *SIS |
1 | ||
| 86203R - WIRE SUB-ASSY, RR | ||||
| 86202-95J12 |
LH51,YH51..07S,08S W/*SIS |
1 | ||
| 86202-95J09 |
LH50,51,YH51..MRF..(07S,08S) W/CAR COMPO(OZMA) |
1 | ||
| 86213 - BRACKET, RADIO, NO.3 | ||||
| 86274-95J01 |
LH50,51,YH51..MRF..(07S,08S) W/CAR COMPO(OZMA) |
1 | ||
| 86274-95J01 |
LH51,YH51..07S,08S W/*SIS |
1 | ||
| 86219R - BRACKET, SPEAKER CONTROLLER | ||||
| 86276-95J00 |
LH50,51,YH51..MRF..(07S,08S) W/MIC MIXER,CAR COMPO(OZMA) |
1 | ||
| 86276-95J01 |
LH50,51,YH51..MRF..(07S,08S) W/O MIC MIXER,CAR COMPO(OZMA) |
1 | ||
| 86276-95J00 |
LH51,YH51..07S,08S W/*SIS |
1 | ||
| 86266A - BRACKET, STEREO COMPONENT, NO.5 | ||||
| 86275-95J00 |
LH50,51,YH51..MRF..(07S,08S) W/CAR COMPO(OZMA) |
1 | ||
| 86275-95J00 |
LH51,YH51..07S,08S W/*SIS |
1 | ||
| 86267A - BRACKET, STEREO COMPONENT, NO.6 | ||||
| 86277-95J00 |
LH50,51,YH51..MRF..(07S,08S) W/CAR COMPO(OZMA) |
1 | ||
| 86277-95J00 |
LH51,YH51..07S,08S W/*SIS |
1 | ||
| 86268A - BRACKET, STEREO COMPONENT, NO.7 | ||||
| 86277-95J01 |
LH51,YH51..07S,08S W/*SIS |
1 | ||
| 86277-95J01 |
LH50,51,YH51..MRF..(07S,08S) W/CAR COMPO(OZMA) |
1 | ||
| 86289 - CONTROLLER, STEREO COMPONENT SPEAKER | ||||
| 86289-95J00 |
LH50,51,YH51..MRF..(07S,08S) 2 OR 3 AMPLIFIER SYSTEM |
1 | ||
| 86289-95J02 |
LH50,51,YH51..MRF..(07S,08S) 1 AMPLIFIER SYSTEM |
1 | ||
| 86289-95J03 |
LH51,YH51..07S,08S *SIS RR CONTROLLER |
1 | ||
| Common parts | ||||
| 86378-95J00 | ||||
| 90159-40032 | ||||
| 90159-50010 | ||||
| 90159-60046 | ||||
| 90183-05103 | ||||
| 90189-06037 | ||||
| 93381-15010 | ||||
| 93385-15012 | ||||
| 93510-13008 | ||||
| 93567-55016 | ||||
| 94523-00500 | ||||
| Linked diagrams | ||||
| 8602 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
