YH51G-PES (1982)

Toyota Hiace Van,Wagon

Production Dec 1982 - Aug 1987
Engine 3YU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

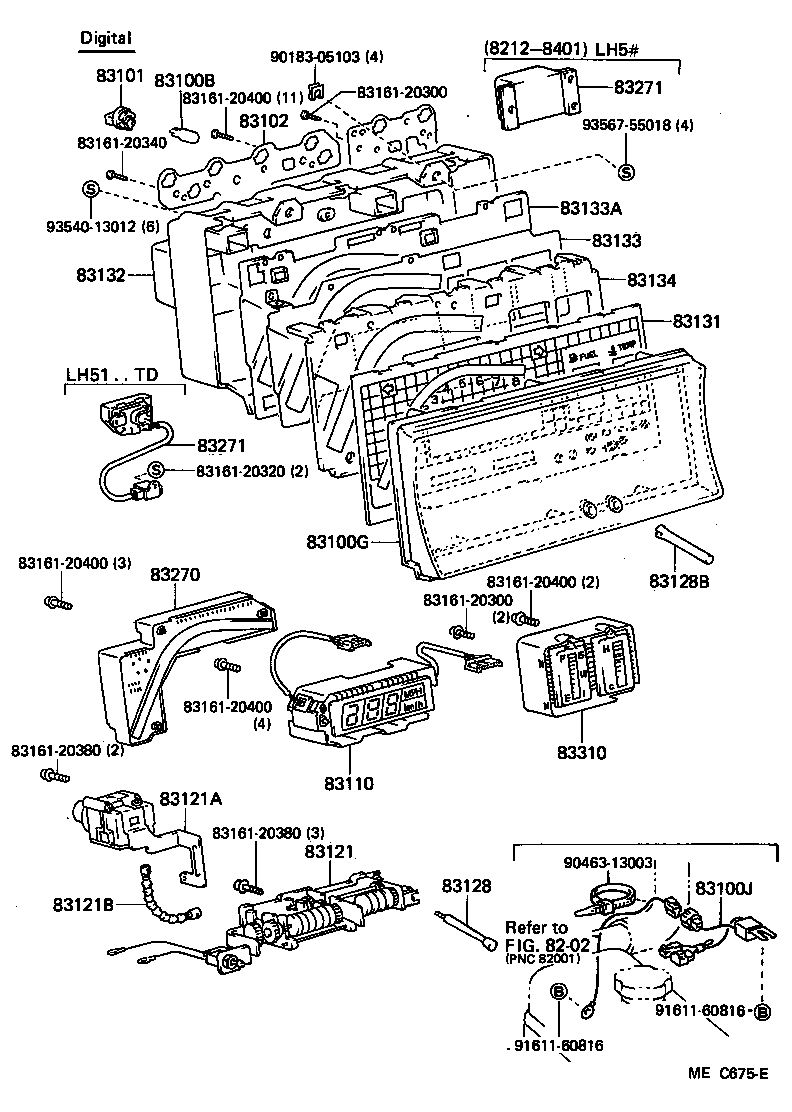

ILLUST NO. 1 OF 3(8212- )MRF..07S,08S

Click highlighted areas on diagram

diagram 8202 83100B 83100G 83100J 83101 83102 83110 83121 83121A 83121B 83128 83128B 83131 83132 83133 83133A 83134 8316120300 8316120300 8316120320 8316120340 8316120380 8316120380 8316120400 8316120400 8316120400 8316120400 83270 83271 83271 83310 9018305103 9046313003 9161160816 9161160816 9354013012 9356755018
Part # Description Qty Price
83100B - BULB, COMBINATION METER, NO.1
90981-11018

YH51..MRF..08S

12V 1.2W ｿｹｯﾄ無し,12V 1.4W

 21
90981-11018

LH51,YH51..MRF

12V 1.2W ｿｹｯﾄ無し,12V 1.4W

 24
83100G - GLASS, COMBINATION METER
83138-95J00

YH51..MRF..(07S,08S)

 1
83138-95J01

LH50,51..MRF..(07S,08S)

 1
83100J - CONDENSER
90980-04048

YH51..MRF

 1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14040

YH51..MRF..08S

W/*DS,BULB:12V 1.4W

 21
83101-14040

LH51,YH51..MRF

W/*DS,BULB:12V 1.4W

 24
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83247-95J07

YH51..MRF..(07S,08S)

 1
83247-95J08

LH50,51..MRF..(07S,08S)

 1
83110 - SPEEDOMETER ASSY
83110-20881

LH5#,YH51..MRF..08S

 1
83110-95J17

YH51..MRF

 1
83110-95J23

YH51..MRF

 1
83121 - COUNTER, TOTAL
83121-95J00

LH50,51..MRF..(07S,08S)

 1
83121-95J01

YH51..MRF..(07S,08S)

 1
83121A - SENSOR, SPEED
83121-2B040

LH50,51,YH51..MRF..(07S,08S)

 1
83121B - CABLE, COUNTER AND SENSOR
83121-95J02

LH50,51,YH51..MRF..(07S,08S)

 1
83128 - KNOB, TRIP COUNTER
83128-95J01

LH50,51,YH51..MRF..(07S,08S)

 1
83128B - KNOB, METER SWITCH
83131-95J02

LH50,51,YH51..MRF..(07S,08S)

 1
83131 - DIAL, METER, NO.1
83131-95J00

YH51..MRF..08S

 1
83131-95J03

YH51..MRF

 1
83132 - CASE, COMBINATION METER
83132-95J01

LH50,51,YH51..MRF..(07S,08S)

 1
83133 - PLATE, COMBINATION METER, NO.1
83134-95J05

LH50,51,YH51..MRF..(07S,08S)

 1
83133A - PLATE, COMBINATION METER, NO.2
83138-95J02

LH50,51,YH51..MRF..(07S,08S)

 1
83134 - COVER, COMBINATION METER, NO.1
83134-95J04

LH50,51,YH51..MRF..(07S,08S)

 1
83270 - TACHOMETER ASSY, ENGINE
83270-95701

YH51..MRF..08S

 1
83270-95J01

YH51..MRF

 1
83310 - GAGE ASSY, FUEL RECEIVER
83310-22050

LH5#,YH51..MRF..08S

 1
83310-95J00

LH51,YH51..MRF

 1
Common parts
83161-20300
83161-20320
83161-20340
83161-20380
83161-20400
90183-05103
90463-13003
91611-60816
93540-13012
93567-55018
Linked diagrams
8202

ILLUST NO. 2 OF 3(8212- )

Click highlighted areas on diagram

diagram 83710 8379195J00 8379195J01 8379195J02 8379195J03 8379195J04 8379195J05 9046110595 9046110596 9046110632 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816
Part # Description Qty Price
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-95J01

YH51,61..ATM

 1
83710-95J03

LH50,51,61..ATM

 1
Common parts
83791-95J00
83791-95J01
83791-95J02
83791-95J03
83791-95J04
83791-95J05
90461-10595
90461-10596
90461-10632
91611-60816

ILLUST NO. 3 OF 3(8212- )

Click highlighted areas on diagram

diagram 6452 8202 83180 83901 83910 83910 83911 83915 8401 8701 8701 9014950027 9015940071 9015940071 9324925010
Part # Description Qty Price
83910 - CLOCK ASSY
83910-95J02

LH5#,YH51..CTM,SCM

 1
83910-95J03

LH51,YH51..CTM,SCL,SCM

 1
83910 - CLOCK ASSY
83910-95J02

LH5#,YH51..CTM,SCM

 1
83910-95J03

LH51,YH51..CTM,SCL,SCM

 1
Common parts
90149-50027
90159-40071
93249-25010
Linked diagrams
6452
8202
8401
8701
