YH51G-PES (1982)
Toyota Hiace Van,Wagon

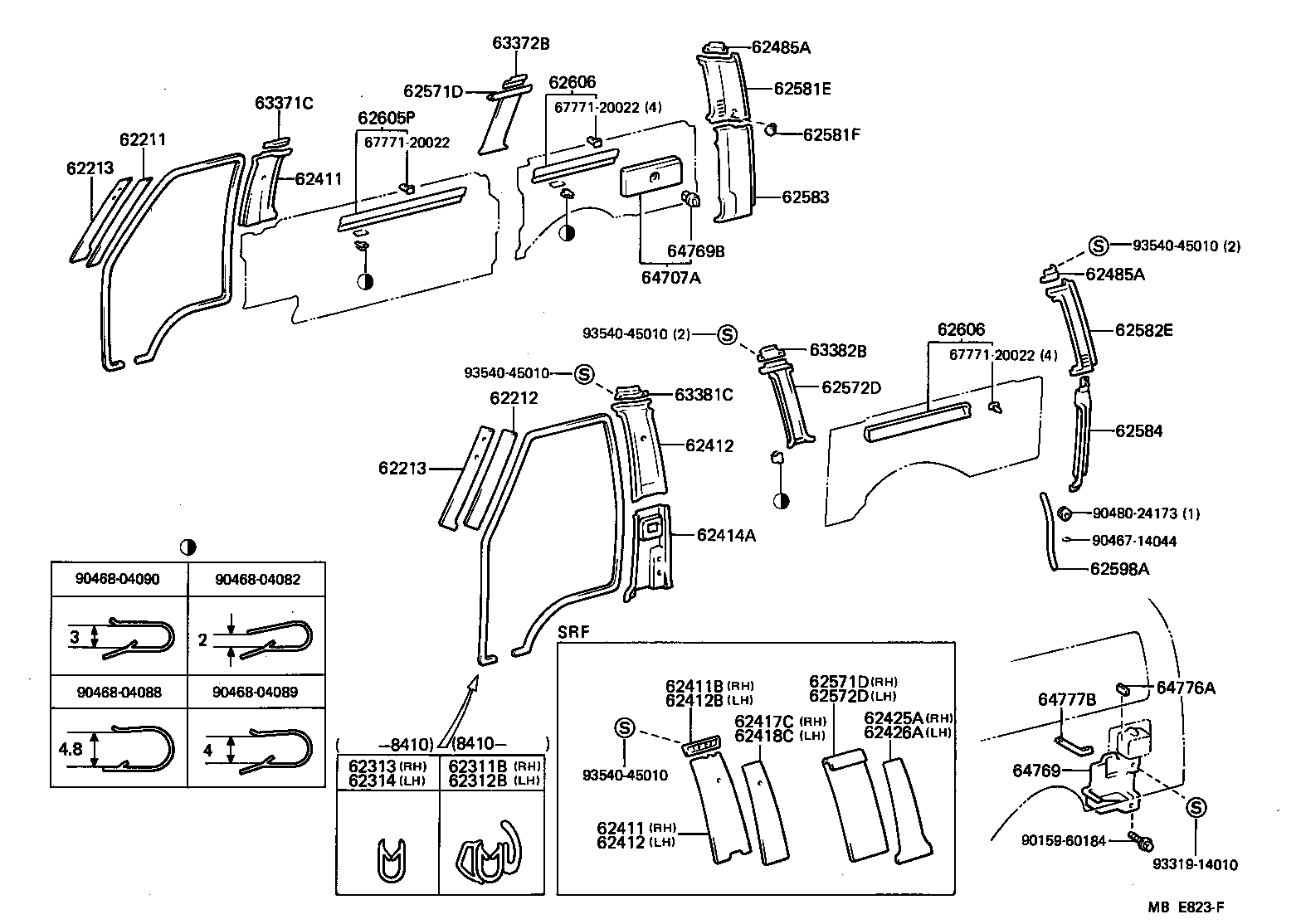

ILLUST NO. 1 OF 2(8212-8508)08S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-95J0008 |
LH5#,YH51..MRF IVORY,IVORY |
1 | ||
| 62211-95J0003 |
LH50,51,YH51..MRF..(08S,09S) GRAY,GRAY |
1 | ||
| 62211-95J0006 |
LH51,YH51..MRF..08S BROWN,BROWN |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-95J0008 |
LH5#,YH51..MRF IVORY,IVORY |
1 | ||
| 62212-95J0006 |
LH51,YH51..MRF..08S BROWN,BROWN |
1 | ||
| 62212-95J0003 |
LH50,51,YH51..MRF..(08S,09S) GRAY,GRAY |
1 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-95J0104 |
LH51,YH51..MRF BLUE GRAY,BLUE GRAY |
1 | ||
| 62311-95J0114 |
LH51,YH51..MRF..08S BLUE,BLUE |
1 | ||
| 62311-95J0304 |
LH51,YH51..MRF..08S BLUE,BLUE |
1 | ||
| 62311-95J0306 |
LH51,YH51..MRF BROWN,BROWN |
1 | ||
| 62311-95J0116 |
LH51,YH51..MRF BROWN,BROWN |
1 | ||
| 62311-95J0106 |
LH51,YH51..MRF BROWN,NEW BROWN |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-95J0106 |
LH51,YH51..MRF BROWN,NEW BROWN |
1 | ||
| 62312-95J0116 |
LH51,YH51..MRF BROWN,BROWN |
1 | ||
| 62312-95J0306 |
LH51,YH51..MRF BROWN,BROWN |
1 | ||
| 62312-95J0104 |
LH51,YH51..MRF BLUE GRAY,BLUE GRAY |
1 | ||
| 62312-95J0304 |
LH51,YH51..MRF..08S BLUE,BLUE |
1 | ||
| 62312-95J0114 |
LH51,YH51..MRF..08S BLUE,BLUE |
1 | ||
| 62313 - MOULDING, FRONT DOOR OPENING TRIM, RH | ||||
| 62431-95J0004 |
LH5#,YH51..MRF BLUE GRAY,BLUE |
1 | ||
| 62431-95J0006 |
LH5#,YH51..MRF BROWN,BROWN |
1 | ||
| 62314 - MOULDING, FRONT DOOR OPENING TRIM, LH | ||||
| 62432-95J0004 |
LH5#,YH51..MRF BLUE GRAY,BLUE |
1 | ||
| 62432-95J0006 |
LH5#,YH51..MRF BROWN,BROWN |
1 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62411-95J0608 |
LH5#,YH51..MRF..08S W/*ODAC,IVORY,IVORY |
1 | ||
| 62411-95J0708 |
LH51,YH51..MRF W/*PC,IVORY,IVORY |
1 | ||
| 62411-95J0703 |
LH51,YH51..MRF W/*PC,GRAY,GRAY |
1 | ||
| 62411-95J0803 |
LH51,YH51..MRF W/*PC,*ODAC,GRAY,GRAY |
1 | ||
| 62411-95J0108 |
LH5#,YH51..MRF IVORY,IVORY |
1 | ||
| 62411-95J0103 |
LH50,51,YH51..MRF..(08S,09S) GRAY,GRAY |
1 | ||
| 62411-95J0808 |
LH51,YH51..MRF W/*PC,*ODAC,IVORY,IVORY |
1 | ||
| 62411-95J0603 |
LH50,51,YH51..MRF..08S W/*ODAC,GRAY,GRAY |
1 | ||
| 62411-95J0106 |
LH51,YH51..MRF..08S BROWN,BROWN |
1 | ||
| 62411-95J0606 |
LH51,YH51..MRF..08S W/*ODAC,BROWN,BROWN |
1 | ||
| 62411-95J0906 |
LH51,YH51..MRF..08S W/*PC,BROWN,BROWN |
1 | ||
| 62411-95J1006 |
LH51,YH51..MRF..08S W/*PC,*ODAC,BROWN,BROWN |
1 | ||
| 62411-95J0903 |
LH51,YH51..MRF..08S W/*PC,GRAY,GRAY |
1 | ||
| 62411-95J1003 |
LH51,YH51..MRF..08S W/*PC,*ODAC,GRAY,GRAY |
1 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62411-95J0608 |
LH5#,YH51..MRF..08S W/*ODAC,IVORY,IVORY |
1 | ||
| 62411-95J0708 |
LH51,YH51..MRF W/*PC,IVORY,IVORY |
1 | ||
| 62411-95J0703 |
LH51,YH51..MRF W/*PC,GRAY,GRAY |
1 | ||
| 62411-95J0803 |
LH51,YH51..MRF W/*PC,*ODAC,GRAY,GRAY |
1 | ||
| 62411-95J0108 |
LH5#,YH51..MRF IVORY,IVORY |
1 | ||
| 62411-95J0103 |
LH50,51,YH51..MRF..(08S,09S) GRAY,GRAY |
1 | ||
| 62411-95J0808 |
LH51,YH51..MRF W/*PC,*ODAC,IVORY,IVORY |
1 | ||
| 62411-95J0603 |
LH50,51,YH51..MRF..08S W/*ODAC,GRAY,GRAY |
1 | ||
| 62411-95J0106 |
LH51,YH51..MRF..08S BROWN,BROWN |
1 | ||
| 62411-95J0606 |
LH51,YH51..MRF..08S W/*ODAC,BROWN,BROWN |
1 | ||
| 62411-95J0906 |
LH51,YH51..MRF..08S W/*PC,BROWN,BROWN |
1 | ||
| 62411-95J1006 |
LH51,YH51..MRF..08S W/*PC,*ODAC,BROWN,BROWN |
1 | ||
| 62411-95J0903 |
LH51,YH51..MRF..08S W/*PC,GRAY,GRAY |
1 | ||
| 62411-95J1003 |
LH51,YH51..MRF..08S W/*PC,*ODAC,GRAY,GRAY |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62412-95J0108 |
LH5#,YH51..MRF IVORY,IVORY |
1 | ||
| 62412-95J0608 |
LH5#,YH51..MRF..08S W/*ODAC,IVORY,IVORY |
1 | ||
| 62412-95J0808 |
LH51,YH51..MRF W/*PC,*ODAC,IVORY,IVORY |
1 | ||
| 62412-95J0708 |
LH51,YH51..MRF W/*PC,IVORY,IVORY |
1 | ||
| 62412-95J0603 |
LH50,51,YH51..MRF..08S W/*ODAC,GRAY,GRAY |
1 | ||
| 62412-95J0803 |
LH51,YH51..MRF W/*PC,*ODAC,GRAY,GRAY |
1 | ||
| 62412-95J0103 |
LH50,51,YH51..MRF..(08S,09S) GRAY,GRAY |
1 | ||
| 62412-95J0703 |
LH51,YH51..MRF W/*PC,GRAY,GRAY |
1 | ||
| 62412-95J0903 |
LH51,YH51..MRF..08S W/*PC,GRAY,GRAY |
1 | ||
| 62412-95J0906 |
LH51,YH51..MRF..08S W/*PC,BROWN,BROWN |
1 | ||
| 62412-95J0606 |
LH51,YH51..MRF..08S W/*ODAC,BROWN,BROWN |
1 | ||
| 62412-95J0106 |
LH51,YH51..MRF..08S BROWN,BROWN |
1 | ||
| 62412-95J1003 |
LH51,YH51..MRF..08S W/*PC,*ODAC,GRAY,GRAY |
1 | ||
| 62412-95J1006 |
LH51,YH51..MRF..08S W/*PC,*DOAC,BROWN,BROWN |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62412-95J0108 |
LH5#,YH51..MRF IVORY,IVORY |
1 | ||
| 62412-95J0608 |
LH5#,YH51..MRF..08S W/*ODAC,IVORY,IVORY |
1 | ||
| 62412-95J0808 |
LH51,YH51..MRF W/*PC,*ODAC,IVORY,IVORY |
1 | ||
| 62412-95J0708 |
LH51,YH51..MRF W/*PC,IVORY,IVORY |
1 | ||
| 62412-95J0603 |
LH50,51,YH51..MRF..08S W/*ODAC,GRAY,GRAY |
1 | ||
| 62412-95J0803 |
LH51,YH51..MRF W/*PC,*ODAC,GRAY,GRAY |
1 | ||
| 62412-95J0103 |
LH50,51,YH51..MRF..(08S,09S) GRAY,GRAY |
1 | ||
| 62412-95J0703 |
LH51,YH51..MRF W/*PC,GRAY,GRAY |
1 | ||
| 62412-95J0903 |
LH51,YH51..MRF..08S W/*PC,GRAY,GRAY |
1 | ||
| 62412-95J0906 |
LH51,YH51..MRF..08S W/*PC,BROWN,BROWN |
1 | ||
| 62412-95J0606 |
LH51,YH51..MRF..08S W/*ODAC,BROWN,BROWN |
1 | ||
| 62412-95J0106 |
LH51,YH51..MRF..08S BROWN,BROWN |
1 | ||
| 62412-95J1003 |
LH51,YH51..MRF..08S W/*PC,*ODAC,GRAY,GRAY |
1 | ||
| 62412-95J1006 |
LH51,YH51..MRF..08S W/*PC,*DOAC,BROWN,BROWN |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-95J0106 |
LH51,YH51..CTM,SCM BROWN,BROWN |
1 | ||
| 62414-95J0004 |
LH50,YH51..CTM,SCM BLUE GRAY,BLUE |
1 | ||
| 62414-95J0116 |
LH51,YH51..08S BROWN,BROWN |
1 | ||
| 62414-95J0006 |
LH50,YH51..CTM,SCM BROWN,BROWN |
1 | ||
| 62414-95J0114 |
LH51,YH51..CTM,SCM BLUE,BLUE |
1 | ||
| 62414-95J0104 |
LH51,YH51..CTM,SCM BLUE GRAY,BLUE |
1 | ||
| 62485A - RETAINER, ROOF SIDE INNER GARNISH | ||||
| 62485-95J02 |
LH50,51,YH51..MRF..(08S,09S) RH |
1 | ||
| 62486-95J00 |
LH50,51,YH51..MRF..(08S,09S) LH |
1 | ||
| 62485A - RETAINER, ROOF SIDE INNER GARNISH | ||||
| 62485-95J02 |
LH50,51,YH51..MRF..(08S,09S) RH |
1 | ||
| 62486-95J00 |
LH50,51,YH51..MRF..(08S,09S) LH |
1 | ||
| 62571D - GARNISH, QUARTER LOCK PILLAR, RH | ||||
| 62571-95J0503 |
LH51,YH51..MRF W/*PC,GRAY,GRAY |
1 | ||
| 62571-95J0403 |
LH50,51,YH51..MRF..(08S,09S) GRAY,GRAY |
1 | ||
| 62571-95J0508 |
LH51,YH51..MRF W/*PC,IVORY,IVORY |
1 | ||
| 62571-95J0406 |
LH51,YH51..MRF..08S BROWN,BROWN |
1 | ||
| 62571-95J0706 |
LH51,YH51..MRF..08S W/*PC,BROWN,BROWN |
1 | ||
| 62571-95J0703 |
LH51,YH51..MRF..08S W/*PC,GRAY,GRAY |
1 | ||
| 62571-95J0408 |
LH5#,YH51..MRF IVORY,IVORY |
1 | ||
| 62571D - GARNISH, QUARTER LOCK PILLAR, RH | ||||
| 62571-95J0503 |
LH51,YH51..MRF W/*PC,GRAY,GRAY |
1 | ||
| 62571-95J0403 |
LH50,51,YH51..MRF..(08S,09S) GRAY,GRAY |
1 | ||
| 62571-95J0508 |
LH51,YH51..MRF W/*PC,IVORY,IVORY |
1 | ||
| 62571-95J0406 |
LH51,YH51..MRF..08S BROWN,BROWN |
1 | ||
| 62571-95J0706 |
LH51,YH51..MRF..08S W/*PC,BROWN,BROWN |
1 | ||
| 62571-95J0703 |
LH51,YH51..MRF..08S W/*PC,GRAY,GRAY |
1 | ||
| 62571-95J0408 |
LH5#,YH51..MRF IVORY,IVORY |
1 | ||
| 62572D - GARNISH, QUARTER LOCK PILLAR, LH | ||||
| 62572-95J0408 |
LH5#,YH51..MRF IVORY,IVORY |
1 | ||
| 62572-95J0508 |
LH51,YH51..MRF W/*PC,IVORY,IVORY |
1 | ||
| 62572-95J0403 |
LH50,51,YH51..MRF..(08S,09S) GRAY,GRAY |
1 | ||
| 62572-95J0503 |
LH51,YH51..MRF W/*PC,GRAY,GRAY |
1 | ||
| 62572-95J0406 |
LH51,YH51..MRF..08S BROWN,BROWN |
1 | ||
| 62572-95J0703 |
LH51,YH51..MRF..08S W/*PC,GRAY,GRAY |
1 | ||
| 62572-95J0706 |
LH51,YH51..MRF..08S W/*PC,BROWN,BROWN |
1 | ||
| 62572D - GARNISH, QUARTER LOCK PILLAR, LH | ||||
| 62572-95J0408 |
LH5#,YH51..MRF IVORY,IVORY |
1 | ||
| 62572-95J0508 |
LH51,YH51..MRF W/*PC,IVORY,IVORY |
1 | ||
| 62572-95J0403 |
LH50,51,YH51..MRF..(08S,09S) GRAY,GRAY |
1 | ||
| 62572-95J0503 |
LH51,YH51..MRF W/*PC,GRAY,GRAY |
1 | ||
| 62572-95J0406 |
LH51,YH51..MRF..08S BROWN,BROWN |
1 | ||
| 62572-95J0703 |
LH51,YH51..MRF..08S W/*PC,GRAY,GRAY |
1 | ||
| 62572-95J0706 |
LH51,YH51..MRF..08S W/*PC,BROWN,BROWN |
1 | ||
| 62581E - GARNISH, QUARTER PILLAR, RH | ||||
| 62581-95J0008 |
LH5#,YH51..MRF IVORY,IVORY |
1 | ||
| 62581-95J0003 |
LH50,51,YH51..MRF..(08S,09S) GRAY,GRAY |
1 | ||
| 62581-95J0006 |
LH51,YH51..MRF..08S BROWN,BROWN |
1 | ||
| 62581-95J0208 |
LH51,YH51..MRF W/*PC,IVORY,IVORY |
1 | ||
| 62581-95J0203 |
LH51,YH51..MRF W/*PC,GRAY,GRAY |
1 | ||
| 62581-95J0306 |
LH51,YH51..MRF..08S W/*PC,BROWN,BROWN |
1 | ||
| 62581-95J0303 |
LH51,YH51..MRF..08S W/*PC,GRAY,GRAY |
1 | ||
| 62581F - CLIP (FOR QUARTER PILLAR GARNISH) | ||||
| 90467-0616133 |
LH50,51,YH51..CTM,SCM GRAY,GRAY |
2 | ||
| 90467-0616108 |
LH5#,YH51..CTM,SCM IVORY,IVORY |
2 | ||
| 90467-0616156 |
LH51,YH51..07S,08S BROWN,BROWN |
2 | ||
| 62582E - GARNISH, QUARTER PILLAR, LH | ||||
| 62582-95J0008 |
LH5#,YH51..MRF IVORY,IVORY |
1 | ||
| 62582-95J0306 |
LH51,YH51..MRF..08S W/*PC,BROWN,BROWN |
1 | ||
| 62582-95J0006 |
LH51,YH51..MRF..08S BROWN,BROWN |
1 | ||
| 62582-95J0003 |
LH50,51,YH51..MRF..(08S,09S) GRAY,GRAY |
1 | ||
| 62582-95J0208 |
LH51,YH51..MRF W/*PC,IVORY,IVORY |
1 | ||
| 62582-95J0203 |
LH51,YH51..MRF W/*PC,GRAY,GRAY |
1 | ||
| 62582-95J0303 |
LH51,YH51..MRF..08S W/*PC,GRAY,GRAY |
1 | ||
| 62583 - GARNISH, QUARTER PILLAR, LOWER RH | ||||
| 62583-95J0004 |
LH5#,YH51..CTM,SCM BLUE GRAY,BLUE |
1 | ||
| 62583-95J0006 |
LH5#,YH51..CTM,SCM BROWN,BROWN |
1 | ||
| 62583-95J0016 |
LH51,YH51..08S BROWN,BROWN |
1 | ||
| 62583-95J0014 |
LH51,YH51..CTM,SCM BLUE,BLUE |
1 | ||
| 62584 - GARNISH, QUARTER PILLAR, LOWER LH | ||||
| 62584-95J0016 |
LH51,YH51..08S BROWN,BROWN |
1 | ||
| 62584-95J0014 |
LH51,YH51..CTM,SCM BLUE,BLUE |
1 | ||
| 62584-95J0004 |
LH5#,YH51..CTM,SCM BLUE GRAY,BLUE |
1 | ||
| 62584-95J0006 |
LH5#,YH51..CTM,SCM BROWN,BROWN |
1 | ||
| 62598A - HOSE, UMBRELLA POCKET DRAIN | ||||
| 62598-95J00 |
LH50,51,YH51..07S,08S |
1 | ||
| 62605P - ORNAMENT SUB-ASSY, QUARTER TRIM, FRONT | ||||
| 62605-95J0016 |
LH51,YH51..08S BROWN,BROWN |
1 | ||
| 62681-95J0104 |
LH51,YH51..08S BLUE,BLUE |
1 | ||
| 62605-95J0204 |
LH51,YH51..08S LIVING SALOON EX,BLUE,BLUE |
1 | ||
| 62605-95J0014 |
LH51,YH51..08S BLUE GRAY,BLUE |
1 | ||
| 62605-95J0004 |
LH50,YH51..08S BLUE GRAY,BLUE GRAY |
1 | ||
| 62681-95J0204 |
LH51,YH51..08S BLUE,BLUE |
1 | ||
| 62605-95J0006 |
LH50,YH51..08S BROWN,BROWN |
1 | ||
| 62681-95J0106 |
LH51,YH51..07S,08S BROWN,BROWN |
1 | ||
| 62681-95J0206 |
LH51,YH51..07S,08S BROWN,BROWN |
1 | ||
| 62606 - ORNAMENT SUB-ASSY, QUARTER TRIM, REAR | ||||
| 62606-95J0304 |
LH51,YH51..08S LIVING SALOON EX,BLUE,BLUE |
2 | ||
| 62691-95J0106 |
LH51,YH51..07S,08S RH,BROWN,BROWN |
1 | ||
| 62691-95J0004 |
LH51,YH51..08S RH,BLUE,BLUE |
1 | ||
| 62691-95J0104 |
LH51,YH51..08S RH,BLUE,BLUE |
1 | ||
| 62692-95J0004 |
LH51,YH51..08S LH,BLUE,BLUE |
1 | ||
| 62692-95J0006 |
LH51,YH51..07S,08S LH,BROWN,BROWN |
1 | ||
| 62606-95J0116 |
LH51,YH51..08S BROWN,BROWN |
2 | ||
| 62606-95J0104 |
LH50,YH51..08S BLUE GRAY,BLUE GRAY |
2 | ||
| 62692-95J0106 |
LH51,YH51..07S,08S LH,BROWN,BROWN |
1 | ||
| 62606-95J0106 |
LH50,YH51..08S BROWN,BROWN |
2 | ||
| 62691-95J0006 |
LH51,YH51..07S,08S RH,BROWN,BROWN |
1 | ||
| 62606-95J0114 |
LH51,YH51..08S BLUE GRAY,BLUE |
2 | ||
| 62692-95J0104 |
LH51,YH51..08S LH,BLUE,BLUE |
1 | ||
| 62606 - ORNAMENT SUB-ASSY, QUARTER TRIM, REAR | ||||
| 62606-95J0304 |
LH51,YH51..08S LIVING SALOON EX,BLUE,BLUE |
2 | ||
| 62691-95J0106 |
LH51,YH51..07S,08S RH,BROWN,BROWN |
1 | ||
| 62691-95J0004 |
LH51,YH51..08S RH,BLUE,BLUE |
1 | ||
| 62691-95J0104 |
LH51,YH51..08S RH,BLUE,BLUE |
1 | ||
| 62692-95J0004 |
LH51,YH51..08S LH,BLUE,BLUE |
1 | ||
| 62692-95J0006 |
LH51,YH51..07S,08S LH,BROWN,BROWN |
1 | ||
| 62606-95J0116 |
LH51,YH51..08S BROWN,BROWN |
2 | ||
| 62606-95J0104 |
LH50,YH51..08S BLUE GRAY,BLUE GRAY |
2 | ||
| 62692-95J0106 |
LH51,YH51..07S,08S LH,BROWN,BROWN |
1 | ||
| 62606-95J0106 |
LH50,YH51..08S BROWN,BROWN |
2 | ||
| 62691-95J0006 |
LH51,YH51..07S,08S RH,BROWN,BROWN |
1 | ||
| 62606-95J0114 |
LH51,YH51..08S BLUE GRAY,BLUE |
2 | ||
| 62692-95J0104 |
LH51,YH51..08S LH,BLUE,BLUE |
1 | ||
| 63371C - RETAINER, ROOF HEADLINING, NO.1 RH | ||||
| 63371-95J01 |
LH50,51,YH51..MRF |
1 | ||
| 63371-95J02 |
LH50,51,YH51..MRF *ODAC OR W/*PC |
1 | ||
| 63372B - RETAINER, ROOF HEADLINING, NO.2 RH | ||||
| 63372-95J00 |
LH50,51,YH51..MRF..(08S,09S) |
1 | ||
| 63381C - RETAINER, ROOF HEADLINING, NO.1 LH | ||||
| 63371-95J02 |
LH50,51,YH51..MRF *ODAC OR W/*PC |
2 | ||
| 63381-95J00 |
LH50,51,YH51..MRF |
2 | ||
| 63382B - RETAINER, ROOF HEADLINING, NO.2 LH | ||||
| 63382-95J00 |
LH50,51,YH51..MRF..(08S,09S) |
1 | ||
| 64707A - COVER SUB-ASSY, QUARTER TRIM TOOL | ||||
| 64707-95J0004 |
LH5#,YH51..08S BLUE GRAY,BLUE |
1 | ||
| 64707-95J0014 |
LH51,YH51..08S BLUE,BLUE |
1 | ||
| 64707-95J0006 |
LH5#,YH51..08S BROWN,BROWN |
1 | ||
| 64707-95J0016 |
LH51,YH51..07S,08S BROWN,BROWN |
1 | ||
| 64769 - CASE SUB-ASSY, TOOL BAG | ||||
| 64709-95J00 |
LH5#,YH5# |
1 | ||
| 64769B - KNOB, TOOL COVER | ||||
| 64769-1301014 |
LH5#,YH51..08S BLUE GRAY,BLUE |
1 | ||
| 64769-1301026 |
LH5#,YH51..08S BROWN,BROWN |
1 | ||
| 64769-1301046 |
LH51,YH51..07S,08S BROWN,BROWN |
1 | ||
| 64769-1301024 |
LH51,YH51..08S BLUE,BLUE |
1 | ||
| 64776A - SPACER, TOOL BAG CASE | ||||
| 64776-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 64777B - PROTECTOR, QUARTER, INNER | ||||
| 58426-95700 |
LH5#,6#,7#,YH5#,6#,71 L=170 |
1 | ||
| Common parts | ||||
| 67771-20022 | ||||
| 90159-60184 | ||||
| 90467-14044 | ||||
| 90468-04082 | ||||
| 90468-04088 | ||||
| 90468-04089 | ||||
| 90468-04090 | ||||
| 90480-24173 | ||||
| 93319-14010 | ||||
| 93540-45010 | ||||

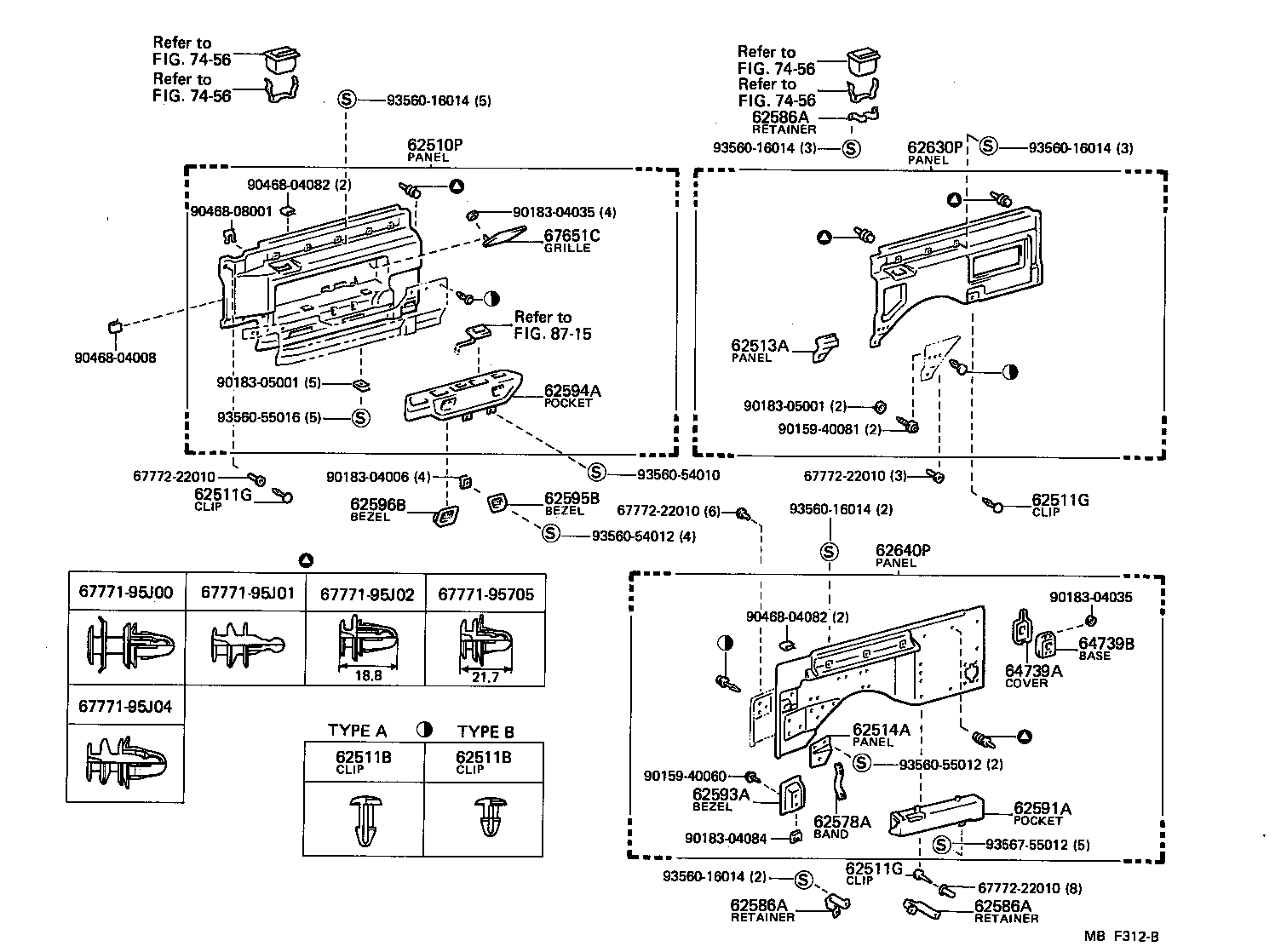

ILLUST NO. 2 OF 2(8212-8508)08S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62510P - PANEL ASSY, QUARTER TRIM, FRONT RH | ||||
| 62510-95J0204 |
LH50,YH51..08S BLUE GRAY,BLUE |
1 | ||
| 62510-95J1016 |
LH51,YH51..08S LIVING SALOON EX,BROWN,BROWN |
1 | ||
| 62510-95J0206 |
LH50,YH51..08S BROWN,BROWN |
1 | ||
| 62510-95J1004 |
LH51,YH51..08S BLUE GRAY,BLUE |
1 | ||
| 62510-95J1304 |
LH51,YH51..08S LIVING SALOON EX,BLUE,BLUE |
1 | ||
| 62510-95J1006 |
LH51,YH51..08S BROWN,BROWN |
1 | ||
| 62510-95J1506 |
LH51,YH51..08S BROWN,BROWN |
1 | ||
| 62510-95J1504 |
LH51,YH51..08S BLUE,BLUE |
1 | ||
| 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-0906524 |
LH5#,YH51..08S TYPE A,BLUE GRAY,BLUE |
3 | ||
| 90467-0901914 |
LH50,YH51..CTM,SCM TYPE B,BLUE GRAY,BLUE |
6 | ||
| 67771-95J0704 |
LH51,YH51..08S LIVING SALOON EX,TYPE A,BLUE,BLUE |
3 | ||
| 67771-95J0504 |
LH51,YH51..08S LIVING SALOON EX,TYPE B,BLUE,BLUE |
12 | ||
| 90467-0901910 |
LH51,YH51..08S *LS EX,TYPE B,DARK BROWN,DARK BROWN |
12 | ||
| 90467-0901956 |
LH50,YH51..CTM,SCM TYPE B,BROWN,BROWN |
6 | ||
| 90467-0906536 |
LH50,51,YH51..08S TYPE A,BROWN,BROWN |
3 | ||
| 90467-0906536 |
LH51,YH51..08S *LS EX,TYPE A,DARK BROWN,BROWN |
3 | ||
| 90467-0901956 |
LH5#,YH51..08S TYPE B,BROWN,BROWN |
12 | ||
| 90467-0901914 |
LH5#,YH51..08S TYPE B,BLUE GRAY,BLUE |
12 | ||
| 90467-0906534 |
LH51,YH51..08S TYPE A,BLUE,BLUE |
3 | ||
| 90467-0901910 |
LH51,YH51..08S TYPE B,BROWN,DARK BROWN |
18 | ||
| 90467-0901924 |
LH51,YH51..08S TYPE B,BLUE,BLUE |
12 | ||
| 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-0906524 |
LH5#,YH51..08S TYPE A,BLUE GRAY,BLUE |
3 | ||
| 90467-0901914 |
LH50,YH51..CTM,SCM TYPE B,BLUE GRAY,BLUE |
6 | ||
| 67771-95J0704 |
LH51,YH51..08S LIVING SALOON EX,TYPE A,BLUE,BLUE |
3 | ||
| 67771-95J0504 |
LH51,YH51..08S LIVING SALOON EX,TYPE B,BLUE,BLUE |
12 | ||
| 90467-0901910 |
LH51,YH51..08S *LS EX,TYPE B,DARK BROWN,DARK BROWN |
12 | ||
| 90467-0901956 |
LH50,YH51..CTM,SCM TYPE B,BROWN,BROWN |
6 | ||
| 90467-0906536 |
LH50,51,YH51..08S TYPE A,BROWN,BROWN |
3 | ||
| 90467-0906536 |
LH51,YH51..08S *LS EX,TYPE A,DARK BROWN,BROWN |
3 | ||
| 90467-0901956 |
LH5#,YH51..08S TYPE B,BROWN,BROWN |
12 | ||
| 90467-0901914 |
LH5#,YH51..08S TYPE B,BLUE GRAY,BLUE |
12 | ||
| 90467-0906534 |
LH51,YH51..08S TYPE A,BLUE,BLUE |
3 | ||
| 90467-0901910 |
LH51,YH51..08S TYPE B,BROWN,DARK BROWN |
18 | ||
| 90467-0901924 |
LH51,YH51..08S TYPE B,BLUE,BLUE |
12 | ||
| 62511G - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-0901016 |
LH51,YH51..08S LIVING SALOON EX,BROWN,DARK BROWN |
2 | ||
| 90467-0901004 |
LH5#,YH51..08S BLUE GRAY,BLUE |
1 | ||
| 90467-0901006 |
LH5#,YH51..08S BROWN,BROWN |
1 | ||
| 67771-95J0604 |
LH51,YH51..08S LIVING SALOON EX,BLUE,BLUE |
2 | ||
| 90467-0901014 |
LH51,YH51..08S BLUE,BLUE |
1 | ||
| 90467-0901016 |
LH51,YH51..07S,08S BROWN,DARK BROWN |
1 | ||
| 62511G - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-0901016 |
LH51,YH51..08S LIVING SALOON EX,BROWN,DARK BROWN |
2 | ||
| 90467-0901004 |
LH5#,YH51..08S BLUE GRAY,BLUE |
1 | ||
| 90467-0901006 |
LH5#,YH51..08S BROWN,BROWN |
1 | ||
| 67771-95J0604 |
LH51,YH51..08S LIVING SALOON EX,BLUE,BLUE |
2 | ||
| 90467-0901014 |
LH51,YH51..08S BLUE,BLUE |
1 | ||
| 90467-0901016 |
LH51,YH51..07S,08S BROWN,DARK BROWN |
1 | ||
| 62511G - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-0901016 |
LH51,YH51..08S LIVING SALOON EX,BROWN,DARK BROWN |
2 | ||
| 90467-0901004 |
LH5#,YH51..08S BLUE GRAY,BLUE |
1 | ||
| 90467-0901006 |
LH5#,YH51..08S BROWN,BROWN |
1 | ||
| 67771-95J0604 |
LH51,YH51..08S LIVING SALOON EX,BLUE,BLUE |
2 | ||
| 90467-0901014 |
LH51,YH51..08S BLUE,BLUE |
1 | ||
| 90467-0901016 |
LH51,YH51..07S,08S BROWN,DARK BROWN |
1 | ||
| 62513A - PANEL, QUARTER TRIM, LOWER RH | ||||
| 62513-95J00 |
LH50,51,YH51..07S,08S |
1 | ||
| 62514A - PANEL, QUARTER TRIM, LOWER LH | ||||
| 62514-95J00 |
LH50,51,YH51..07S,08S |
1 | ||
| 62578A - BAND, UMBRELLA POCKET | ||||
| 62578-95J0006 |
LH5#,YH51..08S BROWN,BROWN |
1 | ||
| 62578-95J0016 |
LH51,YH51..07S,08S BROWN,BROWN |
1 | ||
| 62578-95J0014 |
LH51,YH51..08S BLUE,BLUE |
1 | ||
| 62578-95J0004 |
LH5#,YH51..08S BLUE GRAY,BLUE |
1 | ||
| 62586A - RETAINER, QUARTER TRIM | ||||
| 62586-95J01 |
LH50,51,YH51..07S,08S 57X40 |
1 | ||
| 62586-95J00 |
LH50,51,YH51..07S,08S 64X93 |
2 | ||
| 62586A - RETAINER, QUARTER TRIM | ||||
| 62586-95J01 |
LH50,51,YH51..07S,08S 57X40 |
1 | ||
| 62586-95J00 |
LH50,51,YH51..07S,08S 64X93 |
2 | ||
| 62586A - RETAINER, QUARTER TRIM | ||||
| 62586-95J01 |
LH50,51,YH51..07S,08S 57X40 |
1 | ||
| 62586-95J00 |
LH50,51,YH51..07S,08S 64X93 |
2 | ||
| 62591A - POCKET, UMBRELLA | ||||
| 62591-95J0001 |
LH50,51,YH51..07S,08S BLACK,BLACK |
1 | ||
| 62593A - BEZEL, UMBRELLA POCKET | ||||
| 62593-95J0004 |
LH5#,YH51..08S BLUE GRAY,BLUE |
1 | ||
| 62593-95J0014 |
LH51,YH51..08S BLUE,BLUE |
1 | ||
| 62593-95J0016 |
LH51,YH51..07S,08S BROWN,BROWN |
1 | ||
| 62593-95J0006 |
LH5#,YH51..08S BROWN,BROWN |
1 | ||
| 62594A - POCKET, QUARTER TRIM, NO.1 | ||||
| 62594-95J0004 |
LH5#,YH51..08S BLUE GRAY,BLUE |
1 | ||
| 62594-95J0016 |
LH51,YH51..07S,08S BROWN,BROWN |
1 | ||
| 62594-95J0006 |
LH5#,YH51..08S BROWN,BROWN |
1 | ||
| 62594-95J0014 |
LH51,YH51..08S BLUE,BLUE |
1 | ||
| 62595B - BEZEL, QUARTER TRIM POCKET, RH | ||||
| 62595-95J0004 |
LH5#,YH51..08S BLUE GRAY,BLUE |
1 | ||
| 62595-95J0014 |
LH51,YH51..08S BLUE,BLUE |
1 | ||
| 62595-95J0016 |
LH51,YH51..08S BROWN,BROWN |
1 | ||
| 62595-95J0006 |
LH5#,YH51..08S BROWN,BROWN |
1 | ||
| 62596B - BEZEL, QUARTER TRIM POCKET, LH | ||||
| 62596-95J0006 |
LH5#,YH51..08S BROWN,BROWN |
1 | ||
| 62596-95J0014 |
LH51,YH51..08S BLUE,BLUE |
1 | ||
| 62596-95J0016 |
LH51,YH51..08S BROWN,BROWN |
1 | ||
| 62596-95J0004 |
LH5#,YH51..08S BLUE GRAY,BLUE |
1 | ||
| 62630P - PANEL ASSY, QUARTER TRIM, REAR RH | ||||
| 62630-95J0304 |
LH50,YH51..08S BLUE GRAY,BLUE |
1 | ||
| 62630-95J0306 |
LH50,YH51..08S BROWN,BROWN |
1 | ||
| 62630-95J1416 |
LH51,YH51..08S LIVING SALOON EX,W/*PC,BROWN,BROWN |
1 | ||
| 62630-95J1404 |
LH51,YH51..08S W/*PC,BLUE GRAY,BLUE |
1 | ||
| 62630-95J1804 |
LH51,YH51..08S LIVING SALOON EX,BLUE,BLUE |
1 | ||
| 62630-95J1406 |
LH51,YH51..08S W/*PC,BROWN,BROWN |
1 | ||
| 62630-95J1306 |
LH51,YH51..08S BROWN,BROWN |
1 | ||
| 62630-95J1304 |
LH51,YH51..08S BLUE GRAY,BLUE GRAY |
1 | ||
| 62630-95J2104 |
LH51,YH51..08S BLUE,BLUE |
1 | ||
| 62630-95J2204 |
LH51,YH51..MRF..08S W/*PC,BLUE,BLUE |
1 | ||
| 62630-95J2106 |
LH51,YH51..08S BROWN,BROWN |
1 | ||
| 62630-95J2206 |
LH51,YH51..MRF..08S W/*PC,BROWN,BROWN |
1 | ||
| 62640P - PANEL ASSY, QUARTER TRIM, REAR LH | ||||
| 62640-95J0304 |
LH50,YH51..08S BLUE GRAY,BLUE |
1 | ||
| 62640-95J0306 |
LH50,YH51..08S BROWN,BROWN |
1 | ||
| 62640-95J2204 |
LH51,YH51..08S LIVING SALOON EX,BLUE,BLUE |
1 | ||
| 62640-95J2016 |
LH51,YH51..08S LIVING SALOON EX,BROWN,BROWN |
1 | ||
| 62640-95J2004 |
LH51,YH51..08S BLUE GRAY,BLUE |
1 | ||
| 62640-95J2006 |
LH51,YH51..08S BROWN,BROWN |
1 | ||
| 62640-95J2704 |
LH51,YH51..08S BLUE,BLUE |
1 | ||
| 62640-95J2904 |
LH51,YH51..MRF..08S W/*PC,BLUE,BLUE |
1 | ||
| 62640-95J2706 |
LH51,YH51..08S BROWN,BROWN |
1 | ||
| 62640-95J2906 |
LH51,YH51..MRF..08S W/*PC,BROWN,BROWN |
1 | ||
| 64739A - COVER, DECK TRIM REAR WASHER | ||||
| 85365-95J0016 |
LH5#,6#,71,YH5#,6#,71..CTD,DLX,SCL,SCM BROWN,BROWN |
1 | ||
| 85365-95J0014 |
LH5#,6#,YH5#..CTM,GL,SCM BLUE,BLUE |
1 | ||
| 85365-95J0006 |
LH5#,YH51..CTM,SCM BROWN,BROWN |
1 | ||
| 85365-95J0004 |
LH5#..DLX..09S;LH6#,YH51,61..WG..(CTM,DLX,SCM);LH5#,6#,YH50,61..(CTM,GL,SCM,STD)..(06S,08S,09S,10S) BLUE GRAY,BLUE |
1 | ||
| 64739B - BASE, REAR WASHER TANK, SERVICE HOLE COVER | ||||
| 85366-95J0004 |
LH5#..DLX..09S;LH6#,YH51,61..WG..(CTM,DLX,SCM);LH5#,6#,YH50,61..(CTM,GL,SCM,STD)..(06S,08S,09S,10S) BLUE GRAY,BLUE |
1 | ||
| 85366-95J0016 |
LH5#,6#,71,YH5#,6#,71..CTD,DLX,SCL,SCM BROWN,BROWN |
1 | ||
| 85366-95J0014 |
LH5#,6#,YH5#..CTM,GL,SCM BLUE,BLUE |
1 | ||
| 85366-95J0006 |
LH5#,YH51..CTM,SCM BROWN,BROWN |
1 | ||
| 67651C - GRILLE, QUARTER TRIM SPEAKER | ||||
| 67651-9570304 |
LH5#,YH51..08S BLUE GRAY,BLUE GRAY |
1 | ||
| 67651-9570316 |
LH51,YH51..07S,08S BROWN,BROWN |
1 | ||
| 67651-9570306 |
LH5#,YH51..08S BROWN,BROWN |
1 | ||
| 67651-9570314 |
LH51,YH51..08S BLUE,BLUE |
1 | ||
| Common parts | ||||
| 67771-95705 | ||||
| 67771-95J00 | ||||
| 67771-95J01 | ||||
| 67771-95J02 | ||||
| 67771-95J04 | ||||
| 67772-22010 | ||||
| 90159-40060 | ||||
| 90159-40081 | ||||
| 90183-04006 | ||||
| 90183-04035 | ||||
| 90183-04084 | ||||
| 90183-05001 | ||||
| 90468-04008 | ||||
| 90468-04082 | ||||
| 90468-08001 | ||||
| 93560-16014 | ||||
| 93560-54010 | ||||
| 93560-54012 | ||||
| 93560-55012 | ||||
| 93560-55016 | ||||
| 93567-55012 | ||||
| Linked diagrams | ||||
| 7456 | ||||
| 8715 | ||||
ILLUST NO. 1 OF 2(8508- )LH51,YH51..07S,08S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-95J0008 |
LH5#,YH51..MRF IVORY,IVORY |
1 | ||
| 62211-95J0003 |
LH50,51,YH51..MRF..(08S,09S) GRAY,GRAY |
1 | ||
| 62211-95J0006 |
LH51,YH51..MRF..08S BROWN,BROWN |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-95J0008 |
LH5#,YH51..MRF IVORY,IVORY |
1 | ||
| 62212-95J0006 |
LH51,YH51..MRF..08S BROWN,BROWN |
1 | ||
| 62212-95J0003 |
LH50,51,YH51..MRF..(08S,09S) GRAY,GRAY |
1 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-95J0104 |
LH51,YH51..MRF BLUE GRAY,BLUE GRAY |
1 | ||
| 62311-95J0114 |
LH51,YH51..MRF..08S BLUE,BLUE |
1 | ||
| 62311-95J0304 |
LH51,YH51..MRF..08S BLUE,BLUE |
1 | ||
| 62311-95J0306 |
LH51,YH51..MRF BROWN,BROWN |
1 | ||
| 62311-95J0116 |
LH51,YH51..MRF BROWN,BROWN |
1 | ||
| 62311-95J0106 |
LH51,YH51..MRF BROWN,NEW BROWN |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-95J0106 |
LH51,YH51..MRF BROWN,NEW BROWN |
1 | ||
| 62312-95J0116 |
LH51,YH51..MRF BROWN,BROWN |
1 | ||
| 62312-95J0306 |
LH51,YH51..MRF BROWN,BROWN |
1 | ||
| 62312-95J0104 |
LH51,YH51..MRF BLUE GRAY,BLUE GRAY |
1 | ||
| 62312-95J0304 |
LH51,YH51..MRF..08S BLUE,BLUE |
1 | ||
| 62312-95J0114 |
LH51,YH51..MRF..08S BLUE,BLUE |
1 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62411-95J0608 |
LH5#,YH51..MRF..08S W/*ODAC,IVORY,IVORY |
1 | ||
| 62411-95J0708 |
LH51,YH51..MRF W/*PC,IVORY,IVORY |
1 | ||
| 62411-95J0703 |
LH51,YH51..MRF W/*PC,GRAY,GRAY |
1 | ||
| 62411-95J0803 |
LH51,YH51..MRF W/*PC,*ODAC,GRAY,GRAY |
1 | ||
| 62411-95J0108 |
LH5#,YH51..MRF IVORY,IVORY |
1 | ||
| 62411-95J0103 |
LH50,51,YH51..MRF..(08S,09S) GRAY,GRAY |
1 | ||
| 62411-95J0808 |
LH51,YH51..MRF W/*PC,*ODAC,IVORY,IVORY |
1 | ||
| 62411-95J0603 |
LH50,51,YH51..MRF..08S W/*ODAC,GRAY,GRAY |
1 | ||
| 62411-95J0106 |
LH51,YH51..MRF..08S BROWN,BROWN |
1 | ||
| 62411-95J0606 |
LH51,YH51..MRF..08S W/*ODAC,BROWN,BROWN |
1 | ||
| 62411-95J0906 |
LH51,YH51..MRF..08S W/*PC,BROWN,BROWN |
1 | ||
| 62411-95J1006 |
LH51,YH51..MRF..08S W/*PC,*ODAC,BROWN,BROWN |
1 | ||
| 62411-95J0903 |
LH51,YH51..MRF..08S W/*PC,GRAY,GRAY |
1 | ||
| 62411-95J1003 |
LH51,YH51..MRF..08S W/*PC,*ODAC,GRAY,GRAY |
1 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62411-95J0608 |
LH5#,YH51..MRF..08S W/*ODAC,IVORY,IVORY |
1 | ||
| 62411-95J0708 |
LH51,YH51..MRF W/*PC,IVORY,IVORY |
1 | ||
| 62411-95J0703 |
LH51,YH51..MRF W/*PC,GRAY,GRAY |
1 | ||
| 62411-95J0803 |
LH51,YH51..MRF W/*PC,*ODAC,GRAY,GRAY |
1 | ||
| 62411-95J0108 |
LH5#,YH51..MRF IVORY,IVORY |
1 | ||
| 62411-95J0103 |
LH50,51,YH51..MRF..(08S,09S) GRAY,GRAY |
1 | ||
| 62411-95J0808 |
LH51,YH51..MRF W/*PC,*ODAC,IVORY,IVORY |
1 | ||
| 62411-95J0603 |
LH50,51,YH51..MRF..08S W/*ODAC,GRAY,GRAY |
1 | ||
| 62411-95J0106 |
LH51,YH51..MRF..08S BROWN,BROWN |
1 | ||
| 62411-95J0606 |
LH51,YH51..MRF..08S W/*ODAC,BROWN,BROWN |
1 | ||
| 62411-95J0906 |
LH51,YH51..MRF..08S W/*PC,BROWN,BROWN |
1 | ||
| 62411-95J1006 |
LH51,YH51..MRF..08S W/*PC,*ODAC,BROWN,BROWN |
1 | ||
| 62411-95J0903 |
LH51,YH51..MRF..08S W/*PC,GRAY,GRAY |
1 | ||
| 62411-95J1003 |
LH51,YH51..MRF..08S W/*PC,*ODAC,GRAY,GRAY |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62412-95J0108 |
LH5#,YH51..MRF IVORY,IVORY |
1 | ||
| 62412-95J0608 |
LH5#,YH51..MRF..08S W/*ODAC,IVORY,IVORY |
1 | ||
| 62412-95J0808 |
LH51,YH51..MRF W/*PC,*ODAC,IVORY,IVORY |
1 | ||
| 62412-95J0708 |
LH51,YH51..MRF W/*PC,IVORY,IVORY |
1 | ||
| 62412-95J0603 |
LH50,51,YH51..MRF..08S W/*ODAC,GRAY,GRAY |
1 | ||
| 62412-95J0803 |
LH51,YH51..MRF W/*PC,*ODAC,GRAY,GRAY |
1 | ||
| 62412-95J0103 |
LH50,51,YH51..MRF..(08S,09S) GRAY,GRAY |
1 | ||
| 62412-95J0703 |
LH51,YH51..MRF W/*PC,GRAY,GRAY |
1 | ||
| 62412-95J0903 |
LH51,YH51..MRF..08S W/*PC,GRAY,GRAY |
1 | ||
| 62412-95J0906 |
LH51,YH51..MRF..08S W/*PC,BROWN,BROWN |
1 | ||
| 62412-95J0606 |
LH51,YH51..MRF..08S W/*ODAC,BROWN,BROWN |
1 | ||
| 62412-95J0106 |
LH51,YH51..MRF..08S BROWN,BROWN |
1 | ||
| 62412-95J1003 |
LH51,YH51..MRF..08S W/*PC,*ODAC,GRAY,GRAY |
1 | ||
| 62412-95J1006 |
LH51,YH51..MRF..08S W/*PC,*DOAC,BROWN,BROWN |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62412-95J0108 |
LH5#,YH51..MRF IVORY,IVORY |
1 | ||
| 62412-95J0608 |
LH5#,YH51..MRF..08S W/*ODAC,IVORY,IVORY |
1 | ||
| 62412-95J0808 |
LH51,YH51..MRF W/*PC,*ODAC,IVORY,IVORY |
1 | ||
| 62412-95J0708 |
LH51,YH51..MRF W/*PC,IVORY,IVORY |
1 | ||
| 62412-95J0603 |
LH50,51,YH51..MRF..08S W/*ODAC,GRAY,GRAY |
1 | ||
| 62412-95J0803 |
LH51,YH51..MRF W/*PC,*ODAC,GRAY,GRAY |
1 | ||
| 62412-95J0103 |
LH50,51,YH51..MRF..(08S,09S) GRAY,GRAY |
1 | ||
| 62412-95J0703 |
LH51,YH51..MRF W/*PC,GRAY,GRAY |
1 | ||
| 62412-95J0903 |
LH51,YH51..MRF..08S W/*PC,GRAY,GRAY |
1 | ||
| 62412-95J0906 |
LH51,YH51..MRF..08S W/*PC,BROWN,BROWN |
1 | ||
| 62412-95J0606 |
LH51,YH51..MRF..08S W/*ODAC,BROWN,BROWN |
1 | ||
| 62412-95J0106 |
LH51,YH51..MRF..08S BROWN,BROWN |
1 | ||
| 62412-95J1003 |
LH51,YH51..MRF..08S W/*PC,*ODAC,GRAY,GRAY |
1 | ||
| 62412-95J1006 |
LH51,YH51..MRF..08S W/*PC,*DOAC,BROWN,BROWN |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-95J0106 |
LH51,YH51..CTM,SCM BROWN,BROWN |
1 | ||
| 62414-95J0004 |
LH50,YH51..CTM,SCM BLUE GRAY,BLUE |
1 | ||
| 62414-95J0116 |
LH51,YH51..08S BROWN,BROWN |
1 | ||
| 62414-95J0006 |
LH50,YH51..CTM,SCM BROWN,BROWN |
1 | ||
| 62414-95J0114 |
LH51,YH51..CTM,SCM BLUE,BLUE |
1 | ||
| 62414-95J0104 |
LH51,YH51..CTM,SCM BLUE GRAY,BLUE |
1 | ||
| 62443 - JOINT, ROOF SIDE RAIL GARNISH, RH | ||||
| 62443-95J0006 |
LH51,YH51..MRF BROWN,BROWN |
1 | ||
| 62443-95J0003 |
LH51,YH51..08S GRAY,GRAY |
1 | ||
| 62444 - JOINT, ROOF SIDE RAIL GARNISH, LH | ||||
| 62444-95J0006 |
LH51,YH51..MRF BROWN,BROWN |
1 | ||
| 62444-95J0003 |
LH51,YH51..08S GRAY,GRAY |
1 | ||
| 62471E - GARNISH, ROOF SIDE, INNER UPPER RH | ||||
| 62471-95J0103 |
LH51,YH51..08S RR,GRAY,GRAY |
1 | ||
| 62471-95J0003 |
LH51,YH51..08S FR,GRAY,GRAY |
1 | ||
| 62471-95J0106 |
LH51,YH51..MRF RR,BROWN,BROWN |
1 | ||
| 62471-95J0006 |
LH51,YH51..MRF FR,BROWN,BROWN |
1 | ||
| 62471E - GARNISH, ROOF SIDE, INNER UPPER RH | ||||
| 62471-95J0103 |
LH51,YH51..08S RR,GRAY,GRAY |
1 | ||
| 62471-95J0003 |
LH51,YH51..08S FR,GRAY,GRAY |
1 | ||
| 62471-95J0106 |
LH51,YH51..MRF RR,BROWN,BROWN |
1 | ||
| 62471-95J0006 |
LH51,YH51..MRF FR,BROWN,BROWN |
1 | ||
| 62472E - GARNISH, ROOF SIDE, INNER UPPER LH | ||||
| 62472-95J0006 |
LH51,YH51..MRF FR,BROWN,BROWN |
1 | ||
| 62472-95J0003 |
LH51,YH51..08S FR,GRAY,GRAY |
1 | ||
| 62472-95J0106 |
LH51,YH51..MRF RR,BROWN,BROWN |
1 | ||
| 62472-95J0103 |
LH51,YH51..08S RR,GRAY,GRAY |
1 | ||
| 62472E - GARNISH, ROOF SIDE, INNER UPPER LH | ||||
| 62472-95J0006 |
LH51,YH51..MRF FR,BROWN,BROWN |
1 | ||
| 62472-95J0003 |
LH51,YH51..08S FR,GRAY,GRAY |
1 | ||
| 62472-95J0106 |
LH51,YH51..MRF RR,BROWN,BROWN |
1 | ||
| 62472-95J0103 |
LH51,YH51..08S RR,GRAY,GRAY |
1 | ||
| 62476A - CAP, ROOF SIDE INNER GARNISH, RH | ||||
| 62407-95J0003 |
LH51,YH51..08S FR,GRAY,GRAY |
1 | ||
| 62476-95J0003 |
LH51,YH51..08S RR,GRAY,GRAY |
1 | ||
| 62407-95J0006 |
LH51,YH51..MRF FR,BROWN,BROWN |
1 | ||
| 62476-95J0006 |
LH51,YH51..MRF RR,BROWN,BROWN |
1 | ||
| 62476A - CAP, ROOF SIDE INNER GARNISH, RH | ||||
| 62407-95J0003 |
LH51,YH51..08S FR,GRAY,GRAY |
1 | ||
| 62476-95J0003 |
LH51,YH51..08S RR,GRAY,GRAY |
1 | ||
| 62407-95J0006 |
LH51,YH51..MRF FR,BROWN,BROWN |
1 | ||
| 62476-95J0006 |
LH51,YH51..MRF RR,BROWN,BROWN |
1 | ||
| 62477A - CAP, ROOF SIDE INNER GARNISH, LH | ||||
| 62408-95J0003 |
LH51,YH51..08S FR,GRAY,GRAY |
1 | ||
| 62408-95J0006 |
LH51,YH51..MRF FR,BROWN,BROWN |
1 | ||
| 62477-95J0106 |
LH51,YH51..MRF RR,BROWN,BROWN |
1 | ||
| 62477-95J0103 |
LH51,YH51..08S RR,GRAY,GRAY |
1 | ||
| 62477A - CAP, ROOF SIDE INNER GARNISH, LH | ||||
| 62408-95J0003 |
LH51,YH51..08S FR,GRAY,GRAY |
1 | ||
| 62408-95J0006 |
LH51,YH51..MRF FR,BROWN,BROWN |
1 | ||
| 62477-95J0106 |
LH51,YH51..MRF RR,BROWN,BROWN |
1 | ||
| 62477-95J0103 |
LH51,YH51..08S RR,GRAY,GRAY |
1 | ||
| 62485A - RETAINER, ROOF SIDE INNER GARNISH | ||||
| 62485-95J02 |
LH50,51,YH51..MRF..(08S,09S) RH |
1 | ||
| 62486-95J00 |
LH50,51,YH51..MRF..(08S,09S) LH |
1 | ||
| 62485A - RETAINER, ROOF SIDE INNER GARNISH | ||||
| 62485-95J02 |
LH50,51,YH51..MRF..(08S,09S) RH |
1 | ||
| 62486-95J00 |
LH50,51,YH51..MRF..(08S,09S) LH |
1 | ||
| 62571D - GARNISH, QUARTER LOCK PILLAR, RH | ||||
| 62571-95J0503 |
LH51,YH51..MRF W/*PC,GRAY,GRAY |
1 | ||
| 62571-95J0403 |
LH50,51,YH51..MRF..(08S,09S) GRAY,GRAY |
1 | ||
| 62571-95J0508 |
LH51,YH51..MRF W/*PC,IVORY,IVORY |
1 | ||
| 62571-95J0406 |
LH51,YH51..MRF..08S BROWN,BROWN |
1 | ||
| 62571-95J0706 |
LH51,YH51..MRF..08S W/*PC,BROWN,BROWN |
1 | ||
| 62571-95J0703 |
LH51,YH51..MRF..08S W/*PC,GRAY,GRAY |
1 | ||
| 62571-95J0408 |
LH5#,YH51..MRF IVORY,IVORY |
1 | ||
| 62571D - GARNISH, QUARTER LOCK PILLAR, RH | ||||
| 62571-95J0503 |
LH51,YH51..MRF W/*PC,GRAY,GRAY |
1 | ||
| 62571-95J0403 |
LH50,51,YH51..MRF..(08S,09S) GRAY,GRAY |
1 | ||
| 62571-95J0508 |
LH51,YH51..MRF W/*PC,IVORY,IVORY |
1 | ||
| 62571-95J0406 |
LH51,YH51..MRF..08S BROWN,BROWN |
1 | ||
| 62571-95J0706 |
LH51,YH51..MRF..08S W/*PC,BROWN,BROWN |
1 | ||
| 62571-95J0703 |
LH51,YH51..MRF..08S W/*PC,GRAY,GRAY |
1 | ||
| 62571-95J0408 |
LH5#,YH51..MRF IVORY,IVORY |
1 | ||
| 62572D - GARNISH, QUARTER LOCK PILLAR, LH | ||||
| 62572-95J0408 |
LH5#,YH51..MRF IVORY,IVORY |
1 | ||
| 62572-95J0508 |
LH51,YH51..MRF W/*PC,IVORY,IVORY |
1 | ||
| 62572-95J0403 |
LH50,51,YH51..MRF..(08S,09S) GRAY,GRAY |
1 | ||
| 62572-95J0503 |
LH51,YH51..MRF W/*PC,GRAY,GRAY |
1 | ||
| 62572-95J0406 |
LH51,YH51..MRF..08S BROWN,BROWN |
1 | ||
| 62572-95J0703 |
LH51,YH51..MRF..08S W/*PC,GRAY,GRAY |
1 | ||
| 62572-95J0706 |
LH51,YH51..MRF..08S W/*PC,BROWN,BROWN |
1 | ||
| 62572D - GARNISH, QUARTER LOCK PILLAR, LH | ||||
| 62572-95J0408 |
LH5#,YH51..MRF IVORY,IVORY |
1 | ||
| 62572-95J0508 |
LH51,YH51..MRF W/*PC,IVORY,IVORY |
1 | ||
| 62572-95J0403 |
LH50,51,YH51..MRF..(08S,09S) GRAY,GRAY |
1 | ||
| 62572-95J0503 |
LH51,YH51..MRF W/*PC,GRAY,GRAY |
1 | ||
| 62572-95J0406 |
LH51,YH51..MRF..08S BROWN,BROWN |
1 | ||
| 62572-95J0703 |
LH51,YH51..MRF..08S W/*PC,GRAY,GRAY |
1 | ||
| 62572-95J0706 |
LH51,YH51..MRF..08S W/*PC,BROWN,BROWN |
1 | ||
| 62581E - GARNISH, QUARTER PILLAR, RH | ||||
| 62581-95J0008 |
LH5#,YH51..MRF IVORY,IVORY |
1 | ||
| 62581-95J0003 |
LH50,51,YH51..MRF..(08S,09S) GRAY,GRAY |
1 | ||
| 62581-95J0006 |
LH51,YH51..MRF..08S BROWN,BROWN |
1 | ||
| 62581-95J0208 |
LH51,YH51..MRF W/*PC,IVORY,IVORY |
1 | ||
| 62581-95J0203 |
LH51,YH51..MRF W/*PC,GRAY,GRAY |
1 | ||
| 62581-95J0306 |
LH51,YH51..MRF..08S W/*PC,BROWN,BROWN |
1 | ||
| 62581-95J0303 |
LH51,YH51..MRF..08S W/*PC,GRAY,GRAY |
1 | ||
| 62581F - CLIP (FOR QUARTER PILLAR GARNISH) | ||||
| 90467-0616133 |
LH50,51,YH51..CTM,SCM GRAY,GRAY |
2 | ||
| 90467-0616108 |
LH5#,YH51..CTM,SCM IVORY,IVORY |
2 | ||
| 90467-0616156 |
LH51,YH51..07S,08S BROWN,BROWN |
2 | ||
| 62582E - GARNISH, QUARTER PILLAR, LH | ||||
| 62582-95J0008 |
LH5#,YH51..MRF IVORY,IVORY |
1 | ||
| 62582-95J0306 |
LH51,YH51..MRF..08S W/*PC,BROWN,BROWN |
1 | ||
| 62582-95J0006 |
LH51,YH51..MRF..08S BROWN,BROWN |
1 | ||
| 62582-95J0003 |
LH50,51,YH51..MRF..(08S,09S) GRAY,GRAY |
1 | ||
| 62582-95J0208 |
LH51,YH51..MRF W/*PC,IVORY,IVORY |
1 | ||
| 62582-95J0203 |
LH51,YH51..MRF W/*PC,GRAY,GRAY |
1 | ||
| 62582-95J0303 |
LH51,YH51..MRF..08S W/*PC,GRAY,GRAY |
1 | ||
| 62583 - GARNISH, QUARTER PILLAR, LOWER RH | ||||
| 62583-95J0004 |
LH5#,YH51..CTM,SCM BLUE GRAY,BLUE |
1 | ||
| 62583-95J0006 |
LH5#,YH51..CTM,SCM BROWN,BROWN |
1 | ||
| 62583-95J0016 |
LH51,YH51..08S BROWN,BROWN |
1 | ||
| 62583-95J0014 |
LH51,YH51..CTM,SCM BLUE,BLUE |
1 | ||
| 62584 - GARNISH, QUARTER PILLAR, LOWER LH | ||||
| 62584-95J0016 |
LH51,YH51..08S BROWN,BROWN |
1 | ||
| 62584-95J0014 |
LH51,YH51..CTM,SCM BLUE,BLUE |
1 | ||
| 62584-95J0004 |
LH5#,YH51..CTM,SCM BLUE GRAY,BLUE |
1 | ||
| 62584-95J0006 |
LH5#,YH51..CTM,SCM BROWN,BROWN |
1 | ||
| 62598A - HOSE, UMBRELLA POCKET DRAIN | ||||
| 62598-95J00 |
LH50,51,YH51..07S,08S |
1 | ||
| 62605P - ORNAMENT SUB-ASSY, QUARTER TRIM, FRONT | ||||
| 62605-95J0016 |
LH51,YH51..08S BROWN,BROWN |
1 | ||
| 62681-95J0104 |
LH51,YH51..08S BLUE,BLUE |
1 | ||
| 62605-95J0204 |
LH51,YH51..08S LIVING SALOON EX,BLUE,BLUE |
1 | ||
| 62605-95J0014 |
LH51,YH51..08S BLUE GRAY,BLUE |
1 | ||
| 62605-95J0004 |
LH50,YH51..08S BLUE GRAY,BLUE GRAY |
1 | ||
| 62681-95J0204 |
LH51,YH51..08S BLUE,BLUE |
1 | ||
| 62605-95J0006 |
LH50,YH51..08S BROWN,BROWN |
1 | ||
| 62681-95J0106 |
LH51,YH51..07S,08S BROWN,BROWN |
1 | ||
| 62681-95J0206 |
LH51,YH51..07S,08S BROWN,BROWN |
1 | ||
| 62606 - ORNAMENT SUB-ASSY, QUARTER TRIM, REAR | ||||
| 62606-95J0304 |
LH51,YH51..08S LIVING SALOON EX,BLUE,BLUE |
2 | ||
| 62691-95J0106 |
LH51,YH51..07S,08S RH,BROWN,BROWN |
1 | ||
| 62691-95J0004 |
LH51,YH51..08S RH,BLUE,BLUE |
1 | ||
| 62691-95J0104 |
LH51,YH51..08S RH,BLUE,BLUE |
1 | ||
| 62692-95J0004 |
LH51,YH51..08S LH,BLUE,BLUE |
1 | ||
| 62692-95J0006 |
LH51,YH51..07S,08S LH,BROWN,BROWN |
1 | ||
| 62606-95J0116 |
LH51,YH51..08S BROWN,BROWN |
2 | ||
| 62606-95J0104 |
LH50,YH51..08S BLUE GRAY,BLUE GRAY |
2 | ||
| 62692-95J0106 |
LH51,YH51..07S,08S LH,BROWN,BROWN |
1 | ||
| 62606-95J0106 |
LH50,YH51..08S BROWN,BROWN |
2 | ||
| 62691-95J0006 |
LH51,YH51..07S,08S RH,BROWN,BROWN |
1 | ||
| 62606-95J0114 |
LH51,YH51..08S BLUE GRAY,BLUE |
2 | ||
| 62692-95J0104 |
LH51,YH51..08S LH,BLUE,BLUE |
1 | ||
| 62606 - ORNAMENT SUB-ASSY, QUARTER TRIM, REAR | ||||
| 62606-95J0304 |
LH51,YH51..08S LIVING SALOON EX,BLUE,BLUE |
2 | ||
| 62691-95J0106 |
LH51,YH51..07S,08S RH,BROWN,BROWN |
1 | ||
| 62691-95J0004 |
LH51,YH51..08S RH,BLUE,BLUE |
1 | ||
| 62691-95J0104 |
LH51,YH51..08S RH,BLUE,BLUE |
1 | ||
| 62692-95J0004 |
LH51,YH51..08S LH,BLUE,BLUE |
1 | ||
| 62692-95J0006 |
LH51,YH51..07S,08S LH,BROWN,BROWN |
1 | ||
| 62606-95J0116 |
LH51,YH51..08S BROWN,BROWN |
2 | ||
| 62606-95J0104 |
LH50,YH51..08S BLUE GRAY,BLUE GRAY |
2 | ||
| 62692-95J0106 |
LH51,YH51..07S,08S LH,BROWN,BROWN |
1 | ||
| 62606-95J0106 |
LH50,YH51..08S BROWN,BROWN |
2 | ||
| 62691-95J0006 |
LH51,YH51..07S,08S RH,BROWN,BROWN |
1 | ||
| 62606-95J0114 |
LH51,YH51..08S BLUE GRAY,BLUE |
2 | ||
| 62692-95J0104 |
LH51,YH51..08S LH,BLUE,BLUE |
1 | ||
| 63371C - RETAINER, ROOF HEADLINING, NO.1 RH | ||||
| 63371-95J01 |
LH50,51,YH51..MRF |
1 | ||
| 63371-95J02 |
LH50,51,YH51..MRF *ODAC OR W/*PC |
1 | ||
| 63372B - RETAINER, ROOF HEADLINING, NO.2 RH | ||||
| 63372-95J00 |
LH50,51,YH51..MRF..(08S,09S) |
1 | ||
| 63381C - RETAINER, ROOF HEADLINING, NO.1 LH | ||||
| 63371-95J02 |
LH50,51,YH51..MRF *ODAC OR W/*PC |
2 | ||
| 63381-95J00 |
LH50,51,YH51..MRF |
2 | ||
| 63382B - RETAINER, ROOF HEADLINING, NO.2 LH | ||||
| 63382-95J00 |
LH50,51,YH51..MRF..(08S,09S) |
1 | ||
| 64707A - COVER SUB-ASSY, QUARTER TRIM TOOL | ||||
| 64707-95J0004 |
LH5#,YH51..08S BLUE GRAY,BLUE |
1 | ||
| 64707-95J0014 |
LH51,YH51..08S BLUE,BLUE |
1 | ||
| 64707-95J0006 |
LH5#,YH51..08S BROWN,BROWN |
1 | ||
| 64707-95J0016 |
LH51,YH51..07S,08S BROWN,BROWN |
1 | ||
| 64769 - CASE SUB-ASSY, TOOL BAG | ||||
| 64709-95J00 |
LH5#,YH5# |
1 | ||
| 64769B - KNOB, TOOL COVER | ||||
| 64769-1301014 |
LH5#,YH51..08S BLUE GRAY,BLUE |
1 | ||
| 64769-1301026 |
LH5#,YH51..08S BROWN,BROWN |
1 | ||
| 64769-1301046 |
LH51,YH51..07S,08S BROWN,BROWN |
1 | ||
| 64769-1301024 |
LH51,YH51..08S BLUE,BLUE |
1 | ||
| 64776A - SPACER, TOOL BAG CASE | ||||
| 64776-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 64777B - PROTECTOR, QUARTER, INNER | ||||
| 58426-95700 |
LH5#,6#,7#,YH5#,6#,71 L=170 |
1 | ||
| Common parts | ||||
| 90159-60184 | ||||
| 90164-40065 | ||||
| 90189-04002 | ||||
| 90467-14044 | ||||
| 90468-04082 | ||||
| 90468-04088 | ||||
| 90468-04089 | ||||
| 90468-04090 | ||||
| 90480-25332 | ||||
| 93319-14010 | ||||
| 93540-45010 | ||||
ILLUST NO. 2 OF 2(8508- )LH51,YH51..07S,08S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62510P - PANEL ASSY, QUARTER TRIM, FRONT RH | ||||
| 62510-95J0204 |
LH50,YH51..08S BLUE GRAY,BLUE |
1 | ||
| 62510-95J1016 |
LH51,YH51..08S LIVING SALOON EX,BROWN,BROWN |
1 | ||
| 62510-95J0206 |
LH50,YH51..08S BROWN,BROWN |
1 | ||
| 62510-95J1004 |
LH51,YH51..08S BLUE GRAY,BLUE |
1 | ||
| 62510-95J1304 |
LH51,YH51..08S LIVING SALOON EX,BLUE,BLUE |
1 | ||
| 62510-95J1006 |
LH51,YH51..08S BROWN,BROWN |
1 | ||
| 62510-95J1506 |
LH51,YH51..08S BROWN,BROWN |
1 | ||
| 62510-95J1504 |
LH51,YH51..08S BLUE,BLUE |
1 | ||
| 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-0906524 |
LH5#,YH51..08S TYPE A,BLUE GRAY,BLUE |
3 | ||
| 90467-0901914 |
LH50,YH51..CTM,SCM TYPE B,BLUE GRAY,BLUE |
6 | ||
| 67771-95J0704 |
LH51,YH51..08S LIVING SALOON EX,TYPE A,BLUE,BLUE |
3 | ||
| 67771-95J0504 |
LH51,YH51..08S LIVING SALOON EX,TYPE B,BLUE,BLUE |
12 | ||
| 90467-0901910 |
LH51,YH51..08S *LS EX,TYPE B,DARK BROWN,DARK BROWN |
12 | ||
| 90467-0901956 |
LH50,YH51..CTM,SCM TYPE B,BROWN,BROWN |
6 | ||
| 90467-0906536 |
LH50,51,YH51..08S TYPE A,BROWN,BROWN |
3 | ||
| 90467-0906536 |
LH51,YH51..08S *LS EX,TYPE A,DARK BROWN,BROWN |
3 | ||
| 90467-0901956 |
LH5#,YH51..08S TYPE B,BROWN,BROWN |
12 | ||
| 90467-0901914 |
LH5#,YH51..08S TYPE B,BLUE GRAY,BLUE |
12 | ||
| 90467-0906534 |
LH51,YH51..08S TYPE A,BLUE,BLUE |
3 | ||
| 90467-0901910 |
LH51,YH51..08S TYPE B,BROWN,DARK BROWN |
18 | ||
| 90467-0901924 |
LH51,YH51..08S TYPE B,BLUE,BLUE |
12 | ||
| 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-0906524 |
LH5#,YH51..08S TYPE A,BLUE GRAY,BLUE |
3 | ||
| 90467-0901914 |
LH50,YH51..CTM,SCM TYPE B,BLUE GRAY,BLUE |
6 | ||
| 67771-95J0704 |
LH51,YH51..08S LIVING SALOON EX,TYPE A,BLUE,BLUE |
3 | ||
| 67771-95J0504 |
LH51,YH51..08S LIVING SALOON EX,TYPE B,BLUE,BLUE |
12 | ||
| 90467-0901910 |
LH51,YH51..08S *LS EX,TYPE B,DARK BROWN,DARK BROWN |
12 | ||
| 90467-0901956 |
LH50,YH51..CTM,SCM TYPE B,BROWN,BROWN |
6 | ||
| 90467-0906536 |
LH50,51,YH51..08S TYPE A,BROWN,BROWN |
3 | ||
| 90467-0906536 |
LH51,YH51..08S *LS EX,TYPE A,DARK BROWN,BROWN |
3 | ||
| 90467-0901956 |
LH5#,YH51..08S TYPE B,BROWN,BROWN |
12 | ||
| 90467-0901914 |
LH5#,YH51..08S TYPE B,BLUE GRAY,BLUE |
12 | ||
| 90467-0906534 |
LH51,YH51..08S TYPE A,BLUE,BLUE |
3 | ||
| 90467-0901910 |
LH51,YH51..08S TYPE B,BROWN,DARK BROWN |
18 | ||
| 90467-0901924 |
LH51,YH51..08S TYPE B,BLUE,BLUE |
12 | ||
| 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-0906524 |
LH5#,YH51..08S TYPE A,BLUE GRAY,BLUE |
3 | ||
| 90467-0901914 |
LH50,YH51..CTM,SCM TYPE B,BLUE GRAY,BLUE |
6 | ||
| 67771-95J0704 |
LH51,YH51..08S LIVING SALOON EX,TYPE A,BLUE,BLUE |
3 | ||
| 67771-95J0504 |
LH51,YH51..08S LIVING SALOON EX,TYPE B,BLUE,BLUE |
12 | ||
| 90467-0901910 |
LH51,YH51..08S *LS EX,TYPE B,DARK BROWN,DARK BROWN |
12 | ||
| 90467-0901956 |
LH50,YH51..CTM,SCM TYPE B,BROWN,BROWN |
6 | ||
| 90467-0906536 |
LH50,51,YH51..08S TYPE A,BROWN,BROWN |
3 | ||
| 90467-0906536 |
LH51,YH51..08S *LS EX,TYPE A,DARK BROWN,BROWN |
3 | ||
| 90467-0901956 |
LH5#,YH51..08S TYPE B,BROWN,BROWN |
12 | ||
| 90467-0901914 |
LH5#,YH51..08S TYPE B,BLUE GRAY,BLUE |
12 | ||
| 90467-0906534 |
LH51,YH51..08S TYPE A,BLUE,BLUE |
3 | ||
| 90467-0901910 |
LH51,YH51..08S TYPE B,BROWN,DARK BROWN |
18 | ||
| 90467-0901924 |
LH51,YH51..08S TYPE B,BLUE,BLUE |
12 | ||
| 62511G - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-0901016 |
LH51,YH51..08S LIVING SALOON EX,BROWN,DARK BROWN |
2 | ||
| 90467-0901004 |
LH5#,YH51..08S BLUE GRAY,BLUE |
1 | ||
| 90467-0901006 |
LH5#,YH51..08S BROWN,BROWN |
1 | ||
| 67771-95J0604 |
LH51,YH51..08S LIVING SALOON EX,BLUE,BLUE |
2 | ||
| 90467-0901014 |
LH51,YH51..08S BLUE,BLUE |
1 | ||
| 90467-0901016 |
LH51,YH51..07S,08S BROWN,DARK BROWN |
1 | ||
| 62511G - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-0901016 |
LH51,YH51..08S LIVING SALOON EX,BROWN,DARK BROWN |
2 | ||
| 90467-0901004 |
LH5#,YH51..08S BLUE GRAY,BLUE |
1 | ||
| 90467-0901006 |
LH5#,YH51..08S BROWN,BROWN |
1 | ||
| 67771-95J0604 |
LH51,YH51..08S LIVING SALOON EX,BLUE,BLUE |
2 | ||
| 90467-0901014 |
LH51,YH51..08S BLUE,BLUE |
1 | ||
| 90467-0901016 |
LH51,YH51..07S,08S BROWN,DARK BROWN |
1 | ||
| 62513A - PANEL, QUARTER TRIM, LOWER RH | ||||
| 62513-95J00 |
LH50,51,YH51..07S,08S |
1 | ||
| 62514A - PANEL, QUARTER TRIM, LOWER LH | ||||
| 62514-95J00 |
LH50,51,YH51..07S,08S |
1 | ||
| 62578A - BAND, UMBRELLA POCKET | ||||
| 62578-95J0006 |
LH5#,YH51..08S BROWN,BROWN |
1 | ||
| 62578-95J0016 |
LH51,YH51..07S,08S BROWN,BROWN |
1 | ||
| 62578-95J0014 |
LH51,YH51..08S BLUE,BLUE |
1 | ||
| 62578-95J0004 |
LH5#,YH51..08S BLUE GRAY,BLUE |
1 | ||
| 62586A - RETAINER, QUARTER TRIM | ||||
| 62586-95J01 |
LH50,51,YH51..07S,08S 57X40 |
1 | ||
| 62586-95J00 |
LH50,51,YH51..07S,08S 64X93 |
2 | ||
| 62586A - RETAINER, QUARTER TRIM | ||||
| 62586-95J01 |
LH50,51,YH51..07S,08S 57X40 |
1 | ||
| 62586-95J00 |
LH50,51,YH51..07S,08S 64X93 |
2 | ||
| 62586A - RETAINER, QUARTER TRIM | ||||
| 62586-95J01 |
LH50,51,YH51..07S,08S 57X40 |
1 | ||
| 62586-95J00 |
LH50,51,YH51..07S,08S 64X93 |
2 | ||
| 62591A - POCKET, UMBRELLA | ||||
| 62591-95J0001 |
LH50,51,YH51..07S,08S BLACK,BLACK |
1 | ||
| 62593A - BEZEL, UMBRELLA POCKET | ||||
| 62593-95J0004 |
LH5#,YH51..08S BLUE GRAY,BLUE |
1 | ||
| 62593-95J0014 |
LH51,YH51..08S BLUE,BLUE |
1 | ||
| 62593-95J0016 |
LH51,YH51..07S,08S BROWN,BROWN |
1 | ||
| 62593-95J0006 |
LH5#,YH51..08S BROWN,BROWN |
1 | ||
| 62594A - POCKET, QUARTER TRIM, NO.1 | ||||
| 62594-95J0004 |
LH5#,YH51..08S BLUE GRAY,BLUE |
1 | ||
| 62594-95J0016 |
LH51,YH51..07S,08S BROWN,BROWN |
1 | ||
| 62594-95J0006 |
LH5#,YH51..08S BROWN,BROWN |
1 | ||
| 62594-95J0014 |
LH51,YH51..08S BLUE,BLUE |
1 | ||
| 62595B - BEZEL, QUARTER TRIM POCKET, RH | ||||
| 62595-95J0004 |
LH5#,YH51..08S BLUE GRAY,BLUE |
1 | ||
| 62595-95J0014 |
LH51,YH51..08S BLUE,BLUE |
1 | ||
| 62595-95J0016 |
LH51,YH51..08S BROWN,BROWN |
1 | ||
| 62595-95J0006 |
LH5#,YH51..08S BROWN,BROWN |
1 | ||
| 62596B - BEZEL, QUARTER TRIM POCKET, LH | ||||
| 62596-95J0006 |
LH5#,YH51..08S BROWN,BROWN |
1 | ||
| 62596-95J0014 |
LH51,YH51..08S BLUE,BLUE |
1 | ||
| 62596-95J0016 |
LH51,YH51..08S BROWN,BROWN |
1 | ||
| 62596-95J0004 |
LH5#,YH51..08S BLUE GRAY,BLUE |
1 | ||
| 62630P - PANEL ASSY, QUARTER TRIM, REAR RH | ||||
| 62630-95J0304 |
LH50,YH51..08S BLUE GRAY,BLUE |
1 | ||
| 62630-95J0306 |
LH50,YH51..08S BROWN,BROWN |
1 | ||
| 62630-95J1416 |
LH51,YH51..08S LIVING SALOON EX,W/*PC,BROWN,BROWN |
1 | ||
| 62630-95J1404 |
LH51,YH51..08S W/*PC,BLUE GRAY,BLUE |
1 | ||
| 62630-95J1804 |
LH51,YH51..08S LIVING SALOON EX,BLUE,BLUE |
1 | ||
| 62630-95J1406 |
LH51,YH51..08S W/*PC,BROWN,BROWN |
1 | ||
| 62630-95J1306 |
LH51,YH51..08S BROWN,BROWN |
1 | ||
| 62630-95J1304 |
LH51,YH51..08S BLUE GRAY,BLUE GRAY |
1 | ||
| 62630-95J2104 |
LH51,YH51..08S BLUE,BLUE |
1 | ||
| 62630-95J2204 |
LH51,YH51..MRF..08S W/*PC,BLUE,BLUE |
1 | ||
| 62630-95J2106 |
LH51,YH51..08S BROWN,BROWN |
1 | ||
| 62630-95J2206 |
LH51,YH51..MRF..08S W/*PC,BROWN,BROWN |
1 | ||
| 62640P - PANEL ASSY, QUARTER TRIM, REAR LH | ||||
| 62640-95J0304 |
LH50,YH51..08S BLUE GRAY,BLUE |
1 | ||
| 62640-95J0306 |
LH50,YH51..08S BROWN,BROWN |
1 | ||
| 62640-95J2204 |
LH51,YH51..08S LIVING SALOON EX,BLUE,BLUE |
1 | ||
| 62640-95J2016 |
LH51,YH51..08S LIVING SALOON EX,BROWN,BROWN |
1 | ||
| 62640-95J2004 |
LH51,YH51..08S BLUE GRAY,BLUE |
1 | ||
| 62640-95J2006 |
LH51,YH51..08S BROWN,BROWN |
1 | ||
| 62640-95J2704 |
LH51,YH51..08S BLUE,BLUE |
1 | ||
| 62640-95J2904 |
LH51,YH51..MRF..08S W/*PC,BLUE,BLUE |
1 | ||
| 62640-95J2706 |
LH51,YH51..08S BROWN,BROWN |
1 | ||
| 62640-95J2906 |
LH51,YH51..MRF..08S W/*PC,BROWN,BROWN |
1 | ||
| 64739A - COVER, DECK TRIM REAR WASHER | ||||
| 85365-95J0016 |
LH5#,6#,71,YH5#,6#,71..CTD,DLX,SCL,SCM BROWN,BROWN |
1 | ||
| 85365-95J0014 |
LH5#,6#,YH5#..CTM,GL,SCM BLUE,BLUE |
1 | ||
| 85365-95J0006 |
LH5#,YH51..CTM,SCM BROWN,BROWN |
1 | ||
| 85365-95J0004 |
LH5#..DLX..09S;LH6#,YH51,61..WG..(CTM,DLX,SCM);LH5#,6#,YH50,61..(CTM,GL,SCM,STD)..(06S,08S,09S,10S) BLUE GRAY,BLUE |
1 | ||
| 64739B - BASE, REAR WASHER TANK, SERVICE HOLE COVER | ||||
| 85366-95J0004 |
LH5#..DLX..09S;LH6#,YH51,61..WG..(CTM,DLX,SCM);LH5#,6#,YH50,61..(CTM,GL,SCM,STD)..(06S,08S,09S,10S) BLUE GRAY,BLUE |
1 | ||
| 85366-95J0016 |
LH5#,6#,71,YH5#,6#,71..CTD,DLX,SCL,SCM BROWN,BROWN |
1 | ||
| 85366-95J0014 |
LH5#,6#,YH5#..CTM,GL,SCM BLUE,BLUE |
1 | ||
| 85366-95J0006 |
LH5#,YH51..CTM,SCM BROWN,BROWN |
1 | ||
| 66996 - BRACKET, CUP HOLDER, NO.1 | ||||
| 66996-95J0006 |
LH51,YH51..07S,08S BROWN,BROWN |
3 | ||
| 66996-95J0004 |
LH51,YH51..08S BLUE,BLUE |
3 | ||
| 66996 - BRACKET, CUP HOLDER, NO.1 | ||||
| 66996-95J0006 |
LH51,YH51..07S,08S BROWN,BROWN |
3 | ||
| 66996-95J0004 |
LH51,YH51..08S BLUE,BLUE |
3 | ||
| 66996 - BRACKET, CUP HOLDER, NO.1 | ||||
| 66996-95J0006 |
LH51,YH51..07S,08S BROWN,BROWN |
3 | ||
| 66996-95J0004 |
LH51,YH51..08S BLUE,BLUE |
3 | ||
| 66996 - BRACKET, CUP HOLDER, NO.1 | ||||
| 66996-95J0006 |
LH51,YH51..07S,08S BROWN,BROWN |
3 | ||
| 66996-95J0004 |
LH51,YH51..08S BLUE,BLUE |
3 | ||
| 66997 - BRACKET, CUP HOLDER, NO.2 | ||||
| 66997-95J0004 |
LH51,YH51..08S BLUE,BLUE |
3 | ||
| 66997-95J0006 |
LH51,YH51..07S,08S BROWN,BROWN |
3 | ||
| 66997 - BRACKET, CUP HOLDER, NO.2 | ||||
| 66997-95J0004 |
LH51,YH51..08S BLUE,BLUE |
3 | ||
| 66997-95J0006 |
LH51,YH51..07S,08S BROWN,BROWN |
3 | ||
| 67651C - GRILLE, QUARTER TRIM SPEAKER | ||||
| 67651-9570304 |
LH5#,YH51..08S BLUE GRAY,BLUE GRAY |
1 | ||
| 67651-9570316 |
LH51,YH51..07S,08S BROWN,BROWN |
1 | ||
| 67651-9570306 |
LH5#,YH51..08S BROWN,BROWN |
1 | ||
| 67651-9570314 |
LH51,YH51..08S BLUE,BLUE |
1 | ||
| Common parts | ||||
| 67771-95J02 | ||||
| 67771-95J04 | ||||
| 67772-22010 | ||||
| 90159-40060 | ||||
| 90159-40094 | ||||
| 90159-50068 | ||||
| 90159-60025 | ||||
| 90159-60287 | ||||
| 90183-04006 | ||||
| 90183-04035 | ||||
| 90183-04084 | ||||
| 90183-05001 | ||||
| 90467-09010 | ||||
| 90468-04008 | ||||
| 90468-04082 | ||||
| 90468-08001 | ||||
| 90530-04001 | ||||
| 93560-15012 | ||||
| 93560-16014 | ||||
| 93560-54012 | ||||
| 93567-55012 | ||||
| Linked diagrams | ||||
| 7456 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
