YH51G-PES (1982)
Toyota Hiace Van,Wagon

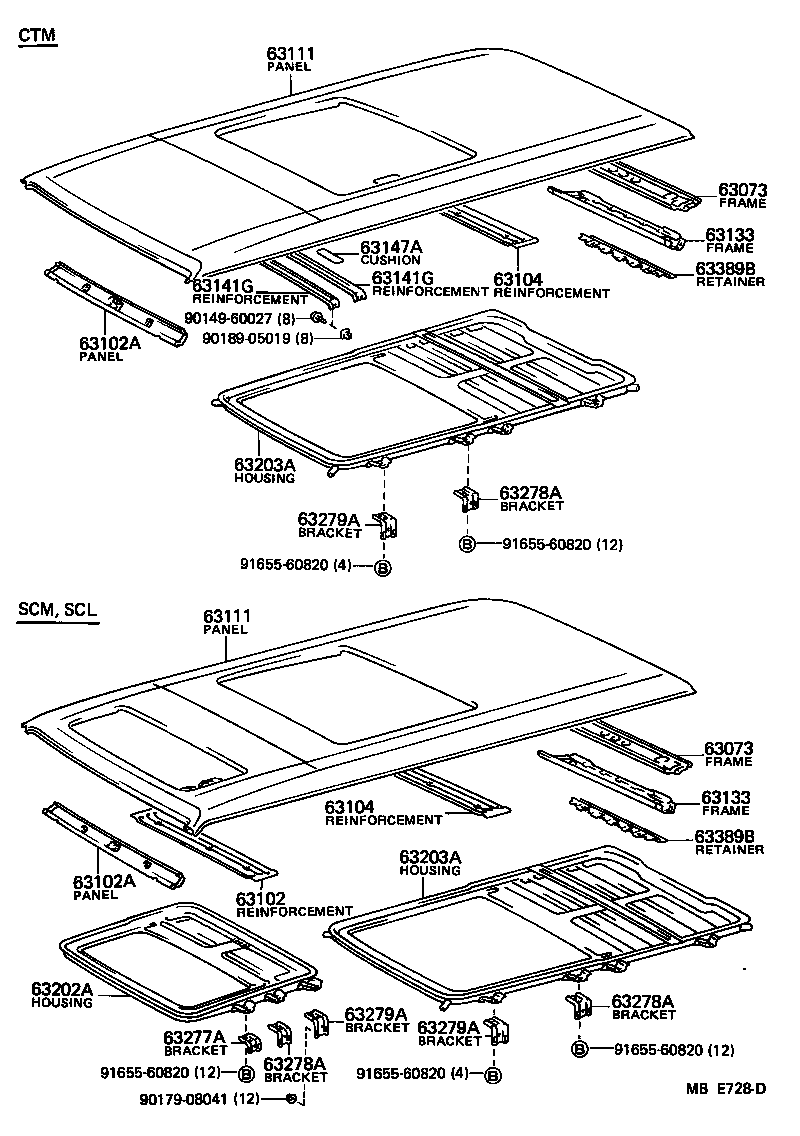

ILLUST NO. 1 OF 3(8212- )MRF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63073 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER OUTER | ||||
| 63073-95J01 |
LH50,51,YH51..MRF |
1 | ||
| 63073 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER OUTER | ||||
| 63073-95J01 |
LH50,51,YH51..MRF |
1 | ||
| 63102 - REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT | ||||
| 63122-95J00 |
LH50,51,YH51..MRF..(07S,08S) |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-95J02 |
LH50,51,YH51..MRF..(07S,08S) |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-95J02 |
LH50,51,YH51..MRF..(07S,08S) |
1 | ||
| 63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER | ||||
| 63123-95J00 |
LH50,51,YH51..MRF |
1 | ||
| 63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER | ||||
| 63123-95J00 |
LH50,51,YH51..MRF |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-95J02 |
LH50,51,YH51..MRF..(07S,08S) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-95J02 |
LH50,51,YH51..MRF..(07S,08S) |
1 | ||
| 63133 - FRAME, BACK WINDOW OPENING, UPPER | ||||
| 63133-95J02 |
LH50,51,YH51..CTM,SCL,SCM |
1 | ||
| 63133 - FRAME, BACK WINDOW OPENING, UPPER | ||||
| 63133-95J02 |
LH50,51,YH51..CTM,SCL,SCM |
1 | ||
| 63202A - HOUSING SUB-ASSY, SLIDING ROOF, FRONT | ||||
| 63202-95J00 |
LH50,51,YH51..MRF..(07S,08S) |
1 | ||
| 63203A - HOUSING SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF | ||||
| 63203-95J00 |
LH50,51,YH51..MRF |
1 | ||
| 63203A - HOUSING SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF | ||||
| 63203-95J00 |
LH50,51,YH51..MRF |
1 | ||
| 63277A - BRACKET, HOUSING TO RAIL, NO.1 | ||||
| 63277-95J00 |
LH50,51,YH51..MRF..(07S,08S) H=31,MARK 1 |
2 | ||
| 63278A - BRACKET, HOUSING TO RAIL, NO.2 | ||||
| 63278-95J00 |
LH5#,YH51..MRF..08S FR,H=46.5,MARK 2 |
2 | ||
| 63278-95J00 |
LH50,51,YH51..MRF RR,H=46.5,MARK 2 |
6 | ||
| 63278A - BRACKET, HOUSING TO RAIL, NO.2 | ||||
| 63278-95J00 |
LH5#,YH51..MRF..08S FR,H=46.5,MARK 2 |
2 | ||
| 63278-95J00 |
LH50,51,YH51..MRF RR,H=46.5,MARK 2 |
6 | ||
| 63278A - BRACKET, HOUSING TO RAIL, NO.2 | ||||
| 63278-95J00 |
LH5#,YH51..MRF..08S FR,H=46.5,MARK 2 |
2 | ||
| 63278-95J00 |
LH50,51,YH51..MRF RR,H=46.5,MARK 2 |
6 | ||
| 63279A - BRACKET, HOUSING TO RAIL, NO.3 | ||||
| 63279-95J00 |
LH50,51,YH51..MRF RR,H=56.5,MARK 3 |
2 | ||
| 63279-95J00 |
LH50,51,YH51..MRF..(07S,08S) FR,H=56.5,MARK 3 |
2 | ||
| 63279A - BRACKET, HOUSING TO RAIL, NO.3 | ||||
| 63279-95J00 |
LH50,51,YH51..MRF RR,H=56.5,MARK 3 |
2 | ||
| 63279-95J00 |
LH50,51,YH51..MRF..(07S,08S) FR,H=56.5,MARK 3 |
2 | ||
| 63279A - BRACKET, HOUSING TO RAIL, NO.3 | ||||
| 63279-95J00 |
LH50,51,YH51..MRF RR,H=56.5,MARK 3 |
2 | ||
| 63279-95J00 |
LH50,51,YH51..MRF..(07S,08S) FR,H=56.5,MARK 3 |
2 | ||
| 63389B - RETAINER, ROOF HEADLINING TRIM, CENTER | ||||
| 63389-95J00 |
LH50,51,YH51..CTM,SCL,SCM |
1 | ||
| 63389B - RETAINER, ROOF HEADLINING TRIM, CENTER | ||||
| 63389-95J00 |
LH50,51,YH51..CTM,SCL,SCM |
1 | ||
| Common parts | ||||
| 90149-60027 | ||||
| 90179-08041 | ||||
| 90189-05019 | ||||
| 91655-60820 | ||||

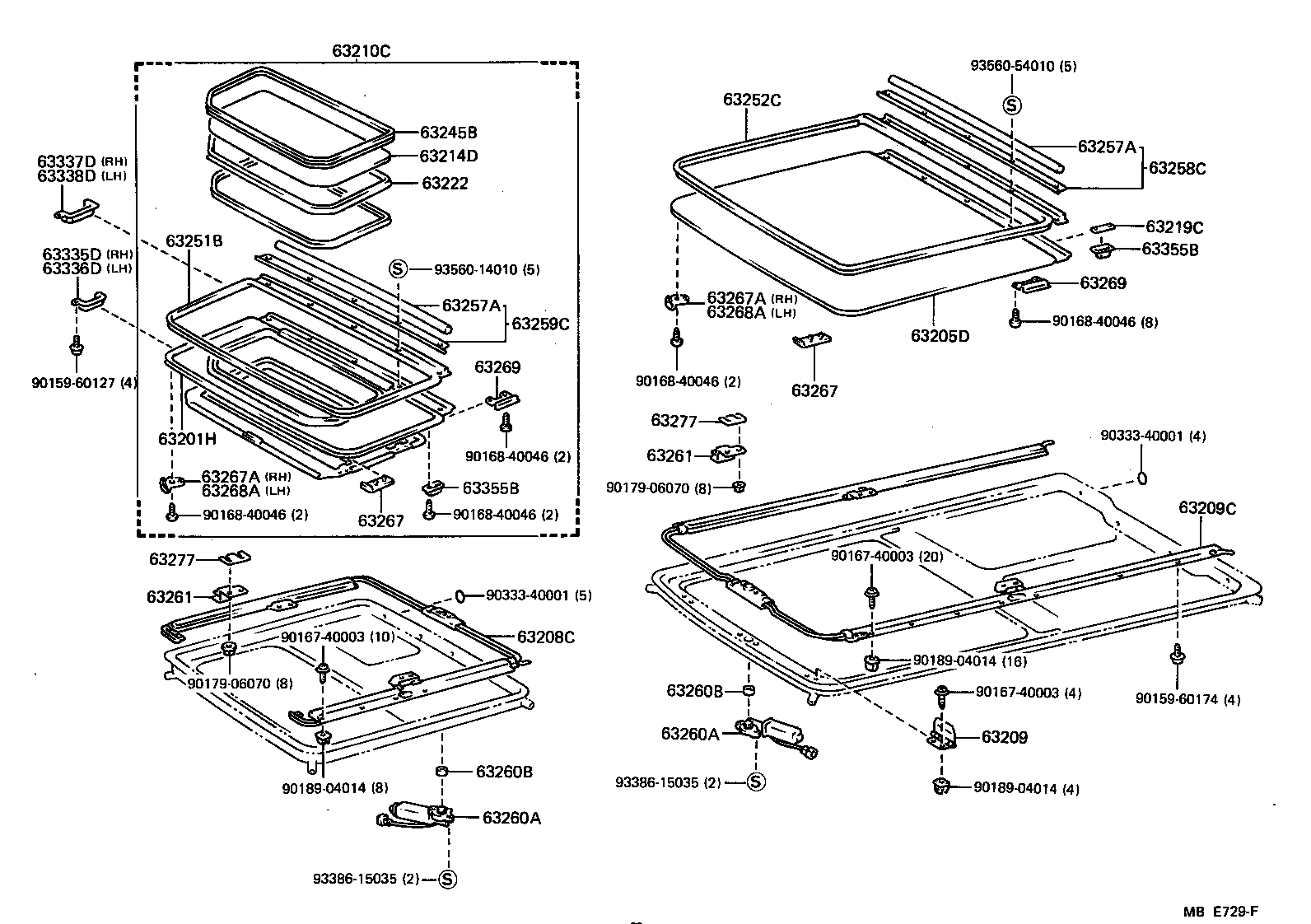

ILLUST NO. 2 OF 3(8212- )MRF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201H - PANEL SUB-ASSY, SLIDE ROOF | ||||
| 63201-95J00 |
LH51,YH51..MRF..(07S,08S) |
1 | ||
| 63201-95J00 |
LH50,51,YH51..MRF..(07S,08S) ｽﾗｲﾄﾞ ﾙ-ﾌ ﾊﾟﾈﾙ |
1 | ||
| 63205D - PANEL SUB-ASSY, SLIDE SUN ROOF, REAR | ||||
| 63202-95J00 |
LH51,YH51..MRF |
1 | ||
| 63205-95J00 |
LH50,51,YH51..MRF |
1 | ||
| 63208C - CABLE SUB-ASSY, SLIDING ROOF DRIVE, FRONT | ||||
| 63208-95J00 |
LH50,51,YH51..MRF..(07S,08S) |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63230-95700 |
LH50,51,YH51..MRF |
2 | ||
| 63209C - CABLE SUB-ASSY, SLIDING ROOF DRIVE, REAR | ||||
| 63209-95J00 |
LH50,51,YH51..MRF |
1 | ||
| 63210C - PANEL ASSY, SLIDING ROOF, FRONT | ||||
| 63210-95J00 |
LH50,51,YH51..MRF..(07S,08S) |
1 | ||
| 63214D - GLASS, SLIDING ROOF, FRONT | ||||
| 63214-95J00 |
LH51,YH51..MRF |
1 | ||
| 63219C - PLATE, SLIDING ROOF PANEL | ||||
| 63219-95J00 |
LH51,YH51..MRF |
33 | ||
| 63222 - PACKING, SLIDE ROOF | ||||
| 67726-95J00 |
LH50,51,YH51..MRF..(07S,08S) |
1 | ||
| 63245B - PACKING | ||||
| 75567-95J00 |
LH50,51,YH51..MRF..(07S,08S) |
1 | ||
| 63251B - WEATHERSTRIP, TILT ROOF, OUTER | ||||
| 63251-95J00 |
LH50,51,YH51..MRF..(07S,08S) |
1 | ||
| 63252C - WEATHERSTRIP, SLIDING ROOF, REAR | ||||
| 63252-95J00 |
LH50,51,YH51..MRF |
1 | ||
| 63257A - INSERT, LATEX SPONGE | ||||
| 63257-95J00 |
LH50,51,YH51..MRF..(07S,08S) FR |
1 | ||
| 63257-95J01 |
LH50,51,YH51..MRF RR |
1 | ||
| 63257A - INSERT, LATEX SPONGE | ||||
| 63257-95J00 |
LH50,51,YH51..MRF..(07S,08S) FR |
1 | ||
| 63257-95J01 |
LH50,51,YH51..MRF RR |
1 | ||
| 63258C - HOLDER, SLIDING ROOF WEATHERSTRIP, REAR | ||||
| 63258-95J00 |
LH50,51,YH51..MRF |
1 | ||
| 63259C - HOLDER, SLIDING ROOF WEATHERSTRIP, FRONT | ||||
| 63259-95J00 |
LH50,51,YH51..MRF..(07S,08S) |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-95703 |
LH50,51,YH51..07S,08S FR |
1 | ||
| 63260-95J00 |
LH50,51,YH51..CTM,SCL,SCM RR |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-95703 |
LH50,51,YH51..07S,08S FR |
1 | ||
| 63260-95J00 |
LH50,51,YH51..CTM,SCL,SCM RR |
1 | ||
| 63260B - SPACER, SLIDING ROOF MOTOR DRIVE | ||||
| 85638-95701 |
LH50,51,YH51..CTM,SCL,SCM |
2 | ||
| 63260B - SPACER, SLIDING ROOF MOTOR DRIVE | ||||
| 85638-95701 |
LH50,51,YH51..CTM,SCL,SCM |
2 | ||
| 63261 - SHOE, SLIDING ROOF, FRONT | ||||
| 63261-95702 |
LH50,YH51..MRF RH |
2 | ||
| 63262-95702 |
LH50,YH51..MRF LH |
2 | ||
| 63261-95J00 |
LH50,51,YH51..MRF RH |
2 | ||
| 63262-95J00 |
LH50,51,YH51..MRF LH |
2 | ||
| 63261 - SHOE, SLIDING ROOF, FRONT | ||||
| 63261-95702 |
LH50,YH51..MRF RH |
2 | ||
| 63262-95702 |
LH50,YH51..MRF LH |
2 | ||
| 63261-95J00 |
LH50,51,YH51..MRF RH |
2 | ||
| 63262-95J00 |
LH50,51,YH51..MRF LH |
2 | ||
| 63267 - PROTECTOR, SLIDING ROOF WEATHERSTRIP | ||||
| 63267-95701 |
LH50,51,YH51..MRF |
4 | ||
| 63267 - PROTECTOR, SLIDING ROOF WEATHERSTRIP | ||||
| 63267-95701 |
LH50,51,YH51..MRF |
4 | ||
| 63267A - PROTECTOR, SLIDING ROOF WEATHERSTRIP, RH | ||||
| 63267-20010 |
LH5#,YH51..MRF |
2 | ||
| 63267-14010 |
LH51,YH51..MRF |
2 | ||
| 63267A - PROTECTOR, SLIDING ROOF WEATHERSTRIP, RH | ||||
| 63267-20010 |
LH5#,YH51..MRF |
2 | ||
| 63267-14010 |
LH51,YH51..MRF |
2 | ||
| 63268A - PROTECTOR, SLIDING ROOF WEATHERSTRIP, LH | ||||
| 63268-20010 |
LH5#,YH51..MRF |
2 | ||
| 63268-14020 |
LH51,YH51..MRF |
2 | ||
| 63268A - PROTECTOR, SLIDING ROOF WEATHERSTRIP, LH | ||||
| 63268-20010 |
LH5#,YH51..MRF |
2 | ||
| 63268-14020 |
LH51,YH51..MRF |
2 | ||
| 63269 - RETAINER, SLIDING ROOF WEATHERSTRIP | ||||
| 63269-20010 |
LH50,51,YH51..MRF RH |
3 | ||
| 63279-20010 |
LH50,51,YH51..MRF LH |
3 | ||
| 63269 - RETAINER, SLIDING ROOF WEATHERSTRIP | ||||
| 63269-20010 |
LH50,51,YH51..MRF RH |
3 | ||
| 63279-20010 |
LH50,51,YH51..MRF LH |
3 | ||
| 63277 - SHIM, SLIDING ROOF RAIL | ||||
| 63277-95701 |
LH50,51,YH51..MRF |
1 | ||
| 63277 - SHIM, SLIDING ROOF RAIL | ||||
| 63277-95701 |
LH50,51,YH51..MRF |
1 | ||
| 63335D - GARNISH, ROOF HEADLINING, FRONT RH | ||||
| 63335-95J00 |
LH50,51,YH51..MRF..(07S,08S) |
1 | ||
| 63336D - GARNISH, ROOF HEADLINING, FRONT LH | ||||
| 63336-95J00 |
LH50,51,YH51..MRF..(07S,08S) |
1 | ||
| 63337D - GARNISH, ROOF HEADLINING, REAR RH | ||||
| 63337-95J00 |
LH50,51,YH51..MRF..(07S,08S) |
1 | ||
| 63338D - GARNISH, ROOF HEADLINING, REAR LH | ||||
| 63338-95J00 |
LH50,51,YH51..MRF..(07S,08S) |
1 | ||
| 63355B - CAP, SLIDING ROOF | ||||
| 63355-95J00 |
LH50,51,YH51..MRF |
4 | ||
| 63355B - CAP, SLIDING ROOF | ||||
| 63355-95J00 |
LH50,51,YH51..MRF |
4 | ||
| Common parts | ||||
| 90159-60127 | ||||
| 90159-60174 | ||||
| 90167-40003 | ||||
| 90168-40046 | ||||
| 90179-06070 | ||||
| 90189-04014 | ||||
| 90333-40001 | ||||
| 93386-15035 | ||||
| 93560-14010 | ||||
| 93560-54010 | ||||

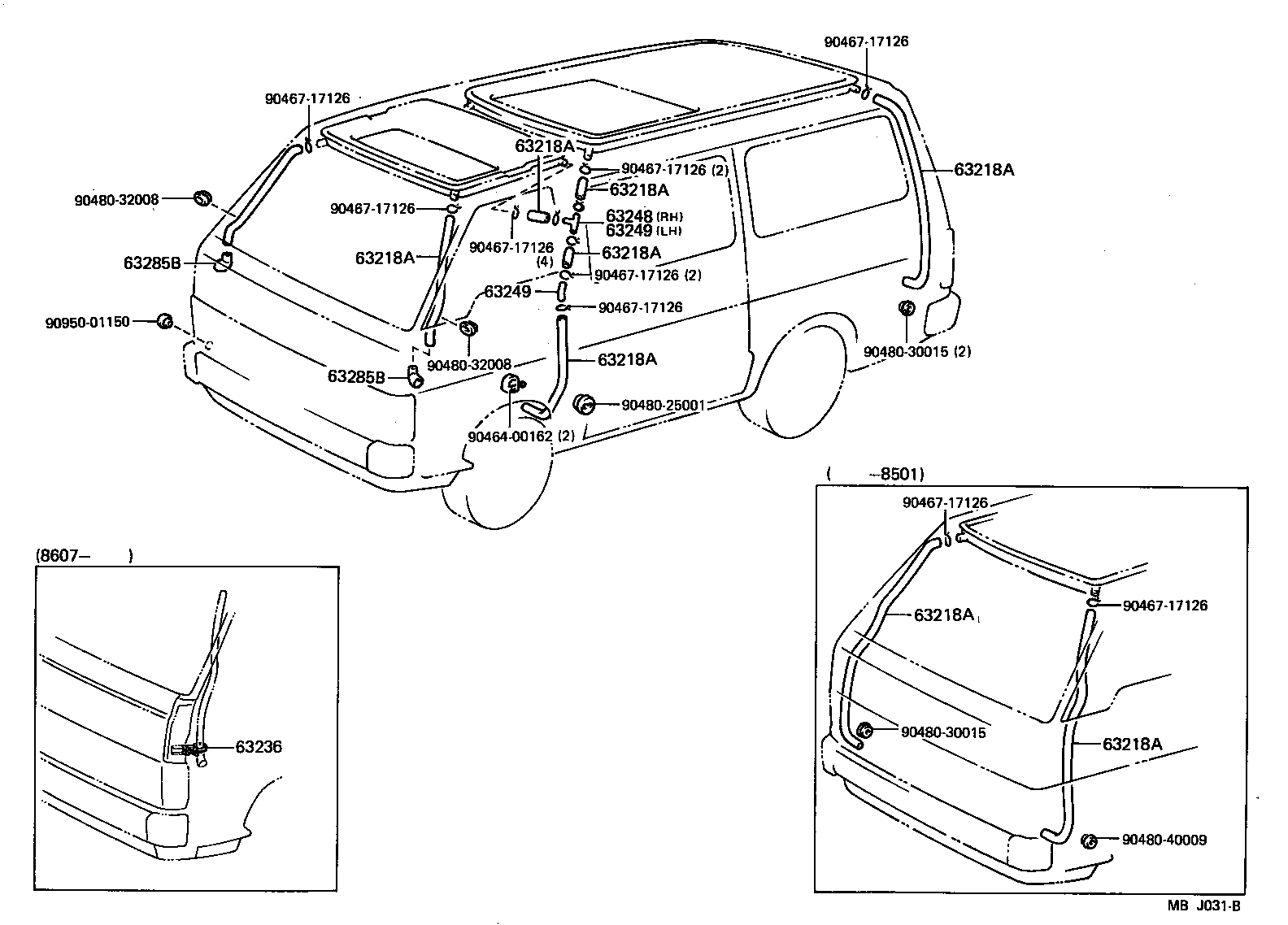

ILLUST NO. 3 OF 3(8212- )MRF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63225-95J00 |
LH5#,YH51..MRF..08S L=1730 |
2 | ||
| 63223-95J00 |
LH50,51,YH51..MRF..(07S,08S) L=1950 |
1 | ||
| 63221-95J00 |
LH50,51,YH51..MRF..(07S,08S) L=60 |
2 | ||
| 63225-95J02 |
LH51,YH51..MRF COLD SPEC,L=1260 |
2 | ||
| 63223-95J04 |
LH50,51,YH51..MRF..(07S,08S) L=400 |
1 | ||
| 63224-95J00 |
LH50,51,YH51..MRF L=1700 |
3 | ||
| 63222-95J00 |
LH50,51,YH51..MRF..(07S,08S) L=100 |
2 | ||
| 63225-95J00 |
LH51,YH51..MRF *H,L=1350 |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63225-95J00 |
LH5#,YH51..MRF..08S L=1730 |
2 | ||
| 63223-95J00 |
LH50,51,YH51..MRF..(07S,08S) L=1950 |
1 | ||
| 63221-95J00 |
LH50,51,YH51..MRF..(07S,08S) L=60 |
2 | ||
| 63225-95J02 |
LH51,YH51..MRF COLD SPEC,L=1260 |
2 | ||
| 63223-95J04 |
LH50,51,YH51..MRF..(07S,08S) L=400 |
1 | ||
| 63224-95J00 |
LH50,51,YH51..MRF L=1700 |
3 | ||
| 63222-95J00 |
LH50,51,YH51..MRF..(07S,08S) L=100 |
2 | ||
| 63225-95J00 |
LH51,YH51..MRF *H,L=1350 |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63225-95J00 |
LH5#,YH51..MRF..08S L=1730 |
2 | ||
| 63223-95J00 |
LH50,51,YH51..MRF..(07S,08S) L=1950 |
1 | ||
| 63221-95J00 |
LH50,51,YH51..MRF..(07S,08S) L=60 |
2 | ||
| 63225-95J02 |
LH51,YH51..MRF COLD SPEC,L=1260 |
2 | ||
| 63223-95J04 |
LH50,51,YH51..MRF..(07S,08S) L=400 |
1 | ||
| 63224-95J00 |
LH50,51,YH51..MRF L=1700 |
3 | ||
| 63222-95J00 |
LH50,51,YH51..MRF..(07S,08S) L=100 |
2 | ||
| 63225-95J00 |
LH51,YH51..MRF *H,L=1350 |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63225-95J00 |
LH5#,YH51..MRF..08S L=1730 |
2 | ||
| 63223-95J00 |
LH50,51,YH51..MRF..(07S,08S) L=1950 |
1 | ||
| 63221-95J00 |
LH50,51,YH51..MRF..(07S,08S) L=60 |
2 | ||
| 63225-95J02 |
LH51,YH51..MRF COLD SPEC,L=1260 |
2 | ||
| 63223-95J04 |
LH50,51,YH51..MRF..(07S,08S) L=400 |
1 | ||
| 63224-95J00 |
LH50,51,YH51..MRF L=1700 |
3 | ||
| 63222-95J00 |
LH50,51,YH51..MRF..(07S,08S) L=100 |
2 | ||
| 63225-95J00 |
LH51,YH51..MRF *H,L=1350 |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63225-95J00 |
LH5#,YH51..MRF..08S L=1730 |
2 | ||
| 63223-95J00 |
LH50,51,YH51..MRF..(07S,08S) L=1950 |
1 | ||
| 63221-95J00 |
LH50,51,YH51..MRF..(07S,08S) L=60 |
2 | ||
| 63225-95J02 |
LH51,YH51..MRF COLD SPEC,L=1260 |
2 | ||
| 63223-95J04 |
LH50,51,YH51..MRF..(07S,08S) L=400 |
1 | ||
| 63224-95J00 |
LH50,51,YH51..MRF L=1700 |
3 | ||
| 63222-95J00 |
LH50,51,YH51..MRF..(07S,08S) L=100 |
2 | ||
| 63225-95J00 |
LH51,YH51..MRF *H,L=1350 |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63225-95J00 |
LH5#,YH51..MRF..08S L=1730 |
2 | ||
| 63223-95J00 |
LH50,51,YH51..MRF..(07S,08S) L=1950 |
1 | ||
| 63221-95J00 |
LH50,51,YH51..MRF..(07S,08S) L=60 |
2 | ||
| 63225-95J02 |
LH51,YH51..MRF COLD SPEC,L=1260 |
2 | ||
| 63223-95J04 |
LH50,51,YH51..MRF..(07S,08S) L=400 |
1 | ||
| 63224-95J00 |
LH50,51,YH51..MRF L=1700 |
3 | ||
| 63222-95J00 |
LH50,51,YH51..MRF..(07S,08S) L=100 |
2 | ||
| 63225-95J00 |
LH51,YH51..MRF *H,L=1350 |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63225-95J00 |
LH5#,YH51..MRF..08S L=1730 |
2 | ||
| 63223-95J00 |
LH50,51,YH51..MRF..(07S,08S) L=1950 |
1 | ||
| 63221-95J00 |
LH50,51,YH51..MRF..(07S,08S) L=60 |
2 | ||
| 63225-95J02 |
LH51,YH51..MRF COLD SPEC,L=1260 |
2 | ||
| 63223-95J04 |
LH50,51,YH51..MRF..(07S,08S) L=400 |
1 | ||
| 63224-95J00 |
LH50,51,YH51..MRF L=1700 |
3 | ||
| 63222-95J00 |
LH50,51,YH51..MRF..(07S,08S) L=100 |
2 | ||
| 63225-95J00 |
LH51,YH51..MRF *H,L=1350 |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63225-95J00 |
LH5#,YH51..MRF..08S L=1730 |
2 | ||
| 63223-95J00 |
LH50,51,YH51..MRF..(07S,08S) L=1950 |
1 | ||
| 63221-95J00 |
LH50,51,YH51..MRF..(07S,08S) L=60 |
2 | ||
| 63225-95J02 |
LH51,YH51..MRF COLD SPEC,L=1260 |
2 | ||
| 63223-95J04 |
LH50,51,YH51..MRF..(07S,08S) L=400 |
1 | ||
| 63224-95J00 |
LH50,51,YH51..MRF L=1700 |
3 | ||
| 63222-95J00 |
LH50,51,YH51..MRF..(07S,08S) L=100 |
2 | ||
| 63225-95J00 |
LH51,YH51..MRF *H,L=1350 |
2 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-95J00 |
LH51,YH51..MRF |
2 | ||
| 63248 - JOINT, SLIDE ROOF DRAIN HOSE, RH | ||||
| 63258-95702 |
LH50,51,YH51..MRF..(07S,08S) 3 WAY |
1 | ||
| 63249 - JOINT, SLIDE ROOF DRAIN HOSE, LH | ||||
| 63289-95700 |
LH50,51,YH51..MRF 2 WAY |
1 | ||
| 63258-95702 |
LH50,51,YH51..MRF..(07S,08S) 3 WAY |
1 | ||
| 63249 - JOINT, SLIDE ROOF DRAIN HOSE, LH | ||||
| 63289-95700 |
LH50,51,YH51..MRF 2 WAY |
1 | ||
| 63258-95702 |
LH50,51,YH51..MRF..(07S,08S) 3 WAY |
1 | ||
| 63285B - COVER, SLIDING ROOF HOUSING DRAIN, FRONT | ||||
| 63285-87004 |
LH51,YH51..MRF |
2 | ||
| 63285B - COVER, SLIDING ROOF HOUSING DRAIN, FRONT | ||||
| 63285-87004 |
LH51,YH51..MRF |
2 | ||
| Common parts | ||||
| 90464-00162 | ||||
| 90467-17126 | ||||
| 90480-25001 | ||||
| 90480-30015 | ||||
| 90480-32008 | ||||
| 90480-40009 | ||||
| 90950-01150 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
