YH51G-PES (1982)
Toyota Hiace Van,Wagon

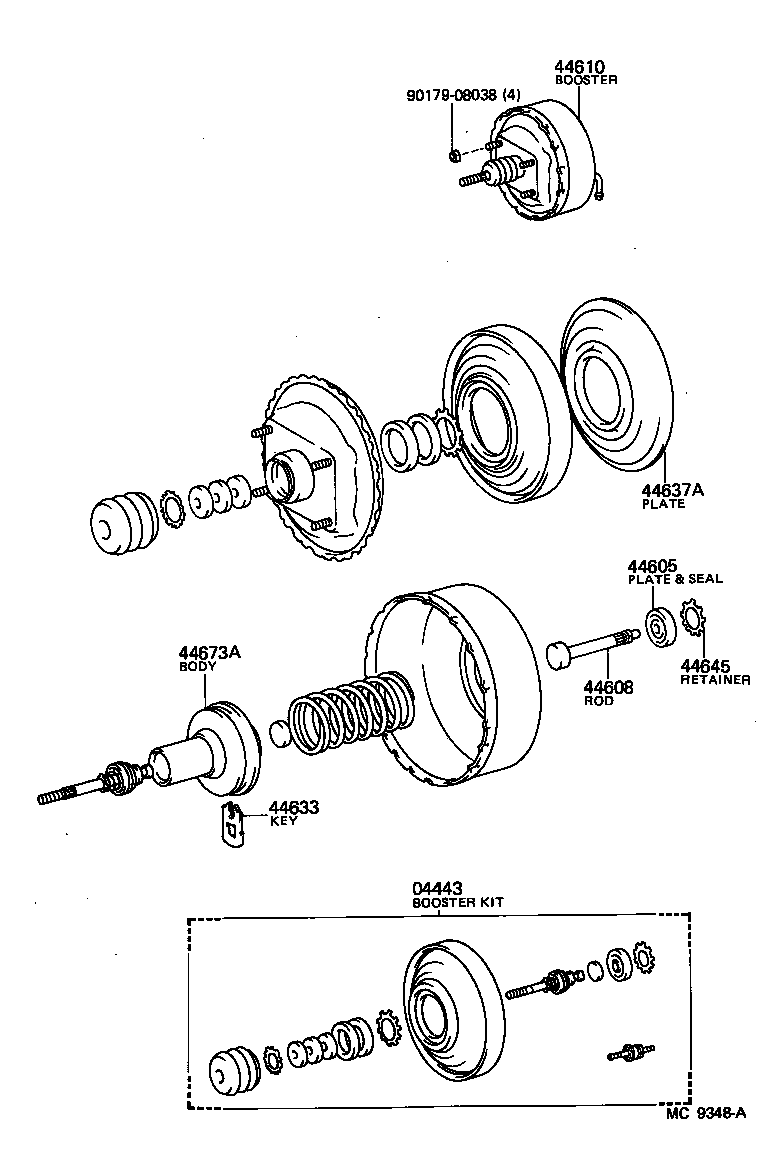

ILLUST NO. 1 OF 2(8212- )WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-26140 |
YH51,61..WG |
1 | ||
| 04443-26160 |
LH50,51,60,61..WG |
1 | ||
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-22021 |
LH50,51,60,61,YH51,61..WG |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44608-32020 |
LH50,51,60,61,YH51,61..WG |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-26210 |
LH50,51,60,61..WG |
1 | ||
| 44610-26210 |
YH51,61..WG |
1 | ||
| 44610-26190 |
YH51,61..WG |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-28130 |
LH50,51,60,61,YH51,61..WG |
1 | ||
| 44637A - PLATE, BOOSTER DIAPHRAGM | ||||
| 44637-32040 |
LH50,51,60,61,YH51,61..WG |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44645-22020 |
LH50,51,60,61,YH51,61..WG |
1 | ||
| 44673A - BODY, BOOSTER VALVE | ||||
| 44673-32020 |
LH50,51,60,61,YH51,61..WG |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
ILLUST NO. 2 OF 2(8212- )YH5#,61,71
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44729 - GASKET, VACUUM TUBE | ||||
| 44729-26020 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20010 |
YH5#,6#,71 |
1 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 44774-26030 |
YH5#,6#,71 |
1 | ||
| 44774-26070 |
YH5#,6#,71 |
1 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
LH5#,6#,7#,YH5#,6#,71 |
2 | ||
| 90467-16004 |
LH51,61,71,YH5#,6#,71 |
2 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51031 |
YH5#,6#,71 |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-26020 |
YH5#,6#,71 |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-26110 |
LH50,51,60,61,7#,YH5#,6#,71..CBR,DSL |
1 | ||
| 44761A - HOSE, VACUUM PUMP | ||||
| 44772-26040 |
YH5#,6#,71 |
1 | ||
| 44761D - CLAMP, VACUUM CHECK VALVE TO CONNECTOR TUBE | ||||
| 90467-16141 |
YH5#,6#,71 |
2 | ||
| 90467-16004 |
YH5#,6#,71 |
2 | ||
| 44761D - CLAMP, VACUUM CHECK VALVE TO CONNECTOR TUBE | ||||
| 90467-16141 |
YH5#,6#,71 |
2 | ||
| 90467-16004 |
YH5#,6#,71 |
2 | ||
| 44764 - TUBE, BOOSTER VACUUM | ||||
| 44764-26050 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-26010 |
YH5#,6#,71 |
1 | ||
| 44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE) | ||||
| 90467-16141 |
LH5#,6#,7#,YH5#,6#,71 |
2 | ||
| 90467-16004 |
LH51,61,71,YH5#,6#,71 |
2 | ||
| 44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE) | ||||
| 90467-16141 |
LH5#,6#,7#,YH5#,6#,71 |
2 | ||
| 90467-16004 |
LH51,61,71,YH5#,6#,71 |
2 | ||
| 44773 - HOSE, VACUUM, NO.2 | ||||
| 44773-26050 |
YH5#,6#,71 |
1 | ||
| 44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16141 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 90467-16004 |
LH51,61,71,YH5#,6#,71 |
1 | ||
| 44773B - CLIP, NO.2(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16004 |
LH51,61,71,YH5#,6#,71 |
1 | ||
| 90467-16141 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| Common parts | ||||
| 90461-10221 | ||||
| 91611-40814 | ||||
