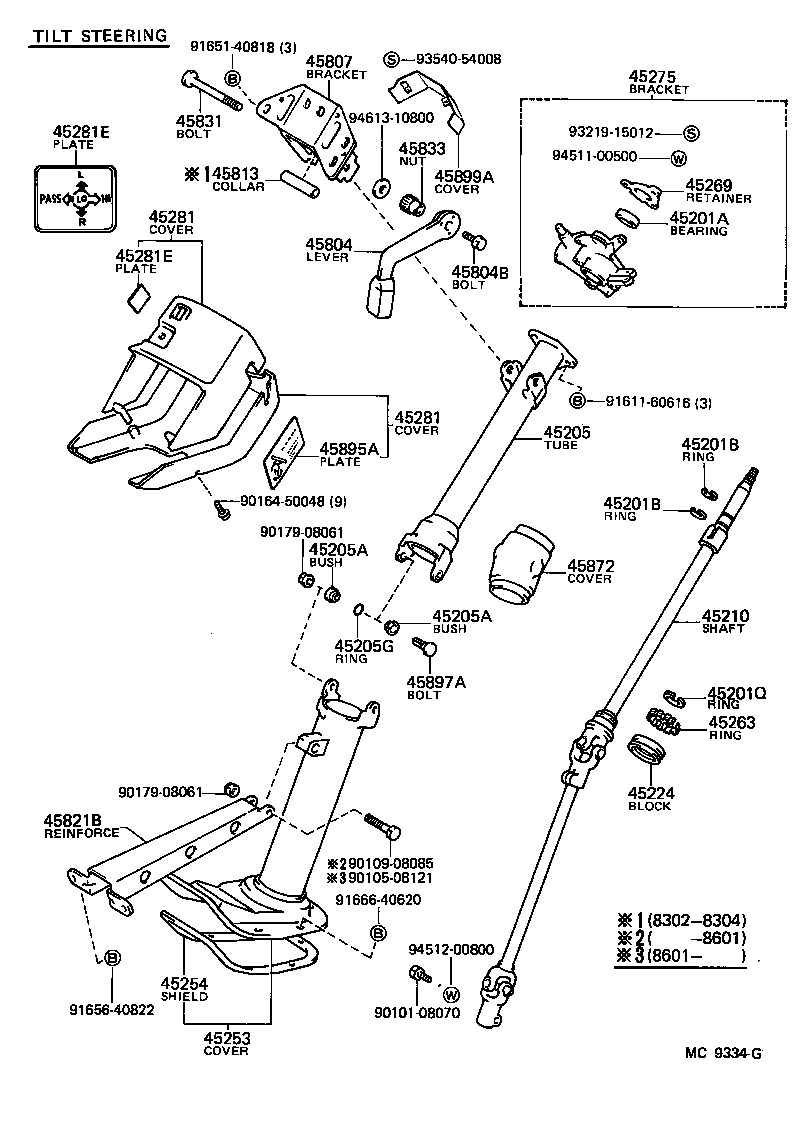

YH51G-PES (1982)
Toyota Hiace Van,Wagon
(8212- )LH50,51,YH51..07S,08S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
LH5#,6#,7#,YH5#,6#,71 厚さ=1.20,LWR |
1 | ||
| 90520-17269 |
LH5#,6#,7#,YH5#,6#,71 厚さ=1.20,UPR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
LH5#,6#,7#,YH5#,6#,71 厚さ=1.20,LWR |
1 | ||
| 90520-17269 |
LH5#,6#,7#,YH5#,6#,71 厚さ=1.20,UPR |
1 | ||
| 45201Q - RING(FOR STEERING COLUMN RING) | ||||
| 96152-00300 |
LH5#,6#,7#,YH5#,6#,71 LWR |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-26100 |
LH50,51,YH51..07S,08S |
1 | ||
| 45205A - BUSH(FOR STEERING COLUMN TUBE) | ||||
| 90389-11005 |
LH50,51,YH51..07S,08S |
4 | ||
| 45205A - BUSH(FOR STEERING COLUMN TUBE) | ||||
| 90389-11005 |
LH50,51,YH51..07S,08S |
4 | ||
| 45205G - RING, O(FOR STEERING COLUMN TUBE) | ||||
| 90301-11005 |
LH50,51,YH51..07S,08S |
2 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-26020 |
LH50,51,60,61,7#,YH5#,6#,71 W/POWER STEERING |
1 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45225-26010 |
LH5#,6#,7#,YH5#,6#,71 長さ=16 |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45204-26040 |
LH5#,YH51..07S,08S |
1 | ||
| 45204-26041 |
LH51,YH51..07S,08S |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-26050 |
LH5#,6#,71,YH5#,6#,71 |
1 | ||
| 45263 - RING, STEERING COLUMN, NO.1 | ||||
| 45263-26010 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 45263-32010 |
LH5#,6#,71,YH5#,6#,71 |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-35010 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45307-26070 |
YH51,61,71..COM,WG |
1 | ||
| 45307-26080 |
LH50,51,60,61,7# |
1 | ||
| 45307-26071 |
YH51,61,71..COM,WG |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45023-2615004 |
LH5#,YH51..4FC UPR,BLUE GRAY,BLUE |
1 | ||
| 45024-2601006 |
LH5#,YH51..08S LWR,BROWN,BROWN |
1 | ||
| 45023-2619004 |
LH5#,YH51..08S UPR,BLUE GRAY,BLUE |
1 | ||
| 45024-2601004 |
LH5#,YH51..08S LWR,BLUE GRAY,BLUE |
1 | ||
| 45023-2619006 |
LH5#,YH51..08S UPR,BROWN,BROWN |
1 | ||
| 45024-2601016 |
LH51,YH51..07S,08S LWR,BROWN,BROWN |
1 | ||
| 45024-2601014 |
LH51,61,YH5#,61..05S,08S LWR,BLUE,BLUE |
1 | ||
| 45023-2619014 |
LH5#,6#,YH5#,61..(GL,SCM)..(05S,08S) UPR,BLUE,BLUE |
1 | ||
| 45023-2619016 |
LH51,YH51..07S,08S UPR,BROWN,BROWN |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45023-2615004 |
LH5#,YH51..4FC UPR,BLUE GRAY,BLUE |
1 | ||
| 45024-2601006 |
LH5#,YH51..08S LWR,BROWN,BROWN |
1 | ||
| 45023-2619004 |
LH5#,YH51..08S UPR,BLUE GRAY,BLUE |
1 | ||
| 45024-2601004 |
LH5#,YH51..08S LWR,BLUE GRAY,BLUE |
1 | ||
| 45023-2619006 |
LH5#,YH51..08S UPR,BROWN,BROWN |
1 | ||
| 45024-2601016 |
LH51,YH51..07S,08S LWR,BROWN,BROWN |
1 | ||
| 45024-2601014 |
LH51,61,YH5#,61..05S,08S LWR,BLUE,BLUE |
1 | ||
| 45023-2619014 |
LH5#,6#,YH5#,61..(GL,SCM)..(05S,08S) UPR,BLUE,BLUE |
1 | ||
| 45023-2619016 |
LH51,YH51..07S,08S UPR,BROWN,BROWN |
1 | ||
| 45281E - PLATE, SAFETY CAUTION | ||||
| 45283-22010 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 45281E - PLATE, SAFETY CAUTION | ||||
| 45283-22010 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 45804 - LEVER SUB-ASSY, STEERING TILT | ||||
| 45804-26010 |
LH50,51,YH51..07S,08S |
1 | ||
| 45804B - BOLT(FOR STEERING TILT LEVER) | ||||
| 90105-08058 |
LH50,51,YH51..07S,08S |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45807-26010 |
LH50,51,YH51..07S,08S |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-26010 |
LH50,YH51..08S 長さ=40.6 |
1 | ||
| 45821B - REINFORCE, TILT STEERING SUPPORT, NO.1 | ||||
| 45821-26010 |
LH5#,YH51..07S,08S |
1 | ||
| 45821-26011 |
LH51,YH51..07S,08S |
1 | ||
| 45831 - BOLT, TILT LEVER LOCK, NO.1 | ||||
| 45831-26010 |
LH50,51,YH51..07S,08S |
1 | ||
| 45833 - NUT, TILT STEERING ADJUSTING, NO.1 | ||||
| 45833-26010 |
LH50,51,YH51..07S,08S |
1 | ||
| 45872 - COVER, STEERING COLUMN TUBE | ||||
| 45872-26010 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 45895A - PLATE, TILT STEERING CAUTION | ||||
| 45895-26030 |
LH5#,YH51..08S |
1 | ||
| 45895-26030 |
LH51,YH51..07S,08S |
1 | ||
| 45897A - BOLT, TILT STEERING PAWL SET | ||||
| 45897-26020 |
LH51,YH51..07S,08S |
2 | ||
| 45897-26010 |
LH50,51,YH51..07S,08S |
2 | ||
| 45899A - COVER, TILT STEERING SUPPORT STOPPER | ||||
| 45899-26010 |
LH50,51,YH51..07S,08S |
1 | ||
| Common parts | ||||
| 90101-08070 | ||||
| 90105-08121 | ||||
| 90109-08085 | ||||
| 90164-50048 | ||||
| 90179-08061 | ||||
| 91611-60616 | ||||
| 91651-40818 | ||||
| 91656-40822 | ||||
| 91666-40620 | ||||
| 93219-15012 | ||||
| 93540-54008 | ||||
| 94511-00500 | ||||
| 94512-00800 | ||||
| 94613-10800 | ||||
