YH51G-PES (1982)
Toyota Hiace Van,Wagon

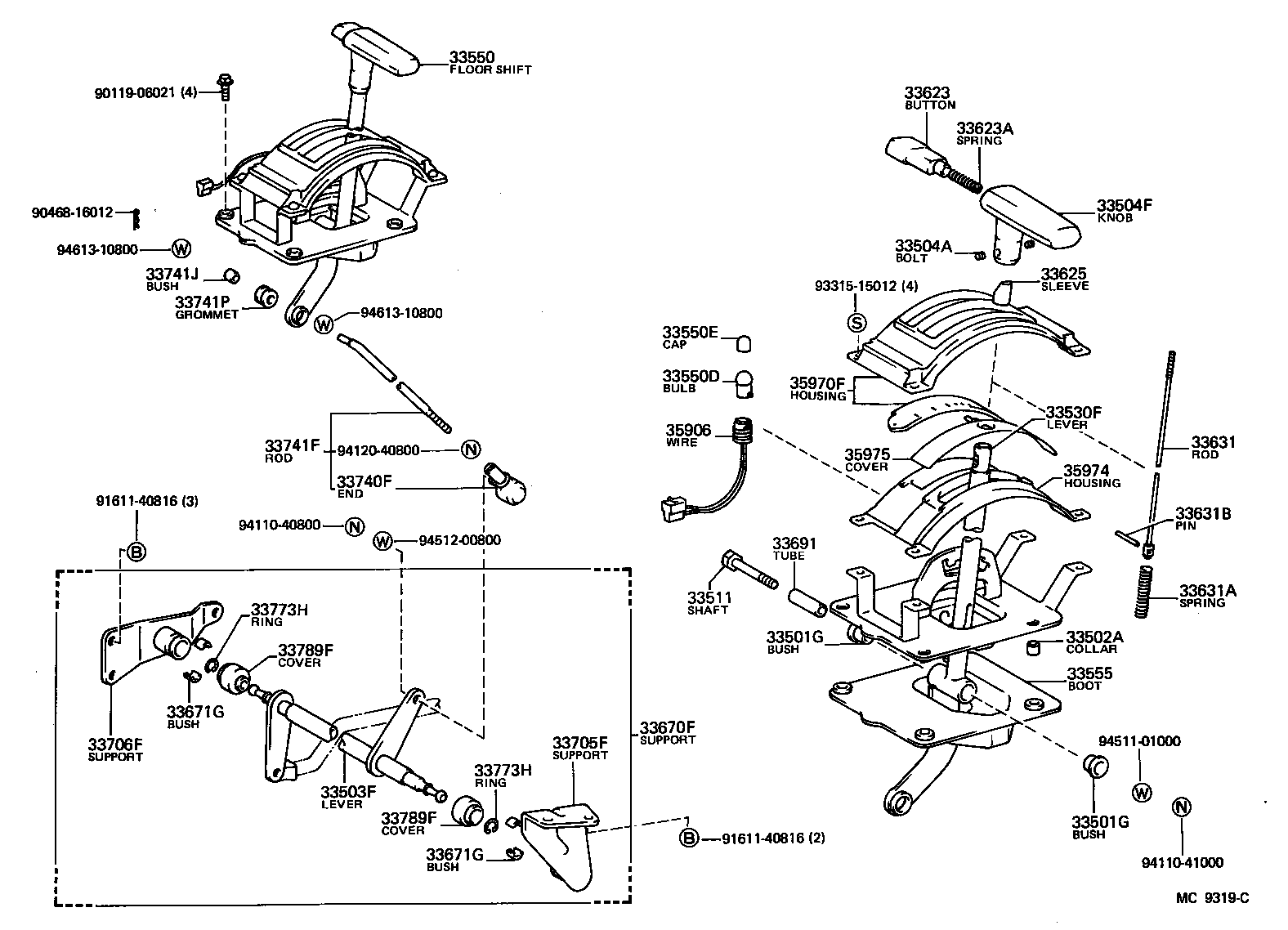

ILLUST NO. 1 OF 2(8212-8401)4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90386-14001 |
LH5#,YH51..4FC |
2 | ||
| 90385-14002 |
LH51,61,YH51,61..4FC |
2 | ||
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90386-14001 |
LH5#,YH51..4FC |
2 | ||
| 90385-14002 |
LH51,61,YH51,61..4FC |
2 | ||
| 33502A - COLLAR (FOR FLOOR SHIFT SETTING) | ||||
| 90387-06065 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) 外径=8.8 |
4 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-26110 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) |
1 | ||
| 33504A - BOLT OR PIN (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90113-05034 |
LH50,YH51..4FC |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-3011001 |
LH50,YH51..4FC BLACK |
1 | ||
| 33542-3201026 |
LH51,YH51..4FC BROWN,BROWN |
1 | ||
| 33542-3204016 |
LH51,61,YH51,61..4FC BROWN,BROWN |
1 | ||
| 33542-3201014 |
LH51,YH51..4FC BLUE GRAY,BLUE |
1 | ||
| 33542-3204014 |
LH51,61,YH51,61..4FC BLUE GRAY,BLUE |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 90101-10139 |
LH50,YH51..4FC |
1 | ||
| 33511-26180 |
LH51,61,YH51,61..4FC..(05S,07S,08S) |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33501-26180 |
LH50,YH51..4FC |
1 | ||
| 33501-26181 |
LH51,YH51..4FC |
1 | ||
| 33501-26182 |
LH51,61,YH51,61..4FC |
1 | ||
| 33550 - FLOOR SHIFT ASSY, TRANSMISSION | ||||
| 33550-26011 |
LH50,YH51..4FC |
1 | ||
| 33550-2601206 |
LH51,YH51..4FC BROWN,BROWN |
1 | ||
| 33550-2601204 |
LH51,YH51..4FC BLUE GRAY,BLUE |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 99132-11034 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) 12V 3.4W,12V 3.4W |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 90339-09002 |
LH51,61,YH51,61..4FC |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-14030 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-22060 |
LH50,YH51..4FC |
1 | ||
| 33623-3201026 |
LH51,YH51..4FC BROWN,BROWN |
1 | ||
| 33623-1602016 |
LH51,61,YH51,61..4FC BROWN,BROWN |
1 | ||
| 33623-1602014 |
LH51,61,YH51,61..4FC GRAY,BLUE |
1 | ||
| 33623-3201014 |
LH51,YH51..4FC BLUE GRAY,BLUE |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07009 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-32010 |
LH51,61,YH51,61..4FC..(05S,07S,08S) |
1 | ||
| 33625-16010 |
LH50,YH51..4FC |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-26010 |
LH50,YH51..4FC |
1 | ||
| 33631-26011 |
LH51,61,YH51,61..4FC..(05S,07S,08S) |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-08017 |
LH5#,YH51..4FC |
1 | ||
| 90501-07005 |
LH51,61,YH51,61..4FC |
1 | ||
| 33631B - PIN, SLOTTED SPRING (FOR DETENT ROD) | ||||
| 90256-04003 |
LH51,61,YH51,61..4FC |
1 | ||
| 90256-04001 |
LH5#,YH51..4FC |
1 | ||
| 33670F - SUPPORT ASSY, CONTROL ROD (FOR FLOOR SHIFT) | ||||
| 33670-26330 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) |
1 | ||
| 33671G - BUSH (FOR CONTROL ROD SUPPORT) | ||||
| 33772-20010 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) |
4 | ||
| 33671G - BUSH (FOR CONTROL ROD SUPPORT) | ||||
| 33772-20010 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) |
4 | ||
| 33691 - TUBE, CONTROL SHAFT | ||||
| 33691-26080 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) |
1 | ||
| 33705F - SUPPORT SUB-ASSY, CROSS SHAFT, NO.1 (FOR FLOOR SHIFT) | ||||
| 33705-26070 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) |
1 | ||
| 33706F - SUPPORT SUB-ASSY, CROSS SHAFT, NO.2 (FOR FLOOR SHIFT) | ||||
| 33706-26050 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) |
1 | ||
| 33740F - END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT) | ||||
| 33740-26010 |
LH51,YH51..08S |
1 | ||
| 33740-26010 |
LH5#,6#,YH51,61..4FC,5F |
2 | ||
| 33741F - ROD, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT) | ||||
| 33710-26120 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) |
1 | ||
| 33741J - BUSH, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90389-08005 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) |
1 | ||
| 33741P - GROMMET, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90480-17177 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) |
1 | ||
| 33773H - RING, SNAP (FOR CROSS SHAFT SUPPORT SNAP) | ||||
| 96151-01600 |
LH5#,61,66,YH51,61..05S,07S,08S |
3 | ||
| 33773H - RING, SNAP (FOR CROSS SHAFT SUPPORT SNAP) | ||||
| 96151-01600 |
LH5#,61,66,YH51,61..05S,07S,08S |
3 | ||
| 33789F - COVER, CROSS SHAFT DUST, NO.1(FOR FLOOR SHIFT) | ||||
| 33775-28040 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) |
2 | ||
| 33789F - COVER, CROSS SHAFT DUST, NO.1(FOR FLOOR SHIFT) | ||||
| 33775-28040 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) |
2 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-22020 |
LH5#,YH51..4FC |
1 | ||
| 35906-35020 |
LH51,61,YH51,61..4FC |
1 | ||
| 35970F - HOUSING ASSY, POSITION INDICATOR | ||||
| 35907-26051 |
LH51,61,YH51,61..4FC |
1 | ||
| 35907-26050 |
LH5#,YH51..4FC |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-22020 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-35010 |
LH51,61,YH51,61..4FC..(05S,07S,08S) |
1 | ||
| 35975-26010 |
LH50,YH51..4FC |
1 | ||
| Common parts | ||||
| 90119-06021 | ||||
| 90468-16012 | ||||
| 91611-40816 | ||||
| 93315-15012 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94120-40800 | ||||
| 94511-01000 | ||||
| 94512-00800 | ||||
| 94613-10800 | ||||

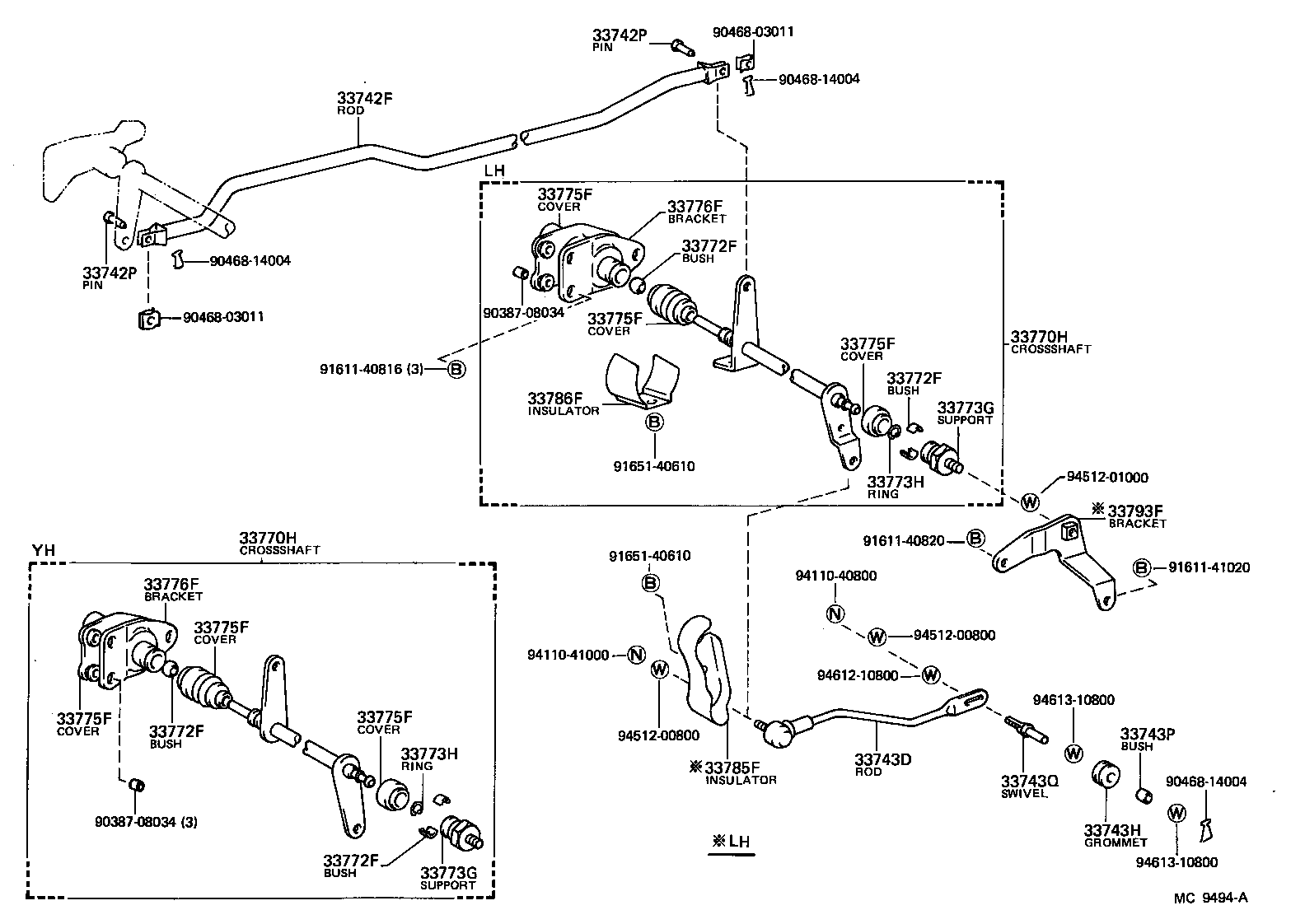

ILLUST NO. 2 OF 2(8212- )4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33742F - ROD, GEAR SHIFTING, NO.2(FOR FLOOR SHIFT) | ||||
| 33742-26140 |
LH5#,YH51..4FC |
1 | ||
| 33742-26141 |
LH51,61,YH51,61..4FC |
1 | ||
| 33742P - PIN, W/HOLE | ||||
| 90240-08042 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) |
2 | ||
| 33742P - PIN, W/HOLE | ||||
| 90240-08042 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) |
2 | ||
| 33743D - ROD, GEAR SHIFTING, NO.3 (FOR FLOOR SHIFT) | ||||
| 33840-26080 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) |
1 | ||
| 33743H - GROMMET (FOR GEAR SHIFTING NO.3 ROD) | ||||
| 90480-17177 |
LH5#,61,66,YH50,51,61..05S,07S,08S |
1 | ||
| 33743P - BUSH (FOR GEAR SHIFTING NO.3 ROD) | ||||
| 90389-08005 |
LH5#,61,66,YH50,51,61..05S,07S,08S |
1 | ||
| 33743Q - SWIVEL (FOR GEAR SELECTING ROD NO.3) | ||||
| 33723-22010 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) |
1 | ||
| 33770H - CROSS SHAFT ASSY (FOR FLOOR SHIFT) | ||||
| 33770-26060 |
YH51,61..4FC |
1 | ||
| 33770-26070 |
LH50,51,61..4FC..(05S,07S,08S) |
1 | ||
| 33770H - CROSS SHAFT ASSY (FOR FLOOR SHIFT) | ||||
| 33770-26060 |
YH51,61..4FC |
1 | ||
| 33770-26070 |
LH50,51,61..4FC..(05S,07S,08S) |
1 | ||
| 33772F - BUSH, CROSS SHAFT SUPPORT, NO.1 (FOR FLOOR SHIFT) | ||||
| 33772-20010 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) INNER |
2 | ||
| 33772-35011 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) OUTER |
1 | ||
| 33772F - BUSH, CROSS SHAFT SUPPORT, NO.1 (FOR FLOOR SHIFT) | ||||
| 33772-20010 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) INNER |
2 | ||
| 33772-35011 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) OUTER |
1 | ||
| 33772F - BUSH, CROSS SHAFT SUPPORT, NO.1 (FOR FLOOR SHIFT) | ||||
| 33772-20010 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) INNER |
2 | ||
| 33772-35011 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) OUTER |
1 | ||
| 33772F - BUSH, CROSS SHAFT SUPPORT, NO.1 (FOR FLOOR SHIFT) | ||||
| 33772-20010 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) INNER |
2 | ||
| 33772-35011 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) OUTER |
1 | ||
| 33773G - SUPPORT, CROSS SHAFT | ||||
| 33773-20020 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) |
1 | ||
| 33773G - SUPPORT, CROSS SHAFT | ||||
| 33773-20020 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) |
1 | ||
| 33773H - RING, SNAP (FOR CROSS SHAFT SUPPORT SNAP) | ||||
| 96151-01600 |
LH5#,61,66,YH51,61..05S,07S,08S |
3 | ||
| 33773H - RING, SNAP (FOR CROSS SHAFT SUPPORT SNAP) | ||||
| 96151-01600 |
LH5#,61,66,YH51,61..05S,07S,08S |
3 | ||
| 33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT) | ||||
| 33775-26030 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) OUTER |
1 | ||
| 33775-35010 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) CTR |
1 | ||
| 33775-20020 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) INNER |
1 | ||
| 33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT) | ||||
| 33775-26030 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) OUTER |
1 | ||
| 33775-35010 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) CTR |
1 | ||
| 33775-20020 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) INNER |
1 | ||
| 33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT) | ||||
| 33775-26030 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) OUTER |
1 | ||
| 33775-35010 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) CTR |
1 | ||
| 33775-20020 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) INNER |
1 | ||
| 33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT) | ||||
| 33775-26030 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) OUTER |
1 | ||
| 33775-35010 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) CTR |
1 | ||
| 33775-20020 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) INNER |
1 | ||
| 33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT) | ||||
| 33775-26030 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) OUTER |
1 | ||
| 33775-35010 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) CTR |
1 | ||
| 33775-20020 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) INNER |
1 | ||
| 33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT) | ||||
| 33775-26030 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) OUTER |
1 | ||
| 33775-35010 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) CTR |
1 | ||
| 33775-20020 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) INNER |
1 | ||
| 33776F - BRACKET, CROSS SHAFT, NO.1 (FOR FLOOR SHIFT) | ||||
| 33776-26060 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) |
1 | ||
| 33776F - BRACKET, CROSS SHAFT, NO.1 (FOR FLOOR SHIFT) | ||||
| 33776-26060 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) |
1 | ||
| 33785F - INSULATOR, CROSS SHAFT LEVER HEAT, NO.1 (FOR FLOOR SHIF | ||||
| 33785-26020 |
LH50,51,61..4FC..(05S,07S,08S) |
1 | ||
| 33786F - INSULATOR, CROSS SHAFT LEVER HEAT, NO.2 (FOR FLOOR SHIF | ||||
| 33786-26010 |
LH50,51,61..4FC..(05S,07S,08S) |
1 | ||
| 33793F - BRACKET, CROSS SHAFT, NO.2(FOR FLOOR SHIFT) | ||||
| 33793-26020 |
LH50,51,61..4FC..(05S,07S,08S) |
1 | ||
| Common parts | ||||
| 90387-08034 | ||||
| 90468-03011 | ||||
| 90468-14004 | ||||
| 91611-40816 | ||||
| 91611-40820 | ||||
| 91611-41020 | ||||
| 91651-40610 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94612-10800 | ||||
| 94613-10800 | ||||

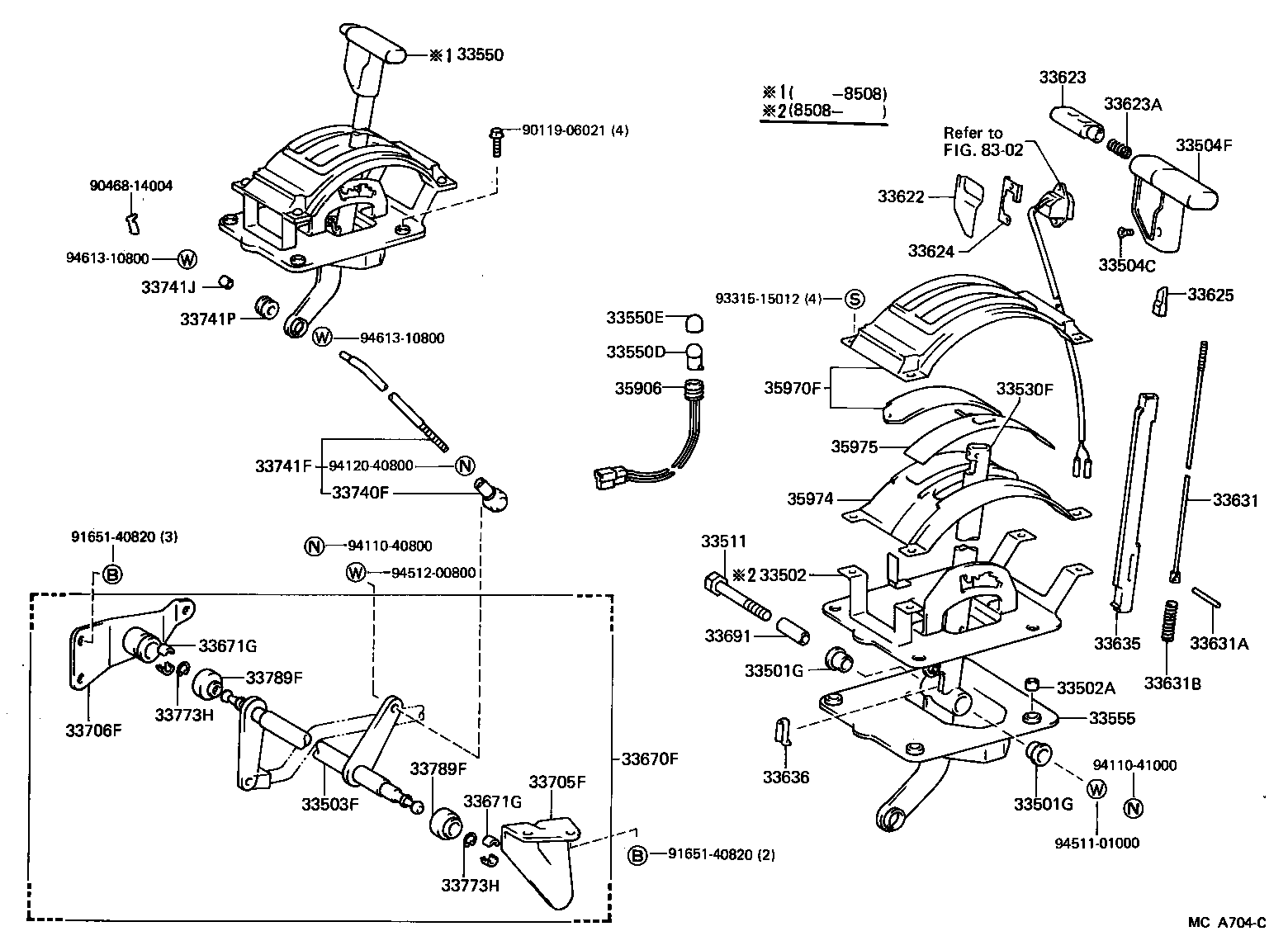

ILLUST NO. 1 OF 2(8401- )4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90386-14001 |
LH5#,YH51..4FC |
2 | ||
| 90385-14002 |
LH51,61,YH51,61..4FC |
2 | ||
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90386-14001 |
LH5#,YH51..4FC |
2 | ||
| 90385-14002 |
LH51,61,YH51,61..4FC |
2 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-26013 |
LH51,61,YH51,61..4FC |
1 | ||
| 33502A - COLLAR (FOR FLOOR SHIFT SETTING) | ||||
| 90387-06065 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) 外径=8.8 |
4 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-26110 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40109 |
LH51,61,YH51,61..4FC |
2 | ||
| 90149-40004 |
LH51,YH51..4FC |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-3011001 |
LH50,YH51..4FC BLACK |
1 | ||
| 33542-3201026 |
LH51,YH51..4FC BROWN,BROWN |
1 | ||
| 33542-3204016 |
LH51,61,YH51,61..4FC BROWN,BROWN |
1 | ||
| 33542-3201014 |
LH51,YH51..4FC BLUE GRAY,BLUE |
1 | ||
| 33542-3204014 |
LH51,61,YH51,61..4FC BLUE GRAY,BLUE |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 90101-10139 |
LH50,YH51..4FC |
1 | ||
| 33511-26180 |
LH51,61,YH51,61..4FC..(05S,07S,08S) |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33501-26180 |
LH50,YH51..4FC |
1 | ||
| 33501-26181 |
LH51,YH51..4FC |
1 | ||
| 33501-26182 |
LH51,61,YH51,61..4FC |
1 | ||
| 33550 - FLOOR SHIFT ASSY, TRANSMISSION | ||||
| 33550-26011 |
LH50,YH51..4FC |
1 | ||
| 33550-2601206 |
LH51,YH51..4FC BROWN,BROWN |
1 | ||
| 33550-2601204 |
LH51,YH51..4FC BLUE GRAY,BLUE |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 99132-11034 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) 12V 3.4W,12V 3.4W |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 90339-09002 |
LH51,61,YH51,61..4FC |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-14030 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) |
1 | ||
| 33622 - COVER, SHIFT LEVER KNOB, NO.1 | ||||
| 33622-1601026 |
LH51,61,YH51,61..4FC BROWN,BROWN |
1 | ||
| 33622-3202014 |
LH51,YH51..4FC BLUE GRAY,BEIGE |
1 | ||
| 33622-3202026 |
LH51,YH51..4FC BROWN,BROWN |
1 | ||
| 33622-1601014 |
LH51,61,YH51,61..4FC GRAY,BLUE |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-22060 |
LH50,YH51..4FC |
1 | ||
| 33623-3201026 |
LH51,YH51..4FC BROWN,BROWN |
1 | ||
| 33623-1602016 |
LH51,61,YH51,61..4FC BROWN,BROWN |
1 | ||
| 33623-1602014 |
LH51,61,YH51,61..4FC GRAY,BLUE |
1 | ||
| 33623-3201014 |
LH51,YH51..4FC BLUE GRAY,BLUE |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07009 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) |
1 | ||
| 33624 - HOLDER, KNOB COVER | ||||
| 33624-32010 |
LH51,YH51..4FC |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-32010 |
LH51,61,YH51,61..4FC..(05S,07S,08S) |
1 | ||
| 33625-16010 |
LH50,YH51..4FC |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-26010 |
LH50,YH51..4FC |
1 | ||
| 33631-26011 |
LH51,61,YH51,61..4FC..(05S,07S,08S) |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-08017 |
LH5#,YH51..4FC |
1 | ||
| 90501-07005 |
LH51,61,YH51,61..4FC |
1 | ||
| 33631B - PIN, SLOTTED SPRING (FOR DETENT ROD) | ||||
| 90256-04003 |
LH51,61,YH51,61..4FC |
1 | ||
| 90256-04001 |
LH5#,YH51..4FC |
1 | ||
| 33635 - GUIDE, WIRE (FOR SHIFT LEVER) | ||||
| 33635-26010 |
LH51,YH51..4FC |
1 | ||
| 33635-26011 |
LH51,61,YH51,61..4FC |
1 | ||
| 33636 - GUIDE, WIRE, NO.2 (FOR SHIFT LEVER) | ||||
| 33636-35010 |
LH51,61,YH51,61..4FC..(05S,07S,08S) |
1 | ||
| 33670F - SUPPORT ASSY, CONTROL ROD (FOR FLOOR SHIFT) | ||||
| 33670-26330 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) |
1 | ||
| 33671G - BUSH (FOR CONTROL ROD SUPPORT) | ||||
| 33772-20010 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) |
4 | ||
| 33671G - BUSH (FOR CONTROL ROD SUPPORT) | ||||
| 33772-20010 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) |
4 | ||
| 33691 - TUBE, CONTROL SHAFT | ||||
| 33691-26080 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) |
1 | ||
| 33705F - SUPPORT SUB-ASSY, CROSS SHAFT, NO.1 (FOR FLOOR SHIFT) | ||||
| 33705-26070 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) |
1 | ||
| 33706F - SUPPORT SUB-ASSY, CROSS SHAFT, NO.2 (FOR FLOOR SHIFT) | ||||
| 33706-26050 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) |
1 | ||
| 33740F - END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT) | ||||
| 33740-26010 |
LH51,YH51..08S |
1 | ||
| 33740-26010 |
LH5#,6#,YH51,61..4FC,5F |
2 | ||
| 33741F - ROD, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT) | ||||
| 33710-26120 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) |
1 | ||
| 33741J - BUSH, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90389-08005 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) |
1 | ||
| 33741P - GROMMET, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90480-17177 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) |
1 | ||
| 33773H - RING, SNAP (FOR CROSS SHAFT SUPPORT SNAP) | ||||
| 96151-01600 |
LH5#,61,66,YH51,61..05S,07S,08S |
3 | ||
| 33773H - RING, SNAP (FOR CROSS SHAFT SUPPORT SNAP) | ||||
| 96151-01600 |
LH5#,61,66,YH51,61..05S,07S,08S |
3 | ||
| 33789F - COVER, CROSS SHAFT DUST, NO.1(FOR FLOOR SHIFT) | ||||
| 33775-28040 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) |
2 | ||
| 33789F - COVER, CROSS SHAFT DUST, NO.1(FOR FLOOR SHIFT) | ||||
| 33775-28040 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) |
2 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-22020 |
LH5#,YH51..4FC |
1 | ||
| 35906-35020 |
LH51,61,YH51,61..4FC |
1 | ||
| 35970F - HOUSING ASSY, POSITION INDICATOR | ||||
| 35907-26051 |
LH51,61,YH51,61..4FC |
1 | ||
| 35907-26050 |
LH5#,YH51..4FC |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-22020 |
LH50,51,61,YH51,61..4FC..(05S,07S,08S) |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-35010 |
LH51,61,YH51,61..4FC..(05S,07S,08S) |
1 | ||
| 35975-26010 |
LH50,YH51..4FC |
1 | ||
| Common parts | ||||
| 90119-06021 | ||||
| 90468-14004 | ||||
| 91651-40820 | ||||
| 93315-15012 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94120-40800 | ||||
| 94511-01000 | ||||
| 94512-00800 | ||||
| 94613-10800 | ||||
| Linked diagrams | ||||
| 8302 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
