YH51G-PE (1987)

Toyota Hiace Van,Wagon

Production Aug 1987 - Aug 1989
Engine 3YU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )CTM,SCL,SCM

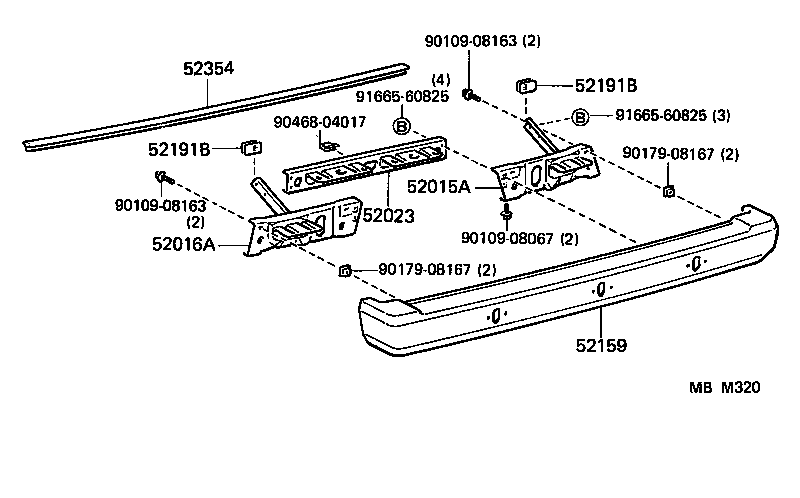

Click highlighted areas on diagram

diagram 52015A 52016A 52023 52159 52191B 52191B 52354 9010908067 9010908163 9010908163 9017908167 9017908167 9046804017 9166560825 9166560825
Part # Description Qty Price
52015A - ARM SUB-ASSY, REAR BUMPER, RH
52015-95J00

LH51,YH51,57..CTM,SCL,SCM

 1
52016A - ARM SUB-ASSY, REAR BUMPER, LH
52016-95J00

LH51,YH51,57..CTM,SCL,SCM

 1
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52023-95J00

LH51,YH51,57..CTM,SCL,SCM

 1
52159 - COVER, REAR BUMPER
52159-95J1203

LH51,YH51,57..08S

SILVER M,148 ,23H

 1
52159-95J1204

LH51,YH51,57..08S

BLUE M,20H ,8E1

 1
52159-95J1303

LH51,YH51,57..08S

ｱﾘ(ﾊﾞﾂｸ ｿﾅ-),SILVER M,148 ,23H

 1
52159-95J1305

LH51,YH51,57..07S,08S

ｱﾘ(ﾊﾞﾂｸ ｿﾅ-),BEIGE M,21H ,4D2

 1
52159-95J1304

LH51,YH51,57..08S

ｱﾘ(ﾊﾞﾂｸ ｿﾅ-),BLUE M,20H ,8E1

 1
52159-95J1205

LH51,YH51,57..07S,08S

BEIGE M,21H ,4D2

 1
52191B - GROMMET, REAR BUMPER STAY
52191-95A00

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 2
52191B - GROMMET, REAR BUMPER STAY
52191-95A00

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 2
52354 - SHUTTER, REAR CROSS TO BUMPER
52354-95J01

LH66..(DX,SGL)..08S;LH51,YH51,57..CTM,SCL,SCM;LH6#,YH6#..(03S,05S,06S,09S,10S,15S)..ST

 1
Common parts
90109-08067
90109-08163
90179-08167
90468-04017
91665-60825
