YH51G-PE (1987)

Toyota Hiace Van,Wagon

Production Aug 1987 - Aug 1989
Engine 3YU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )CTM,SCL,SCM

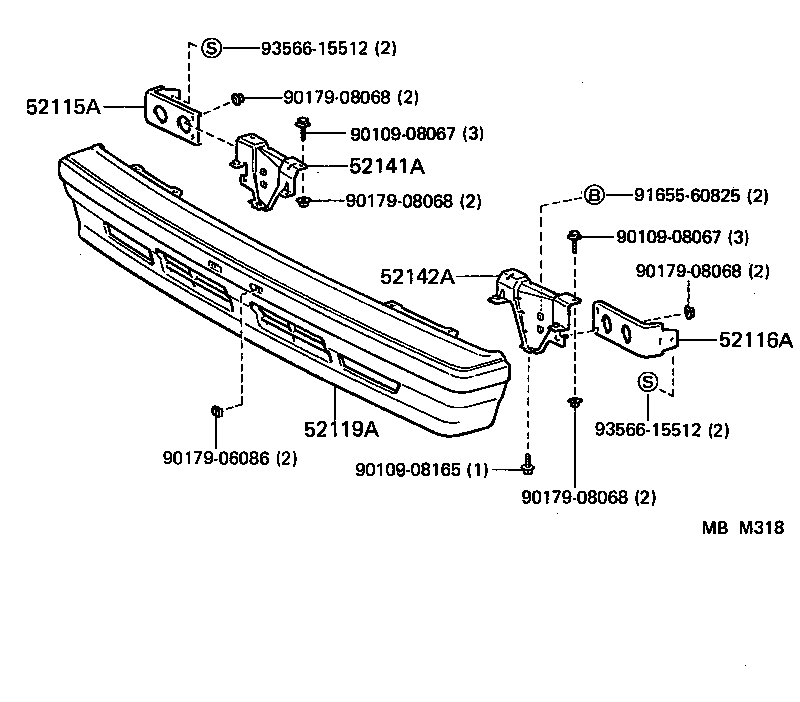

Click highlighted areas on diagram

diagram 52115A 52116A 52119A 52141A 52142A 9010908067 9010908067 9010908165 9017906086 9017908068 9017908068 9017908068 9017908068 9165560825 9356615512 9356615512
Part # Description Qty Price
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-95J01

LH51,YH51,57..CTM,SCL,SCM

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52115-95J01

LH51,YH51,57..CTM,SCL,SCM

 1
52119A - COVER, FRONT BUMPER
52119-95J1003

LH51,YH51,57..08S

SILVER M,148 ,23H

 1
52119-95J1004

LH51,YH51,57..08S

BLUE M,20H ,8E1

 1
52119-95J1005

LH51,YH51,57..08S

BEIGE M,4D2

 1
52141A - ARM, FRONT BUMPER, UPPER RH
52141-95J04

LH51,YH51,57..CTM,SCL,SCM

 1
52142A - ARM, FRONT BUMPER, UPPER LH
52142-95J04

LH51,YH51,57..CTM,SCL,SCM

 1
Common parts
90109-08067
90109-08165
90179-06086
90179-08068
91655-60825
93566-15512
