YH51G-PE (1982)
Toyota Hiace Van,Wagon
ILLUST NO. 2 OF 2(8212- )2Y,3Y#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17911 - DUCT, COOL AIR INTAKE, NO.1 | ||||
| 53299-95J00 |
2Y,3Y,3YJ..YH5#,6#,71 |
1 | ||
| 53299-95J00 |
2Y,3Y,3YJ..YH5#,6#,71 |
1 | ||
| 17911A - HOSE, COOL AIR INTAKE, NO.1 | ||||
| 17882-95J00 |
2Y,3Y,3YJ..YH5#,6#,71 |
1 | ||
| 17882-95J00 |
2Y,3Y,3YJ..YH5#,6#,71 |
1 | ||
| 17911B - BRACKET, COOL AIR INTAKE DUCT, NO.1 | ||||
| 17750-95J00 |
2Y,3Y#..YH5#,6#,71 W/HOT AIR INTAKE |
1 | ||
| 17750-95J00 |
2Y,3Y#..YH5#,6#,71 W/HOT AIR INTAKE |
1 | ||
| 17911C - CLAMP, COOL AIR INTAKE DUCT, NO.1 | ||||
| 53775-95J00 |
2Y,3Y,3YJ..YH5#,6#,71 |
1 | ||
| 53775-95J00 |
2Y,3Y,3YJ..YH5#,6#,71 |
1 | ||
| 17911D - BRACKET, COOL AIR INTAKE HOSE, NO.1 | ||||
| 53709-95J00 |
2Y,3Y,3YJ..YH5#,6#,71 |
1 | ||
| 53709-95J00 |
2Y,3Y,3YJ..YH5#,6#,71 |
1 | ||
| 17911E - CLAMP, COOL AIR INTAKE HOSE, NO.1 | ||||
| 96111-10780 |
2Y,3Y,3YJ..YH5#,6#,71 |
2 | ||
| 96111-10780 |
2Y,3Y,3YJ..YH5#,6#,71 |
2 | ||
| 17911E - CLAMP, COOL AIR INTAKE HOSE, NO.1 | ||||
| 96111-10780 |
2Y,3Y,3YJ..YH5#,6#,71 |
2 | ||
| 96111-10780 |
2Y,3Y,3YJ..YH5#,6#,71 |
2 | ||
| 17911G - SEAL, COOL AIR INTAKE HOSE | ||||
| 17755-95J00 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 17755-95J00 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 17911G - SEAL, COOL AIR INTAKE HOSE | ||||
| 17755-95J00 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 17755-95J00 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 17912 - DUCT, COOL AIR INTAKE, NO.2 | ||||
| 17768-95J00 |
2Y,3Y#..YH5#,6#,71 W/HOT AIR INTAKE |
1 | ||
| 17768-95J00 |
2Y,3Y#..YH5#,6#,71 W/HOT AIR INTAKE |
1 | ||
| 17767-95J00 |
2Y,3Y,3YJ..YH5#,6#,71 |
1 | ||
| 17767-95J00 |
2Y,3Y,3YJ..YH5#,6#,71 |
1 | ||
| 17912 - DUCT, COOL AIR INTAKE, NO.2 | ||||
| 17768-95J00 |
2Y,3Y#..YH5#,6#,71 W/HOT AIR INTAKE |
1 | ||
| 17768-95J00 |
2Y,3Y#..YH5#,6#,71 W/HOT AIR INTAKE |
1 | ||
| 17767-95J00 |
2Y,3Y,3YJ..YH5#,6#,71 |
1 | ||
| 17767-95J00 |
2Y,3Y,3YJ..YH5#,6#,71 |
1 | ||
| 17912B - BRACKET, COOL AIR INTAKE DUCT, NO.2 | ||||
| 17793-95J00 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 17793-95J00 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 17912B - BRACKET, COOL AIR INTAKE DUCT, NO.2 | ||||
| 17793-95J00 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 17793-95J00 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 17912C - CLAMP, COOL AIR INTAKE DUCT, NO.2 | ||||
| 17780-95J00 |
2Y,3Y,3YJ..YH5#,6#,71 |
1 | ||
| 17780-95J00 |
2Y,3Y,3YJ..YH5#,6#,71 |
1 | ||
| 17913 - DUCT, COOL AIR INTAKE, NO.3 | ||||
| 53285-95J00 |
2Y,3Y,3YJ..YH5#,6#,71 |
1 | ||
| 53285-95J00 |
2Y,3Y,3YJ..YH5#,6#,71 |
1 | ||
| Common parts | ||||
| 90119-08171 | ||||
| 90387-10100 | ||||
| 90480-16005 | ||||
| 91611-40620 | ||||
| 91616-40614 | ||||
| 91631-40825 | ||||
| 91656-40818 | ||||

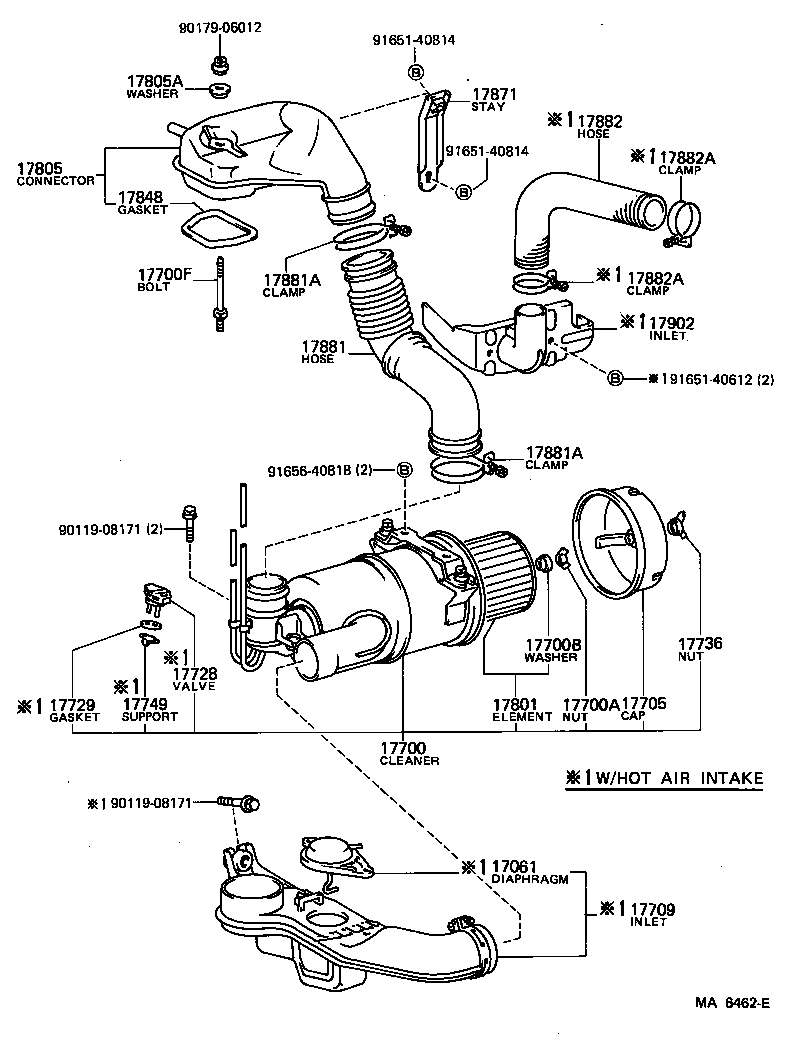

ILLUST NO. 1 OF 2(8212- )2Y,3Y#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17061 - DIAPHRAGM SUB-ASSY | ||||
| 17061-72010 |
2Y,3Y#..YH5#,6#,71 W/HOT AIR INTAKE |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-72020 |
2Y,3Y,3YJ..YH5#,6#,71..ST |
1 | ||
| 17700-72030 |
2Y,3Y#..YH5#,6#,71..ST W/HOT AIR INTAKE |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 94271-00800 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 17700B - WASHER, SEAL(FOR AIR CLEANER) | ||||
| 90210-08024 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06036 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-72020 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 17709 - INLET SUB-ASSY, AIR CLEANER | ||||
| 17709-72010 |
2Y,3Y#..YH5#,6#,71 W/HOT AIR INTAKE |
1 | ||
| 17728 - VALVE, THERMOSTATIC | ||||
| 17728-31010 |
2Y,3Y#..YH5#,6#,71 W/HOT AIR INTAKE |
1 | ||
| 17729 - GASKET, THERMOSTAT VALVE | ||||
| 17729-34010 |
2Y,3Y#..YH5#,6#,71 W/HOT AIR INTAKE |
1 | ||
| 17736 - NUT, AIR CLEANER CASE | ||||
| 90175-06003 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 17749 - SUPPORT, THERMOSTAT VALVE | ||||
| 17749-34010 |
2Y,3Y#..YH5#,6#,71 W/HOT AIR INTAKE |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-72010 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17805-73020 |
3YU..YH51,61 |
1 | ||
| 17805-73010 |
2Y,3Y,3YJ..YH5#,6#,71 |
1 | ||
| 17805A - GASKET & WASHER, SEAL | ||||
| 90210-09026 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 17848-35010 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 17871 - STAY, AIR CONNECTOR | ||||
| 17871-73010 |
2Y,3Y#..YH5#,6#,71 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-72010 |
2Y,3Y#..YH5#,6#,71..ST |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10780 |
2Y,3Y#..YH5#,6#,71 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10780 |
2Y,3Y#..YH5#,6#,71 |
2 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-31060 |
2Y,3Y#..YH5#,6#,71 W/HOT AIR INTAKE |
1 | ||
| 17881-74040 |
2Y,3Y#..YH5#,6#,71 W/HOT AIR INTAKE |
1 | ||
| 17882-72010 |
2Y,3Y#..YH5#,61,71 W/HOT AIR INTAKE |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-47036 |
2Y,3Y#..YH5#,6#,71 W/HOT AIR INTAKE |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-47036 |
2Y,3Y#..YH5#,6#,71 W/HOT AIR INTAKE |
2 | ||
| 17902 - INLET SUB-ASSY, HOT AIR INTAKE, NO.1 | ||||
| 17895-71010 |
2Y,3Y#..YH5#,6#,71 W/HOT AIR INTAKE |
1 | ||
| Common parts | ||||
| 90119-08171 | ||||
| 90179-06012 | ||||
| 91651-40612 | ||||
| 91651-40814 | ||||
| 91656-40818 | ||||
