YH51G-MES (1987)

Toyota Hiace Van,Wagon

Production Aug 1987 - Aug 1989
Engine 3YU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )YH51,57,61..WG

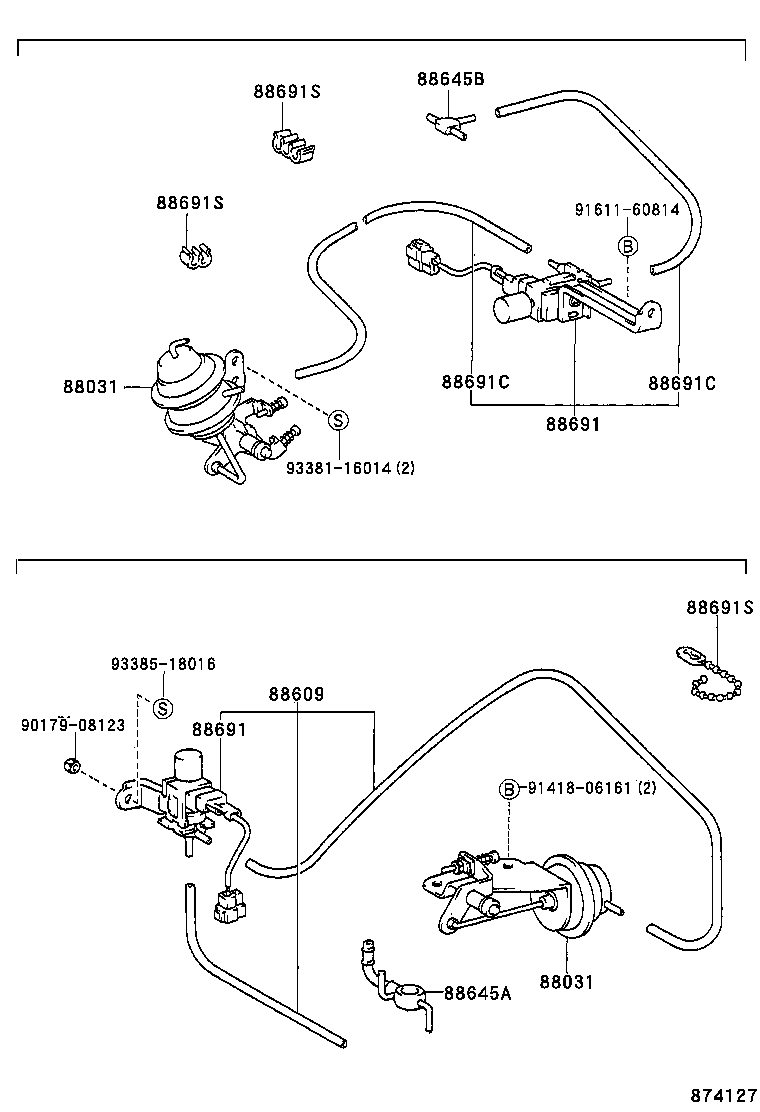

Click highlighted areas on diagram

diagram 88031 88031 88609 88645A 88645B 88691 88691 88691C 88691C 88691S 88691S 88691S 9017908123 9141806161 9161160814 9338116014 9338518016
Part # Description Qty Price
88609 - DEVICE SUB-ASSY, IDLE UP
88609-95J09

YH51..MRF..08S

 1
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90413-15001

LH51,YH51..MRF..08S

 4
90413-15001

LH51..MRF..5F;YH51..MRF..08S

 4
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95J23

YH61..10S;YH51..CTM,SCL,SCM

ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ

 1
88690-95J15

YH51,57..08S

ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ & ｱｲｽﾒ-ｶﾂｷ ﾚｲｵﾝｿﾞｳｺ)

 1
88690-95J23

YH61..10S;YH51..CTM,SCL,SCM

ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95J23

YH61..10S;YH51..CTM,SCL,SCM

ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ

 1
88690-95J15

YH51,57..08S

ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ & ｱｲｽﾒ-ｶﾂｷ ﾚｲｵﾝｿﾞｳｺ)

 1
88690-95J23

YH61..10S;YH51..CTM,SCL,SCM

ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10030

YH61..10S;YH51..CTM,SCL,SCM

長さ=300,ﾏｰｸ=#0

 1
95411-19960

YH51..CTM,SCL,SCM

*H,L=600,ﾏｰｸ=#*

 1
95411-10030

YH61..10S;YH51..CTM,SCL,SCM

長さ=300,ﾏｰｸ=#0

 1
90999-92002

YH51,57..08S

*H,L=300

 1
95411-19960

YH51..CTM,SCL,SCM

*H,L=600,ﾏｰｸ=#*

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10030

YH61..10S;YH51..CTM,SCL,SCM

長さ=300,ﾏｰｸ=#0

 1
95411-19960

YH51..CTM,SCL,SCM

*H,L=600,ﾏｰｸ=#*

 1
95411-10030

YH61..10S;YH51..CTM,SCL,SCM

長さ=300,ﾏｰｸ=#0

 1
90999-92002

YH51,57..08S

*H,L=300

 1
95411-19960

YH51..CTM,SCL,SCM

*H,L=600,ﾏｰｸ=#*

 1
88691S - CLAMP (FOR IDLE UP DIVICE), NO.1
90464-00082

YH61..10S;YH51..CTM,SCL,SCM

ｶﾝﾚｲﾁ ｼﾖｳ

 2
90464-00082

YH61..10S;YH51..CTM,SCL,SCM

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 2
88691S - CLAMP (FOR IDLE UP DIVICE), NO.1
90464-00082

YH61..10S;YH51..CTM,SCL,SCM

ｶﾝﾚｲﾁ ｼﾖｳ

 2
90464-00082

YH61..10S;YH51..CTM,SCL,SCM

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 2
88691S - CLAMP (FOR IDLE UP DIVICE), NO.1
90464-00082

YH61..10S;YH51..CTM,SCL,SCM

ｶﾝﾚｲﾁ ｼﾖｳ

 2
90464-00082

YH61..10S;YH51..CTM,SCL,SCM

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 2
Common parts
90179-08123
91418-06161
91611-60814
93381-16014
93385-18016
