YH51G-MES (1987)

Toyota Hiace Van,Wagon

Production Aug 1987 - Aug 1989
Engine 3YU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )MRF

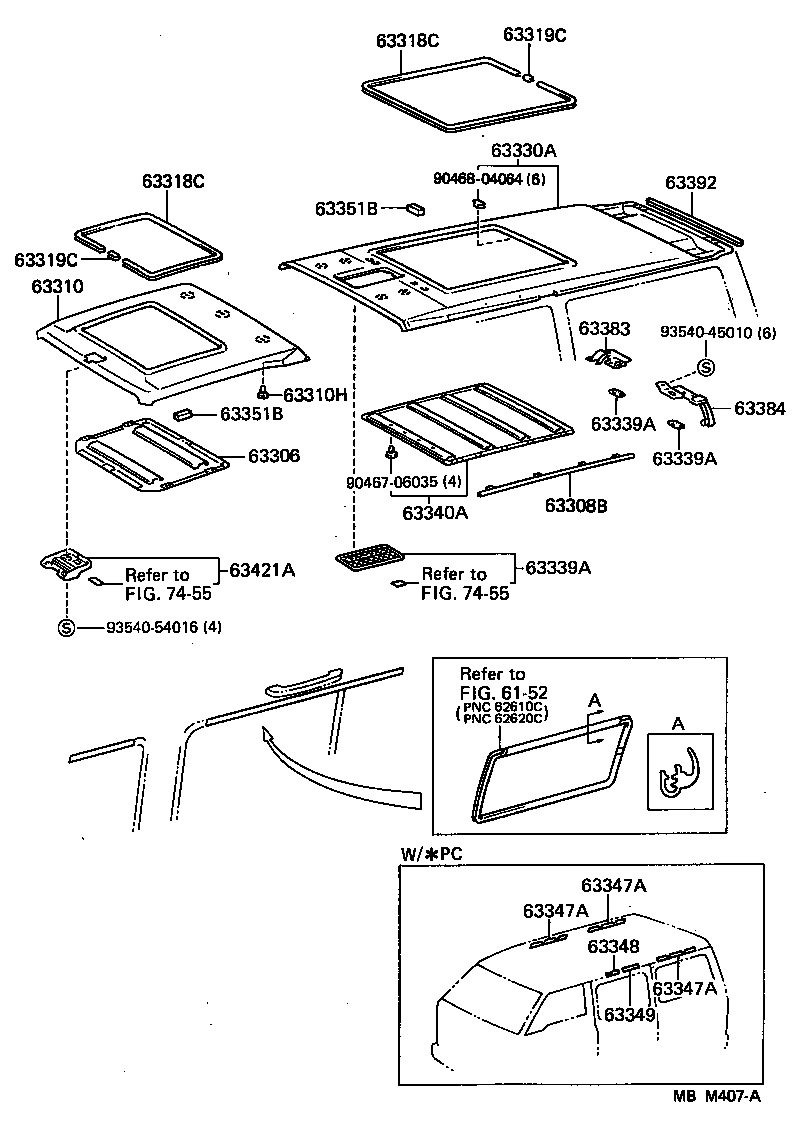

Click highlighted areas on diagram

diagram 6152 63306 63308B 63310 63310H 63318C 63318C 63319C 63319C 63330A 63339A 63339A 63339A 63340A 63347A 63347A 63347A 63348 63349 63351B 63351B 63383 63384 63392 63421A 7455 7455 9046706035 9046804064 9354045010 9354054016
Part # Description Qty Price
63306 - TRIM SUB-ASSY, SUNSHADE
63305-95J0203

LH51,YH51..MRF..08S

GRAY,TRIM8#

 1
63305-95J0205

LH51,YH51..MRF..08S

GRAIGE,TRIM4#

 1
63308B - TRIM SUB-ASSY, ROOF HEADLINING, LH
63308-95J0005

LH51,YH51..MRF

GRAIGE,TRIM4#

 1
63308-95J0003

LH51,YH51..MRF..08S

GRAY,TRIM8#

 1
63310 - HEADLINING ASSY, ROOF
63310-95J1303

LH51,YH51..MRF..08S

ｱﾘ(ｶ-ﾃﾝ),GRAY,TRIM8#

 1
63310-95J1205

LH51,YH51..MRF..08S

GRAIGE,TRIM4#

 1
63310-95J1203

LH51,YH51..MRF..08S

GRAY,TRIM8#

 1
63310-95J1305

LH51,YH51..MRF..08S

ｱﾘ(ｶ-ﾃﾝ),GRAIGE,TRIM4#

 1
63310H - CLIP(FOR ROOF HEADLINING)
90467-0502115

LH51,YH51..MRF

GRAIGE,TRIM4#

 3
90467-0502103

LH51,YH51..MRF..08S

GRAY,TRIM8#

 3
63318C - MOULDING, SUN ROOF OPENING TRIM
63318-95J0203

LH51,YH51..MRF..08S

GRAY,TRIM8#,ﾌﾛﾝﾄ

 1
63318-95J0205

LH51,YH51..MRF

GRAIGE,TRIM4#,ﾌﾛﾝﾄ

 1
63318-95J0305

LH51,YH51..MRF

GRAIGE,TRIM4#,ﾘﾔ

 1
63318-95J0303

LH51,YH51..MRF..08S

GRAY,TRIM8#,ﾘﾔ

 1
63318C - MOULDING, SUN ROOF OPENING TRIM
63318-95J0203

LH51,YH51..MRF..08S

GRAY,TRIM8#,ﾌﾛﾝﾄ

 1
63318-95J0205

LH51,YH51..MRF

GRAIGE,TRIM4#,ﾌﾛﾝﾄ

 1
63318-95J0305

LH51,YH51..MRF

GRAIGE,TRIM4#,ﾘﾔ

 1
63318-95J0303

LH51,YH51..MRF..08S

GRAY,TRIM8#,ﾘﾔ

 1
63319C - JOINT, SUN ROOF OPENING TRIM
63319-14011

LH51,YH51..MRF

 2
63319C - JOINT, SUN ROOF OPENING TRIM
63319-14011

LH51,YH51..MRF

 2
63330A - HEADLINING ASSY, ROOF, REAR
63330-95J0403

LH51,YH51..MRF..08S

GRAY,TRIM8#

 1
63330-95J0603

LH51,YH51..MRF..08S

ｱﾘ(ｶ-ﾃﾝ),GRAY,TRIM8#

 1
63330-95J0605

LH51,YH51..MRF..08S

ｱﾘ(ｶ-ﾃﾝ),GRAIGE,TRIM4#

 1
63330-95J0405

LH51,YH51..MRF..08S

GRAIGE,TRIM4#

 1
63339A - COVER, ROOF HEADLINING SERVICE HOLE
63339-9570005

LH51,YH51..MRF

GRAIGE,TRIM4#,ﾘﾔ

 2
63339-95J0003

LH51,YH51..MRF..08S

GRAY,TRIM8#,ﾌﾛﾝﾄ

 1
63339-95J0005

LH51,YH51..MRF

GRAIGE,TRIM4#,ﾌﾛﾝﾄ

 1
63339-9570003

LH51,YH51..MRF..08S

GRAY,TRIM8#,ﾘﾔ

 2
63339A - COVER, ROOF HEADLINING SERVICE HOLE
63339-9570005

LH51,YH51..MRF

GRAIGE,TRIM4#,ﾘﾔ

 2
63339-95J0003

LH51,YH51..MRF..08S

GRAY,TRIM8#,ﾌﾛﾝﾄ

 1
63339-95J0005

LH51,YH51..MRF

GRAIGE,TRIM4#,ﾌﾛﾝﾄ

 1
63339-9570003

LH51,YH51..MRF..08S

GRAY,TRIM8#,ﾘﾔ

 2
63339A - COVER, ROOF HEADLINING SERVICE HOLE
63339-9570005

LH51,YH51..MRF

GRAIGE,TRIM4#,ﾘﾔ

 2
63339-95J0003

LH51,YH51..MRF..08S

GRAY,TRIM8#,ﾌﾛﾝﾄ

 1
63339-95J0005

LH51,YH51..MRF

GRAIGE,TRIM4#,ﾌﾛﾝﾄ

 1
63339-9570003

LH51,YH51..MRF..08S

GRAY,TRIM8#,ﾘﾔ

 2
63340A - HEADLINING ASSY, SUN ROOF, REAR
63340-95J0213

LH51,YH51..MRF..08S

GRAY,TRIM8#

 1
63340-95J0205

LH51,YH51..MRF..08S

GRAIGE,TRIM4#

 1
63347A - PAD, ROOF SILENCER, NO.7
63347-95J00

LH51,YH51..MRF..08S

 3
63347A - PAD, ROOF SILENCER, NO.7
63347-95J00

LH51,YH51..MRF..08S

 3
63347A - PAD, ROOF SILENCER, NO.7
63347-95J00

LH51,YH51..MRF..08S

 3
63348 - PAD, ROOF SILENCER, NO.8
63348-95J00

LH51,YH51..MRF..08S

 1
63349 - PAD, ROOF SILENCER, NO.9
63349-95J00

LH51,YH51..MRF..08S

 1
63351B - PAD, ROOF HEADLINING
63351-95J02

LH51,YH51..MRF

20X17X30

 1
63351-95J00

LH51,YH51..MRF

20X12X30

 2
63351B - PAD, ROOF HEADLINING
63351-95J02

LH51,YH51..MRF

20X17X30

 1
63351-95J00

LH51,YH51..MRF

20X12X30

 2
63383 - RETAINER, ROOF HEADLINING, REAR RH
63383-95J00

LH51,6#,YH51,57..CTM,SCL,SCM,SGL

 1
63384 - RETAINER, ROOF HEADLINING, REAR LH
63384-95J00

LH51,6#,YH51,57..CTM,SCL,SCM,SGL

 1
63392 - TRIM, ROOF HEADLINING, REAR
63392-95J0103

LH51,YH51..MRF..08S

GRAY,TRIM8#

 1
63392-95J0105

LH51,YH51..MRF

GRAIGE,TRIM4#

 1
63421A - ORNAMENT, ROOF CONSOLE
63421-95J0003

LH51,YH51..MRF..08S

GRAY,TRIM8#

 1
63421-95J0005

LH51,YH51..MRF..08S

GRAIGE,TRIM4#

 1
Common parts
90467-06035
90468-04064
93540-45010
93540-54016
Linked diagrams
6152
7455
