YH51G-MES (1987)
Toyota Hiace Van,Wagon

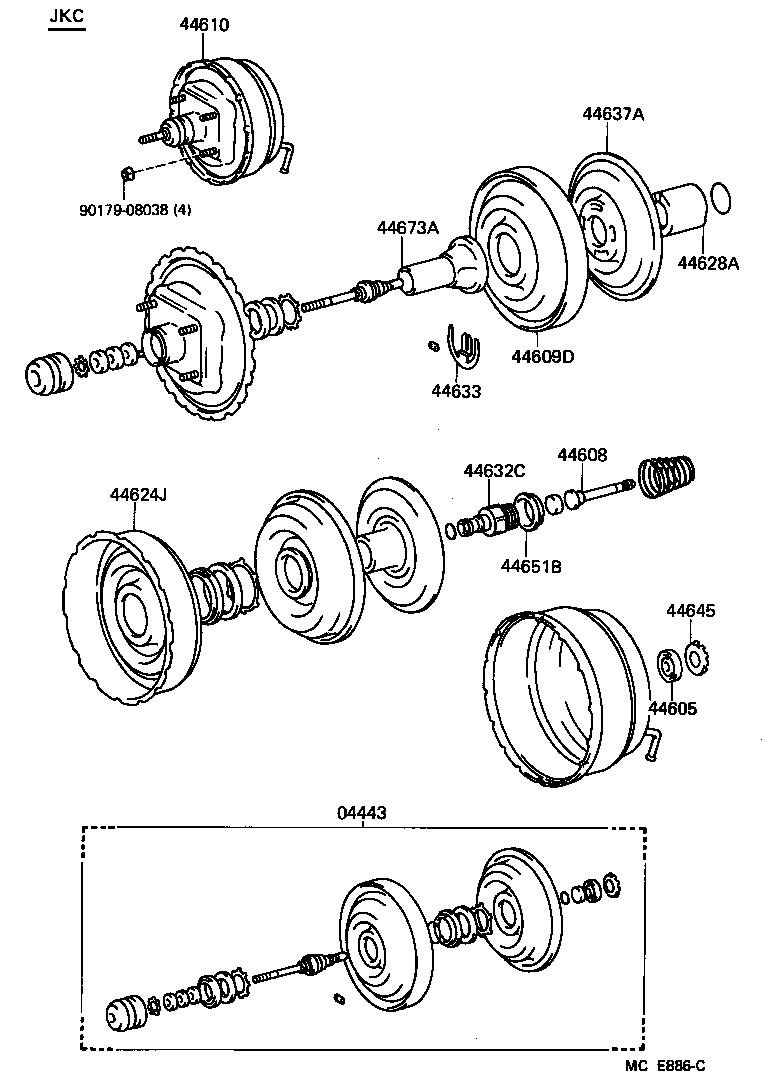

ILLUST NO. 1 OF 2(8708- )WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-26390 |
YH51,61..WG |
1 | ||
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-30350 |
LH51,61,71,YH51,61..WG |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44608-17090 |
LH51,61,71,YH51,61..WG |
1 | ||
| 44609D - PLATE & RETAINER SUB-ASSY, BOOSTER | ||||
| 44609-26380 |
YH51,61..WG |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-26380 |
YH51,61..WG |
1 | ||
| 44624J - PLATE, BOOSTER CENTER | ||||
| 44624-28300 |
YH51,61..WG |
1 | ||
| 44632C - PLATE, REACTION | ||||
| 44632-22620 |
LH51,61,71,YH51,61..WG |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-20811 |
LH51,61,71,YH51,61..WG |
1 | ||
| 44637A - PLATE, BOOSTER DIAPHRAGM | ||||
| 44637-28300 |
YH51,61..WG |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44645-10080 |
LH51,61,71,YH51,61..WG |
1 | ||
| 44651B - NUT, BOOSTER | ||||
| 44651-20810 |
LH51,61,71,YH51,61..WG |
1 | ||
| 44673A - BODY, BOOSTER VALVE | ||||
| 44673-20810 |
LH51,61,71,YH51,61..WG |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
ILLUST NO. 2 OF 2(8708- )YH50,51,52,6#,71
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44729 - GASKET, VACUUM TUBE | ||||
| 44729-26020 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20010 |
YH50,51,52,6#,71 |
1 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,52,6#,71 |
8 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,52,6#,71 |
8 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,52,6#,71 |
8 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,52,6#,71 |
8 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,52,6#,71 |
8 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,52,6#,71 |
8 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,52,6#,71 |
8 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,52,6#,71 |
8 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51031 |
YH5#,6#,71 |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-26020 |
YH50,51,52,6#,71 |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-26110 |
LH51,61,71,YH50,51,52,6#,71..CBR,DSL |
1 | ||
| 44761B - CLAMP, CONNEECTOR TUBE | ||||
| 90461-10221 |
LH51,61,71,YH50,51,52,6#,71 |
2 | ||
| 44761B - CLAMP, CONNEECTOR TUBE | ||||
| 90461-10221 |
LH51,61,71,YH50,51,52,6#,71 |
2 | ||
| 44764G - TUBE, CONNECTOR TO BRAKE BOOSTER | ||||
| 44764-26050 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-26010 |
YH5#,6#,71 |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-26040 |
YH50,51,52,6#,71 |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-26050 |
YH50,51,52,6#,71 |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-26120 |
YH51,57,61..WG |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
