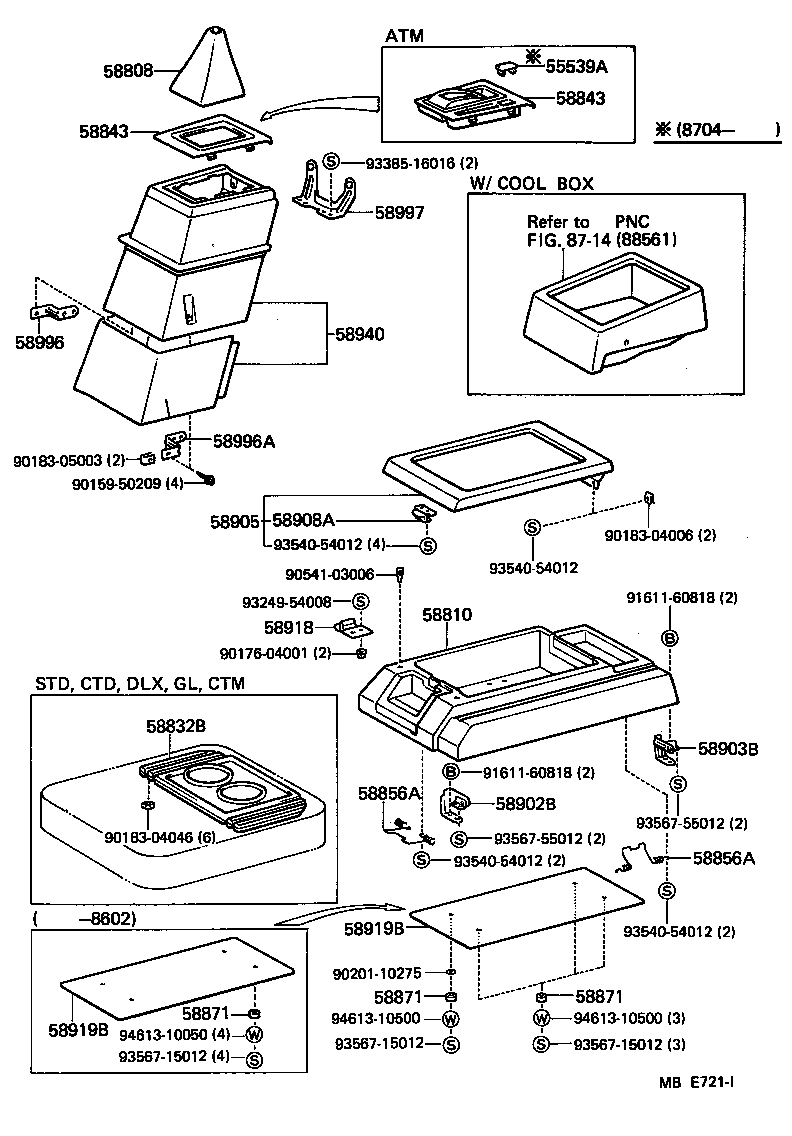

YH51G-ME (1982)
Toyota Hiace Van,Wagon
(8212- )LH50,51,61,YH5#,61..CTD,CTM,DLX,GL,SCM,STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58840-95J01 |
LH51,YH51..5F..08S |
1 | ||
| 58840-95J00 |
LH50,YH51..5F |
1 | ||
| 58810 - CONSOLE ASSY | ||||
| 58811-95J0006 |
LH5#,YH51..08S BROWN,BROWN |
1 | ||
| 58811-95J0004 |
LH5#,YH51..08S BLUE GRAY,BLUE |
1 | ||
| 58811-95J0016 |
LH51,YH51..08S BROWN,BROWN |
1 | ||
| 58811-95J0014 |
LH5#,6#,YH5#,61..(GL,SCM)..(05S,08S) BLUE,BLUE |
1 | ||
| 58843 - BEZEL, SHIFTING HOLE | ||||
| 58843-95J00 |
LH50,51,YH51..5F..08S |
1 | ||
| 58843 - BEZEL, SHIFTING HOLE | ||||
| 58843-95J00 |
LH50,51,YH51..5F..08S |
1 | ||
| 58856A - HOLDER, CONSOLE BOX | ||||
| 58856-95J01 |
LH50,51,YH51..08S FR |
1 | ||
| 58856-95J00 |
LH50,51,YH51..08S SIDE |
1 | ||
| 58856A - HOLDER, CONSOLE BOX | ||||
| 58856-95J01 |
LH50,51,YH51..08S FR |
1 | ||
| 58856-95J00 |
LH50,51,YH51..08S SIDE |
1 | ||
| 58871 - CUSHION, CONSOLE BOX | ||||
| 58871-95J00 |
LH50,51,YH51..08S |
4 | ||
| 90540-10005 |
LH50,YH51..08S |
4 | ||
| 58871 - CUSHION, CONSOLE BOX | ||||
| 58871-95J00 |
LH50,51,YH51..08S |
4 | ||
| 90540-10005 |
LH50,YH51..08S |
4 | ||
| 58871 - CUSHION, CONSOLE BOX | ||||
| 58871-95J00 |
LH50,51,YH51..08S |
4 | ||
| 90540-10005 |
LH50,YH51..08S |
4 | ||
| 58902B - BRACKET SUB-ASSY, CONSOLE BOX HINGE, NO.1 | ||||
| 58902-95J01 |
LH5#,6#,YH5#,61..05S,08S |
1 | ||
| 58902-95J00 |
LH5#,YH51..08S |
1 | ||
| 58903B - BRACKET SUB-ASSY, CONSOLE BOX HINGE, NO.2 | ||||
| 58903-95J01 |
LH5#,6#,YH5#,61..05S,08S |
1 | ||
| 58903-95J00 |
LH5#,YH51..08S |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-95J0016 |
LH51,YH51..08S BROWN,BROWN |
1 | ||
| 58905-95J0014 |
LH5#,6#,YH5#,61..(GL,SCM)..(05S,08S) BLUE,BLUE |
1 | ||
| 58905-95J0004 |
LH5#,YH51..08S BLUE GRAY,BLUE |
1 | ||
| 58905-95J0006 |
LH5#,YH51..08S BROWN,BROWN |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-12010 |
LH50,51,YH51..07S,08S |
1 | ||
| 58918 - SPRING, CONSOLE BOX STOPPER | ||||
| 58918-95J00 |
LH50,51,YH51..08S |
1 | ||
| 58919B - PLATE, CONSOLE BOX | ||||
| 58919-95J00 |
LH50,51,YH51..08S |
1 | ||
| 58919B - PLATE, CONSOLE BOX | ||||
| 58919-95J00 |
LH50,51,YH51..08S |
1 | ||
| 58940 - CONSOLE ASSY, REAR | ||||
| 58901-95J0006 |
LH50,YH51..08S BROWN,BROWN |
1 | ||
| 58901-95J0304 |
LH51,YH51..08S LIVING SALOON EX,BLUE,BLUE |
1 | ||
| 58901-95J0104 |
LH51,YH51..08S BLUE GRAY,BLUE |
1 | ||
| 58901-95J0106 |
LH51,YH51..08S BROWN,BROWN |
1 | ||
| 58901-95J0004 |
LH50,YH51..08S BLUE GRAY,BLUE |
1 | ||
| 58901-95J0114 |
LH51,YH51..08S BLUE,BLUE |
1 | ||
| 58901-95J0116 |
LH51,YH51..08S BROWN,BROWN |
1 | ||
| 58996 - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-95J00 |
LH50,51,YH51..07S,08S |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-95J00 |
LH50,51,YH51..07S,08S |
1 | ||
| 58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3 | ||||
| 58997-95J00 |
LH50,51,YH51..07S,08S |
1 | ||
| Common parts | ||||
| 90159-50209 | ||||
| 90176-04001 | ||||
| 90183-04006 | ||||
| 90183-04046 | ||||
| 90183-05003 | ||||
| 90201-10275 | ||||
| 90541-03006 | ||||
| 91611-60818 | ||||
| 93249-54008 | ||||
| 93385-16016 | ||||
| 93540-54012 | ||||
| 93567-15012 | ||||
| 93567-55012 | ||||
| 94613-10050 | ||||
| 94613-10500 | ||||
| Linked diagrams | ||||
| 8714 | ||||
