YH50V-QDE (1987)

Toyota Hiace Van,Wagon

Production Aug 1987 - Aug 1989
Engine 2Y
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )CD,DX,GL,SGL

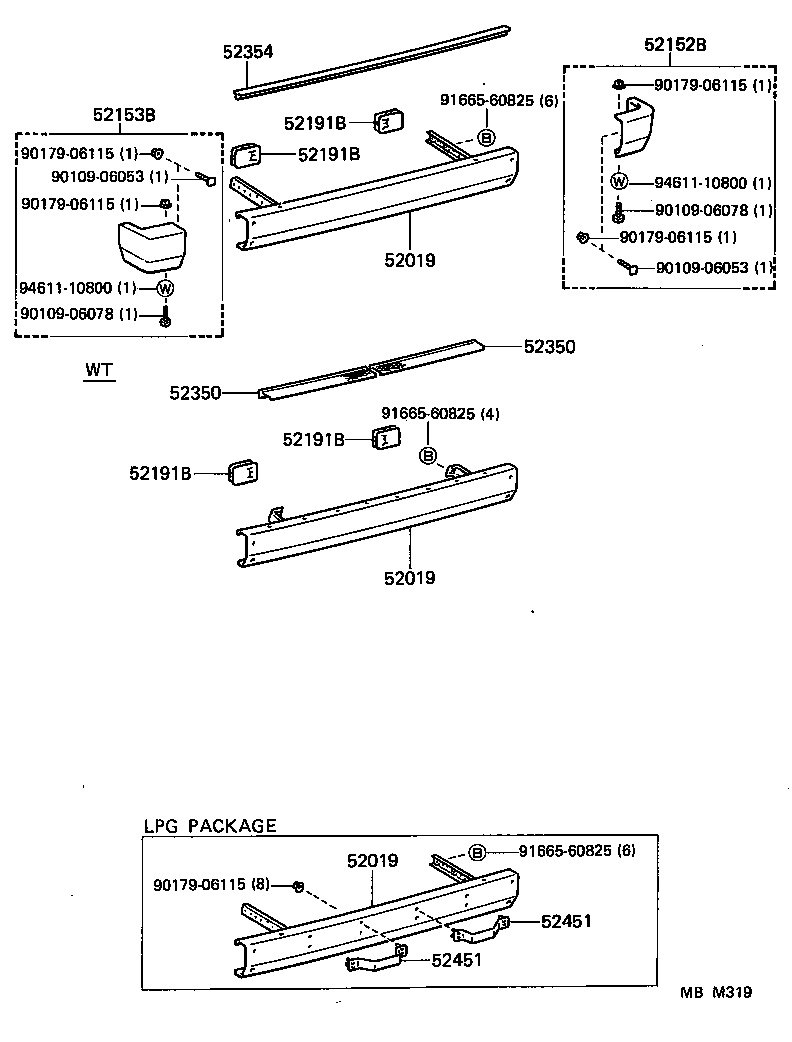

Click highlighted areas on diagram

diagram 52019 52019 52019 52152B 52153B 52191B 52191B 52191B 52191B 52350 52350 52354 52451 52451 9010906053 9010906053 9010906078 9010906078 9017906115 9017906115 9017906115 9017906115 9017906115 9166560825 9166560825 9166560825 9461110800 9461110800
Part # Description Qty Price
52019 - BAR SUB-ASSY, REAR BUMPER
52019-95J24

YH50..06S

LPG ﾊﾞﾝ

 1
52019-95J17

LH71;LH5#,YH50,51,52,71..COM,V

TYPE A;TYPE A(ｽﾃｰ250ﾐﾘ,ﾁｮｯｹｲ9ﾐﾘｱﾅ 6ｺ)

 1
52019-95J30

LH5#,71,YH50,51,52,71..COM,V

TYPE B(ｽﾃｰ170ﾐﾘ,ﾁｮｯｹｲ9ﾐﾘｱﾅ 3ｺ)

 1
52019 - BAR SUB-ASSY, REAR BUMPER
52019-95J24

YH50..06S

LPG ﾊﾞﾝ

 1
52019-95J17

LH71;LH5#,YH50,51,52,71..COM,V

TYPE A;TYPE A(ｽﾃｰ250ﾐﾘ,ﾁｮｯｹｲ9ﾐﾘｱﾅ 6ｺ)

 1
52019-95J30

LH5#,71,YH50,51,52,71..COM,V

TYPE B(ｽﾃｰ170ﾐﾘ,ﾁｮｯｹｲ9ﾐﾘｱﾅ 3ｺ)

 1
52019 - BAR SUB-ASSY, REAR BUMPER
52019-95J24

YH50..06S

LPG ﾊﾞﾝ

 1
52019-95J17

LH71;LH5#,YH50,51,52,71..COM,V

TYPE A;TYPE A(ｽﾃｰ250ﾐﾘ,ﾁｮｯｹｲ9ﾐﾘｱﾅ 6ｺ)

 1
52019-95J30

LH5#,71,YH50,51,52,71..COM,V

TYPE B(ｽﾃｰ170ﾐﾘ,ﾁｮｯｹｲ9ﾐﾘｱﾅ 3ｺ)

 1
52152B - EXTENSION, REAR BUMPER, RH
52165-29015

LH5#,61,71,YH50,51,52,6#,71..COM,V

 1
52153B - EXTENSION, REAR BUMPER, LH
52166-29015

LH5#,61,71,YH50,51,52,6#,71..COM,V

 1
52191B - GROMMET, REAR BUMPER STAY
52191-95A00

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 2
52191B - GROMMET, REAR BUMPER STAY
52191-95A00

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 2
52191B - GROMMET, REAR BUMPER STAY
52191-95A00

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 2
52191B - GROMMET, REAR BUMPER STAY
52191-95A00

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 2
52354 - SHUTTER, REAR CROSS TO BUMPER
52354-95J00

LH5#,71,YH50,51,52,71..CD,DX,GL,SGL

 1
52451 - GUARD, REAR BUMPER
52405-95J00

YH50..06S

 1
52451-95J00

YH50..06S

 2
52451 - GUARD, REAR BUMPER
52405-95J00

YH50..06S

 1
52451-95J00

YH50..06S

 2
Common parts
90109-06053
90109-06078
90179-06115
91665-60825
94611-10800
