YH50V-QBF (1987)

Toyota Hiace Van,Wagon

Production Aug 1987 - Aug 1989
Engine 2Y
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )CD,DX,GL

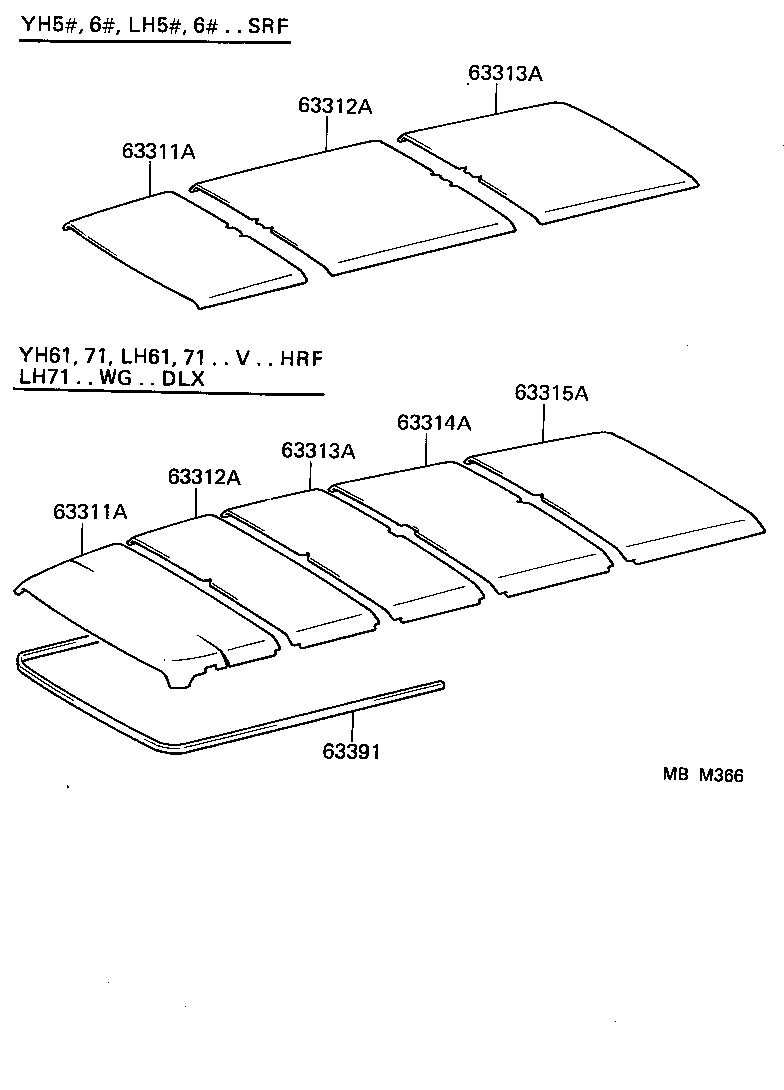

Click highlighted areas on diagram

diagram 63311A 63311A 63312A 63312A 63313A 63313A 63314A 63315A 63391
Part # Description Qty Price
63311A - HEADLINING, ROOF NO.1
63311-95J1008

LH66..DX..08S;LH5#,6#,YH50,51,52,6#..SRF..(CD,DX,GL)..(03S,05S,06S,09S,10S,15S)

IVORY,TRIM4#,8#

 1
63311A - HEADLINING, ROOF NO.1
63311-95J1008

LH66..DX..08S;LH5#,6#,YH50,51,52,6#..SRF..(CD,DX,GL)..(03S,05S,06S,09S,10S,15S)

IVORY,TRIM4#,8#

 1
63312A - HEADLINING, ROOF, NO.2
63312-95J0308

LH66..DX..08S;LH5#,6#,YH50,51,52,6#..SRF..(CD,DX,GL)..(03S,05S,06S,09S,10S,15S)

IVORY,TRIM4#,8#

 1
63312A - HEADLINING, ROOF, NO.2
63312-95J0308

LH66..DX..08S;LH5#,6#,YH50,51,52,6#..SRF..(CD,DX,GL)..(03S,05S,06S,09S,10S,15S)

IVORY,TRIM4#,8#

 1
63313A - HEADLINING, ROOF, NO.3
63313-95J1508

LH5#,YH50,51,52..CD,DX,GL

IVORY,TRIM4#,8#

 1
63313A - HEADLINING, ROOF, NO.3
63313-95J1508

LH5#,YH50,51,52..CD,DX,GL

IVORY,TRIM4#,8#

 1
