YH50V-QBF (1987)

Toyota Hiace Van,Wagon

Production Aug 1987 - Aug 1989
Engine 2Y
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )2Y,3Y

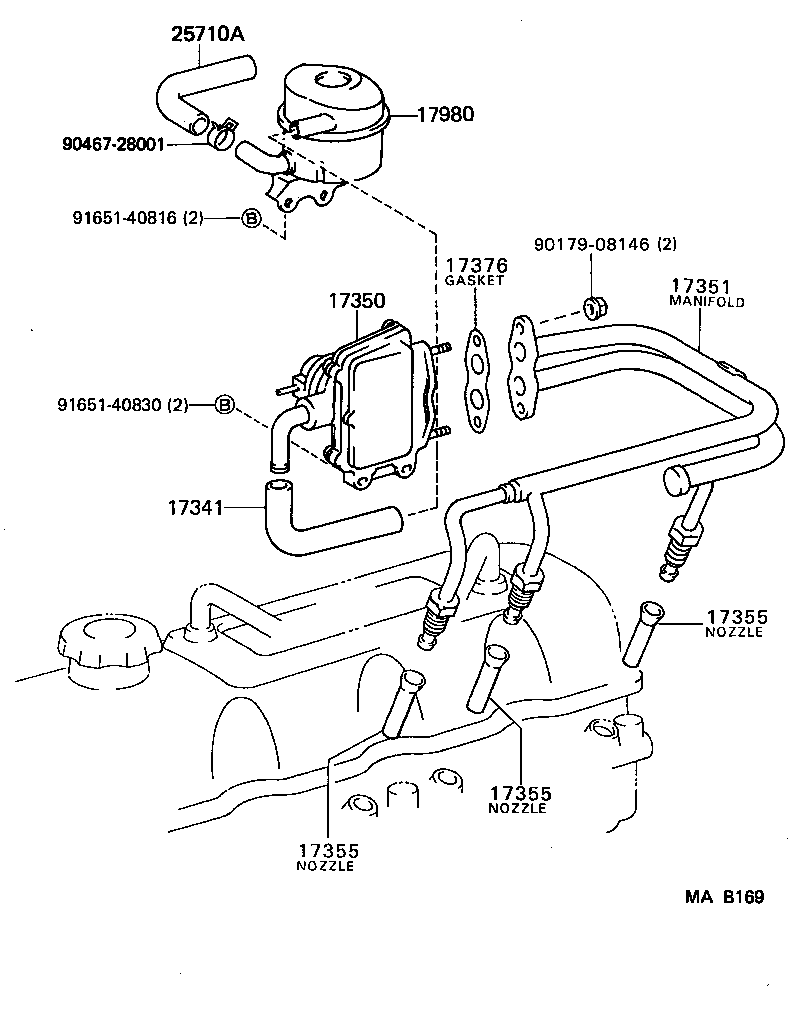

Click highlighted areas on diagram

diagram 17341 17350 17351 17355 17355 17355 17376 17980 25710A 9017908146 9046728001 9165140816 9165140830
Part # Description Qty Price
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-71010

2Y,3Y#..YH5#,6#,71

 1
17350 - VALVE ASSY, REED
17350-72040

2Y,3Y..YH50,51,61,71

 1
17351 - MANIFOLD, AIR INJECTION
17306-73011

2Y,3Y..YH50,51,61,71

 1
17355 - NOZZLE, AIR INJECTION
17355-71010

2Y,3Y..YH50,51,61,71

 3
17355 - NOZZLE, AIR INJECTION
17355-71010

2Y,3Y..YH50,51,61,71

 3
17355 - NOZZLE, AIR INJECTION
17355-71010

2Y,3Y..YH50,51,61,71

 3
17376 - GASKET, AIR TUBE, NO.1
17376-71010

2Y,3Y,3YU..YH50,51,57,61,71

 1
17980 - FILTER ASSY, AIR SUCTION
17980-71012

2Y,3Y#..YH5#,6#,71

 1
25710A - HOSE(FOR AIR BY-PASS VALVE TO AIR SWITCHING VALVE)
17342-72011

2Y,3Y#..YH5#,6#,71

 1
Common parts
90179-08146
90467-28001
91651-40816
91651-40830
