YH50V-QB (1987)
Toyota Hiace Van,Wagon

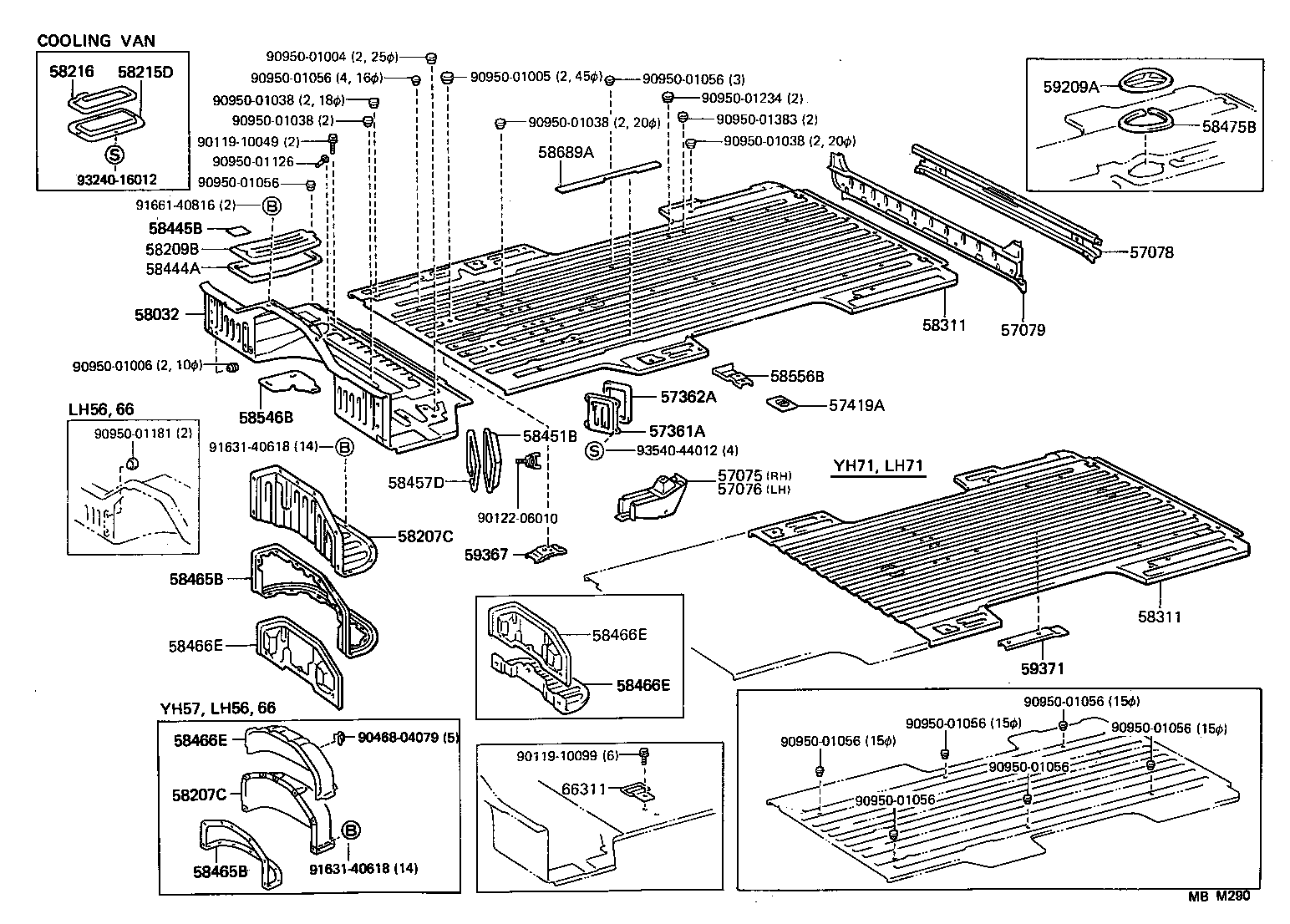

ILLUST NO. 1 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57078 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER | ||||
| 57078-95J03 |
LH61,71,YH61..ST;LH66..(DX,SGL)..08S;LH5#,66,YH50,51,52,62,71..(COM,V)..(03S,05S,06S,09S,15S) |
1 | ||
| 57079 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER | ||||
| 57079-95J00 |
LH61,71,YH61..ST;LH66..(DX,SGL)..08S;LH5#,66,YH50,51,52,62,71..(COM,V)..(03S,05S,06S,09S,15S) |
1 | ||
| 57361A - COVER, NO.2 OUTERIGGER HOLE | ||||
| 57361-95J00 |
LH66..05S;LH61..V5D..ST;LH61,YH50,61..V4D;LH66..(DX,SGL)..08S;LH61,YH51,61..COM,WG;LH5#,71,YH52,57,62,71 |
1 | ||
| 57361-95J00 |
LH66..(DX,SGL)..08S;LH51,61,YH61..COM,WG;LH5#,6#,YH50,61..V4D..(03S,05S,06S,09S);LH71,YH51,52,57,62,71..03S,06S,07S,08S,09S,10S,15S |
1 | ||
| 57362A - PACKING, NO.2 OUTRIGGER HOLE COVER | ||||
| 57362-95J00 |
LH66..05S;LH61..V5D..ST;LH61,YH50,61..V4D;LH66..(DX,SGL)..08S;LH61,YH51,61..COM,WG;LH5#,71,YH52,57,62,71 |
1 | ||
| 57362-95J00 |
LH66..(DX,SGL)..08S;LH51,61,YH61..COM,WG;LH5#,6#,YH50,61..V4D..(03S,05S,06S,09S);LH71,YH51,52,57,62,71..03S,06S,07S,08S,09S,10S,15S |
1 | ||
| 58032 - PANEL SUB-ASSY, HEADER | ||||
| 58032-95J60 |
YH50,52,6#..V4D..ST |
1 | ||
| 58207C - COVER SUB-ASSY, TRANSMISSION SERVICE HOLE | ||||
| 58207-95J05 |
YH50,51,52,6#,71..(COM,V)..ST |
1 | ||
| 58207C - COVER SUB-ASSY, TRANSMISSION SERVICE HOLE | ||||
| 58207-95J05 |
YH50,51,52,6#,71..(COM,V)..ST |
1 | ||
| 58209B - COVER SUB-ASSY, BATTERY SERVICE HOLE | ||||
| 58209-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58315-95J03 |
LH51,YH50,52..V4D..03S |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58315-95J03 |
LH51,YH50,52..V4D..03S |
1 | ||
| 58444A - PACKING, BATTERY SERVICE HOLE COVER | ||||
| 58444-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 58445B - PAD, BATTERY SERVICE HOLE COVER | ||||
| 58445-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 58451B - COVER, AIR CLEANER SERVICE HOLE | ||||
| 58451-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..ST |
1 | ||
| 58457D - PACKING, AIR CLEANER SERVICE HOLE COVER | ||||
| 58457-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 58465B - PACKING, TRANSMISSION SERVICE HOLE COVER | ||||
| 58465-95J02 |
LH51,61,71,YH50,51,52,6#,71..ST |
1 | ||
| 58465B - PACKING, TRANSMISSION SERVICE HOLE COVER | ||||
| 58465-95J02 |
LH51,61,71,YH50,51,52,6#,71..ST |
1 | ||
| 58466E - SILENCER, TRANSMISSION SERVICE HOLE COVER, NO.1 | ||||
| 58327-95J00 |
LH51,61,71,YH50,51,52,6#,71..ST 上側 |
1 | ||
| 58327-95J06 |
LH51,61,71,YH50,51,52,6#,71..ST 下側 |
1 | ||
| 58466E - SILENCER, TRANSMISSION SERVICE HOLE COVER, NO.1 | ||||
| 58327-95J00 |
LH51,61,71,YH50,51,52,6#,71..ST 上側 |
1 | ||
| 58327-95J06 |
LH51,61,71,YH50,51,52,6#,71..ST 下側 |
1 | ||
| 58466E - SILENCER, TRANSMISSION SERVICE HOLE COVER, NO.1 | ||||
| 58327-95J00 |
LH51,61,71,YH50,51,52,6#,71..ST 上側 |
1 | ||
| 58327-95J06 |
LH51,61,71,YH50,51,52,6#,71..ST 下側 |
1 | ||
| 58466E - SILENCER, TRANSMISSION SERVICE HOLE COVER, NO.1 | ||||
| 58327-95J00 |
LH51,61,71,YH50,51,52,6#,71..ST 上側 |
1 | ||
| 58327-95J06 |
LH51,61,71,YH50,51,52,6#,71..ST 下側 |
1 | ||
| 58475B - PACKING, INSPECTION HOLE COVER | ||||
| 58475-95J00 |
LH66..05S;LH51..MRF..TD;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..CBR,DSL |
1 | ||
| 58689A - WEIGHT, REAR FLOOR | ||||
| 58689-95J01 |
YH50..V4D..(03S,05S) L=425 |
4 | ||
| 58689-95J00 |
LH61,71,YH71..15S;YH50..V4D..(03S,05S) 長さ=800 |
4 | ||
| 59209A - COVER SUB-ASSY, INSPECTION HOLE | ||||
| 59209-95J00 |
LH66..05S;LH51..MRF..TD;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..CBR,DSL |
1 | ||
| 66311 - HOOK, ROPE | ||||
| 66311-95J00 |
LH51,6#,YH50,61..(CD,SGL)..(03S,05S) |
6 | ||
| Common parts | ||||
| 90119-10049 | ||||
| 90119-10099 | ||||
| 90122-06010 | ||||
| 90468-04079 | ||||
| 90950-01004 | ||||
| 90950-01005 | ||||
| 90950-01006 | ||||
| 90950-01038 | ||||
| 90950-01056 | ||||
| 90950-01126 | ||||
| 90950-01181 | ||||
| 90950-01234 | ||||
| 90950-01383 | ||||
| 91631-40618 | ||||
| 91661-40816 | ||||
| 93240-16012 | ||||
| 93540-44012 | ||||

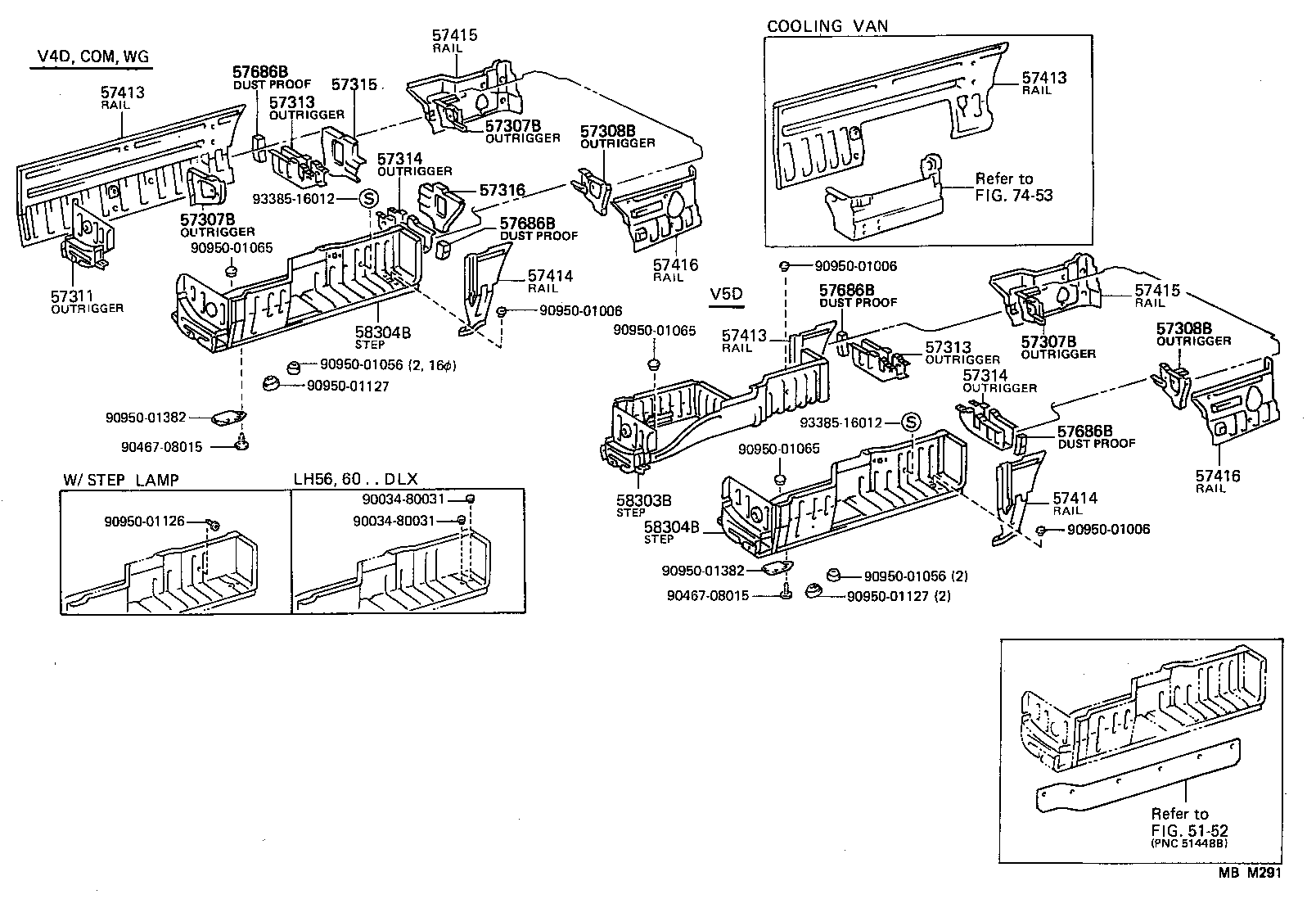

ILLUST NO. 2 OF 2(8708- )ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57307B - OUTRIGGER SUB-ASSY, NO.4 RH | ||||
| 57307-95J05 |
LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,61,71..V4D..(03S,05S,06S,09S)..ST ﾘﾔ |
1 | ||
| 57317-95J03 |
LH66..(DX,SGL)..08S;LH51,61..(COM,WG)..(07S,08S,09S,15S);LH5#,6#,YH50,61..V4D..(03S,05S,06S,09S)..ST;LH71,YH51,52,57,62,71..03S,06S,07S,08S,09S,15S ﾌﾛﾝﾄ |
1 | ||
| 57307B - OUTRIGGER SUB-ASSY, NO.4 RH | ||||
| 57307-95J05 |
LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,61,71..V4D..(03S,05S,06S,09S)..ST ﾘﾔ |
1 | ||
| 57317-95J03 |
LH66..(DX,SGL)..08S;LH51,61..(COM,WG)..(07S,08S,09S,15S);LH5#,6#,YH50,61..V4D..(03S,05S,06S,09S)..ST;LH71,YH51,52,57,62,71..03S,06S,07S,08S,09S,15S ﾌﾛﾝﾄ |
1 | ||
| 57307B - OUTRIGGER SUB-ASSY, NO.4 RH | ||||
| 57307-95J05 |
LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,61,71..V4D..(03S,05S,06S,09S)..ST ﾘﾔ |
1 | ||
| 57317-95J03 |
LH66..(DX,SGL)..08S;LH51,61..(COM,WG)..(07S,08S,09S,15S);LH5#,6#,YH50,61..V4D..(03S,05S,06S,09S)..ST;LH71,YH51,52,57,62,71..03S,06S,07S,08S,09S,15S ﾌﾛﾝﾄ |
1 | ||
| 57308B - OUTRIGGER SUB-ASSY, NO.4 LH | ||||
| 57308-95J05 |
LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,61,71..V..(03S,05S,06S,09S)..ST |
1 | ||
| 57308B - OUTRIGGER SUB-ASSY, NO.4 LH | ||||
| 57308-95J05 |
LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,61,71..V..(03S,05S,06S,09S)..ST |
1 | ||
| 57311 - OUTRIGGER, NO.1 RH | ||||
| 57301-95J04 |
LH66..(DX,SGL)..08S;LH51,61,YH61..COM,WG;LH5#,6#,YH50,61..V4D..(03S,05S,06S,09S)..ST;LH71,YH51,52,57,62,71..03S,06S,07S,08S,09S,10S,15S |
1 | ||
| 57313 - OUTRIGGER, NO.2 RH | ||||
| 57303-95J13 |
LH5#,YH50..V4D |
1 | ||
| 57303-95J13 |
LH5#,YH50,52..V4D |
1 | ||
| 57313 - OUTRIGGER, NO.2 RH | ||||
| 57303-95J13 |
LH5#,YH50..V4D |
1 | ||
| 57303-95J13 |
LH5#,YH50,52..V4D |
1 | ||
| 57314 - OUTRIGGER, NO.2 LH | ||||
| 57304-95J12 |
LH5#,YH50,51..V |
1 | ||
| 57314 - OUTRIGGER, NO.2 LH | ||||
| 57304-95J12 |
LH5#,YH50,51..V |
1 | ||
| 57413 - RAIL, FLOOR SIDE, CENTER RH | ||||
| 57405-95J22 |
LH51,YH50,52..V4D..03S |
1 | ||
| 57413 - RAIL, FLOOR SIDE, CENTER RH | ||||
| 57405-95J22 |
LH51,YH50,52..V4D..03S |
1 | ||
| 57413 - RAIL, FLOOR SIDE, CENTER RH | ||||
| 57405-95J22 |
LH51,YH50,52..V4D..03S |
1 | ||
| 57414 - RAIL, FLOOR SIDE, CENTER LH | ||||
| 57414-95J23 |
LH51,YH50,52..03S |
1 | ||
| 57414 - RAIL, FLOOR SIDE, CENTER LH | ||||
| 57414-95J23 |
LH51,YH50,52..03S |
1 | ||
| 57415 - RAIL, FLOOR SIDE, REAR RH | ||||
| 57047-95J08 |
LH5#,YH50,51,52..V..(CD,DX,GL) |
1 | ||
| 57415 - RAIL, FLOOR SIDE, REAR RH | ||||
| 57047-95J08 |
LH5#,YH50,51,52..V..(CD,DX,GL) |
1 | ||
| 57416 - RAIL, FLOOR SIDE, REAR LH | ||||
| 57416-95J07 |
LH5#,YH50,51,52..V |
1 | ||
| 57048-95J11 |
LH5#,YH50,51,52..V |
1 | ||
| 57416 - RAIL, FLOOR SIDE, REAR LH | ||||
| 57416-95J07 |
LH5#,YH50,51,52..V |
1 | ||
| 57048-95J11 |
LH5#,YH50,51,52..V |
1 | ||
| 57686B - DUST PROOF, OUTRIGGER, NO.2 | ||||
| 57686-95J00 |
LH66..05S;LH5#,61,YH5#,6#..ST;LH66..(DX,SGL)..08S |
2 | ||
| 57686B - DUST PROOF, OUTRIGGER, NO.2 | ||||
| 57686-95J00 |
LH66..05S;LH5#,61,YH5#,6#..ST;LH66..(DX,SGL)..08S |
2 | ||
| 57686B - DUST PROOF, OUTRIGGER, NO.2 | ||||
| 57686-95J00 |
LH66..05S;LH5#,61,YH5#,6#..ST;LH66..(DX,SGL)..08S |
2 | ||
| 57686B - DUST PROOF, OUTRIGGER, NO.2 | ||||
| 57686-95J00 |
LH66..05S;LH5#,61,YH5#,6#..ST;LH66..(DX,SGL)..08S |
2 | ||
| 58304B - STEP SUB-ASSY, REAR FLOOR, LH | ||||
| 58304-95J49 |
LH5#,6#,71,YH50,52,6#,71..(CD,DX)..(03S,05S,06S)..ST |
1 | ||
| 58304-95J40 |
LH61..(03S,06S)..ST;LH51,71,YH50,52,6#,71..5H..(03S,06S)..ST ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 58304-95J40 |
LH51,61,71,YH50,52,6#,71..(03S,06S)..ST ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 58304B - STEP SUB-ASSY, REAR FLOOR, LH | ||||
| 58304-95J49 |
LH5#,6#,71,YH50,52,6#,71..(CD,DX)..(03S,05S,06S)..ST |
1 | ||
| 58304-95J40 |
LH61..(03S,06S)..ST;LH51,71,YH50,52,6#,71..5H..(03S,06S)..ST ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 58304-95J40 |
LH51,61,71,YH50,52,6#,71..(03S,06S)..ST ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| Common parts | ||||
| 90034-80031 | ||||
| 90467-08015 | ||||
| 90950-01006 | ||||
| 90950-01056 | ||||
| 90950-01065 | ||||
| 90950-01126 | ||||
| 90950-01127 | ||||
| 90950-01382 | ||||
| 93385-16012 | ||||
| Linked diagrams | ||||
| 5152 | ||||
| 7453 | ||||
