YH50V-QB (1987)

Toyota Hiace Van,Wagon

Production Aug 1987 - Aug 1989
Engine 2Y
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

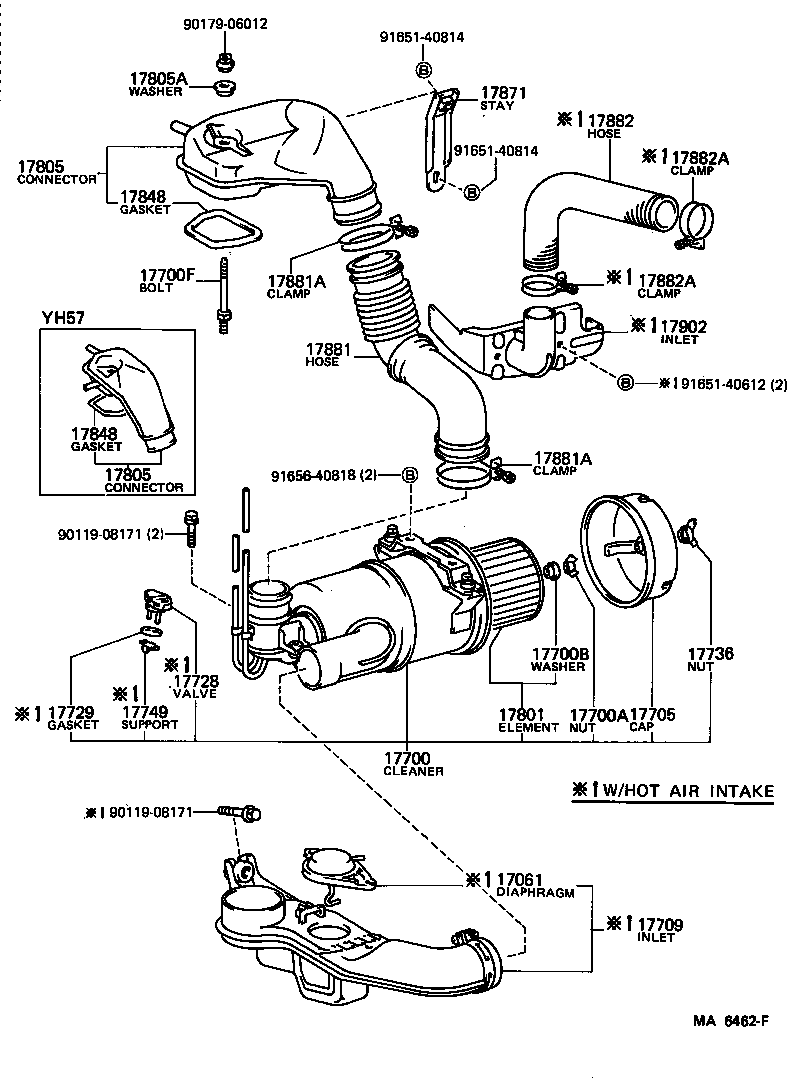

ILLUST NO. 1 OF 2(8708- )2Y,3Y#

Click highlighted areas on diagram

diagram 17061 17700 17700A 17700B 17700F 17705 17709 17728 17729 17736 17749 17801 17805 17805 17805A 17848 17848 17871 17881 17881A 17881A 17882 17882A 17882A 17902 9011908171 9011908171 9017906012 9165140612 9165140814 9165140814 9165640818
Part # Description Qty Price
17061 - DIAPHRAGM SUB-ASSY
17061-72010

2Y,3Y#..YH5#,6#,71

 1
17700 - CLEANER ASSY, AIR
17700-72030

2Y,3Y#..YH5#,6#,71..ST

 1
17700A - NUT, WING(FOR AIR CLEANER)
94271-00800

2Y,3Y#..YH5#,6#,71

 1
17700B - WASHER, SEAL(FOR AIR CLEANER)
90210-08024

2Y,3Y#..YH5#,6#,71

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06036

2Y,3Y#..YH5#,6#,71

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-72020

2Y,3Y#..YH5#,6#,71

 1
17709 - INLET SUB-ASSY, AIR CLEANER
17709-72010

2Y,3Y#..YH5#,6#,71

 1
17728 - VALVE, THERMOSTATIC
17728-31010

2Y,3Y#..YH5#,6#,71

 1
17729 - GASKET, THERMOSTAT VALVE
17729-34010

2Y,3Y#..YH5#,6#,71

 1
17736 - NUT, AIR CLEANER CASE
90175-06003

2Y,3Y#..YH5#,6#,71

 1
17749 - SUPPORT, THERMOSTAT VALVE
17749-34010

2Y,3Y#..YH5#,6#,71

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-72010

2Y,3Y#..YH5#,6#,71

 1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17805-73010

2Y,3Y,3YJ..YH50,51,52,6#,71

 1
17805-73011

2Y,3Y,3YJ..YH50,51,52,6#,71

 1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17805-73010

2Y,3Y,3YJ..YH50,51,52,6#,71

 1
17805-73011

2Y,3Y,3YJ..YH50,51,52,6#,71

 1
17805A - GASKET & WASHER, SEAL
90210-09026

2Y,3Y#..YH5#,6#,71

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
17848-35010

2Y,3Y#..YH5#,6#,71

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
17848-35010

2Y,3Y#..YH5#,6#,71

 1
17871 - STAY, AIR CONNECTOR
17871-73010

2Y,3Y#..YH50,51,52,6#,71

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-72010

2Y,3Y#..YH5#,6#,71..ST

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10780

2Y,3Y#..YH5#,6#,71

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10780

2Y,3Y#..YH5#,6#,71

 2
17882 - HOSE, AIR CLEANER, NO.2
17881-74040

2Y,3Y#..YH50,51,52,6#,71

 1
17882-72040

2Y,3Y#..YH50,51,52,6#,71

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-47036

2Y,3Y#..YH5#,6#,71

 2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-47036

2Y,3Y#..YH5#,6#,71

 2
17902 - INLET SUB-ASSY, HOT AIR INTAKE, NO.1
17895-71010

2Y,3Y#..YH50,51,52,6#,71

 1
Common parts
90119-08171
90179-06012
91651-40612
91651-40814
91656-40818

ILLUST NO. 2 OF 2(8708- )2Y,3Y#

Click highlighted areas on diagram

diagram 17750 17755 17755 17767A 17768A 17780C 17793 17793 17882D 53285D 53299A 53709B 53775A 9011908171 9011908171 9038710100 9038710100 9038710100 9038710100 9048016005 9048016005 9048016005 9048016005 9161140620 9161640614 9161640614 9163140825 9163140825 9165640818 9165640818 9611110780 9611110780
Part # Description Qty Price
17750 - COVER ASSY, AIR CLEANER INLET, SEAL
17750-95J00

2Y,3Y#..YH5#,6#,71

 1
17750-95J00

2Y,3Y#..YH5#,6#,71

 1
17755 - SEAL, AIR CLEANER INLET
17755-95J00

2Y,3Y#..YH5#,6#,71

 1
17755-95J00

2Y,3Y#..YH5#,6#,71

 1
17755 - SEAL, AIR CLEANER INLET
17755-95J00

2Y,3Y#..YH5#,6#,71

 1
17755-95J00

2Y,3Y#..YH5#,6#,71

 1
17768A - DUCT, COOL AIR INTAKE, NO.4
17768-95J00

2Y,3Y#..YH5#,6#,71

 1
17768-95J00

2Y,3Y#..YH5#,6#,71

 1
17793 - BRACKET, COOL AIR INTAKE DUCT, NO.3
17793-95J00

2Y,3Y#..YH5#,6#,71

 1
17793-95J00

2Y,3Y#..YH5#,6#,71

 1
17793 - BRACKET, COOL AIR INTAKE DUCT, NO.3
17793-95J00

2Y,3Y#..YH5#,6#,71

 1
17793-95J00

2Y,3Y#..YH5#,6#,71

 1
Common parts
90119-08171
90387-10100
90480-16005
91611-40620
91616-40614
91631-40825
91656-40818
96111-10780
