YH50V-MNFE (1987)
Toyota Hiace Van,Wagon
ILLUST NO. 2 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53829A - PROTECTOR, FRONT FENDER, LOWER | ||||
| 53829-95J01 |
LH56,61,71,YH5#,6#,71 |
2 | ||
| 53829-95J01 |
LH5#,6#,71,YH5#,6#,71 |
2 | ||
| 53829A - PROTECTOR, FRONT FENDER, LOWER | ||||
| 53829-95J01 |
LH56,61,71,YH5#,6#,71 |
2 | ||
| 53829-95J01 |
LH5#,6#,71,YH5#,6#,71 |
2 | ||
| 57441B - COVER, FLOOR SIDE RAIL PLATE | ||||
| 57441-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..HRF,SRF |
2 | ||
| 61339A - SILENCER, PILLAR INNER | ||||
| 61339-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 61347 - COVER, CENTER BODY PILLAR | ||||
| 61347-95J03 |
LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(CD,DX,GL)..(03S,05S,06S,09S,10S,15S) |
2 | ||
| 61785B - BRACE, QUARTER PANEL OUTER | ||||
| 61785-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76607-95J02 |
LH71..5H;LH66..(DX,SGL)..08S;LH5#,6#,YH50,51,52,6#,71..(03S,05S,06S,09S,10S,15S)..ST..(CBR,DSL) |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76608-95J02 |
LH71..5H;LH66..(DX,SGL)..08S;LH5#,6#,YH50,51,52,6#,71..(03S,05S,06S,09S,10S,15S)..ST..(CBR,DSL) |
1 | ||
| Common parts | ||||
| 90034-80031 | ||||
| 90119-06012 | ||||
| 90149-60027 | ||||
| 90159-60096 | ||||
| 90167-60001 | ||||
| 90189-06008 | ||||
| 90480-25001 | ||||
| 90950-01011 | ||||
| 90950-01065 | ||||
| 90950-01066 | ||||
| 90950-01150 | ||||
| 90950-01181 | ||||
| 90950-01212 | ||||
| 90950-01397 | ||||
| 90950-01421 | ||||
| 90950-06003 | ||||
| 90950-06004 | ||||
| 90950-06017 | ||||
| 90950-06040 | ||||
| 91661-60616 | ||||
| 94110-40600 | ||||
| 94180-40600 | ||||
| Linked diagrams | ||||
| 6451 | ||||
| 8715 | ||||

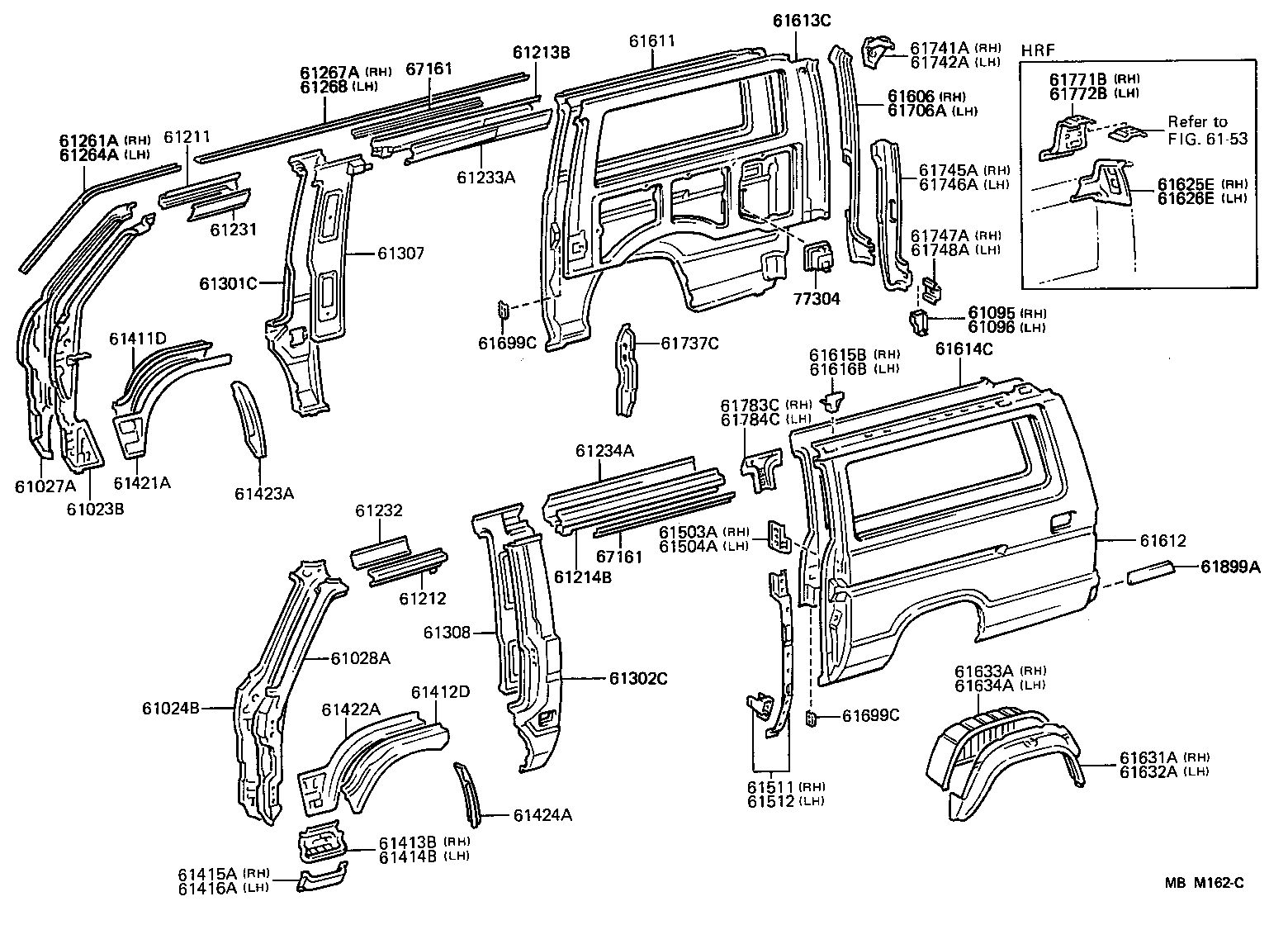

ILLUST NO. 1 OF 2(8708- )V5D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-95J08 |
LH5#,6#,YH50,51,61..GL..(05S,09S) ｱﾘ(ﾃﾞﾝｼﾞ ﾛﾂｸ) |
1 | ||
| 61023-95J06 |
LH51..V..(CD,DX,GL);LH51,66..(4HC,5F)..(CTM,DX)..(08S,09S)..DSL;LH56,6#,71,YH50,51,52,6#,71..(CD,CTM,DX,GL)..(03S,05S,06S,09S,15S) |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-95J04 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..HRF,SRF |
1 | ||
| 61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH | ||||
| 61027-95J05 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..HRF,SRF |
1 | ||
| 61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH | ||||
| 61028-95J00 |
LH66..DX..08S;LH66..(DX,GL)..05S;LH5#,61,71,YH5#,6#,71..(HRF,SRF)..(CD,CTM,DX,GL,SCM) |
1 | ||
| 61095 - PLATE SUB-ASSY, BACK DOOR OPENING, LOWER RH | ||||
| 61095-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 61096 - PLATE SUB-ASSY, BACK DOOR OPENING, LOWER LH | ||||
| 61096-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 61213B - RAIL, ROOF SIDE, OUTER NO.2 RH | ||||
| 61203-95J00 |
LH5#,6#,YH50,51,61..V5D |
1 | ||
| 61214B - RAIL, ROOF SIDE, OUTER NO.2 LH | ||||
| 61204-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-95J00 |
LH66..DX..08S;LH51,71,YH51,71..(V,WG)..(HRF,MRF)..(DX,SCM);LH5#,6#,YH50,51,52,6#..(CD,DX,GL,SCL)..(03S,05S,06S,07S,09S,10S,15S) |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-95J02 |
LH66..DX..08S;LH51,71,YH51,71..(V,WG)..(HRF,MRF)..(DX,SCM);LH5#,6#,YH50,51,52,6#..(CD,DX,GL,SCL)..(03S,05S,06S,07S,09S,10S,15S) |
1 | ||
| 61233A - RAIL, ROOF SIDE, INNER NO.2 RH | ||||
| 61233-95J00 |
LH5#,6#,YH50,51,61..V5D |
1 | ||
| 61234A - RAIL, ROOF SIDE, INNER NO.2 LH | ||||
| 61234-95J00 |
LH61,YH61..(CD,DX,GL)..(03S,05S,06S);LH5#,66,71,YH50,51,52,62,71..(CD,DX,GL)..(03S,05S,06S,10S,15S) |
1 | ||
| 61234-95J00 |
LH61,YH50,61..V5D;LH61,YH61..HRF..ST;LH61,YH50,61..V4D..03S;LH51..(4FC,5H)..(CD,GL);LH5#,66..V5D..MTM..(05S,06S);LH71,YH51,52,62,71..03S,05S,06S,10S,15S |
1 | ||
| 61261A - CHANNEL, ROOF DRIP SIDE, FRONT RH | ||||
| 61263-95J01 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 61264A - CHANNEL, ROOF DRIP SIDE, FRONT LH | ||||
| 61264-95J01 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 61267A - CHANNEL, ROOF DRIP SIDE, REAR RH | ||||
| 61267-95J05 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 61268 - CHANNEL, ROOF DRIP SIDE, REAR LH | ||||
| 61268-95J05 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 61301C - PILLAR SUB-ASSY, CENTER BODY, OUTER RH | ||||
| 61301-95J09 |
LH5#,6#,YH50,51,61..V5D |
1 | ||
| 61301-95J14 |
LH5#,6#,YH50,51,61..V5D..GL ｱﾘ(ﾃﾞﾝｼﾞ ﾛﾂｸ) |
1 | ||
| 61302C - PILLAR SUB-ASSY, CENTER BODY, OUTER LH | ||||
| 61302-95J09 |
LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(CD,CTM,DX,GL)..(03S,05S,06S,09S,10S,15S) |
1 | ||
| 61302-95J15 |
LH5#,6#,YH50,51,61..GL..(05S,09S) ｱﾘ(ﾃﾞﾝｼﾞ ﾛﾂｸ) |
1 | ||
| 61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH | ||||
| 61307-95J25 |
LH5#,6#,YH50,51,61..V5D..ST ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 61307-95J25 |
LH5#,6#,YH50,51,61..V5D..ST ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 61307-95J24 |
LH5#,6#,YH50,51,61..V5D..ST |
1 | ||
| 61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH | ||||
| 61308-95J40 |
LH61,YH61..V5D..03S;LH61,YH61..V4D..(CD,DX,GL)..(03S,05S,06S)..ST;LH51,71,YH50,51,52,62,71..(CD,DX,GL)..(03S,05S,06S) ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 61308-95J39 |
LH51,61,71,YH50,51,52,6#,71..(CD,DX,GL)..(03S,05S,06S)..ST |
1 | ||
| 61308-95J40 |
LH61,YH61..V5D..03S;LH61,YH61..V4D..(CD,DX,GL)..(03S,05S,06S)..ST;LH51,71,YH50,51,52,62,71..(CD,DX,GL)..(03S,05S,06S) ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 61411D - PANEL, FENDER, OUTER RH | ||||
| 61411-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 61412D - PANEL, FENDER, OUTER LH | ||||
| 61412-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 61413B - PANEL, FRONT STEP, RH | ||||
| 61413-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 61414B - PANEL, FRONT STEP, LH | ||||
| 61414-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 61415A - PANEL, FRONT STEP, UNDER, RH | ||||
| 61415-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 61416A - PANEL, FRONT STEP UNDER, LH | ||||
| 61416-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 61421A - PANEL, FENDER, INNER RH | ||||
| 61421-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 61422A - PANEL, FENDER, INNER LH | ||||
| 61422-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 61423A - PANEL, FENDER, INNER LOWER RH | ||||
| 61423-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 61424A - PANEL, FENDER, INNER LOWER LH | ||||
| 61424-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 61503A - REINFORCE SUB-ASSY, SLIDE DOOR LOCK STRIKER, RH | ||||
| 61503-95J00 |
LH5#,6#,YH50,51,61..V5D |
1 | ||
| 61504A - REINFORCE SUB-ASSY, SLIDE DOOR LOCK STRIKER, LH | ||||
| 61504-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 61511 - PILLAR, QUARTER LOCK, RH | ||||
| 61501-95J02 |
LH5#,YH50,51..V5D |
1 | ||
| 61512 - PILLAR, QUARTER LOCK, LH | ||||
| 61502-95J01 |
LH51..WG;LH51..VSG;LH56,YH5# |
1 | ||
| 61606 - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH | ||||
| 61705-95J02 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,YH5#,6#..MRF,SRF |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-95J32 |
LH5#,YH50,51..V5D |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-95J26 |
LH51..WG;LH51..VSG;LH56,YH5# |
1 | ||
| 61613C - PANEL SUB-ASSY, QUARTER, INNER REAR RH | ||||
| 61607-95J28 |
LH5#,YH50,51..V5D..(05S,06S) |
1 | ||
| 61614C - PANEL SUB-ASSY, QUARTER, INNER REAR LH | ||||
| 61608-95J37 |
LH5#,YH50,51..VSG..(DX,GL) |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-95J00 |
LH61,71,YH61..ST;LH66..(DX,SGL)..08S;LH5#,66,YH50,51,52,62,71..(COM,V)..(03S,05S,06S,09S,15S) |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-95J00 |
LH61,71,YH61..ST;LH66..(DX,SGL)..08S;LH5#,66,YH50,51,52,62,71..(COM,V)..(03S,05S,06S,09S,15S) |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61633-95J03 |
LH66..(DX,SGL)..08S;LH61,71,YH61..(V,WG)..ST;LH5#,66,YH50,51,52,62,71..V..(03S,05S,06S,09S) |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61634-95J04 |
LH66,71..(DX,SGL)..(06S,08S,09S,10S);LH5#,6#,YH50,51,52,6#,71..V..(03S,05S,06S,09S)..ST |
1 | ||
| 61699C - RETAINER, COURTESY SWITCH | ||||
| 61699-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 61699C - RETAINER, COURTESY SWITCH | ||||
| 61699-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 61706A - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH | ||||
| 61706-95J02 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,YH5#,6#..MRF,SRF |
1 | ||
| 61737C - REINFORCEMENT, QUARTER, INNER | ||||
| 61737-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..ST |
1 | ||
| 61741A - REINFORCEMENT, BACK DOOR OPENING, UPPER RH | ||||
| 61741-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,YH5#,6#..MRF,SRF |
1 | ||
| 61742A - REINFORCEMENT, BACK DOOR OPENING, UPPER LH | ||||
| 61742-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,YH5#,6#..MRF,SRF |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61077-95J00 |
LH61..VSG..03S;LH61..SRF..(DX,GL,SGL);LH51,66..VSG..(03S,05S,06S);LH51,66..(CTM,DX,SCM,SGL)..(08S,09S);LH56,YH5#,6#..(MRF,SRF)..(CD,CTM,DX,GL,SCM) |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61078-95J00 |
LH61..VSG..03S;LH61..SRF..(DX,GL,SGL);LH51,66..VSG..(03S,05S,06S);LH51,66..(CTM,DX,SCM,SGL)..(08S,09S);LH56,YH5#,6#..(MRF,SRF)..(CD,CTM,DX,GL,SCM) |
1 | ||
| 61747A - EXTENSION, BACK DOOR OPENING LOWER REINFORCEMENT, RH | ||||
| 61747-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 61748A - EXTENSION, BACK DOOR OPENING LOWER REINFORCEMENT, LH | ||||
| 61748-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 61783C - BRACE, QUARTER PANEL, INNER RH | ||||
| 61783-95J04 |
LH5#,6#,YH50,51,61..V5D |
1 | ||
| 61784C - BRACE, QUARTER PANEL, INNER LH | ||||
| 61784-95J02 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 61899A - DUSTPROOF, QUARTER PANEL | ||||
| 61899-95J01 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 長さ=210 |
1 | ||
| 61899-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 L=562 |
2 | ||
| 61899-95J02 |
LH5#,YH5# L=620 |
1 | ||
| 67161 - RETAINER, SLIDE DOOR W/STRIP SET, RH | ||||
| 67161-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 67161 - RETAINER, SLIDE DOOR W/STRIP SET, RH | ||||
| 67161-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 77304 - BOX SUB-ASSY, FUEL INLET | ||||
| 77304-95J00 |
LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(CD,CTM,DX,GL)..(03S,05S,06S,09S,10S,15S) |
1 | ||
| Linked diagrams | ||||
| 6153 | ||||
